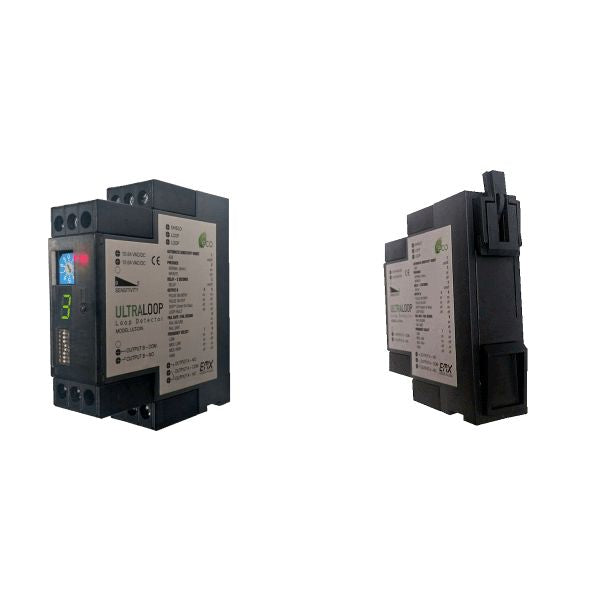

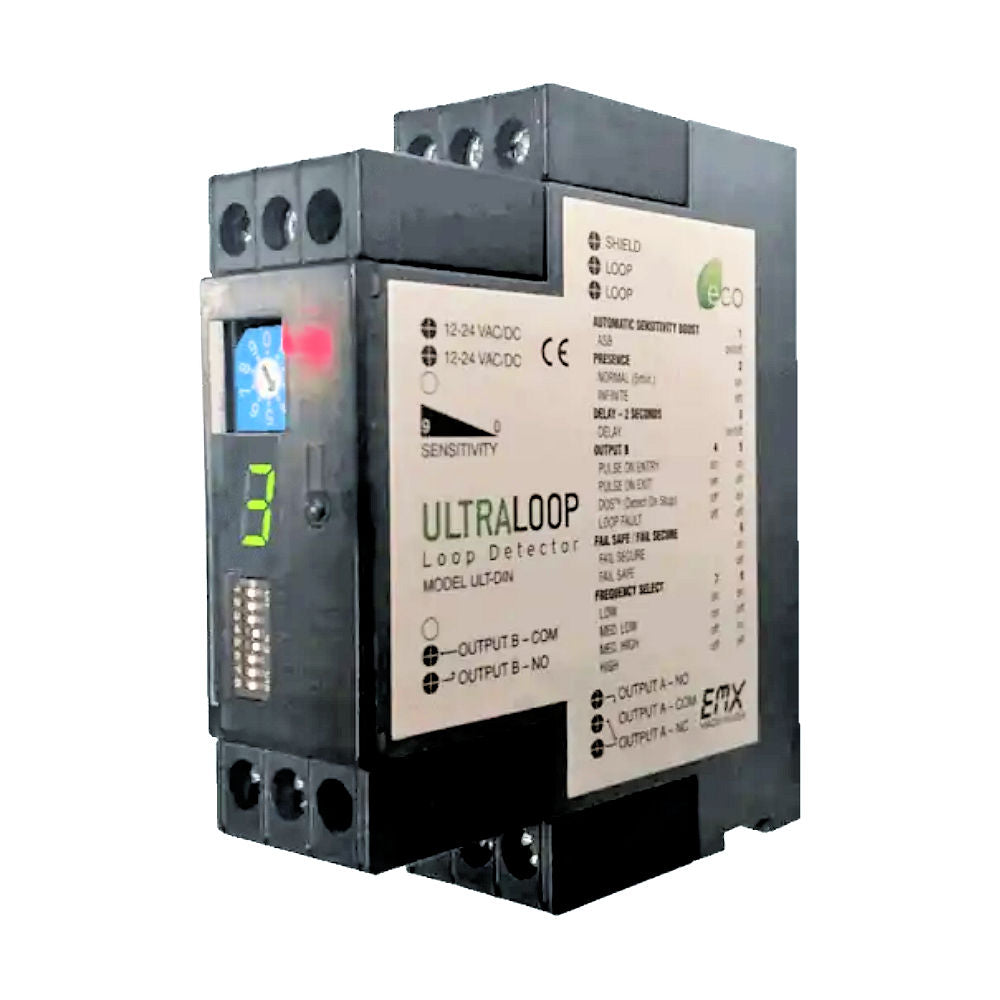

Emx ULTRA-DIN Rail Mount Vehicle Loop Detector

Rail-Mounted Vehicle Detection for Gates and Barriers

The EMX ULTRA-DIN is a compact DIN rail mount loop detector engineered for accurate vehicle detection in gate, barrier, and traffic control applications. With features like ULTRAMETER™ sensitivity display and the exclusive Detect-on-Stop™ (DOS®) technology, it provides precise detection while minimizing false triggers from cross-traffic. Its small form factor allows for easy installation in tight enclosures, making it ideal for modern access control systems.

Key Features

• DIN rail mount design (35mm width)
• ULTRAMETER™ display shows optimum sensitivity and crosstalk interference
• Detect-on-Stop™ (DOS®) detects only when vehicles fully stop on the loop
• 10 adjustable sensitivity settings
• 4 frequency selections to prevent loop crosstalk
• Automatic Sensitivity Boost (ASB) to maintain detection on high-bed vehicles
• Configurable relay outputs for loop fault, pulse entry/exit, or DOS®
• CE compliant

Technical Specifications

• Model: ULT-DIN
• Sensitivity: 10 levels (0–9)
• Loop Frequency: 4 settings (low, med-low, med-high, high)
• Loop Inductance: 20–2000 µH (Q > 5)
• Relay Outputs: SPDT presence relay (form C), SPST auxiliary relay (form A)
• Contact Rating: 1A @ 24VDC–120VAC
• Indicators: Green LED (power/loop fault), Red LED (detection/frequency)
• Power Supply: 12–24 VAC/DC
• Operating Current: 15mA standby / 45mA detect
• Operating Temperature: -40°F to 180°F (-40°C to 82°C)
• Dimensions: 3.2" x 0.9" x 3.3" (80 x 23 x 84 mm)
• Mounting: DIN rail, 35mm

Conclusion

The EMX ULTRA-DIN delivers precision vehicle detection in a compact, rail-mounted design. With Detect-on-Stop™, ULTRAMETER™ diagnostics, and configurable outputs, it ensures reliable performance for gate and barrier control in demanding environments.
