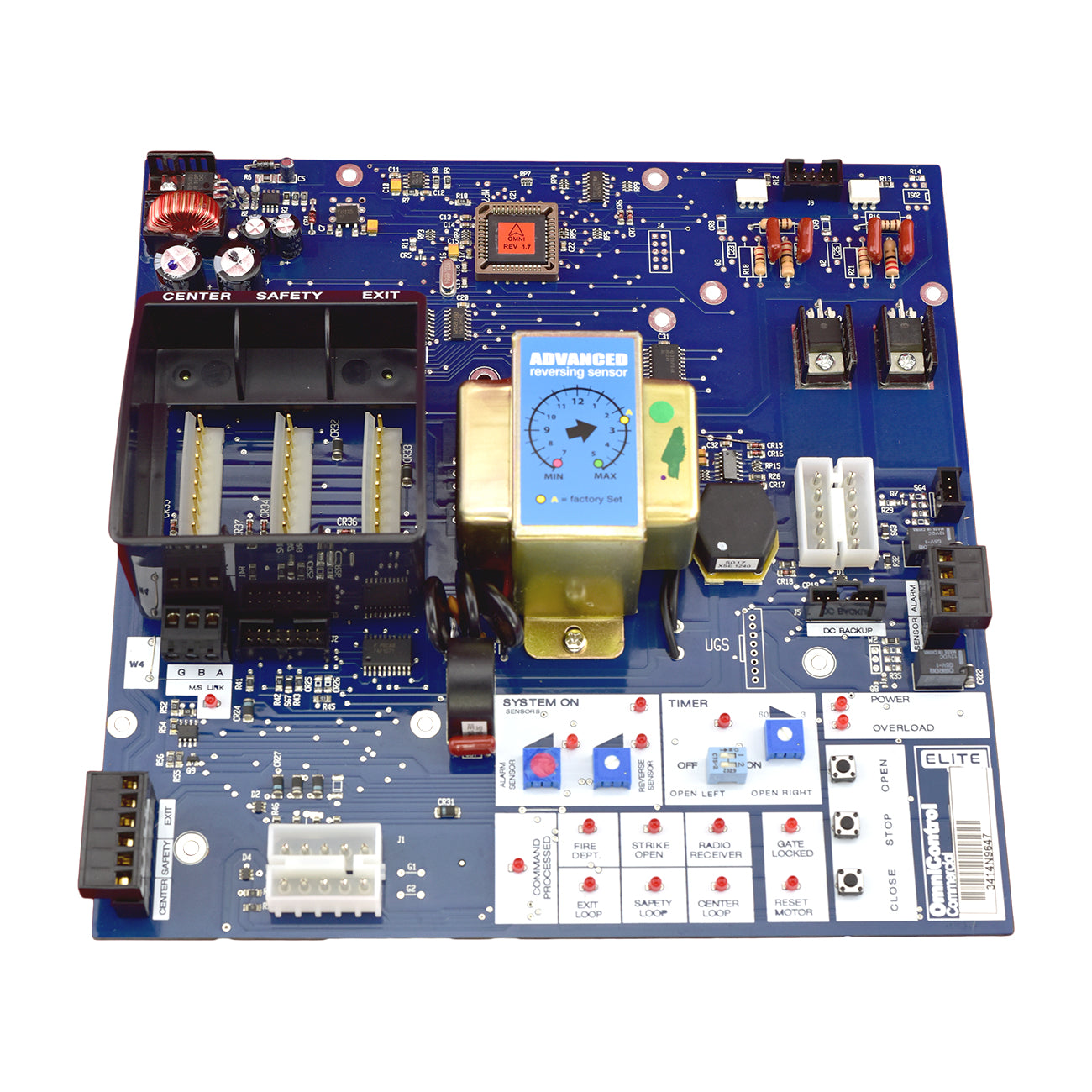

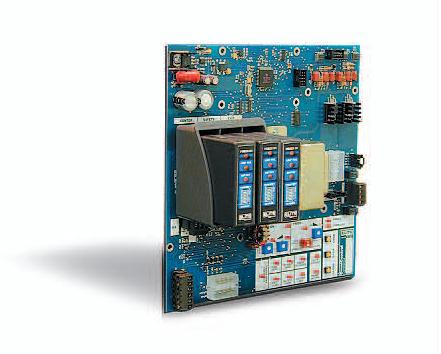

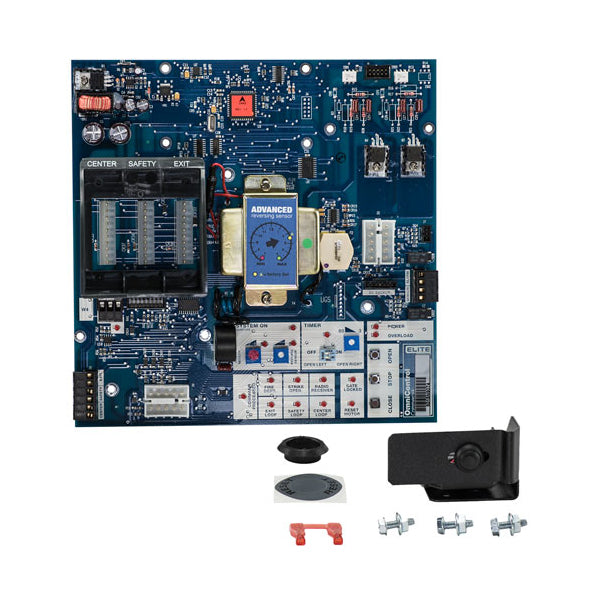

Elite Q400 Circuit Board

Red is power (+); Black is power (-); white and blue go the the "exit loop" terminals on the suppressor. See diagram: https://cdn.shopify.com/s/files/1/0141/9617/8998/products/CartellCP4wiringdiagram_1024x1024@2x.jpg?v=1650051188

If you are replacing it with the same board (omni commercial control board) then it's plug and play

Hello Ashtin. The Q400 does not come with a built-in receiver on the board, rather, the receiver is wired into the Q400 circuit board. To find your receiver, follow the wires on terminals 11, 12, 13 on the surge suppressor.

Hi Luis. Since this question is unrelated to the item in question, we will contact you directly to help you further. Thanks!

Hello Stephen. The LED can represent a commend being given, a motor reset or a fault. Due to the numerous causes, these type of issues need to be handled in the field by a field technician.
