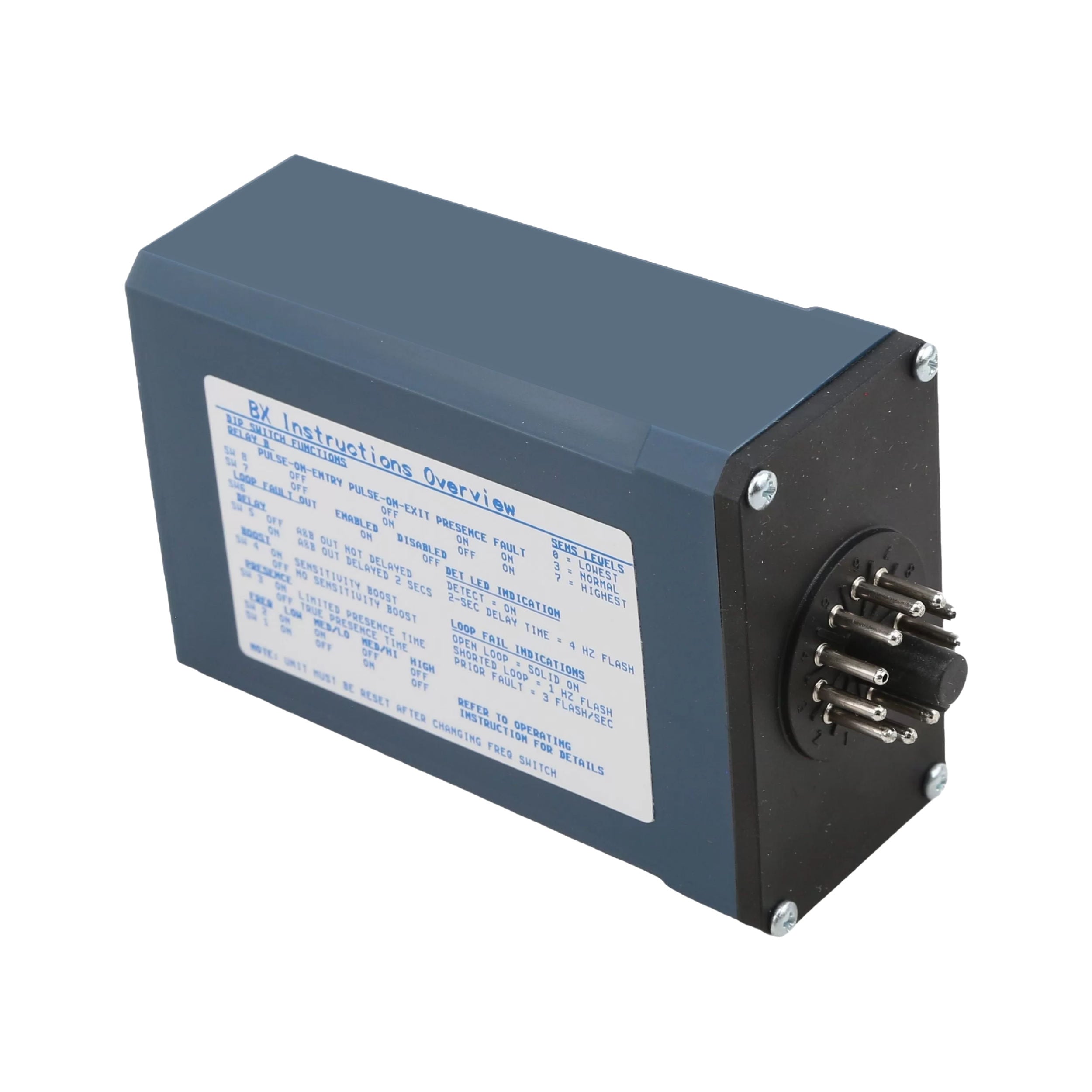

EDI Reno BX-LP Loop Detector, Solar-Friendly

The EDI BX Series is a low-power, single-channel loop detector designed for reliable vehicle presence detection in access control, parking, and perimeter security applications. Featuring TruePresence® technology, the BX maintains detection during brief power interruptions and supports dual output channels, sensitivity boost, and selectable loop frequencies to reduce cross-talk in multi-lane setups. Its ultra-low power consumption makes it ideal for solar-powered gate systems, as well as traditional hardwired installations. Models are available with relay or solid-state outputs to meet a variety of system configurations.

Key Features

• Dual output channels with selectable detection modes
• TruePresence® detection maintains presence while a vehicle remains
• Eight sensitivity levels for fine-tuned detection accuracy
• Four loop frequency settings to prevent cross-talk in multi-lane setups
• Sensitivity boost for high-bed or slow-moving vehicles
• Selectable call delay for smoother gate activation timing
• Call memory preserves detection through brief power loss
• Fail-safe or fail-secure support on relay models
• Solid-state open-collector output on BX-LP-SS
• Low power consumption ideal for solar-powered gate systems

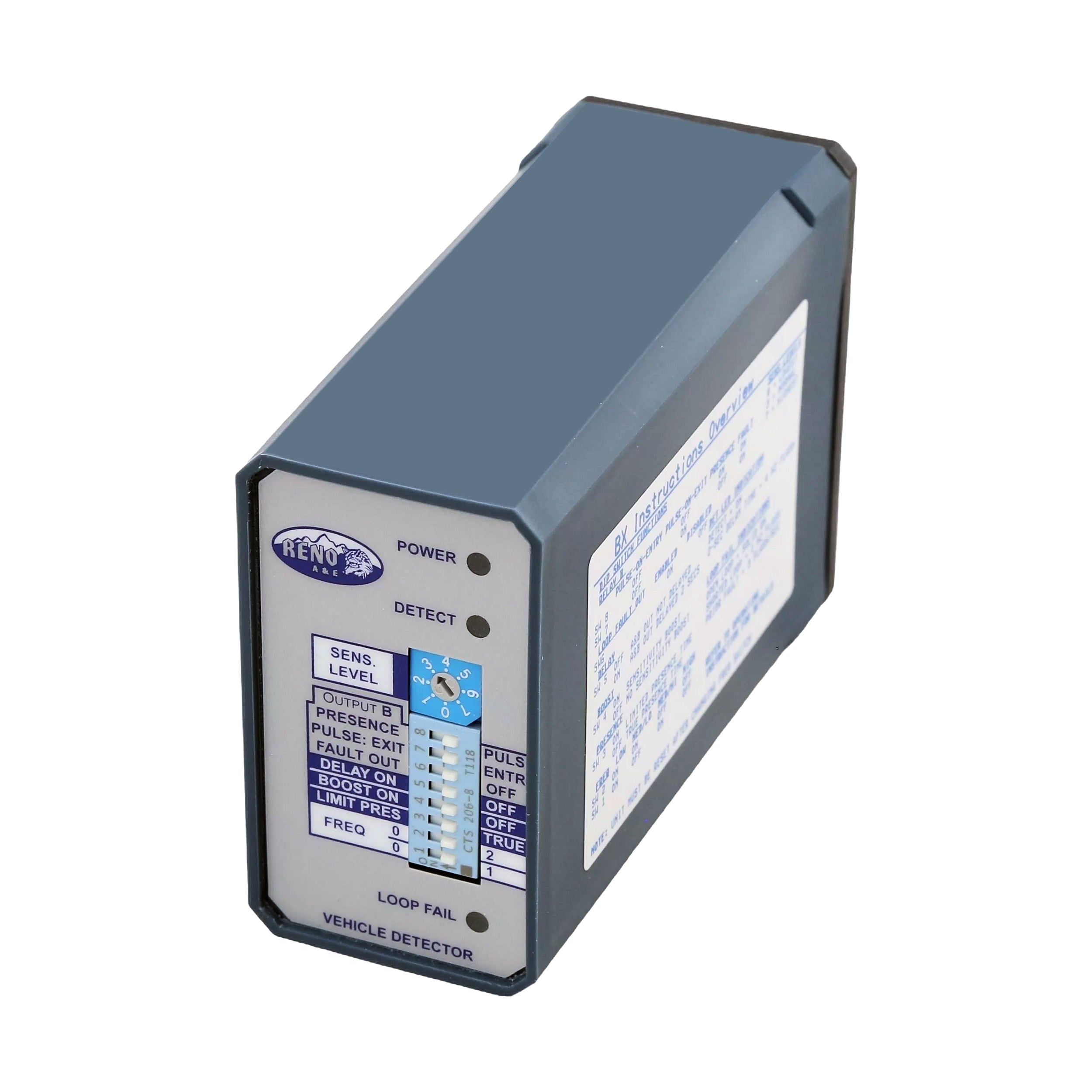

• LED indicators for power, detection, and loop faults

Technical Specifications

• Model Variants: BX-LP, BX-LP-24, BX-LP-SS
• Input Voltage: 12 VDC (BX-LP), 24 VDC (BX-LP-24), 12–24 VDC (BX-LP-SS)
• Output Type: Relay (BX-LP, BX-LP-24), Solid-State Open Collector (BX-LP-SS)
• Loop Frequency: 20–100 kHz (4 selectable)
• Sensitivity Levels: 8
• Detection Modes: Presence, Pulse-on-Entry, Pulse-on-Exit
• Power Consumption: 1.1 to 5.5 mA (no detect)
• Operating Temperature: -35°F to +165°F (-37°C to +74°C)
• Dimensions: 3” H × 1.75” W × 4.3” D
• Weight: 8.8 oz
• Brand: Reno A&E / EDI
• Note: Loop harness not included

Variant Options

• BX-LP: 12 VDC input, relay outputs
• BX-LP-24: 24 VDC input, relay outputs
• BX-LP-SS: 12 or 24 VDC input, solid-state outputs (open-collector)

Conclusion

The EDI BX Series offers precision vehicle detection with ultra-low power draw, making it ideal for automated gates, solar-powered installations, and high-security access systems. Whether you need relay outputs or solid-state control, BX detectors deliver dependable, long-term performance in critical perimeter environments.
