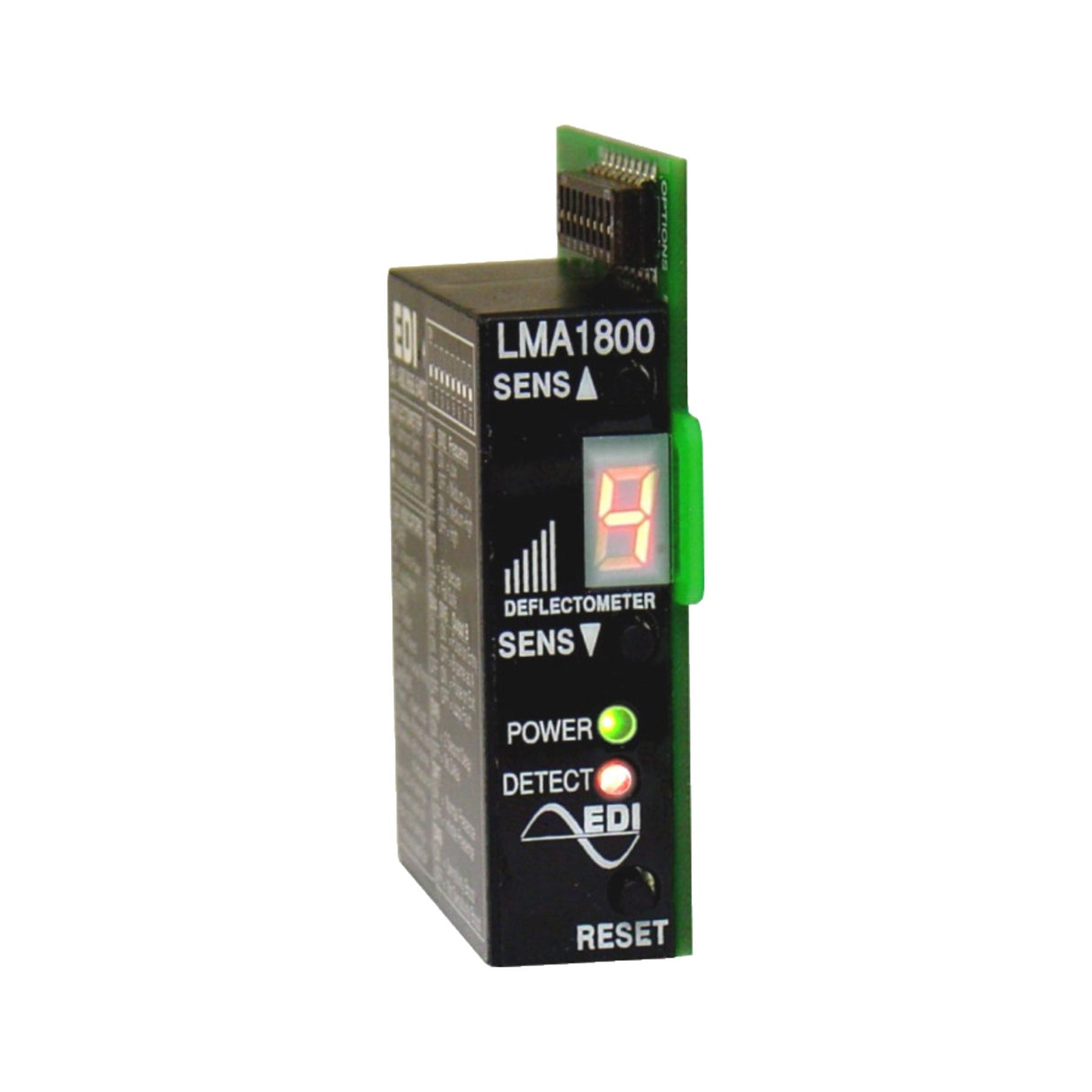

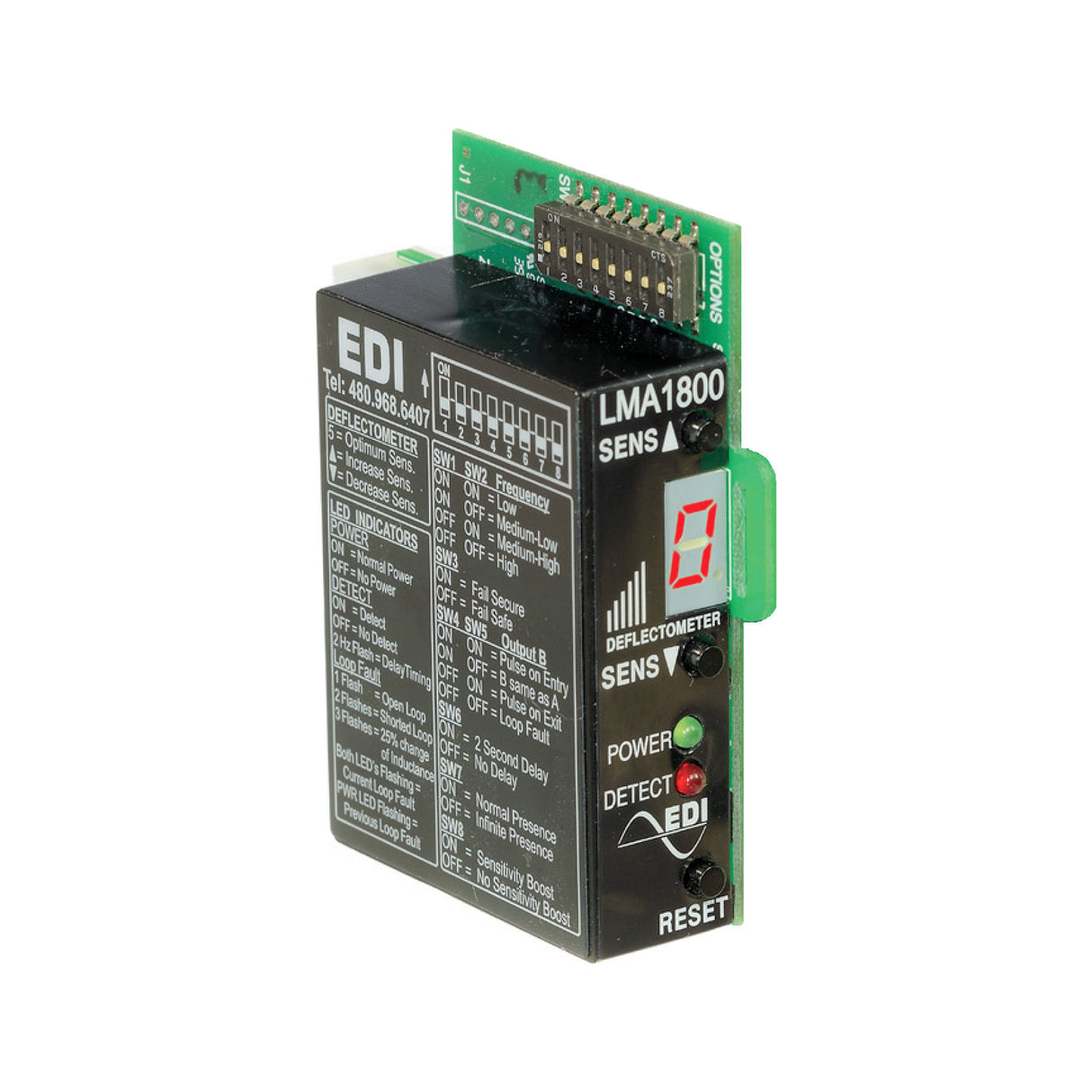

EDI LMA 1800 Plug-In Loop Detector

EDI LMA-1800 Loop Detector Plug-In

Single channel with dual programmable solid state outputs. Printed circuit board (pcb) mounted. The DEFLECTOMETER® display helps optimize the proper sensitivity setting to detect all vehicles including motorcycles. No more guess work when setting sensitivity or frequency.

The EDI Model LMA-1800 operates on 12 VDC, 24 VDC, and 24 VAC. The detector is designed to handle gate, parking, drive-through, and all access control applications where solid-state outputs are required for both the “detect and “fail” outputs. From a diagnostic standpoint, the LMA1800 automatically and continuously senses three (3) types of possible loop fault conditions: Open Loop(s), Shorted Loop(s), sudden changes in inductance exceeding 25% of the nominal inductance. The LMA-1800 also displays the frequency of the loop upon power up. Immediately after applying power, the unit displays 2 or 3 numbers quickly flashing (values between 13 and 150 kilohertz) before the DEFLECTOMETER resets to zero. This allows you to measure and separate the frequency of each detector loop. The detector frequency should be adjusted so that there is a minimum of 5 kilohertz of separation between all adjacent loops.

Compatible with:

• All Linear Operators with APeX controller
• Advanced Access Automation/FAAC CSL2000, CSW2000, RSW1000
• All-O-Matic SL100-DC
• Elite SL3000, CSW200
• Intelligate Systems IQ500, IQ5000
• SECOM Late model operators with 10-pin Molex connectors
• Rotary Gate Systems SL1000R, SL1000C, SL1000I
• TyMetal TYM 1000 , TYM 2000
• Viking Access Models L-3, F-1, T-21, H-10, B-12, Q-4
