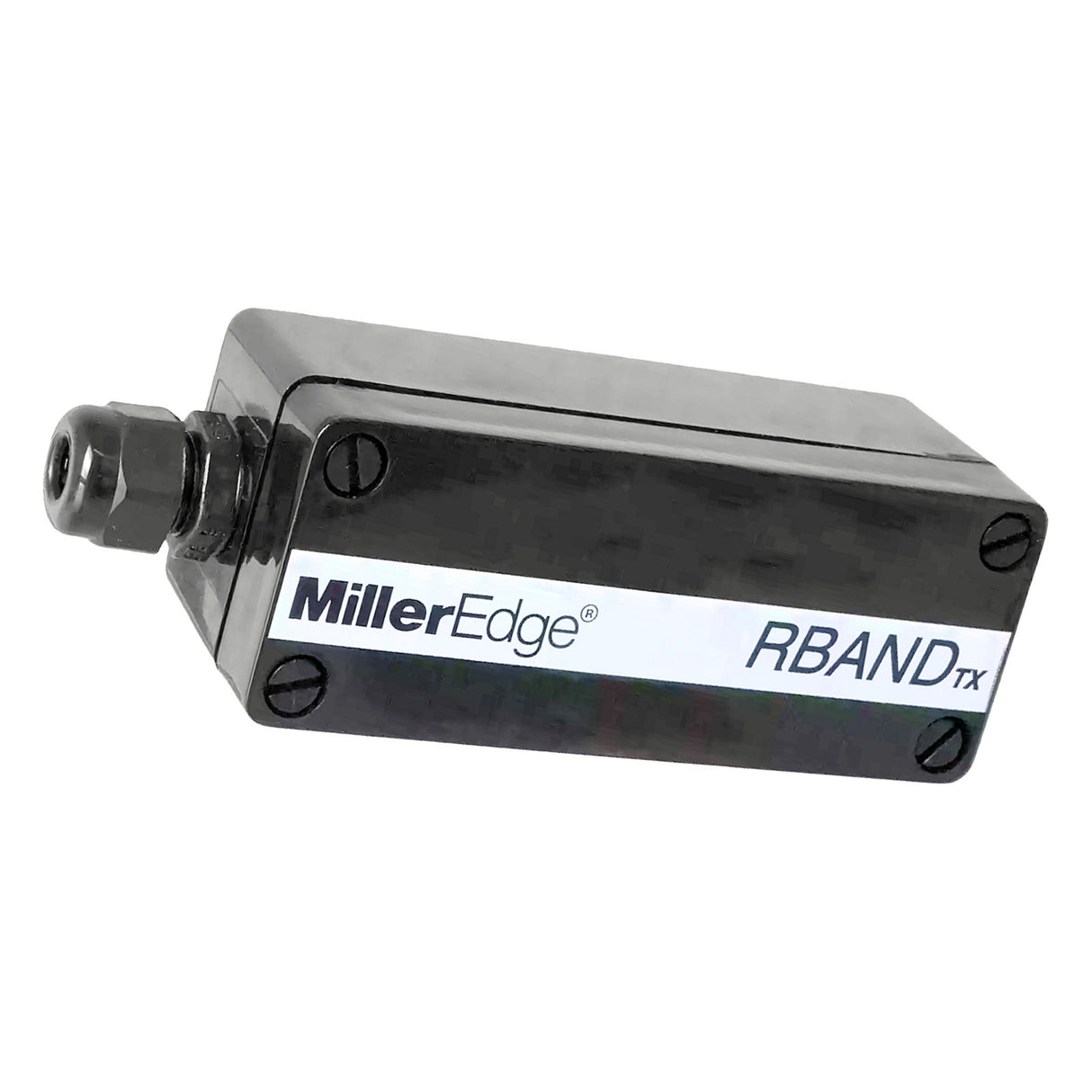

DoorKing 8080-006 Monitored Edge Transmitter

Wireless Monitored Safety Edge Transmitter for UL 325 Gate Protection

The DoorKing 8080-006 Monitored Edge Transmitter is a rugged, outdoor-rated wireless transmitter designed to connect a 10K monitored sensing edge to an automated gate system without running hardwired edge leads. It transmits reliable safety-edge status to a compatible DoorKing wireless receiver, supporting monitored entrapment protection in commercial and industrial slide, swing, and barrier gate installations where consistent communication and UL 325 compliance matter.

Key Features

• Wireless transmitter for 10K monitored safety edges used in gate entrapment protection
• Eliminates hardwired edge runs to moving gates, reducing installation complexity and cable failures
• Outdoor-rated enclosure designed for harsh perimeter environments
• Supports monitored safety requirements aligned with UL 325 applications
• LED status indicators and onboard test mode for faster setup and troubleshooting
• Designed to maintain communication integrity in demanding RF environments

Technical Specifications

• Part Number: 8080-006
• Device Type: Monitored edge transmitter (wireless)
• Frequency: 916 MHz
• Edge Input: 10K monitored sensing edge

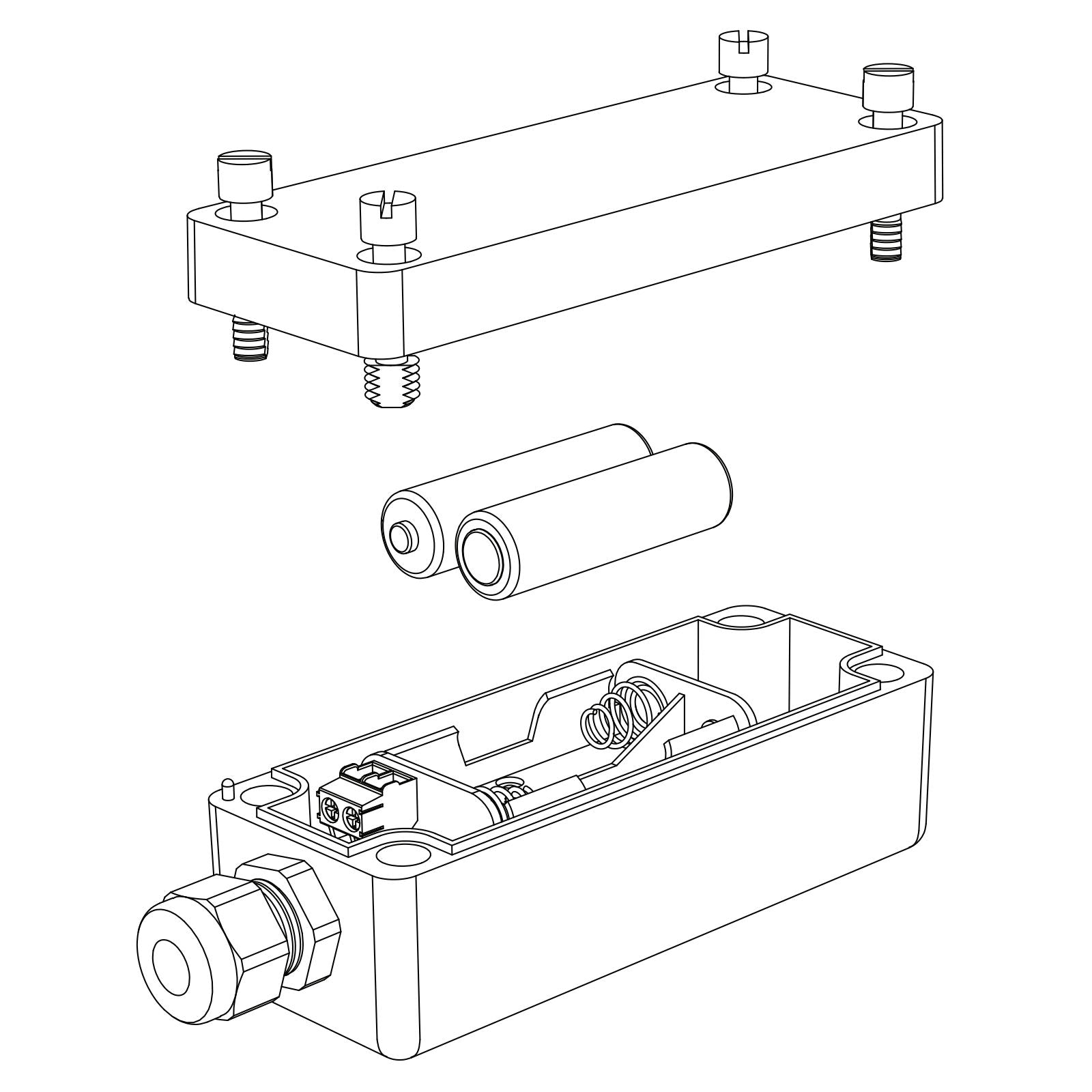

• Power Source: (2) 3.6V AA lithium batteries (included)
• Expected Battery Life: Approx. 2 years (typical)
• Enclosure Rating: NEMA 4
• Housing Material: Polycarbonate
• Dimensions: 1.80 in L x 4.78 in W x 1.75 in H
• Operating Temperature Range: -40°F to +140°F
• Compliance: UL 325 Recognized Component, FCC Part 15 compliant
• Receiver Requirement: Requires a compatible wireless receiver (verify receiver model and system configuration)

Conclusion

For monitored gate safety systems that use 10K sensing edges, the DoorKing 8080-006 provides a dependable wireless transmitter option to maintain UL 325-focused entrapment protection without hardwired moving-gate connections. Confirm receiver compatibility and edge requirements in your system documentation before ordering.
