Doorking 8057-088 Microclik Receiver

Ultra-High Capacity RF Receiver for MicroCLIK Systems

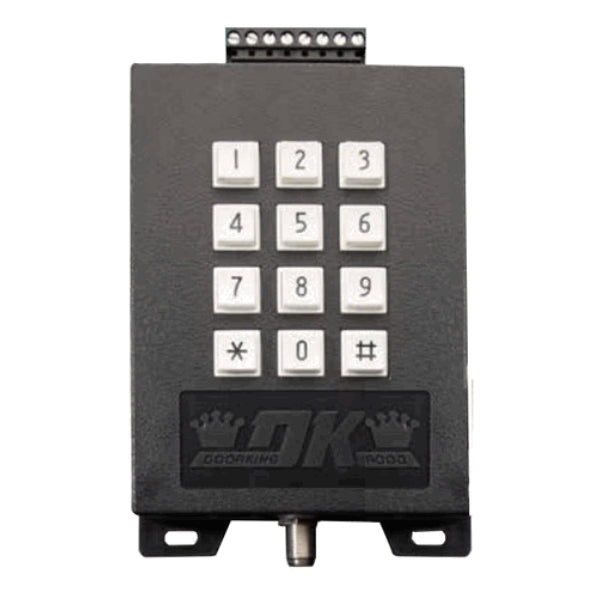

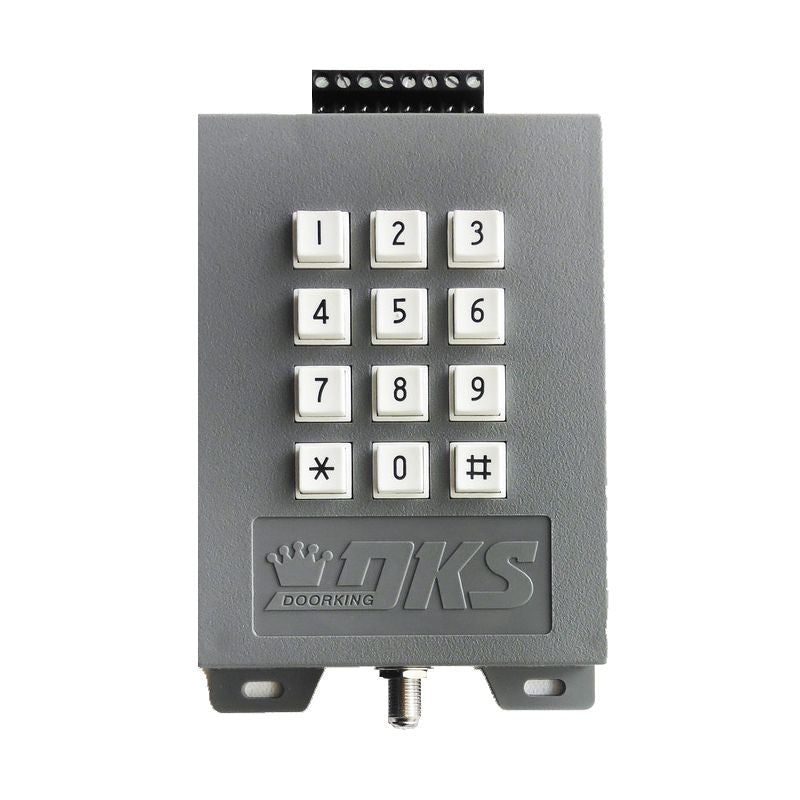

The Doorking 8057-088 MicroCLIK RF Receiver is designed for very large-scale security applications where maximum capacity and strong encryption are required. Supporting up to 16,000 transmitters, it combines encrypted MicroCLIK technology with HomeLink compatibility, making it one of the most scalable and secure RF access solutions available.

Key Features

• Encrypted MicroCLIK technology prevents unauthorized code duplication
• Massive capacity supports up to 16,000 transmitters for extensive systems
• HomeLink compatible for seamless integration with in-vehicle systems
• Built-in keypad for straightforward code addition and deletion
• Relay outputs include normally open, normally closed, and common contacts
• Designed for large commercial, industrial, and multi-site installations

Technical Specifications

• Model: 8057-088
• Power Input: 12-24V AC or DC
• Operating Frequency: 318 MHz
• Relay Contact Rating: 30V, 1A max
• Capacity: Up to 16,000 transmitter codes
• Dimensions: 5.75" x 4.25" x 1.25"
• Compatibility: MicroCLIK transmitters and HomeLink systems
• Installation Note: Install in a weather-protected area or use outdoor enclosure P/N 8057-110

Conclusion

The Doorking 8057-088 MicroCLIK RF Receiver provides unmatched capacity and security for large-scale access control environments. With encrypted communication, massive transmitter support, and user-friendly programming, it delivers a robust solution for high-demand perimeter security systems.
