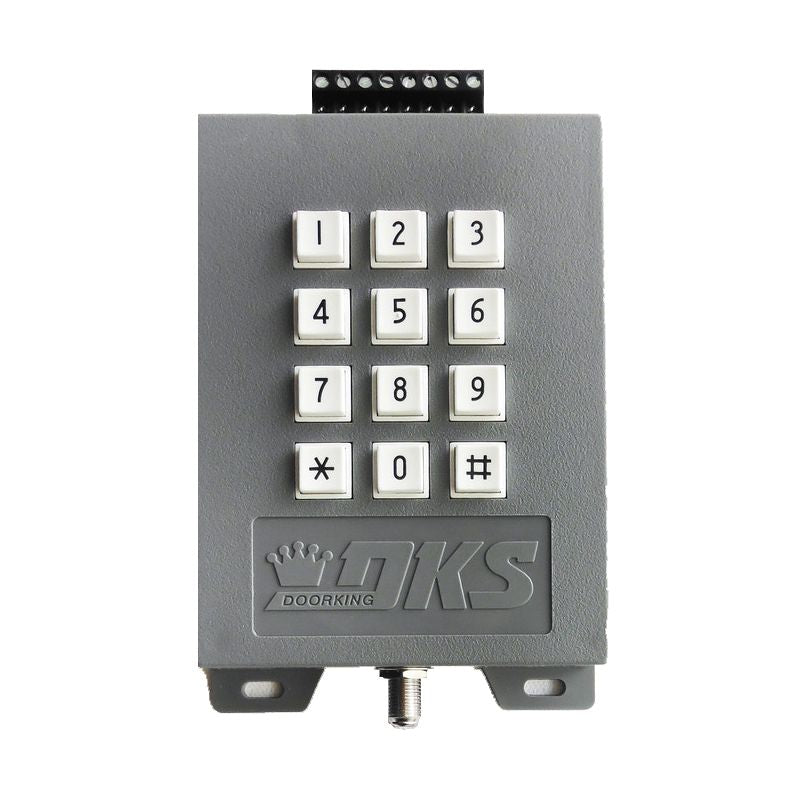

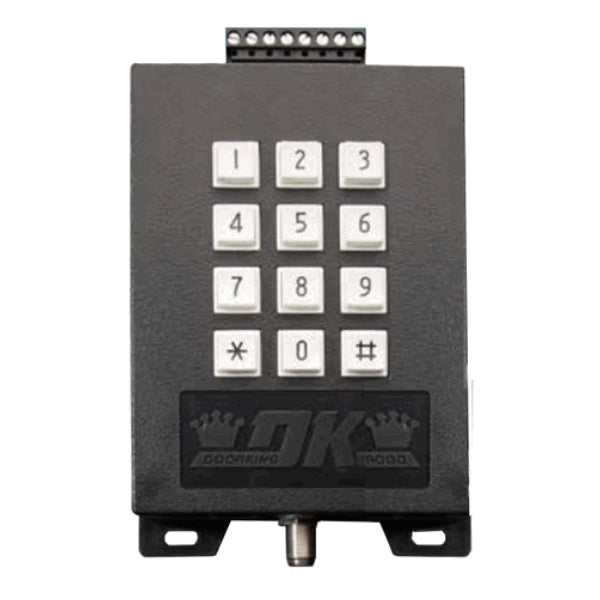

Doorking 8057-084 Microclik Gate Receiver

RF Receiver for Large-Scale MicroCLIK Access Systems

The Doorking 8057-084 MicroCLIK RF Receiver is built for large-scale access control environments requiring both expanded capacity and secure operation. Supporting up to 500 transmitters, it uses encrypted MicroCLIK technology to prevent code duplication while providing seamless compatibility with HomeLink-equipped vehicles. Its built-in keypad allows for straightforward programming and efficient management of multiple access points.

Key Features

• Encrypted MicroCLIK technology for secure, duplication-resistant access
• Supports up to 500 transmitters for large installations
• HomeLink compatible for direct in-vehicle use
• Built-in keypad for easy transmitter code addition and deletion
• Relay outputs include normally open, normally closed, and common contacts
• Installation-ready with optional outdoor enclosure (P/N 8057-110)

Technical Specifications

• Model: 8057-084
• Power Input: 12-24V AC or DC
• Operating Frequency: 318 MHz
• Relay Contact Rating: 30V, 1A max
• Capacity: Up to 500 transmitter codes
• Dimensions: 5.75" x 4.25" x 1.25"
• Compatibility: MicroCLIK transmitters and HomeLink systems

Conclusion

The Doorking 8057-084 MicroCLIK RF Receiver delivers high-capacity performance and secure encryption for large-scale access control systems. With its 500-transmitter capacity, HomeLink integration, and user-friendly programming, it offers a flexible and reliable solution for demanding perimeter security applications.
