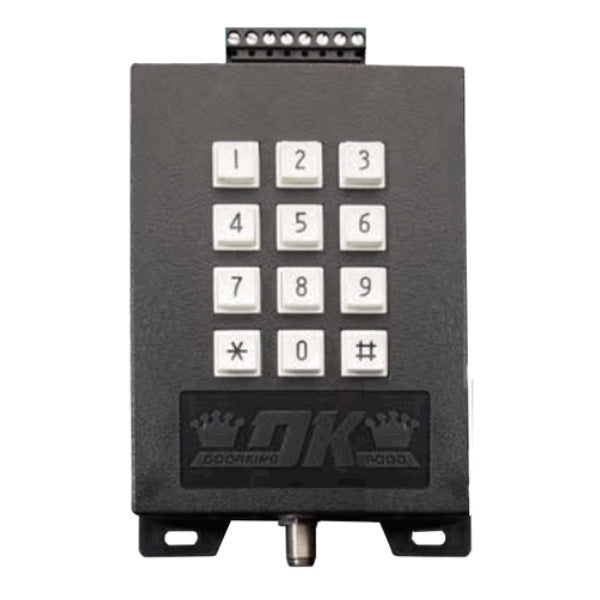

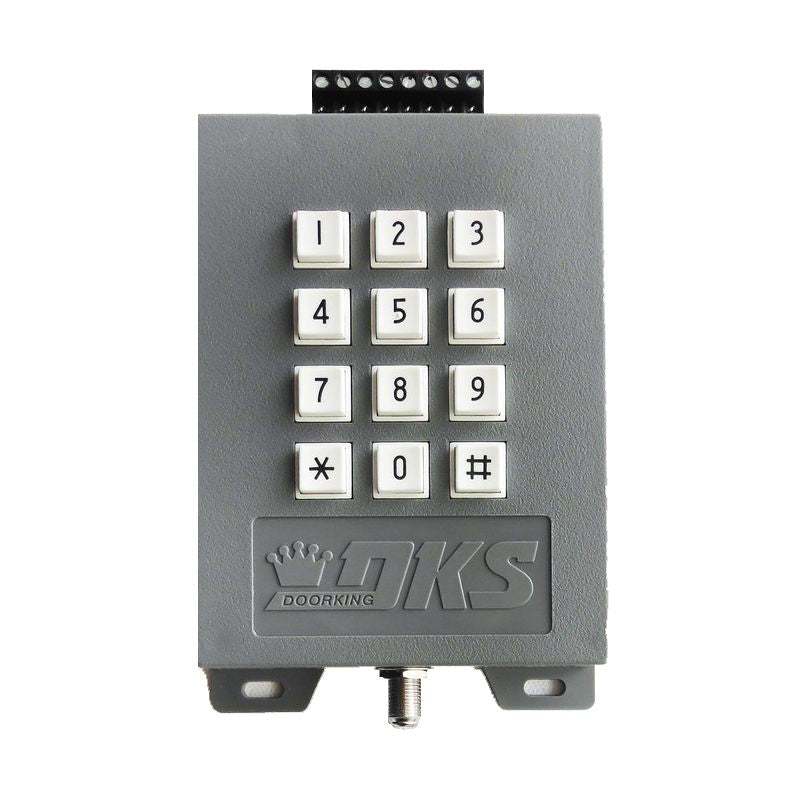

Doorking 8057-082 Microclik Gate Receiver

Doorking 8057-082 MicroCLIK RF Receiver: Enhanced Security for Larger Installations

The Doorking 8057-082 MicroCLIK RF Receiver is tailored for secure and efficient access control in medium to large installations. Compatible with MicroCLIK transmitters, this receiver supports up to 100 unique transmitter codes, making it ideal for expanding security systems.

Features

• Advanced Security: Utilizes MicroCLIK technology for secure and reliable access control.
• Increased Capacity: Supports up to 100 transmitter codes.
• Compatibility: Works with HomeLink systems found in many vehicles.
• User-Friendly Programming: Built-in keypad for easy addition and deletion of transmitter codes.
• Versatile Relay Contacts: Features normally open, normally closed, and common relay contacts for flexible integration.

Specifications

• Power Input: 12-24V AC or DC
• Operating Frequency: 318 MHz
• Relay Contact Ratings: 30V, 1A max
• Dimensions: 5.75" x 4.25" x 1.25"

Installation Recommendations

• Protected Placement: Ensure installation in a weather-protected area; an outdoor enclosure is available if needed (P/N 8057-110).
• Optimal Antenna Positioning: Install the antenna away from metal and as high as possible to enhance performance.

Why Choose Doorking 8057-082?

The Doorking 8057-082 offers enhanced security features and a larger capacity, making it an ideal choice for medium to large installations. Its compatibility with MicroCLIK and HomeLink systems and user-friendly programming ensure a versatile and efficient access control solution.
