Doorking 6004 Single Swing Gate Operator Kit 24 Volt Ready for Solar

Doorking 6004 Single Swing Gate Operator Kit 24 Volt Ready for Solar

Doorking 6004 Single Swing Gate Operator Kit 24 Volt Ready for Solar

SKU: 6004-Single 24v
Regular price
Sale price
Your Price: $2,228.18
Quantity must be 1 or more

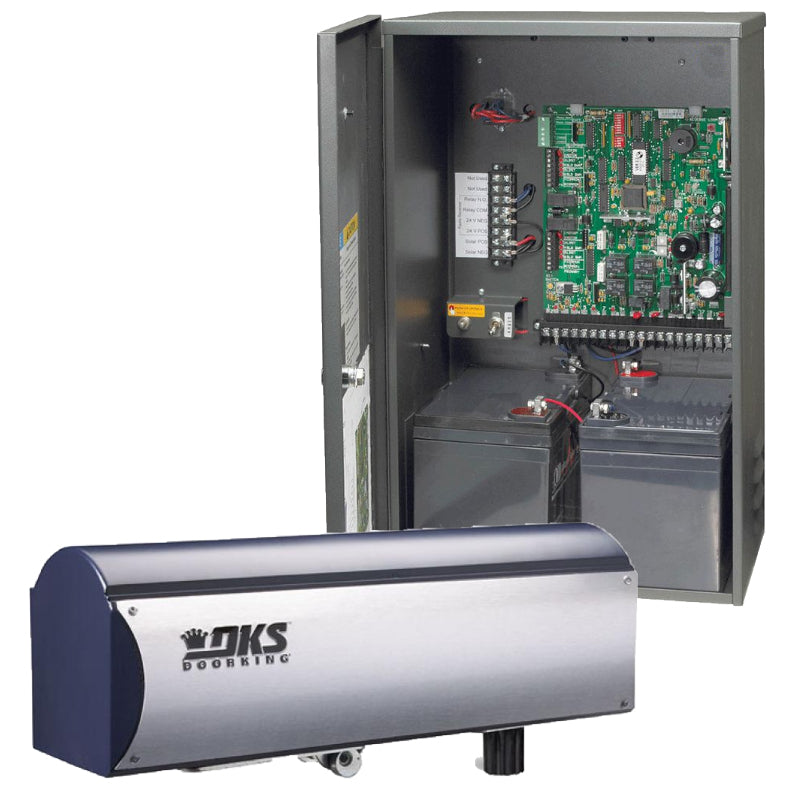

DKS Solar Ready 6004 Single Swing Gate Opener

Download Spec Sheet Download Manual



Stop thinking only “green”. Instead, think practical and long term...with “green” as an added bonus. In many areas, such as Southern California, Florida and Texas, the demand on the grid finds government calling increasingly for draw-downs on power during the day. Is your home or business prepared for the future?

Check out this highly dependable DKS residential column mount swing gate operator. It offers convenience and reliability in a handsome, compact design. The Model 6004 is ideal for swing gates that are mounted on large columns. The DoorKing Solar 6004 installs directly on the surface of the column, preserving the integrity of the architecture. This also immensely simplifies installation by eliminating the need to cut niches on the column.

You’ll find this gate opener has many outstanding features. A fully enclosed drive mechanism protects from both inclement weather and potential tampering. If you worry about control, know that the DoorKing displays adjustable, built-in switches that allow you to set every aspect to your personal specifications. From start and stop, to speed and travel of the gate, you will find easy and hassle free operation. Made a programming mistake? Relax! There are simple reset and test buttons to insure the gate functions as you wish. You will also find additional ports for exit and reverse plug-in loop detectors for additional options. Batteries for the DoorKing, along with a built-in charger are included with the kit. There is also a maximum run timer, a magnetic lock circuit, and a fully built-in high current warning.

The motor has a quick response of 12 seconds to a full 90 degree opening. That is a testament to the great 24 VDC powered motor. There is even an overlap feature should you employ dual gates.

Pointers to Keep in Mind: This great little motor handles a Maximum gate width of 8-feet, with a maximum weight of 300 lbs. This system operates at 24 Volts DC power with Class I applications. It is fully compliant with UL standards 325 and 991. The motor is a great compact size: 5.13"W x 5.25"H x 16"L. The main arm size is 17.5" in length, with a total Height of 6.5" including the arm drive bolt. The overall Solar control box dimensions are: 13"W x 21"H x 8"D

Last question: Do you have everything you need? Check this page for items other customers have bought in relation to this product.

Basic Specifications

  • Maximum gate width 8-feet
  • Maximum gate weight 300 lbs
  • Manufacturer limited warranty: 2 years
