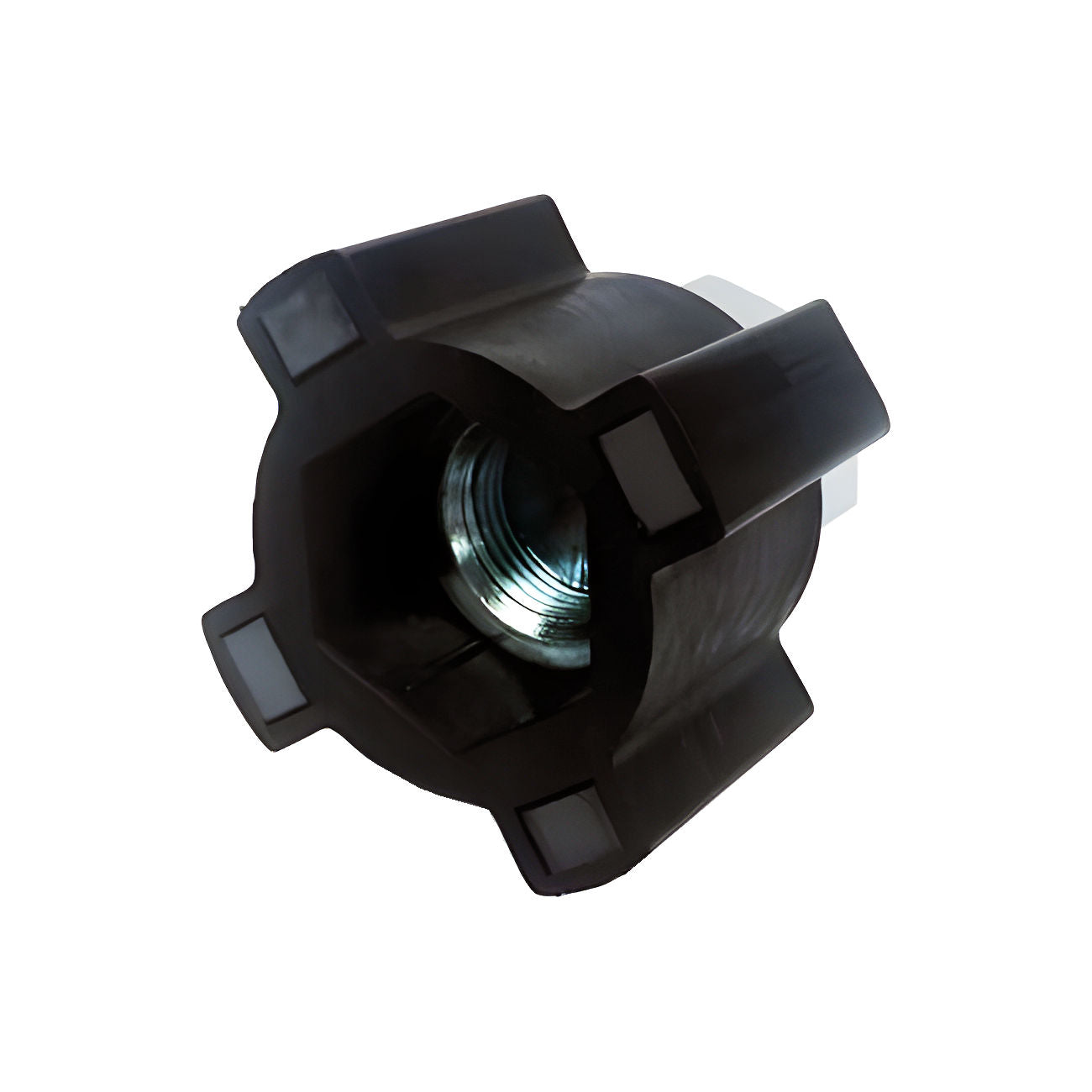

Doorking 2600-917 Jamb Nut - Magnetic Sub-Assembly

Magnetic Sub-Assembly for Precision Gate Operation

The DoorKing 2600-917 Jamb Nut - Magnetic Sub-Assembly is a critical replacement part for the smooth and accurate operation of DoorKing 9100 and 9150 gate operators. Designed to work seamlessly with the operator’s sensors, this magnetic sub-assembly counts intervals during gate movement, ensuring precise positioning for open and close cycles. Additionally, it supports the gate operator’s safety features, playing a key role in obstruction detection and maintaining compliance with UL 325 safety standards. Built for durability and reliability, this genuine DoorKing part is essential for maintaining optimal gate performance.

Key Features

• Accurate Position Tracking: Uses magnetic intervals to help the operator determine exact gate positioning, ensuring smooth stops at programmed open and close points.
• Wide Compatibility: Specifically designed for seamless integration with DoorKing 9100 and 9150 gate operators.
• Enhanced Safety Features: Supports the clutch mechanism to detect obstructions and enable safety reversals, protecting both the system and users.
• Durable and Reliable: Constructed from high-quality materials to handle frequent use and resist environmental wear.
• Adjustable Clutch Sensitivity: Allows fine-tuning of sensitivity to optimize performance and safety.

How It Works

The magnet within the sub-assembly interacts with the operator’s sensors to count intervals as the gate moves. This real-time tracking ensures the gate stops precisely at the correct points for both opening and closing. The sub-assembly also supports obstruction detection by enabling the clutch to respond when an obstacle is encountered, reversing or stopping the gate to prevent damage or injury.

Adjustment Instructions

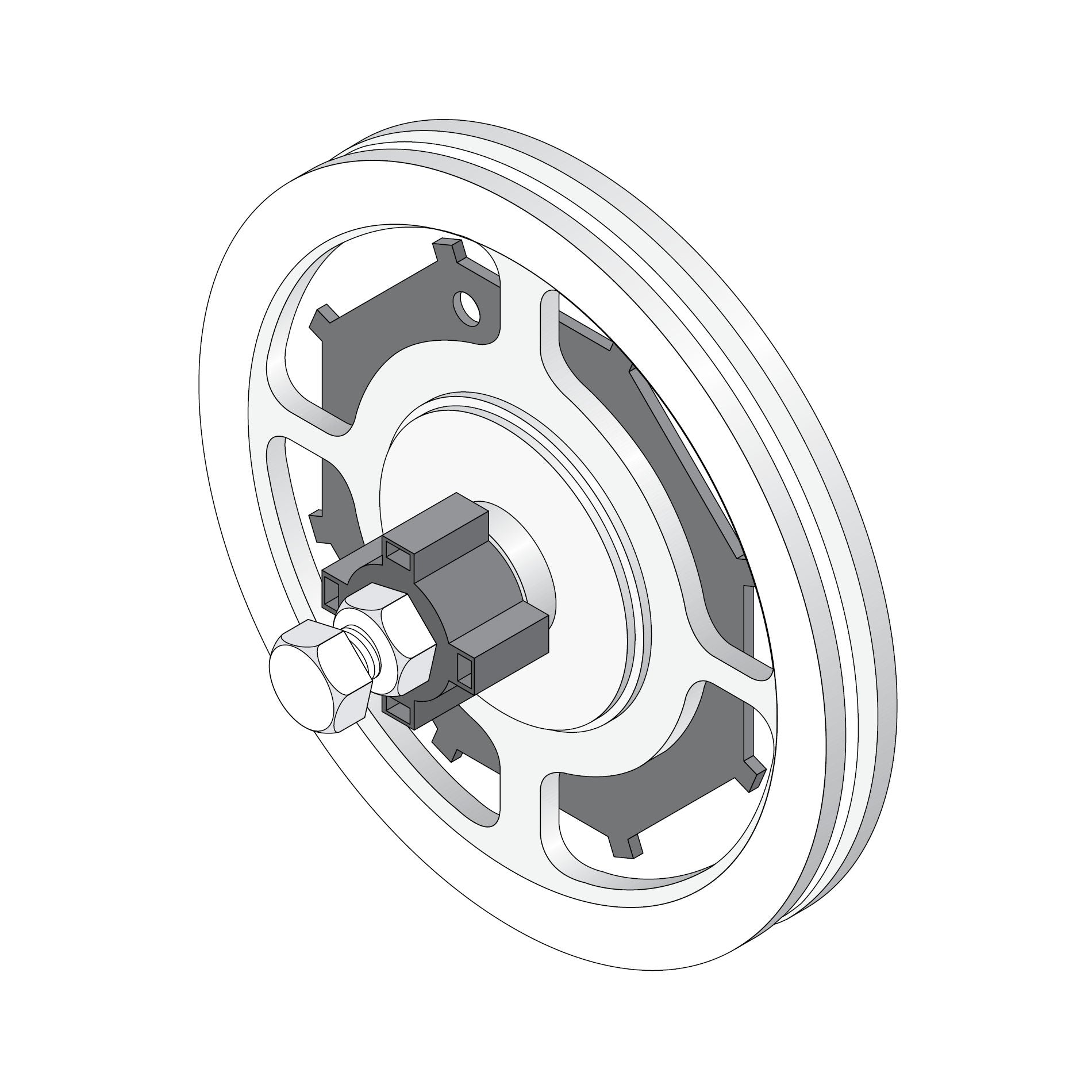

1. Loosen the hex bolt securing the magnetic spring assembly.
2. Adjust the sub-assembly by turning clockwise to increase clutch sensitivity or counterclockwise to decrease it.
3. Tighten the hex bolt securely once the desired adjustment is achieved.

Why Choose the DoorKing 2600-917 Jamb Nut - Magnetic Sub-Assembly?

The 2600-917 Jamb Nut - Magnetic Sub-Assembly is essential for accurate gate movement and enhanced safety. By enabling precise interval counting and supporting obstruction detection, it ensures smooth, reliable operation for your gate system. As a genuine DoorKing replacement part, it guarantees compatibility and long-term durability, making it the ideal choice for 9100 and 9150 gate operators in residential, commercial, and industrial applications.

Maintain peak gate performance with the DoorKing 2600-917 Jamb Nut - Magnetic Sub-Assembly. Order now to experience precise positioning, enhanced safety, and reliable operation for your gate system.
