Doorking 2600-795 Timer 365 Day 24V

Doorking 2600-795 Timer 365 Day 24V

DKS 2600-795 is a Timer 365 Day 24V. For use with various DoorKing® gate operators, telephone entry and other equipment. Please consult your manual for compatibility before ordering.

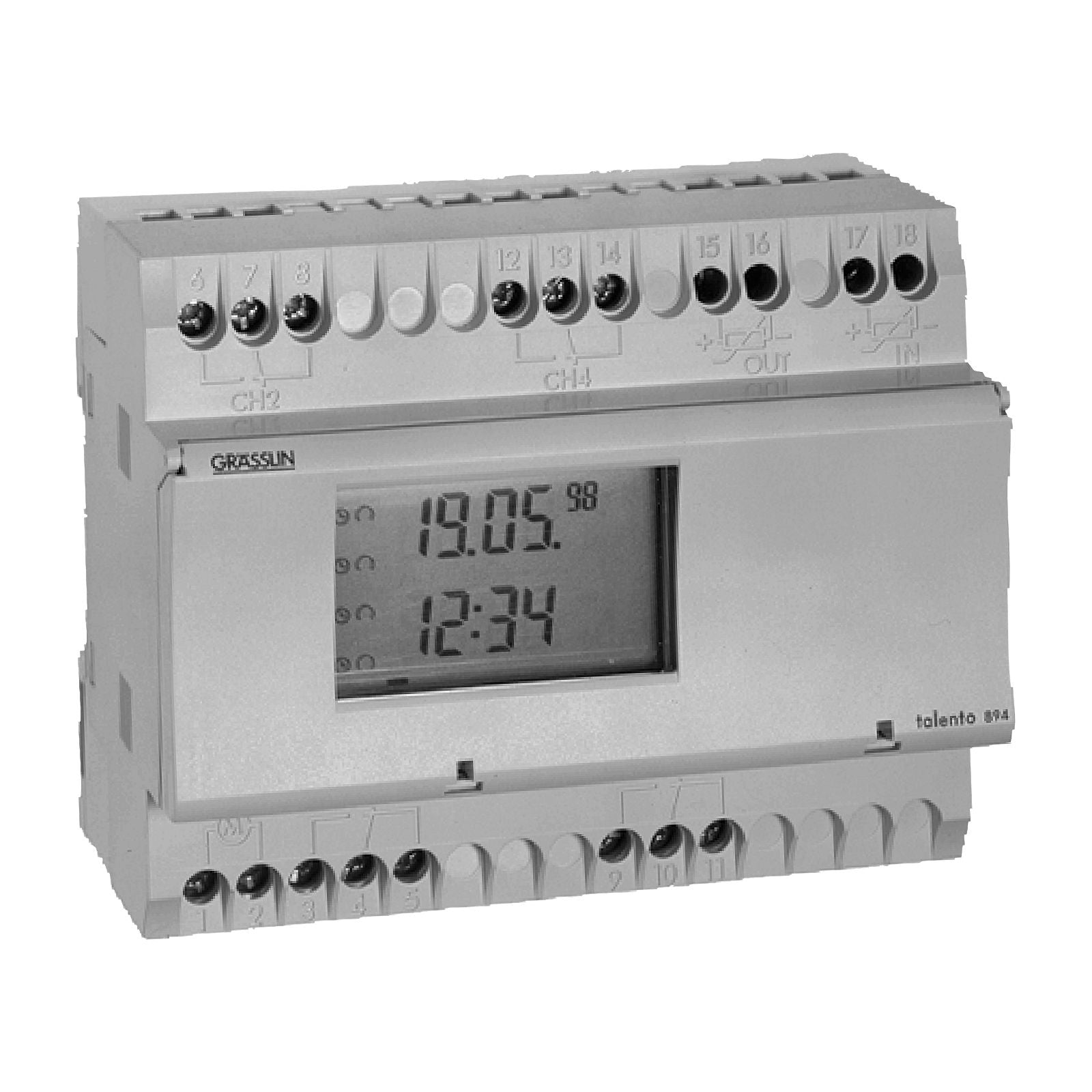

The talento 800 controls are one, two and four channel electronic time switches with 365-day, 7-day and 24-hour programming. The channels are freely programmable with a total of 400 schedules. The load status, time of day, and date are displayed on a large LCD readout. In addition to conventional On/Off programming, the unit provides a “Pulse” and “Cycle” function.

The talento 800 time control can be programmed with a 24-hour, 7-day, or a 365-day schedule (with individual holidays or holiday/vacation periods). This control incorporates a calendar through the year 2095 and also includes automatic leap year adjustment. The annual daylight savings/standard time changes can be programmed to occur automatically each year through 2095. Please read these operating instructions carefully so that you will be able to take full advantage of the functions offered by the talento 800 time control.

Specifications

• Input Voltage: Separate models available for 24V, 120V or 240VAC, 50-60 Hz input
• Relay Switch Rating: 16A @ 24/250 VAC
• Output Relay: SPDT dry contacts for each channel
• Power Consumption 5 VA
• Battery Backup: 6 years, replaceable
• Temperature Range: –13°F to 131°F (–25°C to 55°C)
• Display: AM/PM LCD 1" x 1-11/16"
• Mounting: Surface & DIN rail (NEMA 1 indoor & NEMA 3R outdoor enclosures
• available)
• Shortest Switching Time: One second
