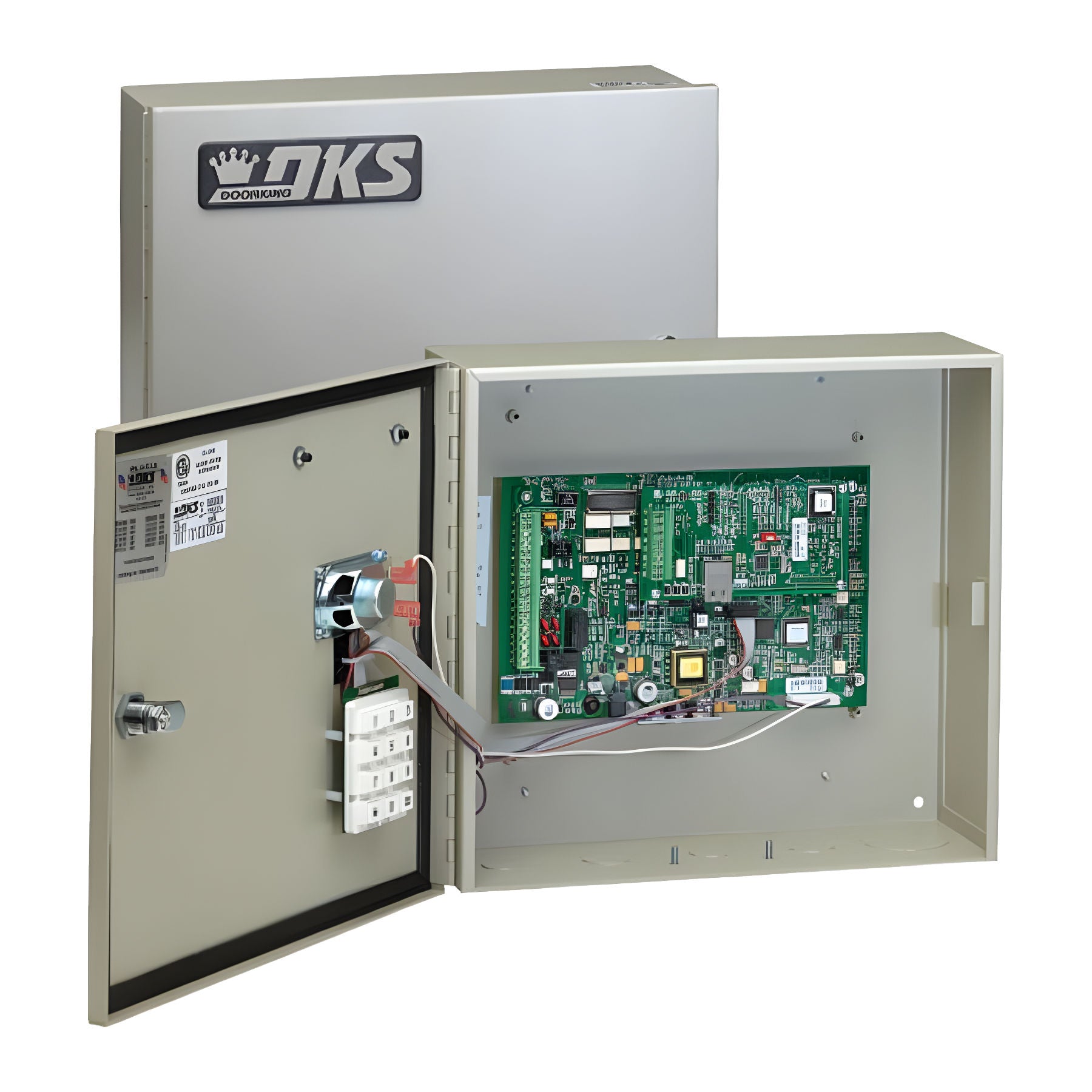

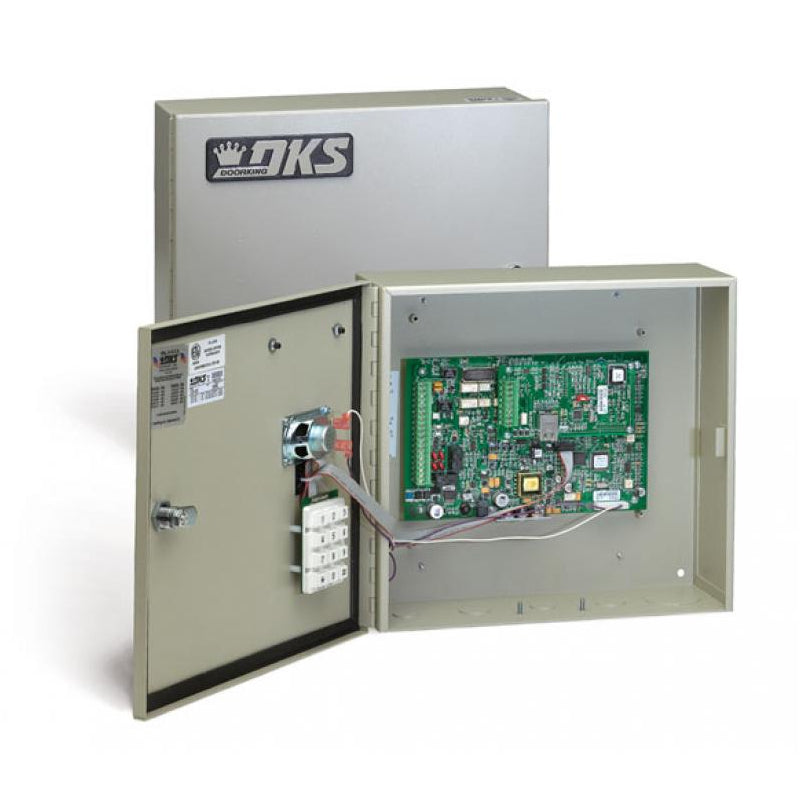

Doorking 1838-081 Multi-Door Access Controller

Cloud-Enabled, Scalable Access Control with Real-Time Monitoring

The DoorKing 1838-081 Multi-Door Access Controller is a robust solution for managing secure entry to up to 48 access points. Initially supporting 3 doors, this controller can be expanded with DoorKing’s Tracker Expansion Boards, making it ideal for gated communities, large facilities, and apartment complexes. Designed with cloud-based programming and real-time transaction tracking, the 1838-081 supports various access methods, including cards, keypads, and wireless transmitters, and is compatible with additional long-range readers for hands-free vehicle access. Flexible connectivity options (cellular, internet, or POTS lines) make it adaptable for modern and legacy setups alike.

Key Features

• Multi-Access Support: Control up to 3 doors or gates, expandable to 48 with optional Tracker Boards for comprehensive access management.
• Cloud and Remote PC Programming: Easily program and monitor your system via the DKS Cloud or on a PC using DKS Remote Account Manager software.
• Comprehensive Security: Supports anti-passback, 31 customizable security levels, and up to 30 holiday schedules for precise access control.
• Real-Time Monitoring: View live transaction logs with an 8,000-event buffer, accessible through a TCP/IP or RS-232 connection.
• Flexible Device Compatibility: Works with card readers, digital keypads, wireless transmitters, and long-range RFID readers.

Technical Specifications

• User Capacity: 3,000 directory codes, 8,000 device codes
• Expandability: Supports up to 48 access points with Tracker Expansion Boards
• Connection Options: Cellular, internet, or POTS (recommended cellular or VoIP)
• Supported Devices: 26-bit Wiegand card readers, digital keypads, wireless transmitters, long-range RFID readers
• Environmental: -10°F to 140°F (-23°C to 62°C), NEMA 4X enclosure
• Power Requirements: 16 VAC, 20 VA system and Wiegand power

Seamless Integration with the following products:

• AWID Card Reader: Model 1838-122
• HID Card Reader: Model 1838-123
• DK Prox Card Reader: Model 1838-124 These readers allow secure access via keycards, ideal for residential and commercial buildings.
• Long-Range Reader: The 1815-350 Long-Range RFID Reader enables hands-free access for vehicles, detecting passive UHF tags like the 1508-195 Windshield Tag and 1508-199 License Plate Tag from up to 25 feet. When a vehicle with an authorized tag enters the detection range, the 1815-350 transmits the Wiegand code to the 1838-081, which verifies it against its database and triggers the gate to open if authorized. This setup is ideal for automatic vehicle entry, enhancing convenience without compromising security.
• Digital Keypad: Models 1815-051 and 1815-052. These keypads support thousands of unique PINs, allowing secure, code-based access.
• MicroPLUS™ Wiegand Receiver
• MicroCLIK™ Wiegand Receiver

Conclusion

The DoorKing 1838-081 Multi-Door Access Controller offers extensive control options, ideal for properties needing diverse access methods for high-security entry points. From hands-free vehicle access to cloud-based programming, the 1838-081 ensures seamless, secure control for users across a range of access methods.

Enhance your property’s security and access capabilities with the DoorKing 1838-081. Available at EliteGates.net with expert support and fast shipping.
