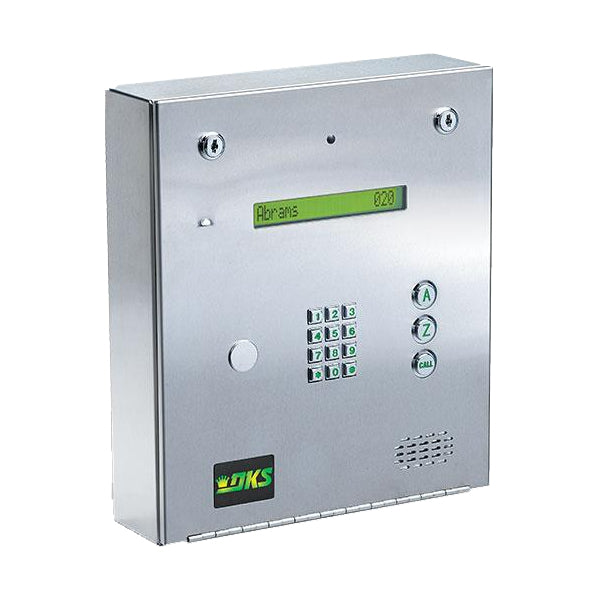

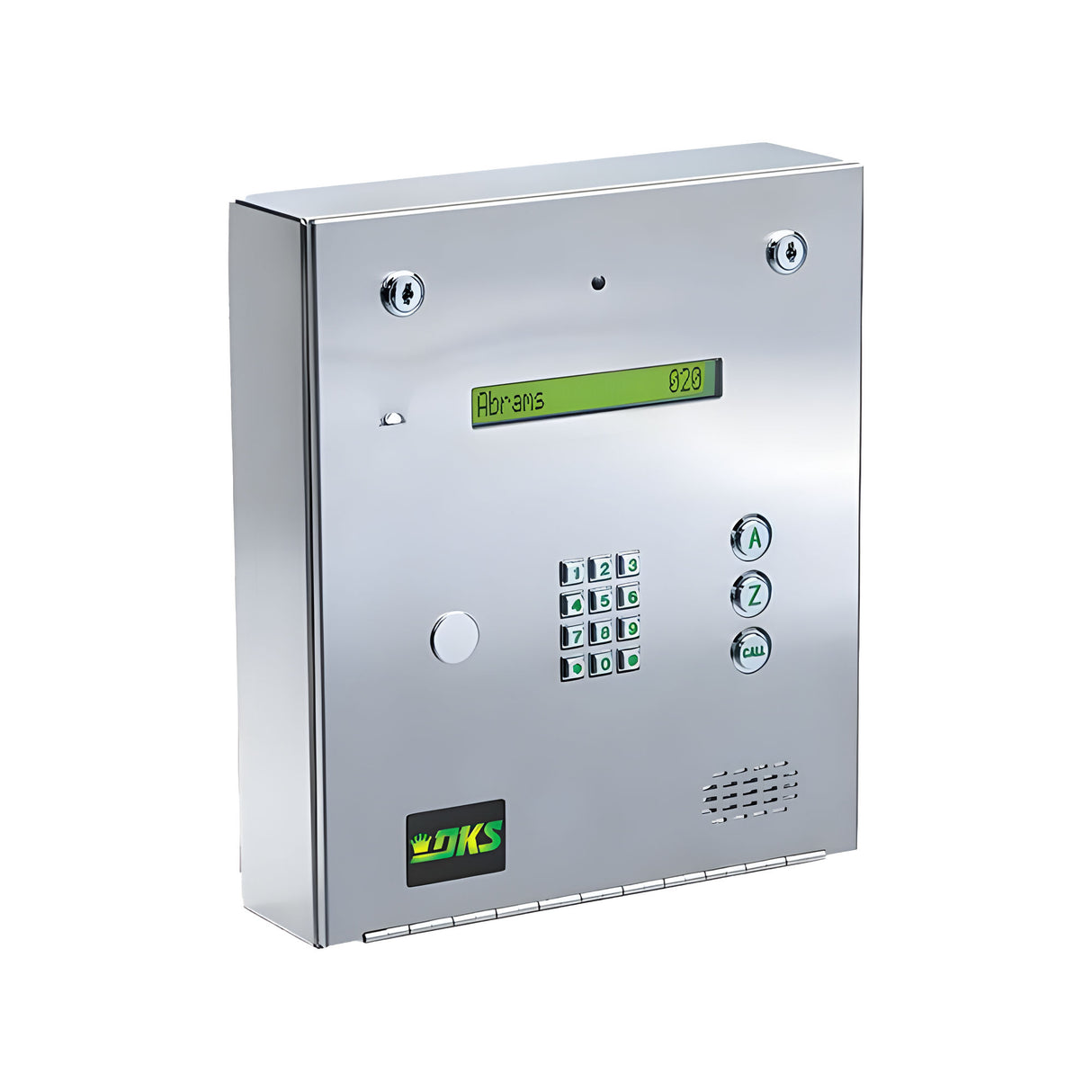

Doorking 1835-090 Telephone Entry System

Scalable Entry Control System with Remote PC Programming

The Doorking 1835-090 is a professional-grade telephone entry and access control system designed for medium to large facilities requiring secure entry management at up to 48 access points. Ideal for apartment complexes, gated communities, and commercial sites, it supports voice and data connections via cellular, internet, or copper lines. This model includes a built-in electronic directory, illuminated A-Z-CALL interface, and remote programming capability through DoorKing's PC-based Remote Account Manager software.

Key Features

• Controls up to 48 access points with expansion boards
• Stores up to 3000 names and phone numbers with multi-number support per resident
• Built-in card reader support for PINs, transmitters, and proximity credentials
• PC programmable with downloadable software at doorking.com
• Internet, cellular, or POTS connectivity options available
• Live transaction viewing and audit logs via software
• Elevator control support for up to 64 floors across 8 shafts
• UL 294 tamper-resistant compliant with dual locks and alert switch
• Weather-resistant enclosure with NEMA 4X rating

Technical Specifications

• Model: 1835-090
• Display: 1-line 20-character super-twist LCD (½-inch characters)
• Phone Memory: Up to 3000 numbers, 255 area codes
• Entry Codes: 3000 (4-digit), device codes: 8000
• Transaction Buffer: Stores last 8000 events
• Relays: Controls up to 3 entry points natively
• Programming: Remote via PC (Remote Account Manager)
• Connectivity: Cellular, Internet (VoIP), or POTS
• Power: Includes (2) 16 VAC transformers
• Mounting: Surface, flush, or post mount (kits sold separately)
• Environment: -12°C to 62°C (10°F to 145°F)
• Enclosure Dimensions: 12.75" W × 14.75" H × 3.75" D
• Certifications: UL 294, CSA 22.2 #205

Mounting Kits (Optional Accessories)

A range of rugged, form-fitted mounting kits is available for the Doorking 1835-090 to support flush, post, or surface-mount installations and enhance physical protection in exposed environments.

• Flush Mount Kit – Stainless Steel (1814-200):
  Enables recessed installation into walls or kiosks. For use exclusively with 90 Series models 1834, 1835, and 1837.

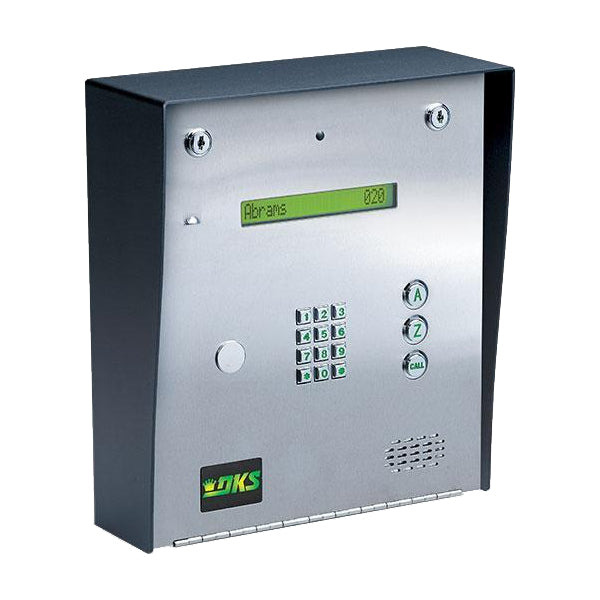

• Protective Hood – Black, 10 Gauge Steel (1814-185):
  Adds additional vandal resistance for surface-mounted systems. Compatible with 1834, 1835, and 1837 90 Series models.

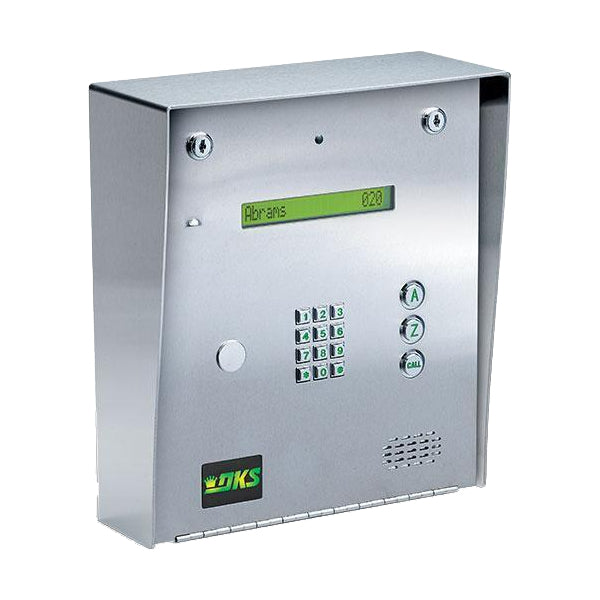

• Protective Hood – Stainless Steel, 10 Gauge (1814-180):
  Provides enhanced durability and tamper protection. Designed for 1834, 1835, and 1837 90 Series telephone entry units.

Conclusion

The Doorking 1835-090 delivers advanced access control capabilities in a scalable, secure platform ideal for high-traffic gated properties, industrial sites, and mixed-use buildings. With remote programmability and support for modern access technologies, it ensures both flexibility and uncompromising perimeter protection.

Protective trim kits shown in some images are sold separately.
