Doorking 1834-084 Flush Mounted Telephone Entry System

Flush Mount Telephone Entry System for Secure Visitor Access

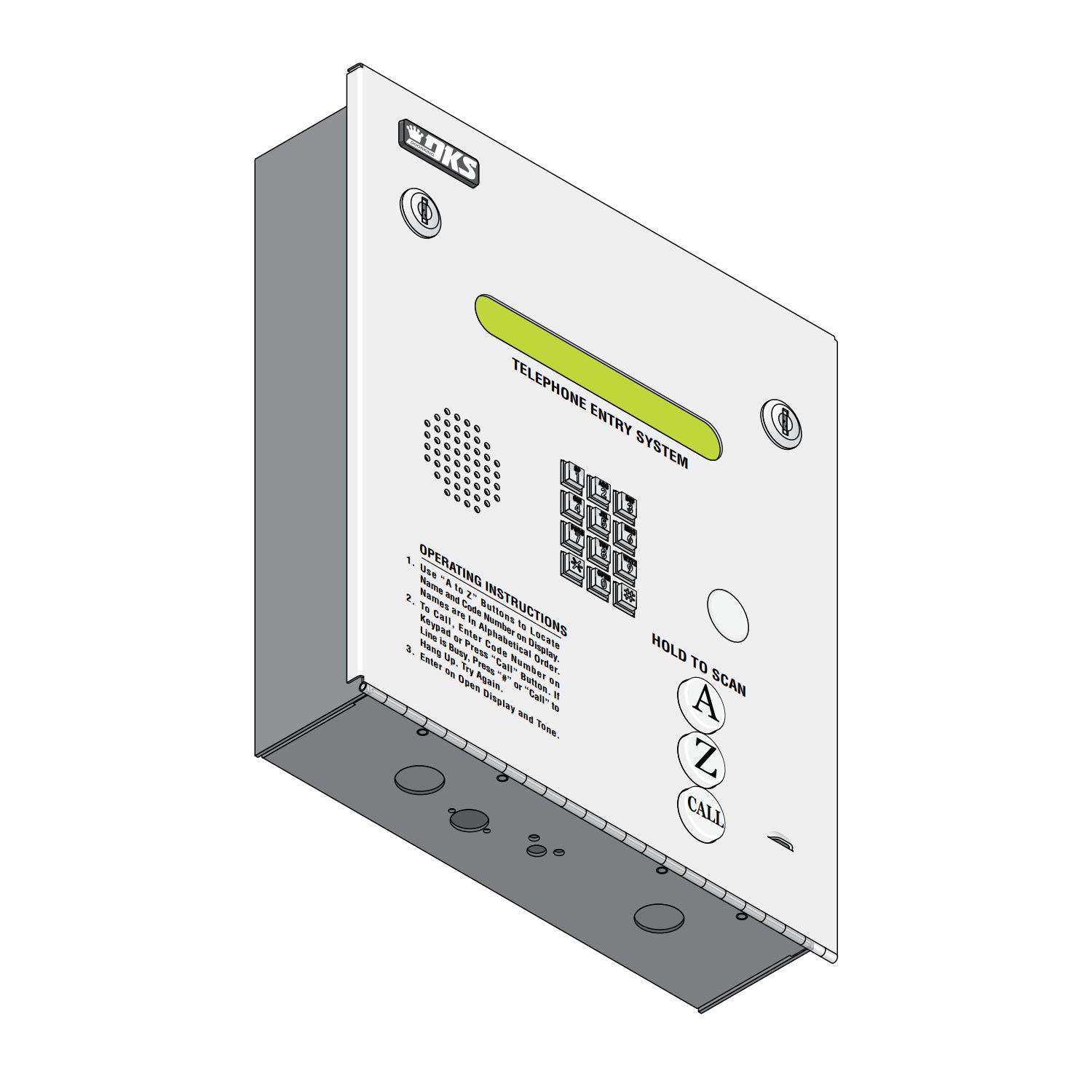

The Doorking 1834-084 is a flush mount version of the 1834 80 Series telephone entry system, ideal for applications that require controlled access to a single entry point. Designed for apartment buildings, gated communities, and commercial facilities, it features a built-in electronic directory and a durable metal faceplate. This unit requires a flush mount kit (sold separately) for proper installation and is compatible with cellular, internet (VoIP), or standard phone line connections for both voice and data access.

Key Features

• Flush mount design for clean, wall-integrated installation

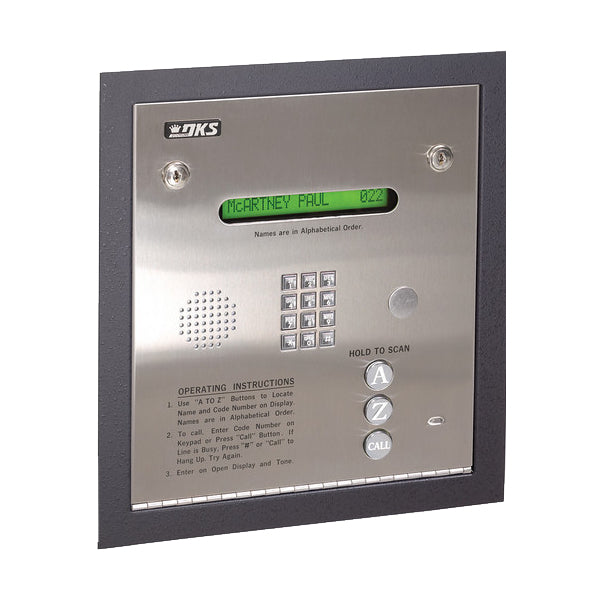

• Flush mount trim kit shown is sold separately
• Supports up to 3,000 residents and 8000 event logs
• Programmable via DKS Cloud or Remote Account Manager software
• Internally lit metal keypad and A-Z-CALL buttons
• Compatible with DKS Cellular, VoIP, or POTS connections
• Controls up to two entry points
• UL 294 listed for safety and reliability

Technical Specifications

• Model: 1834-084 (Flush Mount)
• Display: Single-line LCD with 20 characters
• Power: 16 VAC (includes two transformers)
• Directory Capacity: Up to 3,000 names
• Entry Codes: 4-digit codes; 10- & 11-digit dialing supported
• Environmental Rating: 10°F to 145°F (-12°C to 62°C)
• Installation: Flush mount; trim ring required and sold separately
• Dimensions: Approx. 13.5" H × 12" W × 3" D

Conclusion

The Doorking 1834-084 offers a robust and expandable access control solution for facilities needing flush wall installation. With support for modern connectivity options and intuitive programming, it’s a reliable choice for long-term entry management. Be sure to purchase the appropriate flush mount kit separately for a complete installation.
