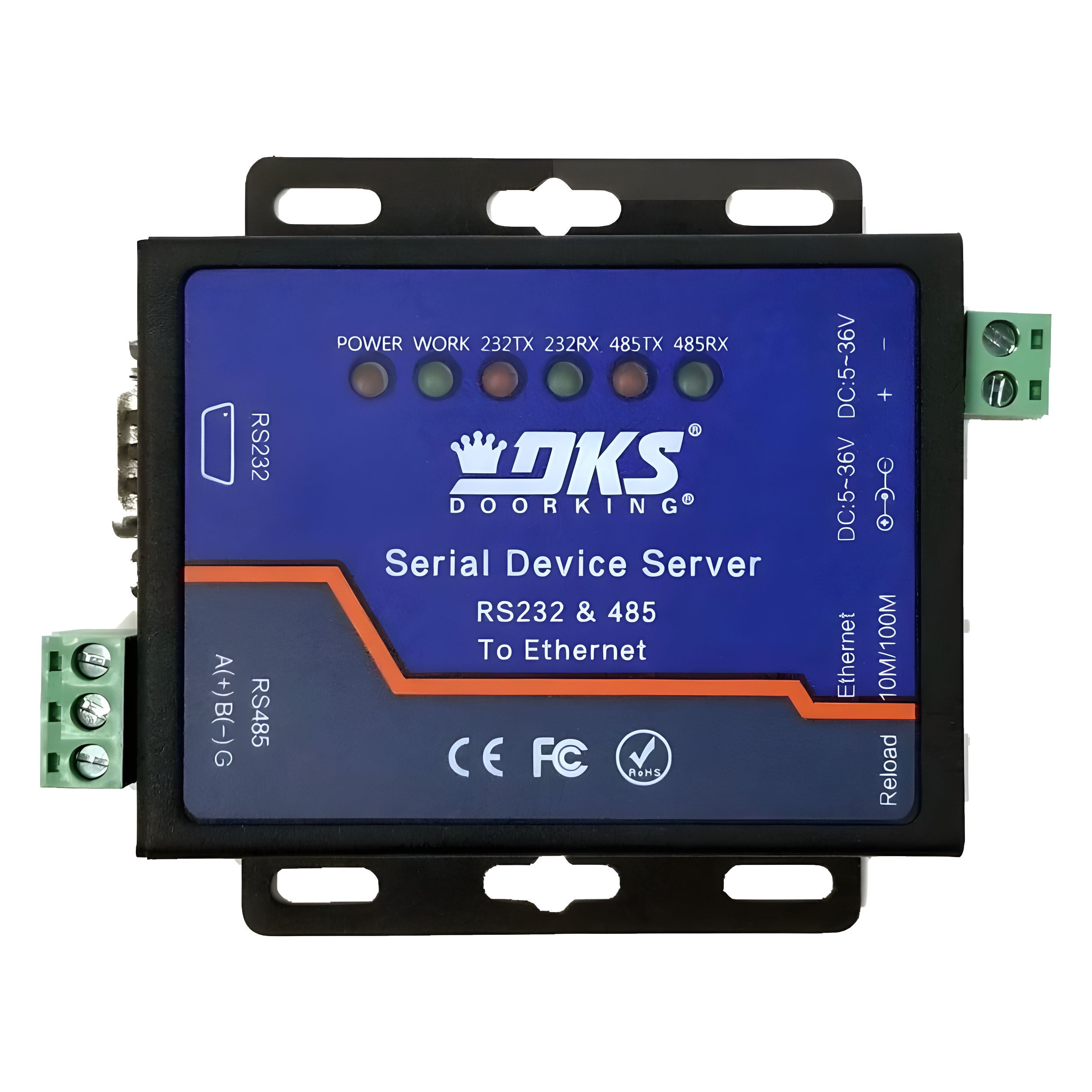

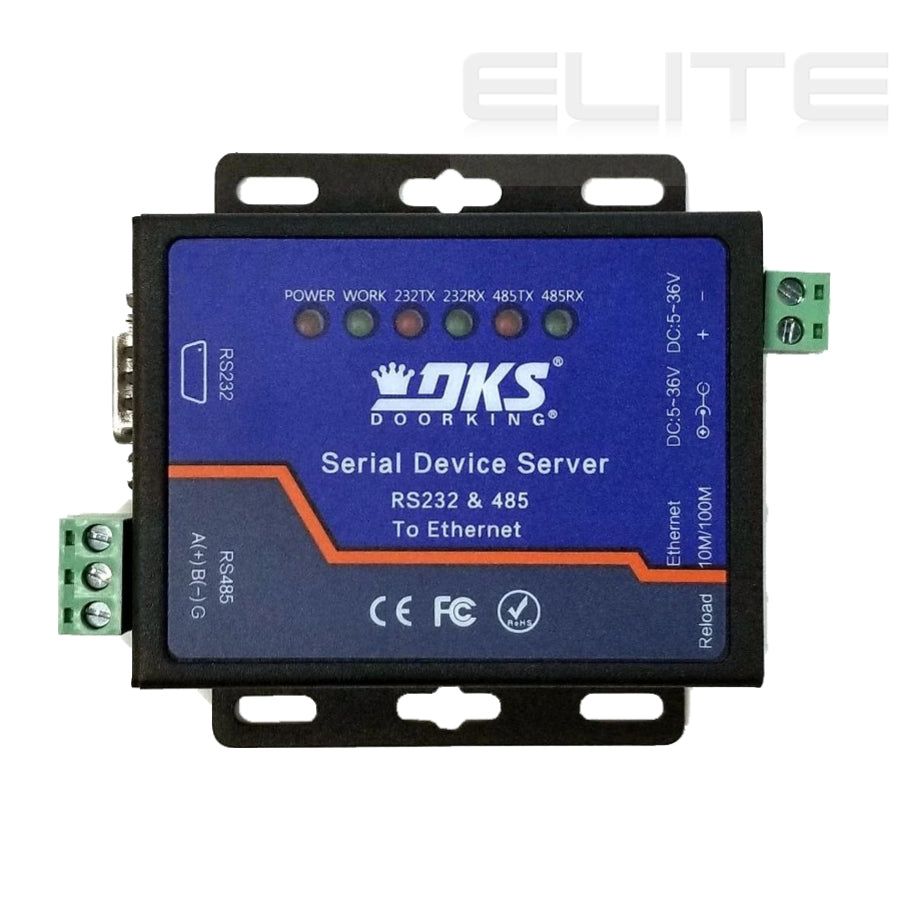

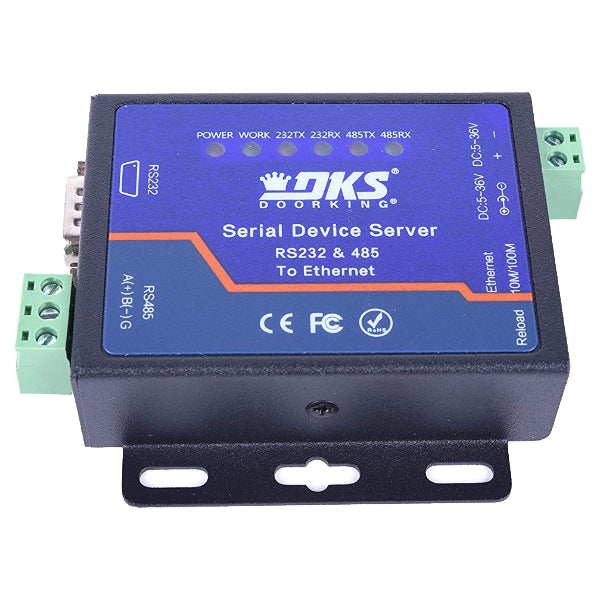

DoorKing 1830-189 TCP/IP to RS-232 Client Converter Kit

Seamless Network Integration for Reliable Remote Access Control

The DoorKing 1830-189 TCP/IP Server Mode to RS-232 Client Converter Kit enables network integration of DoorKing 1830 series access control systems, providing secure remote access and monitoring through DoorKing’s Data over IP services. This kit is compatible with DoorKing models 1833, 1834, 1835, 1837, and 1838, connecting them to a LAN or internet for efficient remote management. Configurable via a web interface, the 1830-189 allows for flexible IP setting adjustments, ensuring a secure and adaptable setup.

Key Features

• Reliable Network Connectivity: Converts TCP/IP to RS-232, creating a secure connection to integrate DoorKing 1830 series systems with LAN or internet for remote access.
• Customizable Configuration Options: Offers manual IP settings, port forwarding, and firewall configuration through a web-based interface.
• Broad Compatibility: Works with DoorKing models 1833, 1834, 1835, 1837 (Rev V or higher), and 1838 (Rev U or higher).
• Supports Data over IP: Fully compatible with DoorKing’s Data over IP, enabling remote monitoring and control.

Technical Specifications

• Network Configuration: Default IP Address 192.168.1.40, Gateway 192.168.1.1, Port 1040 (adjustable via web interface), Baud Rate 9600 or 19200
• RS-232 Cable: 6 ft included (P/N 1818-040), with a maximum recommended run of 100 ft; RS-422 Extender Kit (P/N 1830-190) supports up to 4,000 ft
• Power Requirements: DC 5-18V power supply included
• Compatibility Note: For LAN and internet connections only; not compatible with cellular networks

Installation Guide

1. Connect the converter to the DoorKing 1830 series system using the RS-232 cable.
2. Link the converter to the network via Ethernet.
3. Power up using the DC 5-18V adapter.
4. Configure network settings through the web-based interface for IP adjustments, port forwarding, and firewall setup.

Why Choose the DoorKing 1830-189 TCP/IP to RS-232 Client Converter Kit?

The DoorKing 1830-189 is a robust choice for property managers and security professionals needing a flexible, reliable solution for integrating their DoorKing access control systems into a network. Its Data over IP support ensures convenient remote monitoring from anywhere, providing secure, professional-grade access control.

Equip your DoorKing 1830 series system with secure, remote access capabilities using the DoorKing 1830-189 TCP/IP to RS-232 Client Converter Kit from EliteGates.net – the trusted solution for advanced connectivity and streamlined access control.
