DoorKing  |  SKU: 1610-087

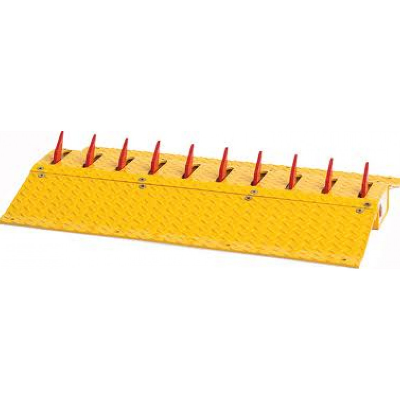

Doorking 1610-087 Surface-Mount Traffic Spike Extension - 3 Ft

$1,639.99
Shipping calculated at checkout.

Description

Expandable Surface-Mounted Traffic Spikes for Secure Access Control

The Doorking 1610-087 Traffic Spike Extension is a 3-foot surface-mounted spike section designed to enforce one-way traffic flow and control vehicle speed at entry and exit points. Engineered for parking lots, gated communities, commercial facilities, and high-security locations, this heavy-duty steel spike system prevents vehicles from traveling in the wrong direction while also functioning as a built-in speed bump. The spring-loaded spikes automatically retract for authorized vehicles when properly installed with an access control system.

Compatibility

  • Designed to Extend the 1610-088 – The 1610-088 Surface Mount 3ft Assembly includes two end caps and can be used as a standalone unit.
  • Expandable System – The 1610-087 extension can be added to a 1610-088 unit to create a 6-foot spike system for greater lane coverage.
  • Standalone Installation Option – If only a 3-foot spike system is needed, the 1610-087 must be paired with two 1610-240 End Caps (sold separately).

Key Features

  • Surface-Mounted Design – No trenching required; installs easily on concrete surfaces.
  • Spring-Loaded Spikes – Automatically retract when engaged with an access control system.
  • Expandable Configuration – Extend a 3-ft system to 6 ft by adding an additional 1610-087.
  • Lock-Down Feature – Allows spikes to be temporarily locked down for two-way traffic use.
  • Durable and High-Visibility Build1/4-inch diamond plate painted safety yellow for visibility.
  • Built-In Speed Bump2-inch rise helps regulate speed while maintaining security.

Technical Specifications

  • Model Number: 1610-087
  • Mounting Style: Surface-mounted (anchored to concrete)
  • Spike Type: Spring-loaded, torsion spring mechanism
  • Dimensions: 3' L x 20" W x 2" H
  • Material: Heavy-duty steel with safety yellow diamond plate finish
  • Weight Capacity: 8,000 lbs per axle (for automotive and light pickup trucks)
  • Required Accessories: Warning signs and speed bumps must be installed with traffic spikes
  • Recommended Use: Not for areas subject to freezing temperatures, snow, or ice accumulation

Applications

The Doorking 1610-087 Traffic Spike Extension is ideal for commercial, industrial, and high-security locations, including:

  • Parking garages and lots – Prevents unauthorized exit in restricted lanes.
  • Gated communities – Controls vehicle direction and enhances security.
  • High-security areas – Regulates vehicle access in sensitive locations.
  • Industrial facilities – Enhances safety in restricted-access areas.

Conclusion

The Doorking 1610-087 Surface-Mounted Traffic Spike Extension is a heavy-duty traffic control solution for regulating one-way vehicle movement and reducing unauthorized access. It can be combined with the 1610-088 for a 6-ft spike system or used as a 3-ft standalone unit with two 1610-240 End Caps. With its spring-loaded spikes, high-visibility finish, and built-in speed bump, this traffic spike system ensures enhanced security and traffic enforcement at gates, parking facilities, and controlled access points.

this product is made in America

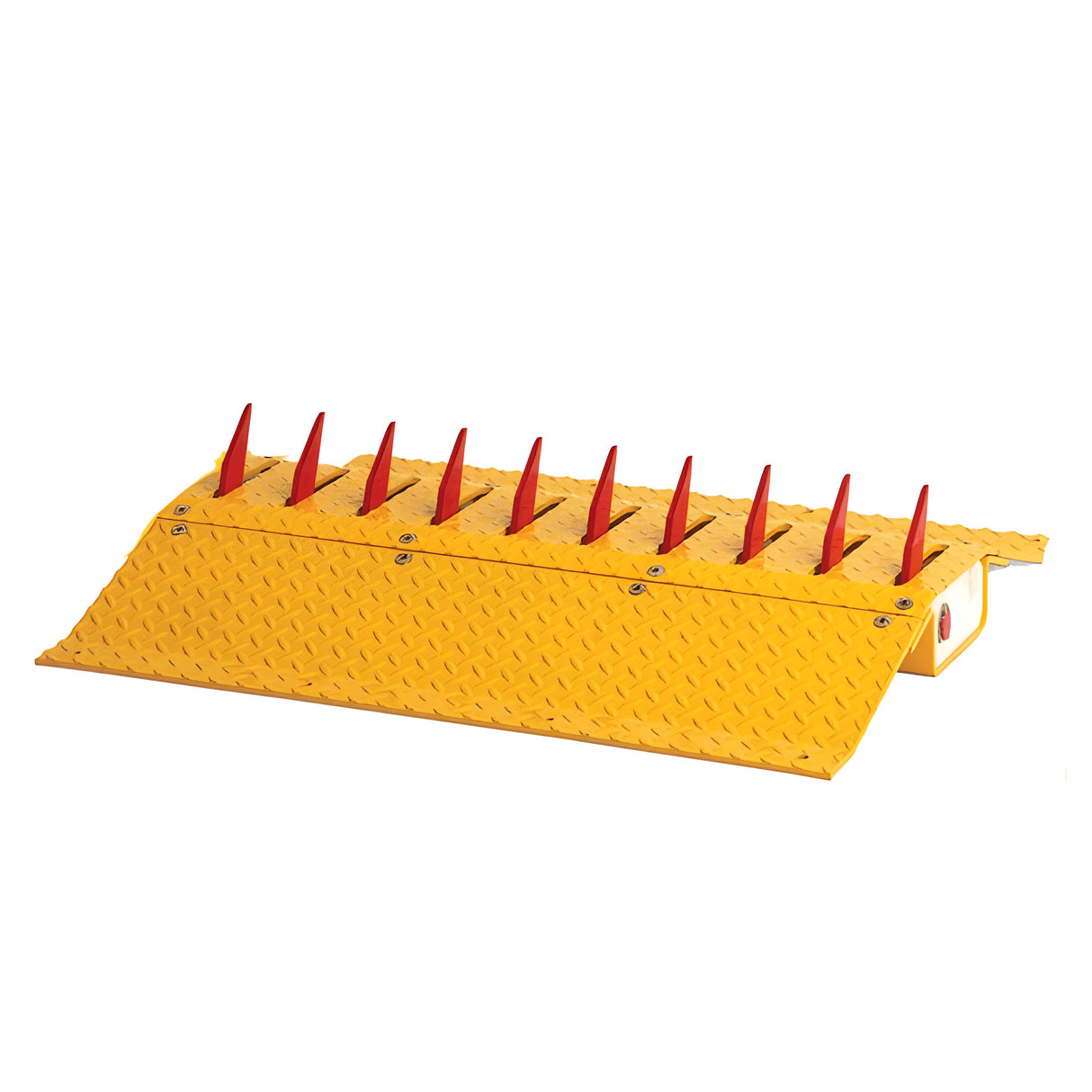

Doorking 1610-087 Traffic Spikes Surface Mount (Sold In 3ft Sections)
