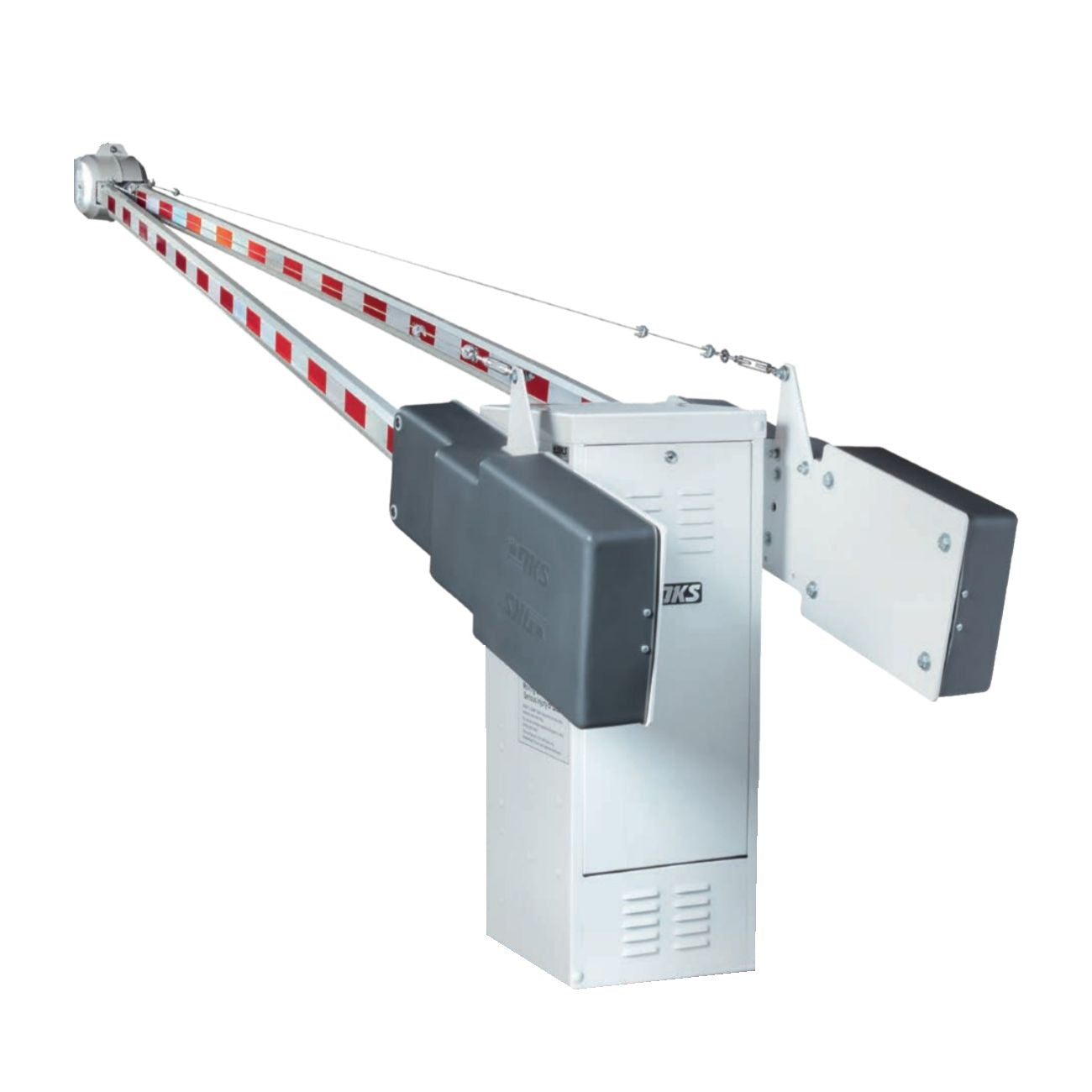

Doorking 1602-090 Parking Barrier Arm
DKS 1602-090 Barrier Arm Operator
Download Spec Sheet Download Manual
**Arms and mounting kits sold separately**
The 1602 barrier arm operator is designed for single lane (27 ft. max) vehicular traffic control in high traffic commercial and industrial applications. The 1602 operator is designed so that it can be mounted on either the left or right hand side of the roadway. Suitable for low-cycle applications to restricted access areas such as prisons, airport security areas or industrial sites Electronic limit settings
Three-piece aluminum arms available in 20, 24 and 27 foot lengths
- Primary Reduction is provided by a 60:1 worm gear reduction system running in a continuous oil bath
- Arm rotates 90° in approximately 5.5 seconds
- G90 galvanized steel housing, painted white
- rated NEMA 4x
- Fail-secure mechanical release method
- Left- or right-hand mount
- 360º gear box rotation before the motor changes direction.
- This provides for smooth operation, evens wear across the
- entire gear-box, and increases the life span of the operator
Specifications
- Magnetic limit control
- Ports for plug-in loop detectors.
- Automatic sequencing inputs for use with slide and swing gate operators.
- Up input memory buffer.
- Down memory option.
- Multiple up commands.
- Two convenience outlets.
- 360° gear box rotation.
- Gate tracker reporting output.
- Programming switches.
- Built-in power On/Off switch.
- Left or right hand mount.

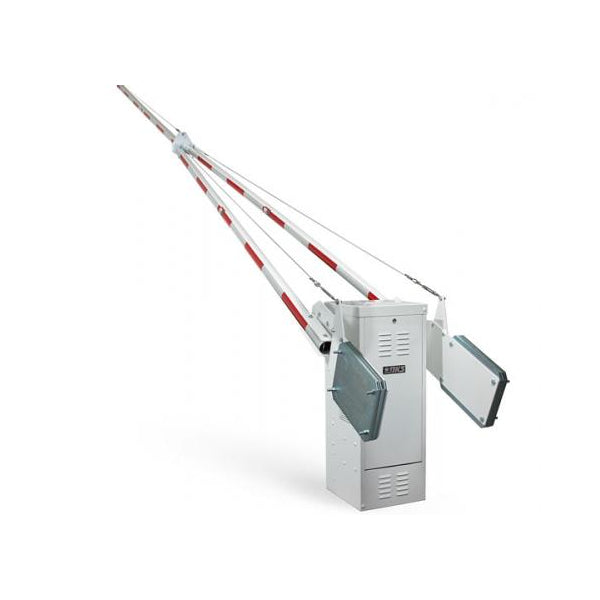

Round - Aluminum Arm - Standard
3-Piece 20 Ft. Aluminum Arm Kit P/N 1602-162
3-Piece 24 Ft. Aluminum Arm Kit P/N 1602-164
3-Piece 27 Ft. Aluminum Arm Kit P/N 1602-166
(All hardware included in kits)
Round - Aluminum Arm - Lighted Aluminum Arm
3-Piece 20 Ft. Lighted Aluminum Arm Kit P/N 1602-172
3-Piece 24 Ft. Lighted Aluminum Arm Kit P/N 1602-174
3-Piece 27 Ft. Lighted Aluminum Arm Kit P/N 1602-176
(All hardware included in kits)

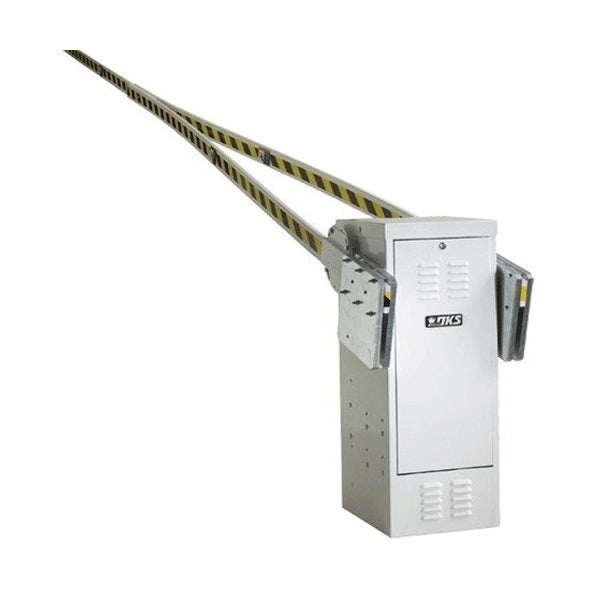

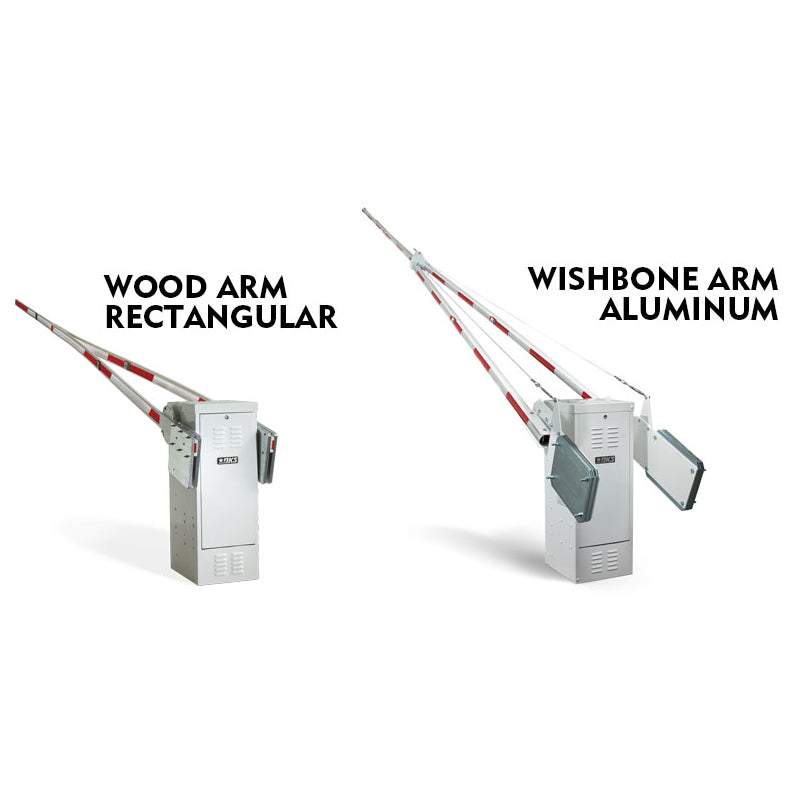

Rectangular - Wood Arm
3-Piece 20 Ft. Wood Arm P/N 1602-340 (Requires Hardware Kit w/Weights 1602-041)
