Doorking 1601-093 Fan Kit for Barrier Gate Openers

Thermostat-Controlled Fan Kit for DoorKing 1600 Series Operators

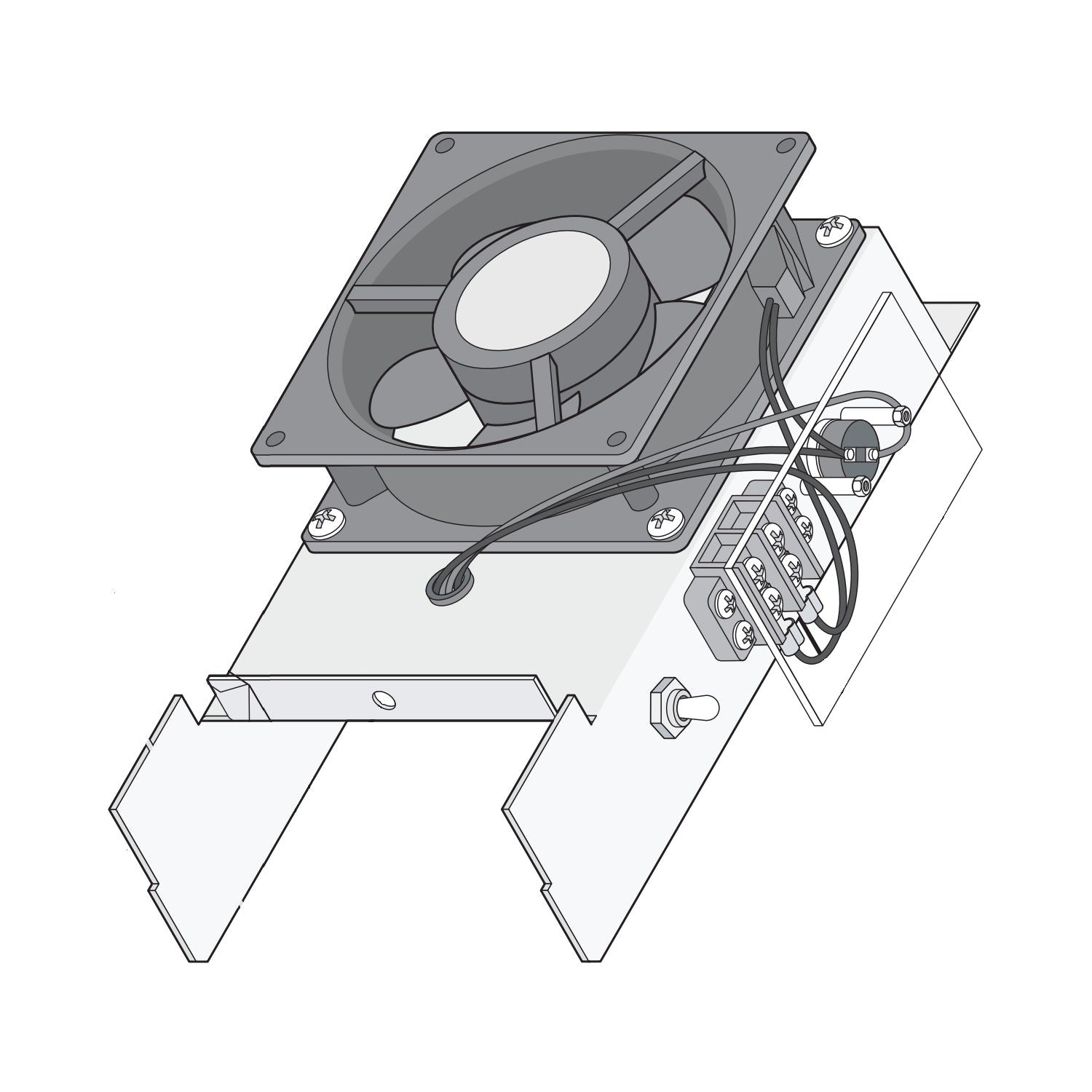

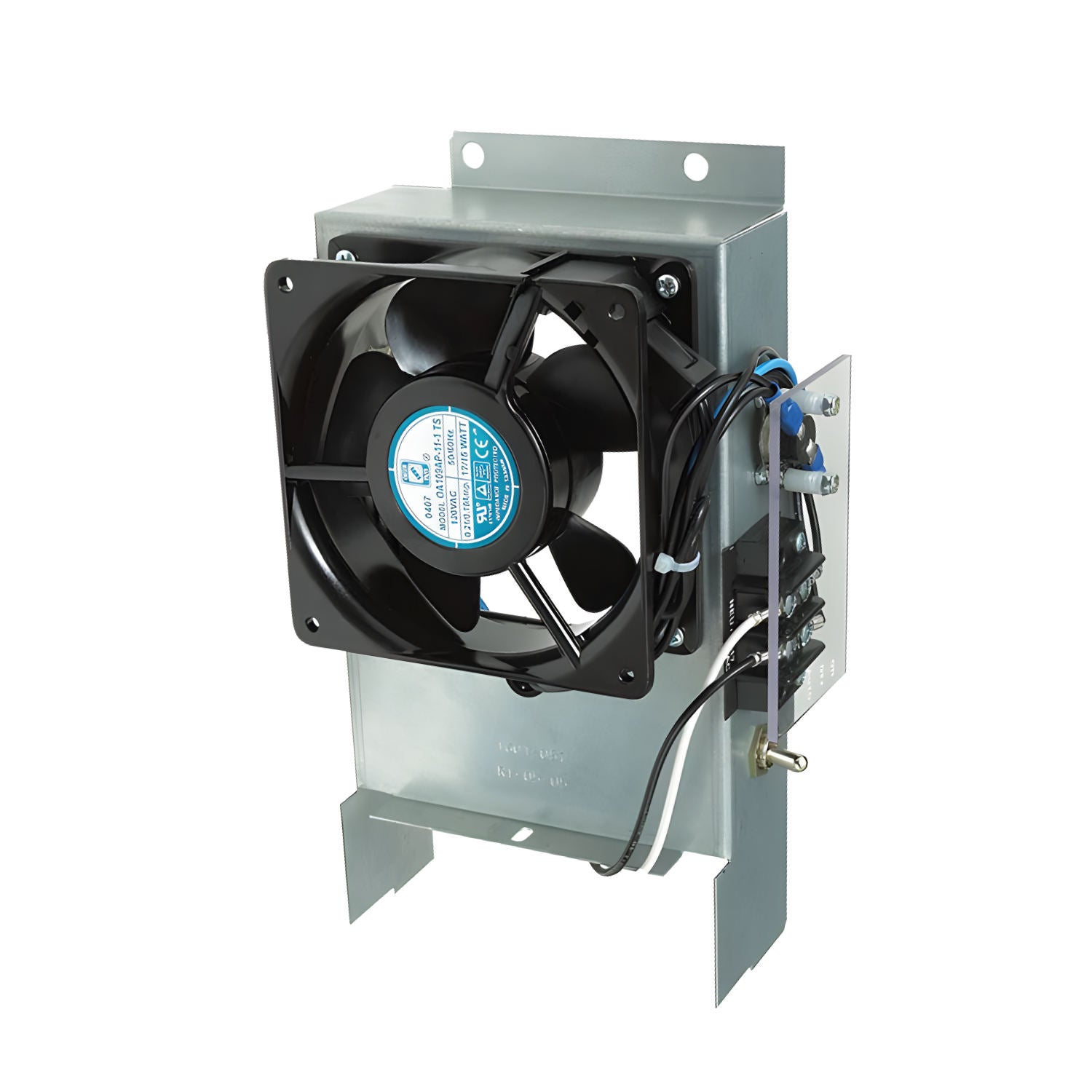

The Doorking 1601-093 Fan Kit is an essential accessory designed to regulate heat and humidity within DoorKing® 1600 series barrier gate operators, including models 1601, 1602, and 1603. Ideal for installations in hot and humid climates, this fan kit uses an automatic thermostat to maintain optimal operating conditions inside the gate operator housing. The fan activates when the temperature exceeds 90°F and turns off once it drops below this threshold, ensuring reliable system performance and extended equipment life.

Key Features

• Thermostat-Controlled Operation: Automatically activates at 90°F to manage heat and humidity levels.
• Wide Compatibility: Designed for use with DoorKing® 1601, 1602, and 1603 gate operators.
• Complete Installation Kit: Includes a fan assembly, wire ties, wire restrainers, mounting hardware, and lock nuts for easy setup.
• Durable Construction: Engineered to withstand demanding environments, particularly in hot and humid climates.
• Genuine DoorKing Part: Ensures perfect compatibility and reliable performance.

Technical Specifications

• Model Number: 1601-093.
• Included Components: Includes a fan assembly with black and white wires, five wire ties, three double-stick wire tie mounts, two plastic wire restrainers, and three nylon lock nuts.
• Fan Settings: Features three modes: OFF to turn the fan off, ON to keep the fan running continuously, and AUTO to activate the fan automatically when the temperature rises above 90°F and turn it off when it falls below.
• Installation Requirements: Mounts using three existing threaded studs and the supplied lock nuts.
• Environment: Designed for use in hot and humid climates.

Applications

The Doorking 1601-093 Fan Kit is perfect for maintaining the performance and longevity of gate operators installed in areas subject to extreme heat and humidity. It is commonly used in commercial, industrial, and residential settings with 1601, 1602, and 1603 series barrier gate operators.

Conclusion

The Doorking 1601-093 Fan Kit is a practical and effective solution for ensuring optimal operating conditions for DoorKing® 1600 series gate operators. With its thermostat-controlled operation and durable construction, this kit protects your equipment from excessive heat and humidity, extending its lifespan and reliability. Always consult your operator manual to confirm compatibility before purchasing this genuine DoorKing part.
