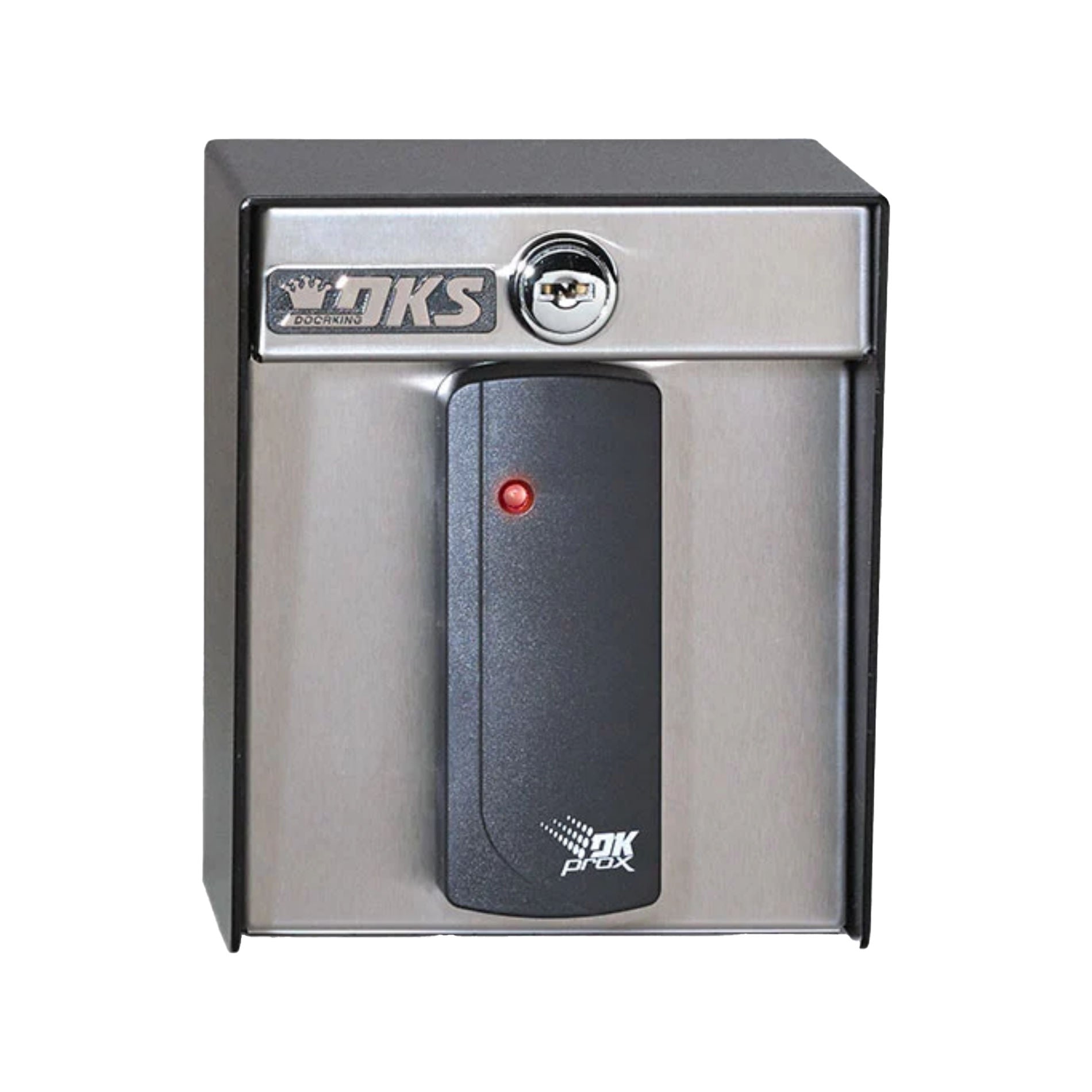

DoorKing 1524-080 Standalone Card Reader Kit – DK Prox

Standalone DK Prox Reader Kit with Remote – 1,000 User Capacity

The DoorKing 1524-080 is a self-contained DK Prox card reader kit designed for standalone access control applications at a single gate or door. This all-in-one system is ideal for gated communities, commercial buildings, and small-scale installations where a simple, secure card solution is required without wiring to a central controller.

The kit includes the 1524 reader, 1815-340 handheld IR remote, ADD and DELETE programming cards, and a 12VDC power supply. It supports up to 1,000 DK Prox credentials, which can be programmed using the remote or cards directly at the reader. The enclosure is weather-resistant and backlit, suitable for outdoor mounting on flat surfaces or optional gooseneck posts.

A secondary Wiegand input is also provided, allowing connection of a second reader for in/out configurations, and the unit includes an input for a free-exit button.

Use with DK Prox credentials only. Compatible card types include 1508-120 ISO-style cards and 1508-121 clamshell cards. Not compatible with HID® or AWID formats.

Key Features

• Standalone DK Prox card reader with built-in controller
• Includes 1815-340 remote, ADD and DELETE cards, and 12VDC power supply
• Stores up to 1,000 cardholders
• On-site programming via handheld IR remote or control cards
• Outdoor-rated backlit housing with surface mount design
• Secondary Wiegand input supports additional reader connection
• Free-exit button input for one-way access points
• Designed for single-door or single-gate access control
• Ideal for residential, light commercial, and secured single-entry sites

Technical Specifications

• Model: 1524-080
• Card Format: DK Prox (125 kHz)
• Capacity: 1,000 user codes
• Read Range: 2 to 4 inches
• Power Input: 12 VDC (included)
• Relay Output: Form C, 30VDC 1A max
• Programming Method: IR remote or control cards (both included)
• Secondary Input: 26-bit Wiegand for additional reader
• Auxiliary Input: Request-to-exit button
• Enclosure: Backlit, weather-resistant
• Mounting: Surface or gooseneck post
• Operating Temp: -31°F to 150°F
• Included: Reader, 1815-340 remote, ADD/DELETE cards, power supply

Conclusion

The DoorKing 1524-080 offers a reliable, standalone access control solution with no software or network integration required. With its weather-sealed housing, 1,000-user capacity, and remote programming tools, this DK Prox kit is ideal for any secure access point requiring fast installation and low-maintenance operation.
