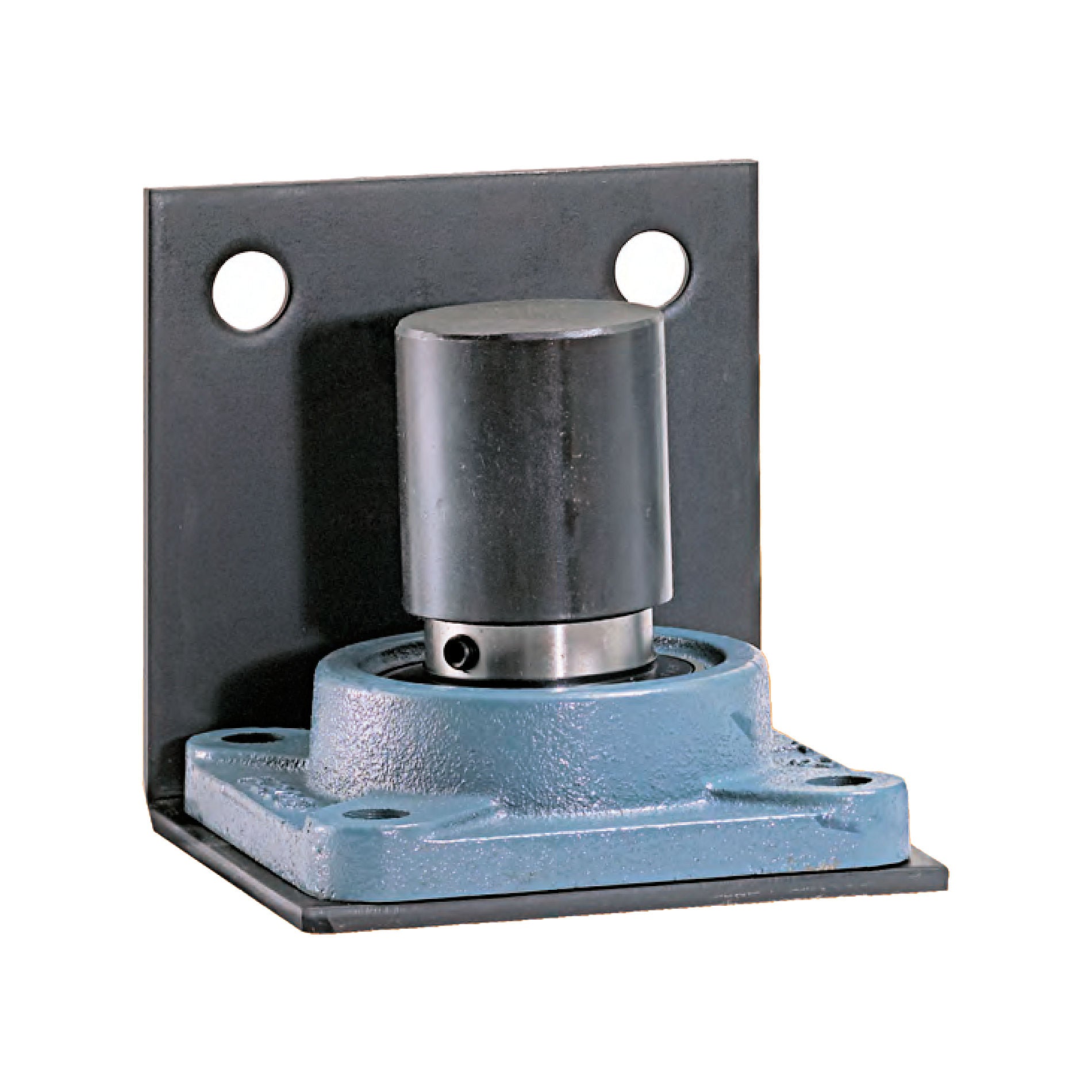

Doorking 1200-009 Flange Bearing Hinge (Single Hinge)

Heavy-Duty Performance with Sealed Bearings and Easy Maintenance

Maximize the durability and functionality of your swing gate with the Doorking 1200-009 Flange Bearing Hinge Assembly, designed for heavy-duty gates. Sold individually, this industrial-strength hinge supports up to 3,000 lbs per pair, ensuring reliable operation even for the heaviest wrought iron or commercial gates. Its sealed bearings and built-in grease fitting make it an ideal long-term solution, providing smooth operation and reduced maintenance.

Key Features:

• 3,000 lb Weight Capacity (per pair): Built for heavy-duty gates, providing robust support for industrial or wrought iron applications.
• Sealed Bearings: Reduces friction and ensures smooth movement, protecting against dirt and debris.
• Zerk Grease Fitting: Facilitates easy lubrication, ensuring longer-lasting performance.
• Designed for Minimum 2-Inch Gate Frames: Compatible with most industrial and commercial gate setups.
• Complete Hardware Kit: Includes a mounting bracket and hardware, simplifying the installation process.

Technical Specifications:

• Product Name: Doorking 1200-009 Flange Bearing Hinge
• Weight Capacity: 3,000 lbs (per pair)
• Gate Frame Size: Compatible with minimum 2-inch frames
• Bearings: Sealed for smooth operation and reduced maintenance
• Grease Point: Equipped for easy lubrication, extending hinge lifespan
• Material: Heavy-duty steel construction
• Installation Requirements: 2 hinges required per gate (top and bottom)
• Includes: Mounting bracket and installation hardware

Frequently Asked Questions (FAQs):

1. How much weight can the Doorking 1200-009 Flange Bearing Hinge support?
   The Doorking 1200-009 hinge can support up to 3,000 lbs per pair, making it suitable for heavy-duty gates.
2. How many hinges are required per gate?
   Each gate requires two hinges - one at the top and one at the bottom - for optimal stability and operation.
3. What type of gate frame is compatible with this hinge?
   The hinge is designed for use with a minimum 2-inch gate frames, which are commonly found in commercial and industrial applications.
4. Does the hinge include any special features for maintenance?
   Yes, the hinge includes a Zerk grease fitting, which allows for easy lubrication to prolong its lifespan.
5. Is installation hardware included with the hinge?
   Yes, each hinge includes the mounting bracket and necessary hardware, making installation straightforward. Note that hinges are sold individually.

Why Choose the Doorking 1200-009?

The Doorking 1200-009 Flange Bearing Hinge offers industrial-grade strength and durability, ideal for heavy-duty applications. Its sealed bearings ensure reliable operation while the grease point makes it easy to maintain. Perfect for property managers, contractors, and fabricators, this hinge is built to handle the toughest gate setups and provides smooth, long-lasting performance.

Applications: Suitable for industrial gates, wrought iron gates, and heavy-duty commercial gates.
