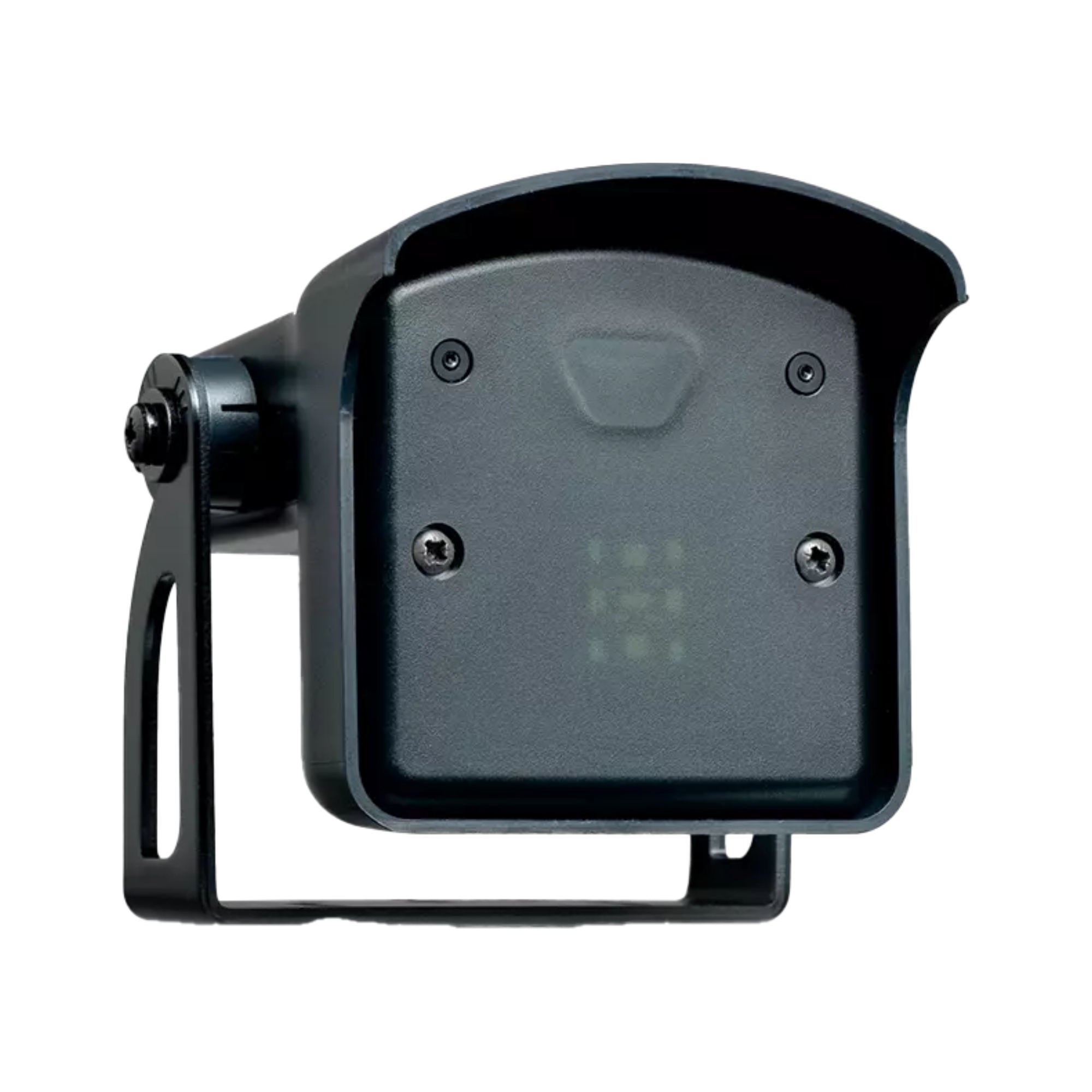

BEA 10FALCON Microwave Motion Sensor for Gates
BEA 10FALCON Microwave Motion Sensor for Gates is backordered and will ship as soon as it is back in stock.
Core Details
| Product Type | Motion Sensor | Vehicle Probe | Photoeye |
| Application Type | Gate | Garage |
| Installation Type | Residential | Commercial | Industrial | HOA |
| Voltage | 12-24V |
| Power Type | AC | DC |
| Mounting Type | Surface Mounted |
| Frequency | 24.150 GHz |
| Detection Type | Microwave |
| Weatherproof Rating | IP65 – Dust-tight, protected against water jets |
| Operating Temperature | -22°F to 140°F |
| Range | 13 ft × 16 ft |
BEA 10FALCON Microwave Motion Sensor for Gates
Description
Description
BEA 10FALCON Microwave Motion Sensor for Gates & Industrial Access
The BEA 10FALCON is a microwave Doppler radar motion sensor designed for reliable vehicle detection in industrial gate and access control environments. It is engineered for both indoor and outdoor use and provides consistent activation performance for slide gates, swing gates, and controlled traffic lanes.
Built for demanding installations, the 10FALCON is housed in an IP65-rated enclosure that protects against dust, moisture, and harsh environmental conditions. Adjustable detection modes and remote programming allow installers to fine-tune performance on site, helping reduce false activations caused by pedestrians or parallel traffic.
Key Features
- Microwave Doppler radar motion detection for vehicle activation
- Adjustable detection filtering for pedestrian and parallel traffic rejection
- Bidirectional, approach-only, or depart-only detection modes
- Remote control programming for safe ground-level adjustments
- IP65-rated enclosure for outdoor and industrial environments
- Suitable alternative or complement to loop-based vehicle detection
Technical Specifications
- Technology: Microwave Doppler Radar
- Operating Frequency: 24.150 GHz
- Detection Mode: Motion
- Minimum Detection Speed: 2 inches per second
- Detection Angle Adjustment: 0° to 180°
- Supply Voltage: 12–24 VAC or 12–24 VDC
- Power Consumption: Less than 2 W
- Output Type: Relay, potential-free changeover contact
- Maximum Contact Voltage: 42 VAC / VDC
- Maximum Contact Current: 1 A resistive
- Ingress Protection Rating: IP65
- Operating Temperature Range: -22°F to 140°F
- Housing Material: ABS and Polycarbonate
Conclusion
The BEA 10FALCON is a professional-grade microwave motion sensor engineered for reliable gate activation in industrial and perimeter security applications. With configurable detection behavior, remote setup capability, and a rugged weather-resistant enclosure, it is well suited for sites where consistent vehicle detection and long-term durability are critical.
