All-O-Matic PRIME VD2 Plug-In Loop Detector

Vehicle Loop Detection with Real-Time Signal and Fault Diagnostics

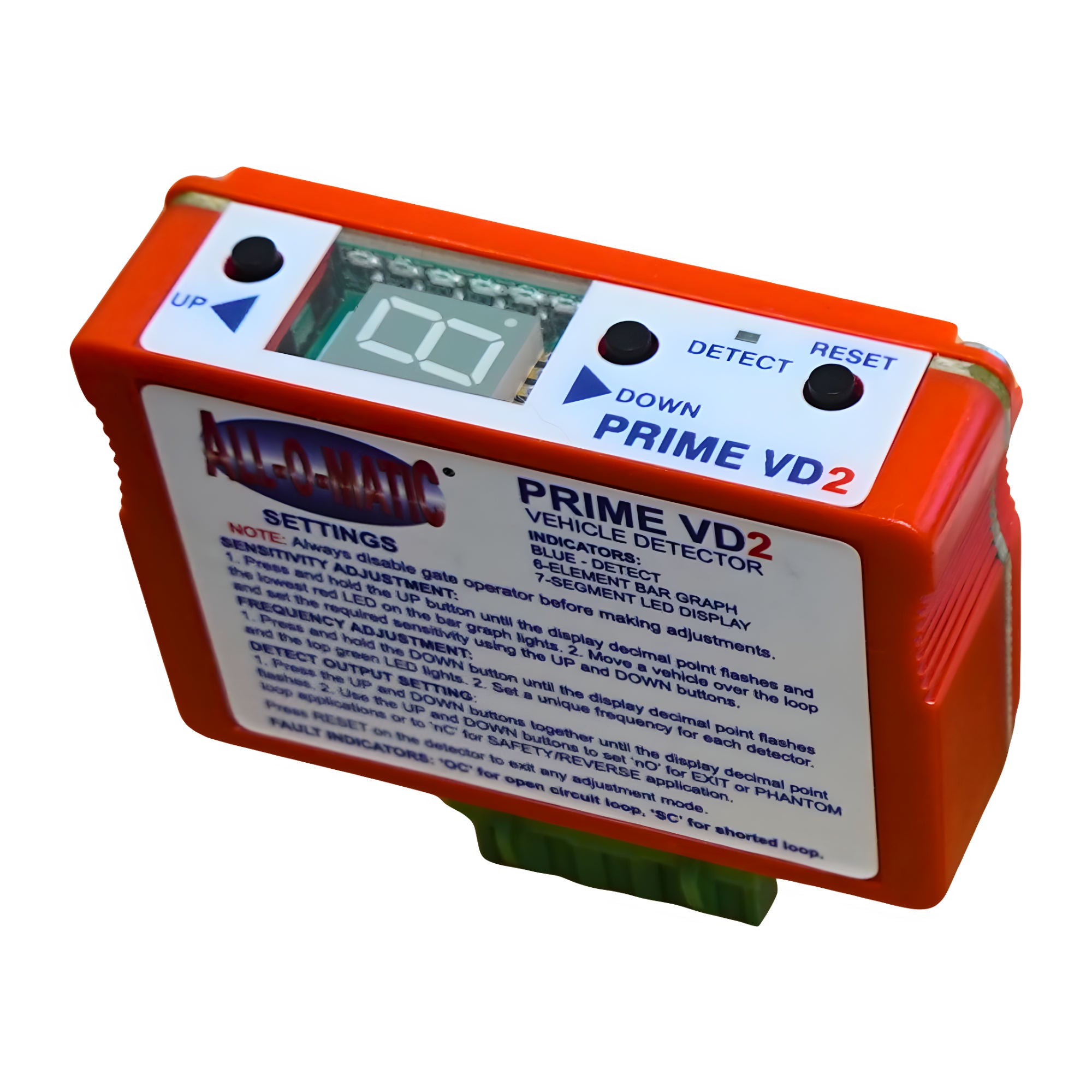

The All-O-Matic PRIME VD2 is a plug-in vehicle loop detector designed specifically for the All-O-Matic LPR-2 loop detector rack. Each detector monitors one properly installed in-ground inductive loop and provides the gate operator with a configurable solid-state output for Exit/Free-Exit, Phantom, or Safety/Reverse operation.

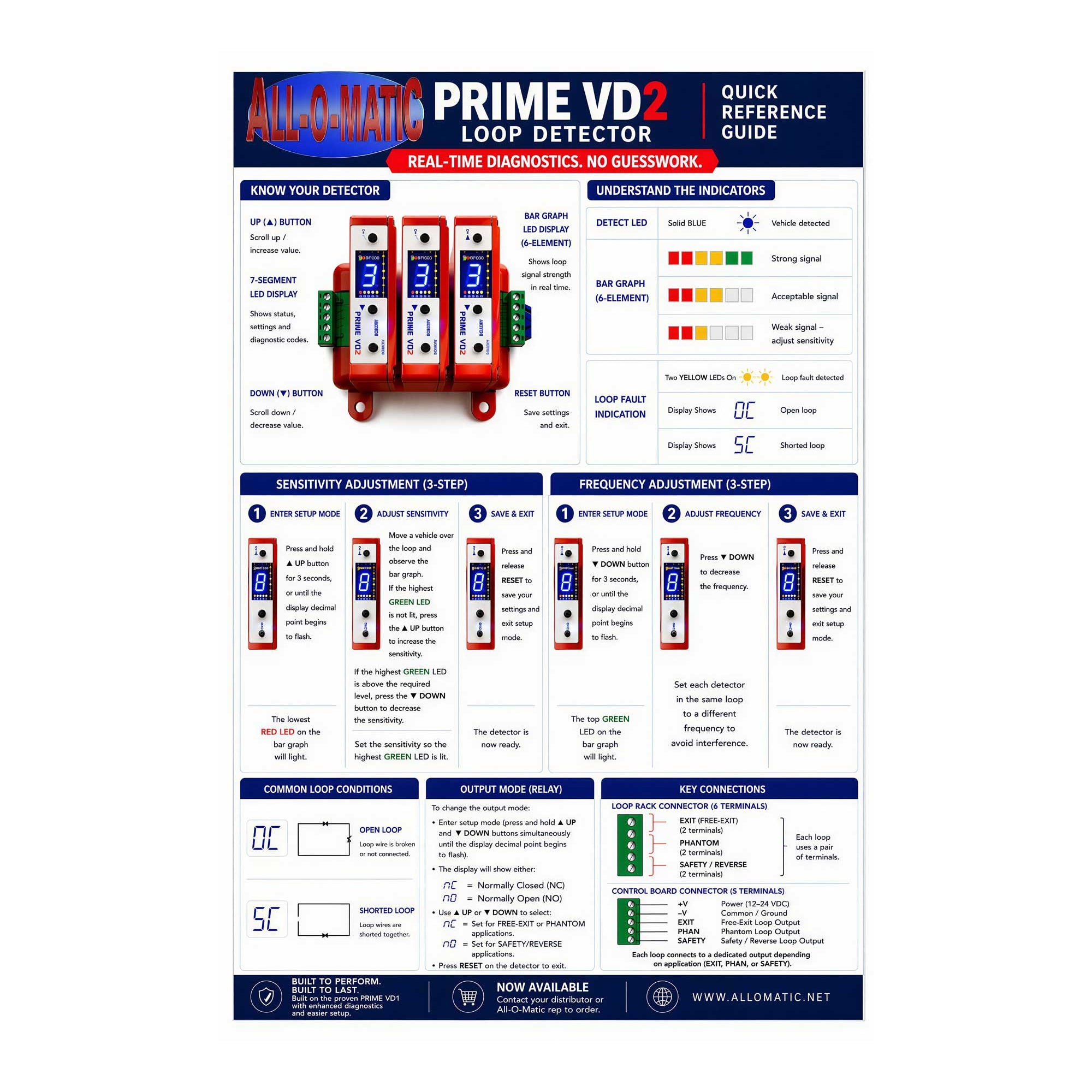

The PRIME VD2 gives installers more information than a basic loop detector. Its six-element LED bar graph displays loop signal strength in real time, while the seven-segment display shows settings, operating status, and diagnostic codes. Sensitivity can be adjusted while a vehicle is positioned over the loop, and the operating frequency can be changed to help prevent interference between detectors installed in the same rack.

Open-loop and shorted-loop fault codes help identify damaged, disconnected, or shorted loop wiring without relying on trial-and-error component replacement. The detector plugs directly into the LPR-2 rack and operates on 12 to 24 VDC power. This listing includes one PRIME VD2 detector module only. The LPR-2 rack and field-installed vehicle loop are sold separately.

Key Features

• Real-time visual diagnostics show loop response and signal strength during setup and operation
• Six-element LED bar graph with red, yellow, and green signal levels
• Seven-segment display shows settings, status, and loop fault codes
• Adjustable sensitivity helps match detection performance to the vehicle and loop installation
• Adjustable operating frequency helps reduce crosstalk between nearby detectors
• Configurable normally open or normally closed solid-state detect output
• Supports Exit/Free-Exit, Phantom, and Safety/Reverse loop applications
• Displays open-loop and shorted-loop diagnostic codes
• Three-button setup using UP, DOWN, and RESET controls
• Plug-in installation for the All-O-Matic LPR-2 loop detector rack
• Low-current 12 to 24 VDC operation
• One-year limited manufacturer warranty

Technical Specifications

• Manufacturer: All-O-Matic
• Model: PRIME VD2
• Product Type: Plug-in vehicle loop detector
• Rack Compatibility: All-O-Matic LPR-2 loop detector rack
• Loop Capacity: One vehicle detection loop per detector
• Applications: Exit/Free-Exit, Phantom, and Safety/Reverse loops
• Power Requirement: 12 to 24 VDC
• Maximum Current Draw: 20 mA
• Detect Output: Solid-state
• Output Configuration: Normally open or normally closed
• Free-Exit/Phantom Setting: Normally open
• Safety/Reverse Setting: Normally closed
• Signal Display: Six-element LED bar graph
• Bar Graph Levels: Two red, two yellow, and two green LEDs
• Status Display: Seven-segment LED display
• Controls: UP, DOWN, and RESET push buttons
• Sensitivity: Adjustable
• Frequency: Adjustable
• Open-Loop Fault Code: OC
• Shorted-Loop Fault Code: SC
• Warranty: One-year limited warranty against manufacturer defects and workmanship
• Included: One PRIME VD2 plug-in loop detector
• Not Included: LPR-2 rack, loop wire, and field-installed inductive loop

Conclusion

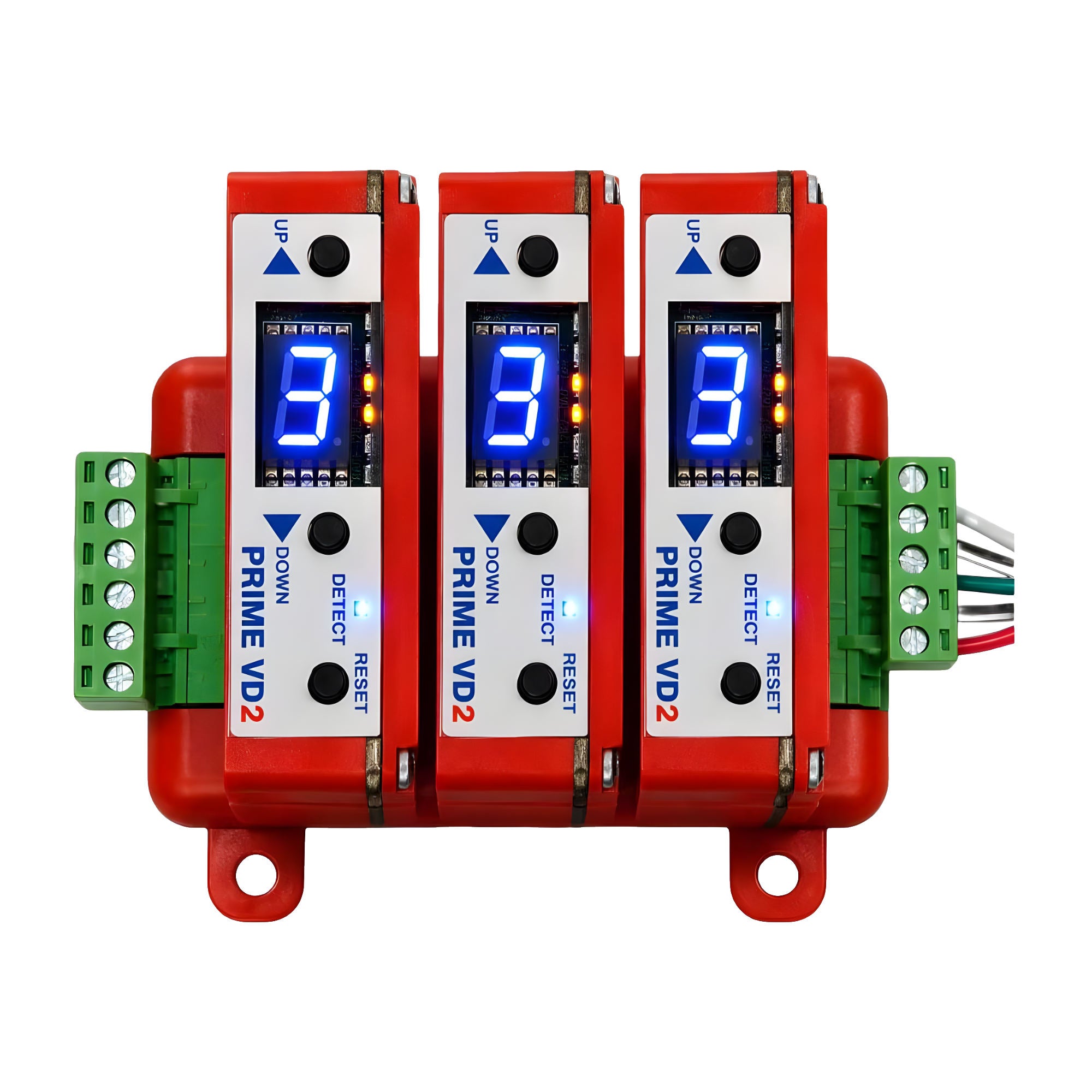

One PRIME VD2 detector is required for each active loop connected through the LPR-2 rack. A gate system using Exit, Phantom, and Safety loops can require three separate detector modules. When multiple detectors are installed in the same rack, each should be set to a different operating frequency to help prevent interference. Proper loop installation and sound field wiring are required for accurate vehicle detection and fault-free operation.
