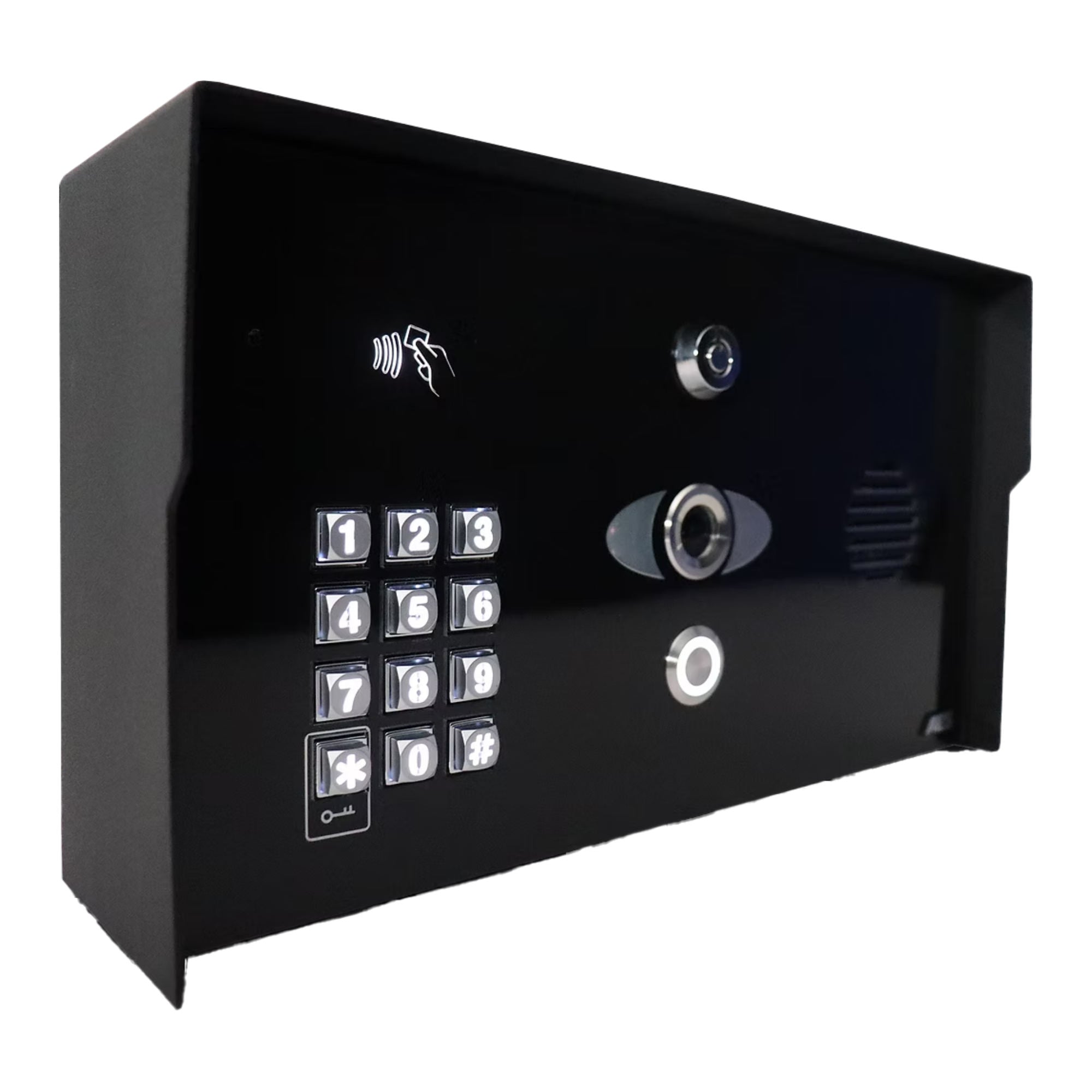

AES OPYN-PRO-IP-PBK Smart Video Intercom (wifi)

Wi-Fi and LAN Video Entry System for Gates and Controlled Entrances

The AES OPYN-PRO-IP-PBK is a smart video intercom and access control system for commercial properties, gated communities, multifamily entrances, residential estates, and other controlled entry points with an available internet connection. The hooded pedestal-mount unit connects through Wi-Fi or wired LAN, allowing visitors to call authorized users through the AES Opyn app without requiring a cellular router or SIM card.

Authorized users can view live video, speak with the caller, and activate a connected gate, door, or lock from a compatible smartphone. Two programmable relays allow the intercom to control separate entrances or access devices, while the integrated keypad, QR credential support, and proximity reader provide additional ways for residents, employees, vendors, and visitors to enter.

The OPYN-PRO-IP-PBK is the Wi-Fi and LAN version of the OPYN-Pro platform and replaces the AES Praetorian Guard IP Smart Video Intercom System. It adds 1080p video, motion detection alerts, recorded footage playback, downloadable images and video, scheduled opening times, customizable voicemail messages, Alexa and Google integration, and centralized management through the AES Opyn app.

The system supports up to 150 keypad codes and 150 QR credentials. Each credential can be assigned a limited number of uses, a defined validity period, or permanent access. Unlimited app users can be invited to share the device, and the seven-day activity log provides a record of recent calls and access activity.

Key Features

• Smart video intercom for gates, doors, and controlled perimeter entrances
• Connects through 2.4GHz or 5GHz Wi-Fi or wired LAN
• Current replacement for the AES Praetorian Guard IP Smart Video Intercom System
• Hooded pedestal-mount configuration
• Live video calling and two-way audio through the AES Opyn app
• Remote gate, door, or lock release from compatible iOS and Android devices
• Two programmable relays for controlling separate access points or devices
• Integrated keypad supporting up to 150 access codes
• Supports up to 150 QR access credentials
• Adjustable credential validity periods and permitted-use limits
• Integrated proximity reader for credential-based access
• Unlimited shared app users through account sharing, QR code, or invitation link
• Motion detection alerts with recorded footage playback
• Live camera view with image and video download
• Automatic opening schedules configurable through the app
• Three customizable voicemail messages for unanswered calls
• Seven-day activity history
• Night vision and nighttime LED illumination
• Amazon Alexa and Google Home integration
• 8GB SD card included with support for cards up to 128GB
• IP55-rated when installed and sealed according to AES instructions

Technical Specifications

• Manufacturer: AES Global
• Model / Part Number: OPYN-PRO-IP-PBK
• US Kit Number: OPYN-PRO-IP-PBK-US
• Product Type: Wi-Fi and LAN smart video intercom and access control system
• Replaces: AES Praetorian Guard IP Smart Video Intercom System
• Mounting Configuration: Hooded pedestal-mount unit
• Internet Connection: Wi-Fi or wired LAN
• Wi-Fi Compatibility: 2.4GHz and 5GHz
• LAN Connection: RJ45 Ethernet
• Maximum LAN Distance: 320 ft. before additional network extension equipment
• Recommended Upload Speed: Minimum 1.5 Mbps
• Mobile Application: AES Opyn app for compatible iOS and Android devices
• Video Resolution: 1080p or 720p
• Camera Viewing Angle: 110° diagonal, 105° horizontal, and 55° vertical
• Night Viewing: Night vision with nighttime LED illumination
• Two-Way Communication: Live video and audio calling through the AES Opyn app
• Relays: 2
• Relay Contacts: Normally open and normally closed
• Relay Load: Up to 3A at 30VDC or 250VAC
• Keypad Code Capacity: 150
• QR Code Capacity: 150
• Credential Controls: Adjustable validity period and number of uses, or unlimited access
• Shared Users: Unlimited
• Activity Log: Previous 7 days
• Proximity Access: Integrated proximity reader
• Motion Detection: App alerts with recorded footage playback
• Media Functions: Live view, image download, and video download
• Voicemail: Up to 3 customizable messages
• Voice Assistant Integration: Amazon Alexa and Google Home
• Storage: 8GB SD card included
• Maximum SD Card Capacity: 128GB
• Working Voltage: 24VDC or 48V PoE
• Power Consumption: 500mA at 24VDC or 250mA at 48V PoE
• Powering Requirement: Use either 24VDC or 48V PoE; do not connect both simultaneously
• Operating Temperature: -4°F to 149°F
• Ingress Protection: IP55 when properly installed and sealed
• Approximate Dimensions: 12.5 in. W x 7.1 in. H x 4.5 in. D
• Included Components: Hooded pedestal intercom, Wi-Fi antenna, and power supply
• Not Included: Network equipment, Ethernet extension hardware, and site-specific gate, door, lock, or access control wiring not expressly listed
• Installation Note: Confirm usable Wi-Fi signal or a wired LAN connection at the entrance before permanent installation

Conclusion

The AES OPYN-PRO-IP-PBK provides video communication, remote entry control, and credential management at entrances with available Wi-Fi or wired Ethernet. Its dual relays, app-based call answering, keypad, QR access, proximity reader, and activity history allow one system to manage visitor communication and gate or door access. For the most stable connection, AES recommends using wired LAN when practical.
