AES OPYN-PRO-4G-PBK Smart Video Intercom (4G)

4G App-Based Video Entry and Access Control for Gates and Doors

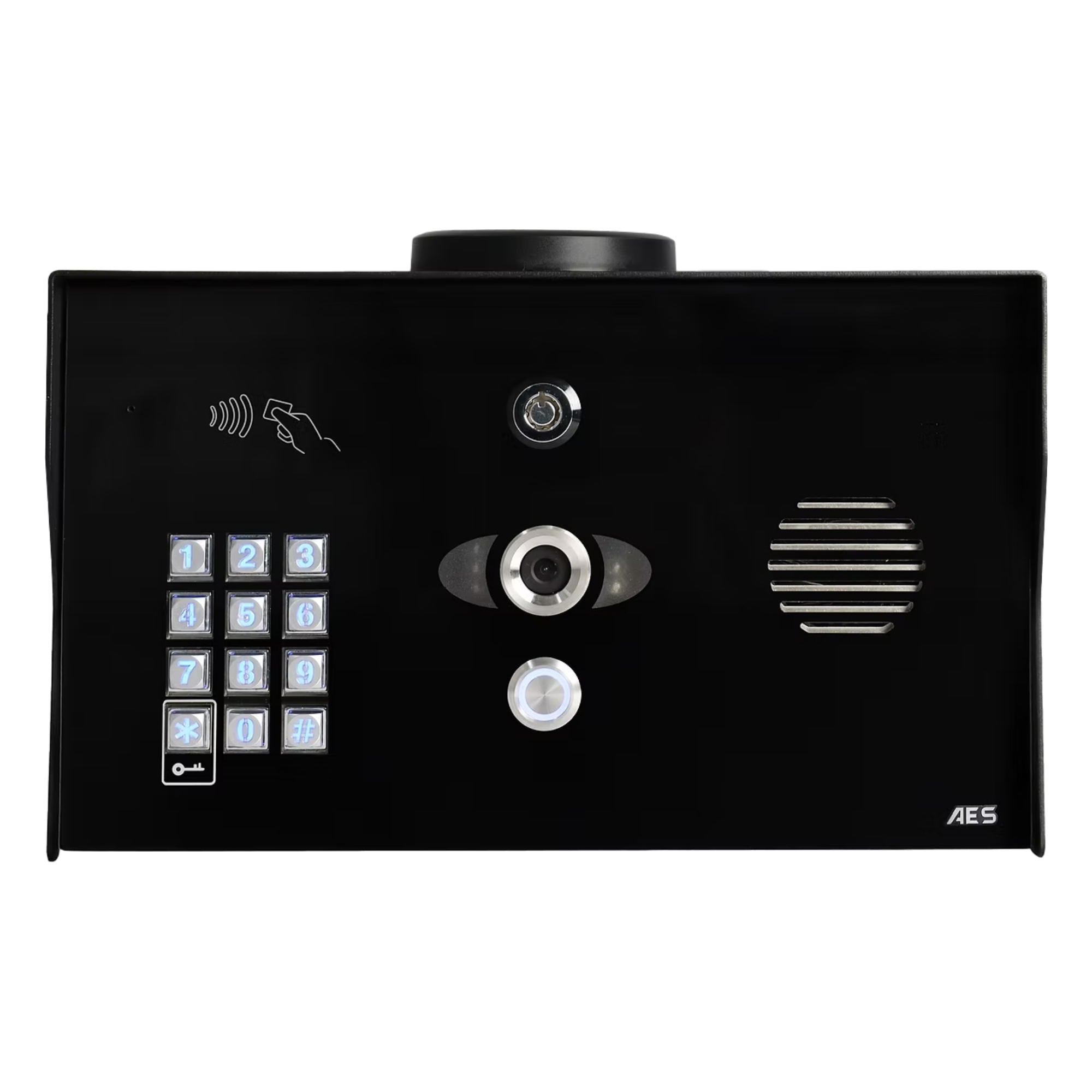

The AES OPYN-PRO-4G-PBK is a 4G smart video intercom and access control system for gated entrances, commercial properties, residential communities, and controlled doors without a dependable wired internet connection at the entry point. The kit combines a hooded pedestal-mount intercom with an integrated Robustel 4G router, allowing the system to connect to the internet through a compatible cellular SIM and data plan.

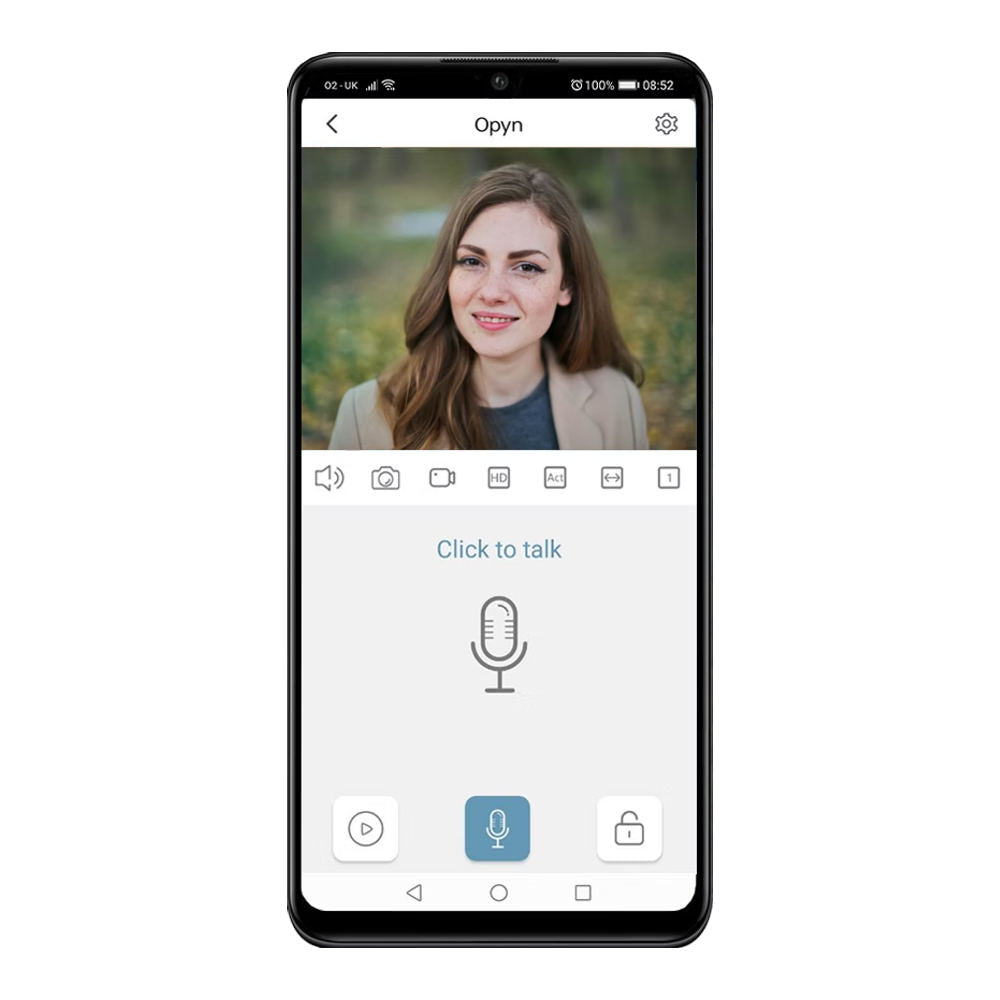

Visitors can call authorized users through the AES Opyn app, allowing residents, employees, or property personnel to view live video, speak with the caller, and activate a connected gate or door from a compatible smartphone. The system includes two programmable relays for controlling separate entrances or access devices and supports keypad codes, QR credentials, proximity access, scheduled opening times, and remote relay control.

The OPYN-PRO-4G-PBK is the current replacement for the AES Praetorian Guard IP Smart Video Intercom System. It expands on the earlier platform with 1080p video capability, motion detection alerts, recorded video playback, image and video downloads, Alexa and Google integration, customizable voicemail messages, and management through the AES Opyn app.

Up to 150 keypad codes and 150 QR codes can be created with adjustable validity periods and usage limits. Credentials can be configured for a specific date range, a limited number of uses, or permanent access. Multiple users can share access to the same system, while the seven-day activity log helps property managers review recent calls, access events, and system activity.

Key Features

• 4G smart video intercom for gates, doors, and controlled perimeter entrances
• Current replacement for the AES Praetorian Guard IP Smart Video Intercom System
• Hooded pedestal-mount intercom with integrated Robustel 4G router
• Connects through a compatible cellular SIM card and active data plan
• Live video calling and two-way audio through the AES Opyn mobile app
• Remote gate or door release from compatible iOS and Android devices
• Two programmable relays for controlling gates, doors, locks, or other access equipment
• Integrated keypad supporting up to 150 access codes
• Supports up to 150 QR access credentials
• Adjustable credential validity periods and permitted-use limits
• Integrated proximity reader for credential-based access
• Unlimited shared app users through account, QR code, or invitation link
• Motion detection alerts with recorded footage playback
• Live camera viewing with image and video download
• Automatic opening schedules configurable through the app
• Three customizable voicemail messages for unanswered calls
• Seven-day activity history
• Night vision and nighttime LED illumination
• Alexa and Google voice-control integration
• 8GB SD card included with support for cards up to 128GB
• IP55-rated when installed and sealed according to AES instructions

Technical Specifications

• Manufacturer: AES Global
• Model / Part Number: OPYN-PRO-4G-PBK
• US Kit Number: OPYN-PRO-4G-PBK-US
• Product Type: 4G smart video intercom and access control system
• Replaces: AES Praetorian Guard IP Smart Video Intercom System
• Mounting Configuration: Hooded pedestal-mount unit
• Internet Connection: Integrated Robustel 4G cellular router
• Cellular Requirement: Compatible SIM card with active data service
• Mobile Application: AES Opyn app for compatible iOS and Android devices
• Video Resolution: 1080p or 720p
• Camera Viewing Angle: 110° diagonal, 105° horizontal, and 55° vertical
• Night Viewing: Night vision with nighttime LED illumination
• Two-Way Communication: Live video and audio calling through the Opyn app
• Relays: 2
• Relay Contacts: Normally open and normally closed
• Relay Load: Up to 3A at 30VDC or 250VAC
• Keypad Code Capacity: 150
• QR Code Capacity: 150
• Credential Controls: Adjustable validity period and number of uses, or unlimited access
• Shared Users: Unlimited
• Activity Log: Previous 7 days
• Proximity Access: Integrated proximity reader
• Motion Detection: App alerts with recorded footage playback
• Media Functions: Live view, image download, and video download
• Voicemail: Up to 3 customizable messages
• Voice Assistant Integration: Amazon Alexa and Google Home
• Storage: 8GB SD card included
• Maximum SD Card Capacity: 128GB
• Working Voltage: 24VDC or 48V PoE
• Power Consumption: 500mA at 24VDC or 250mA at 48V PoE
• Powering Requirement: Use either 24VDC or 48V PoE; do not connect both simultaneously
• Operating Temperature: -4°F to 149°F
• Ingress Protection: IP55 when properly installed and sealed
• Approximate Dimensions: 12.5 in. W x 7.1 in. H x 4.5 in. D
• Recommended Upload Speed: Minimum 1.5 Mbps
• Included Components: Hooded pedestal intercom, integrated Robustel 4G router, and power supply
• Not Included: Active cellular data service and any site-specific gate, door, lock, or access control wiring not expressly listed
• Installation Note: Cellular antenna placement and available signal strength should be confirmed at the entrance before permanent installation

Conclusion

The AES OPYN-PRO-4G-PBK provides video communication and credential-based access at entrances where running Ethernet or extending the property’s Wi-Fi network is impractical. Its integrated 4G router, dual relays, app-based call answering, keypad, QR access, proximity reader, and event history allow one system to manage visitor communication and gate or door release. A compatible SIM, active data plan, adequate cellular signal, and properly sized power wiring are required for operation.
