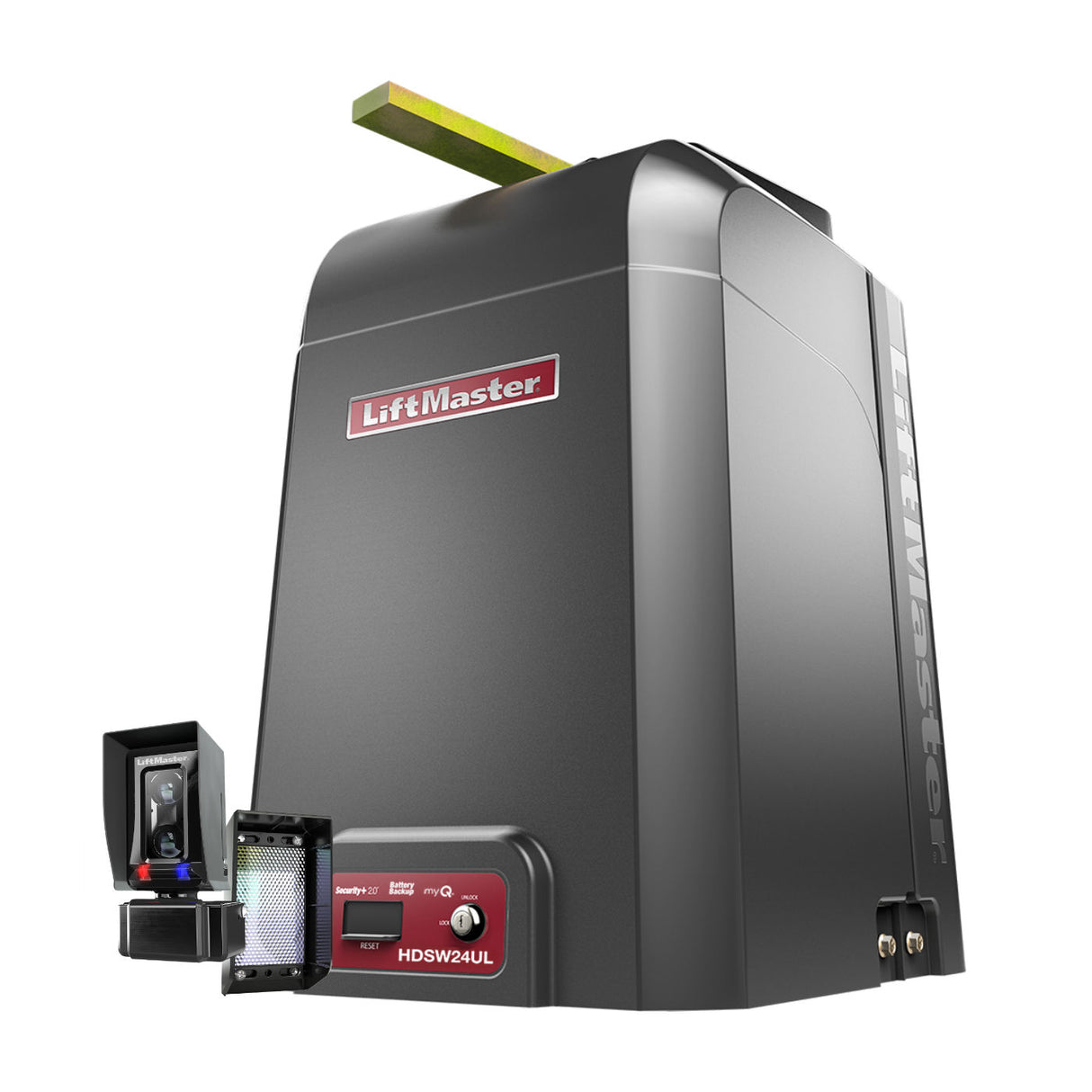

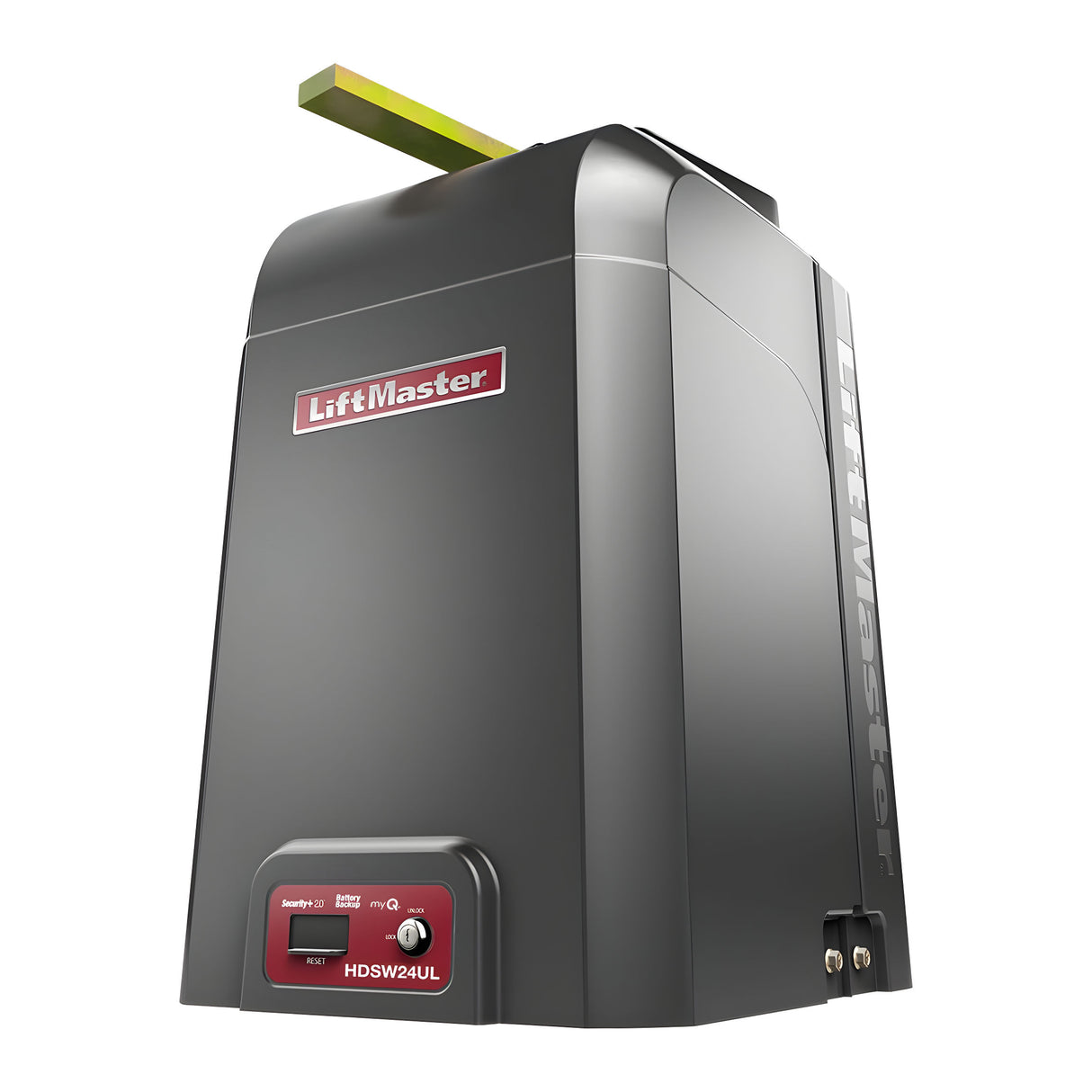

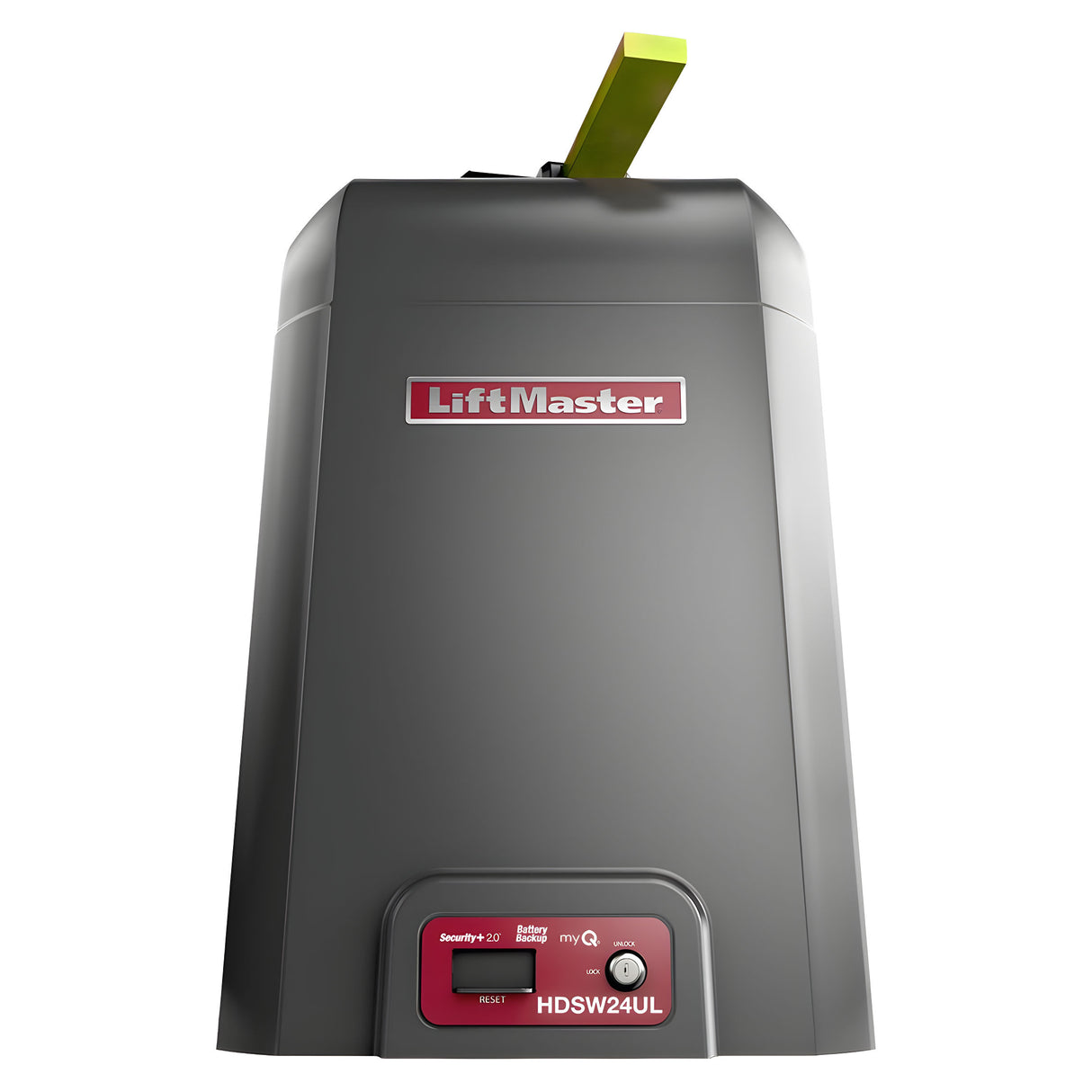

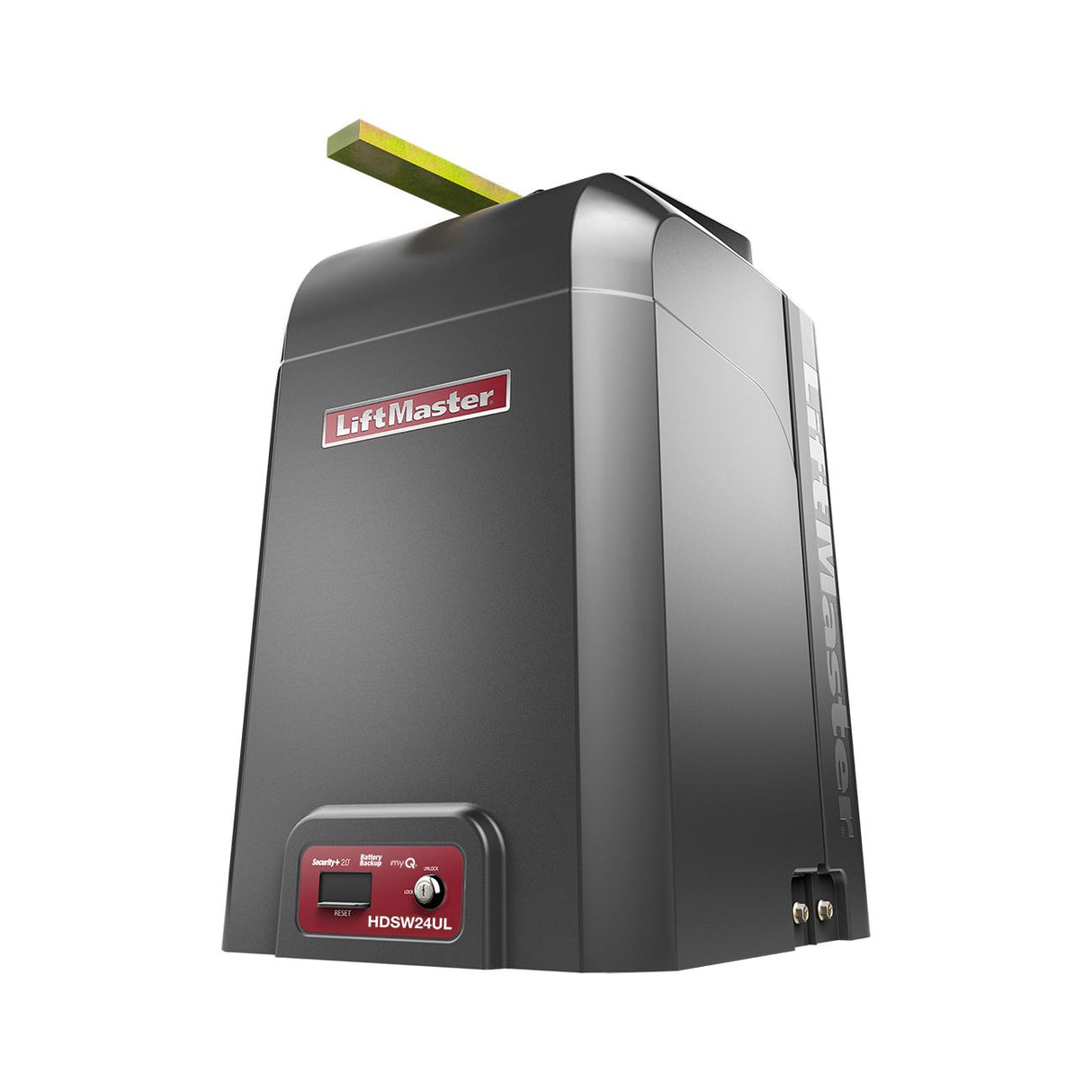

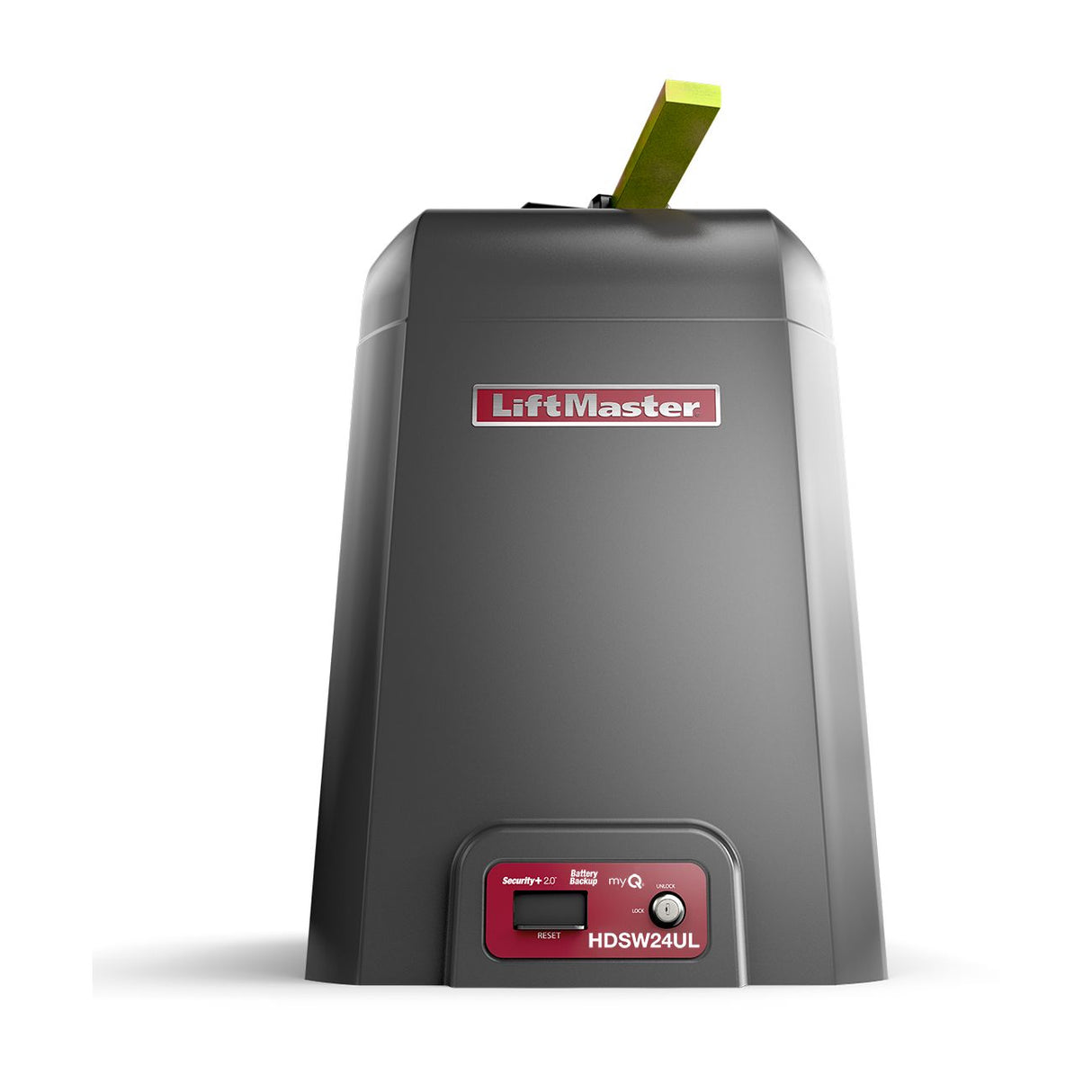

LiftMaster HDSW24UL Heavy-Duty Variable Speed Swing Gate Operator

24V DC Brushless Variable Speed Swing Gate Operator w/ myQ

The LiftMaster HDSW24UL is a 24V DC continuous-duty brushless swing gate operator built for heavy-duty commercial and industrial vehicular gate applications across UL 325 Class I through IV. With the standard arm it handles swing gates up to 2,800 lbs and 22 ft, completing a 90° arc in 13 to 36 seconds across a variable speed range. With the optional long arm, capacity increases to 4,500 lbs at 14 ft gate length. The direct drive 1,600:1 gear ratio and brushless motor with soft start and soft stop deliver precise, controlled movement across the full speed range. The 1/4 in powder-coated steel chassis resists corrosion, and the high-density UV-resistant polyethylene 2-piece cover protects internal components in outdoor installations. Two included 12V 7AH batteries deliver up to 45 cycles or 120 days of standby power during outages. Upgrading to 33Ah batteries extends operation to 307 cycles or 180 days. The solar-ready design supports off-grid and solar-supplemented installations.

The HDSW24UL includes the Security+ 2.0 3-channel on-board radio receiver, compatible with up to 50 remote controls (unlimited with model 811LM or 813LM). myQ Business cloud connectivity enables remote monitoring and gate control from anywhere via cellular or Wi-Fi connection. Wireless dual-gate communication with bi-part delay or synchronized close synchronizes bi-parting gate operation without conduit runs or driveway cuts. Four programmable auxiliary relays accommodate warning lights, alarms, and additional accessories. The operator is Fire Department compliant, opening automatically upon loss of AC power or battery depletion, and includes a manual release. Anti-tailgate and quick close capabilities are programmable, and HomeLink version 4 and higher is supported.

Key Features

• 24V DC brushless motor; direct drive 1,600:1 gear ratio; continuous duty with soft start/stop
• Variable speed: 90° opening in 13 to 36 seconds
• Standard arm: gates to 2,800 lbs and 22 ft. Optional long arm: up to 4,500 lbs at 14 ft gate length
• Ships as a kit with arm assembly, LMRRUL monitored photoeye, 2x 7AH batteries, cover, and hardware included
• Battery backup: 2x 7AH included; 45 cycles / 120-day standby. Optional upgrade: 33Ah; 307 cycles / 180-day standby
• Solar-power capable
• myQ Business compatible; Security+ 2.0 3-channel receiver; up to 50 remote controls (unlimited with 811LM/813LM)
• Wireless dual-gate communication; bi-part delay or synchronized close; no conduit runs or driveway cutting required
• 4 programmable auxiliary relays for warning lights, alarms, and accessories
• Fire Department compliant; auto-opens on AC or battery loss; manual release included
• Anti-tailgate and quick close programmable
• 6 monitored safety inputs (main and expansion board)
• LED diagnostic display; electronic limit setting
• HomeLink compatible (version 4 and higher)
• 5-year commercial warranty; 7-year residential warranty

Technical Specifications

• Model: HDSW24UL
• Motor: 24VDC brushless, continuous duty, soft start/stop
• Gear Reduction: Direct drive 1,600:1
• Maximum Gate Weight: 2,800 lbs (standard arm); 4,500 lbs at 14 ft with optional long arm
• Maximum Gate Length: 22 ft
• 90° Travel Time: 13 to 36 seconds (variable)
• UL Classification: Class I, II, III, IV
• Compliance: UL 325 listed
• Input Power: 120/240VAC, single phase, switchable
• Accessory Power: 24VDC, 1A max; switched and unswitched
• Radio Receiver: Security+ 2.0, 3-channel; up to 50 remotes (unlimited with 811LM/813LM)
• Safety Inputs: 6 total (main and expansion board)
• Auxiliary Relays: 4 programmable
• Battery Backup: 2x 12V 7AH batteries included; 45 cycles / 120-day standby
• Solar Ready: Yes
• Operating Temperature: -4°F to 140°F (-20°C to 60°C) without heater; -40°F to 140°F (-40°C to 60°C) with optional heater
• Chassis: 1/4 in powder-coated steel
• Cover: High-density UV-resistant polyethylene, 2-piece
• Operator Weight: 249 lbs
• Dimensions: 28.05 in H x 20.21 in W x 20.36 in D
• Included: Operator, standard arm assembly, cover, LMRRUL monitored retro-reflective photoeye, 2x 12V 7AH batteries, 2 keys, 2 warning signs, installation manual, documentation packet and hardware bag
• Optional: Long arm, heater kit, plug-in loop detector, monitored wireless edge kit, 33Ah battery upgrade
• Warranty: 5 years commercial; 7 years residential
• Manufacturer: LiftMaster / The Chamberlain Group
• Condition: New

Conclusion

The included LMRRUL retro-reflective photoeye satisfies the monitored entrapment protection device required per UL 325 for swing gate installations. When selecting arm configuration, confirm your gate weight and length against the capacity chart: the standard arm handles up to 2,800 lbs at 22 ft, while the long arm supports heavier gates with capacity varying by length. The 33Ah battery upgrade is available separately and is worth considering for high-security or remote sites where power reliability is a concern. myQ Business connectivity requires a myQ Business capable access control device linked via cellular data or Wi-Fi and is not activated by the operator alone.
