FAAC 412 Single Swing Gate Opener Kit - 115 VAC
FAAC 412 Single Swing Gate Opener Kit - 115 VAC - 412 DX (Right-Hinged) is backordered and will ship as soon as it is back in stock.
Core Details
| Product Type | Swing Gate Operator |
| Application Type | Gate |
| Installation Type | Residential |
| Voltage | 115V |
| Power Type | AC |
| Mounting Type | Post Mounted |
| Mechanism Type | Electromechanical |
| Horsepower (HP) | < 0.5 HP |
| Battery Backup | Not Compatible | Optional Kit Available |
| Smart Features | Universal Controller Compatible (Doorking 1800-500) |
| Max Gate Weight | 14 Ft |
| Max Gate Length | 500 Lbs |
| Weatherproof Rating | Rated for Outdoor Usage |
| Operating Temperature | -4°F to 131°F |
FAAC 412 Single Swing Gate Opener Kit - 115 VAC
Description
Description
Smooth and Reliable Gate Automation for Light Residential Use
The FAAC 412 Single Swing Gate Opener Kit is a reliable and efficient automation solution designed for light residential gates. Built to handle gate leaves up to 14 feet wide and 500 pounds, this electromechanical operator combines smooth operation, robust construction, and versatile installation options. Available in 412DX1.5 (right-hinged) or 412SX1.5 (left-hinged), this kit offers a tailored fit for your specific gate setup.
Key Features
- Tailored Variants: Choose from 412-DX for right-hinged gates or 412-SX for left-hinged gates.
- Durable and Weatherproof: Constructed with rugged aluminum housing and rated IP44 for reliable outdoor performance.
- Smooth and Quiet Operation: Opens gates to 90° in approximately 16 seconds, delivering consistent and quiet motion.
- Secure Locking System: Integrated mechanical locks secure gates in open or closed positions for added safety.
- Emergency Manual Release: Key release ensures accessibility during power outages or emergencies.
- Optimized for Residential Use: Designed for light-duty operation with a usage frequency of up to 18 cycles per hour.
Technical Specifications
- Input Voltage: 115 VAC (+10% / -6%)
- Maximum Gate Dimensions: 14 ft width, 500 lbs weight
- Opening Time: ~16 seconds for 90°
- Usage Frequency: 18 cycles/hour
- Motor Power: 280 W, 3 A
- Protection Class: IP44
- Operating Temperature: -4°F to 131°F (-20°C to +55°C)
Variants
- 412 DX: For right-hinged gates (Part Number: 412DX1.5).
- 412 SX: For left-hinged gates (Part Number: 412SX1.5).

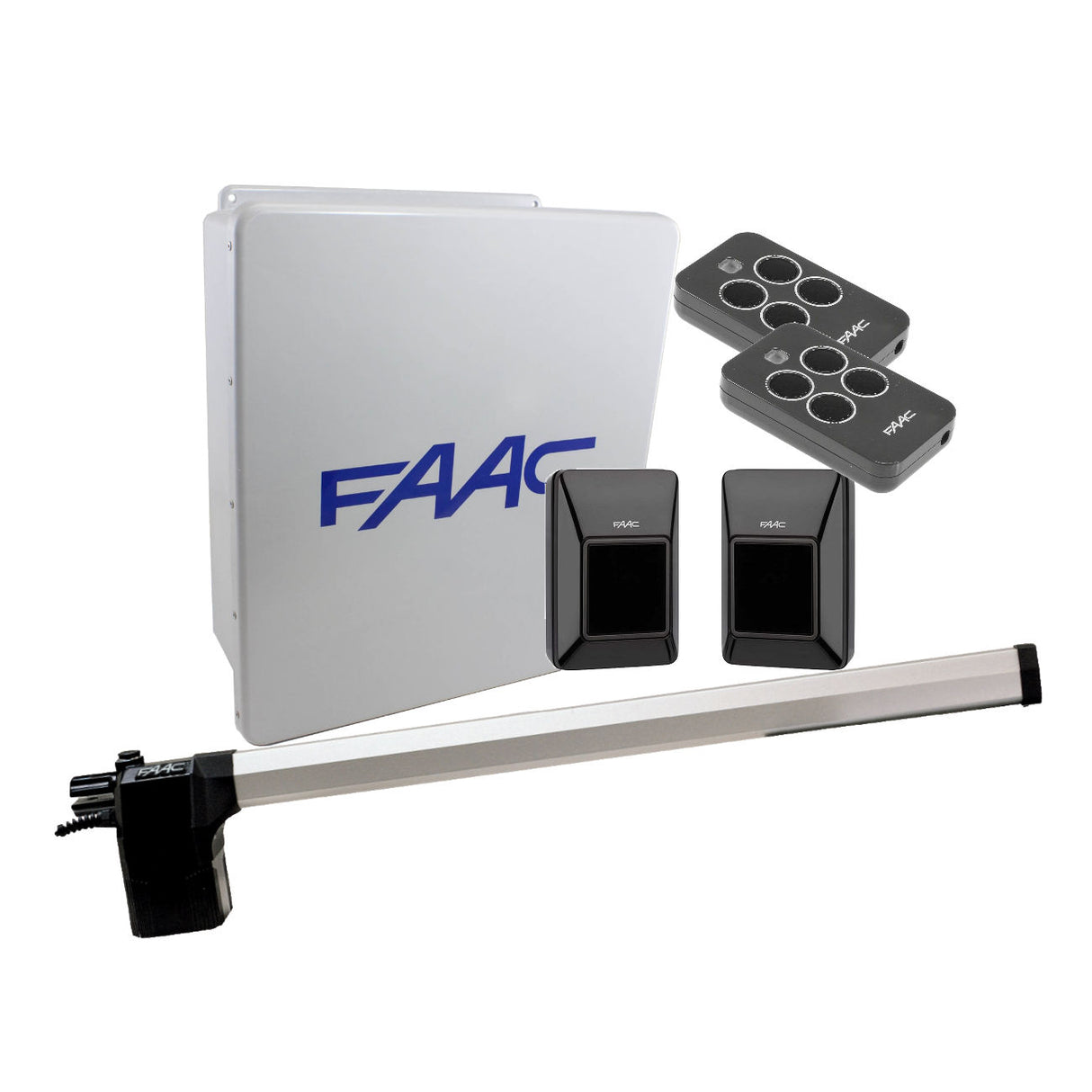

What’s Included
- 1 FAAC 412 Operator (Right-hinged or left-hinged)
- 455D Control Panel (115V)
- Prewired Fiberglass Enclosure
- 2 XT4 433 RC 4-Channel Transmitters
- Pair of XP 30 Photobeam Photocells
- Mounting Hardware and Adapters
Conclusion
The FAAC 412 combines advanced engineering, ease of use, and exceptional reliability to deliver seamless gate automation for residential properties. Its compact yet powerful design ensures smooth and quiet operation, while the tailored variants allow for flexible installation on right- or left-hinged gates. With weatherproof construction, secure locking, and a trusted FAAC build, this kit provides long-lasting performance and peace of mind.
