Access control has been shedding wires for years. Cloud management replaced the on-site computer, cellular connections replaced the phone line, and mobile credentials are replacing plastic cards. But one stubborn set of wires has hung on through all of it: the communication lines that connect each keypad, reader, and controller back to the brain of the system. On most properties, those lines are the reason an access control install involves a trencher, a conduit run, and a bigger labor bill than the hardware itself.
A new generation of cellular mesh systems is aimed squarely at that last set of wires. In this guide we will walk through how wireless mesh technology actually works, what it can and cannot replace, and where it delivers the biggest payoff. Then we will look at Security Brands, the manufacturer that has built the most complete wireless mesh product line in the gate and access control space.
What Is a Wireless Mesh Network?
Most wireless setups you interact with daily use a hub and spoke design. Your laptop, phone, and TV all talk to one router, and if a device is too far from that router, the connection suffers. Every device depends on its own direct link to a single central point.
A mesh network works differently. Every device on the network, often called a node, can pass traffic along for every other device. If a keypad at a far gate is too distant to reach the main unit directly, its signal hops through a closer node that relays it the rest of the way. No single device needs a direct line to the center. The network only needs an unbroken chain of nodes between any device and the brain.
This design has a property that feels almost backwards compared to traditional wireless: the network gets stronger as it grows. Each device you add becomes another relay point, another possible path for the signal to travel. A larger installation is not a strain on the system. It is more infrastructure for the system to route through, with more redundancy if any single path is blocked.
Where the Cellular Connection Fits In
A mesh handles the local conversation between devices on the property. It still needs a way to reach the outside world for cloud management, remote entry, and notifications. That is the job of the primary unit.
In a cellular mesh system, one primary unit acts as the brain. It holds the access database, makes the entry decisions, and carries a cellular connection to the cloud, the same way a modern cellular intercom does. Every other device on the property, whether it is a keypad, a card reader, or a controller opening a second gate, communicates back to that primary unit over the encrypted wireless mesh.
Put those two pieces together and something notable happens: the system needs no communication wiring at all. The cellular link replaces the phone line and the internet drop. The mesh replaces the control wiring between devices. What used to be the two most expensive wiring problems on a property are both gone. Many of these systems also store backup codes on the device itself, so a keypad can still grant entry even if the connection drops.
These systems typically run on a low frequency radio band around 900 MHz rather than standard WiFi. Lower frequencies travel farther and push through obstacles like walls, foliage, and terrain far better than a WiFi signal, which is why a single mesh link can cover distances that would take several WiFi extenders to bridge.
What Still Needs a Wire
It is worth being clear about what wireless mesh does not eliminate, because no honest explanation of this technology should skip it.
Every device still needs power. A mesh keypad, reader, or controller has to be wired to a power source, so you are placing devices where power exists or can reasonably be brought. The good news is that power is usually the easy half of the problem. Low voltage power is often already present near a gate, and running a power line is a far simpler and cheaper job than trenching a communication run.
The device being controlled still needs its short local connection as well. A controller that opens a gate is wired to that gate operator, and one that releases a magnetic lock or electric strike is wired to that hardware. These are short runs measured in feet, not the long trenched runs measured in hundreds of feet that mesh eliminates.
Where Wireless Mesh Shines
The advantages of mesh show up anywhere the cost of running communication wire is high. A few situations come up again and again:
- Retrofits on occupied properties. Trenching across a finished parking lot, established landscaping, or an occupied apartment community is disruptive and expensive. Mesh lets you add a reader or keypad almost anywhere you can get power to it.
- Spread out sites. A back gate, a pool entrance, a storage yard, or a second building can sit hundreds of feet from the main entrance. With mesh, distance between entry points stops being a wiring problem.
- Hardscape and paving in the way. Any time a wire run would mean cutting concrete or boring under a driveway, wireless communication pays for itself quickly.
- Historic and sensitive properties. Sites where trenching or surface conduit is restricted or simply unwelcome can add modern access control without touching the ground.
- Growing properties. Because the network strengthens as it expands, an entry point added next year joins the same mesh with no new communication infrastructure.
Limitations to Plan Around
Mesh is a strong tool, not a magic one, and a little planning up front makes the difference between a smooth install and a frustrating one.
Range is generous but not unlimited. A typical mesh link covers up to about a thousand feet under good conditions, and range extenders can push coverage out much farther by adding relay points along the way. Dense obstructions like metal buildings, thick masonry, or heavy earth berms can shorten those distances, so a quick look at what sits between your devices is worth doing before you buy.
The system also depends on its primary unit. Every mesh device reports back to the brain, so the primary unit needs a solid cellular signal at its location. And like other cellular and cloud managed platforms, these systems carry an ongoing service plan for the connectivity and management features, which is worth factoring into any comparison against a hardwired system.
Security Brands and the Ascent Link System
Security Brands, Inc. is a Texas based manufacturer that has been building perimeter access control since 1979, and its Ascent platform of cellular entry systems has become one of the most recognizable names in cellular access control. Ascent Link is the company's wireless mesh expansion of that platform, and it is currently the most complete implementation of the technology in the gate industry.

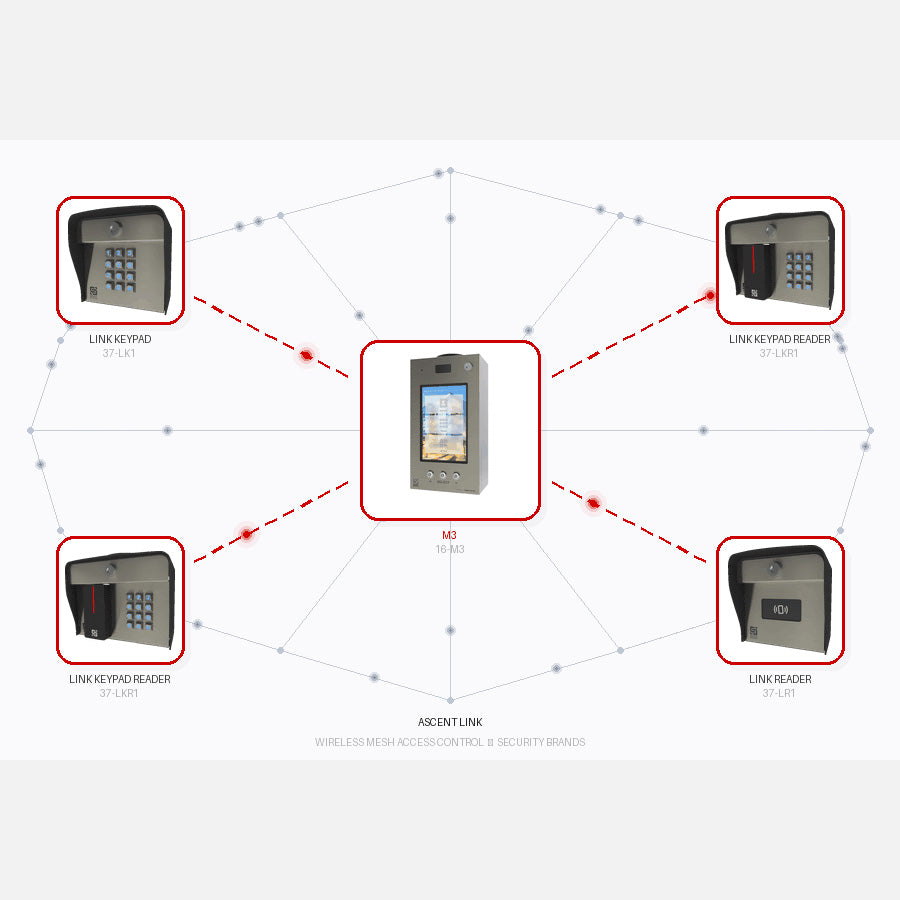

The concept is exactly what we have described. A compatible Ascent cellular unit serves as the primary, carrying the cellular connection and the access decisions, and Ascent Link devices join it over a 900 MHz encrypted wireless mesh. Every device on the mesh is managed through Summit Control, the same cloud platform used across the Ascent line, so codes, credentials, schedules, and activity logs for the whole property live in one place.
The Ascent Link family covers each role a property might need:
- Ascent Link Keypad. A wireless mesh keypad for code based entry at gates, doors, and pedestrian entrances.
- Ascent Link Reader. A wireless mesh proximity card reader for properties running card or fob credentials.
- Ascent Link Keypad + Reader. A combination unit that handles both codes and proximity credentials at a single entry point.
- Ascent Link Controller. A wireless mesh controller that lets an additional gate operator, door, magnetic lock, or electric strike join the system, with an input for wiring a compatible third party reader.
- Ascent Link Extend. A range extender that adds roughly a thousand feet of reach per unit, carrying the mesh out to distant corners of a property.
- Ascent Link Starter Kits. Kits that prepare a compatible Ascent primary unit for mesh communication, available in a standard version and a long range version that builds the network out to two thousand feet.
For a property manager or homeowner, the practical picture looks like this: one Ascent cellular unit at the main entrance, a starter kit to switch on the mesh, and then keypads, readers, and controllers placed wherever the property needs them, each requiring nothing but power at its location.
Is Wireless Mesh Right for Your Property?
If your property has a single entry point a short run from power and communication lines, a conventional hardwired system remains a perfectly good choice. But if you are adding access control to an existing property, securing entry points spread across a large site, or dreading a quote that is mostly trenching labor, wireless mesh changes the math in your favor.
