RFID for Access Control Systems - Explained

LF vs. HF vs. UHF: What's the Difference?

A Plain-English Guide for Property Managers, Integrators & Security Professionals

If you've ever shopped for a card reader, proximity fob, or vehicle RFID system, you've likely run into terms like "125 kHz," "13.56 MHz," "HID," or "UHF long-range." These all refer to RFID (Radio Frequency Identification) but they're not interchangeable. The frequency a system operates on determines how far it can read, how fast it transfers data, and how well it performs around metal, water, and other environmental factors.

This guide breaks down the three primary RFID frequency bands: Low Frequency (LF), High Frequency (HF), and Ultra-High Frequency (UHF), so you can confidently choose the right technology for your gate, door, garage, or facility access application.

What Is RFID and Why Does Frequency Matter?

RFID technology uses radio waves to wirelessly transmit data between a tag (on a card, fob, or vehicle sticker) and a reader mounted at an entry point. Unlike a barcode, RFID doesn't require line-of-sight; the tag just needs to be within range of the reader.

The frequency at which this communication happens has a direct impact on three things:

• Read range: how close the tag needs to be to the reader
• Data transfer speed: how quickly credential information is exchanged
• Environmental performance: how well the system handles interference from metal surfaces, water, or dense materials

Understanding these trade-offs is the key to selecting the right system for your application.

Low Frequency (LF) RFID (125 kHz)

The Reliable Short-Range Standard

Low Frequency RFID operates at 125 kHz (or sometimes 134 kHz) and has been the backbone of access control systems for decades. If you have a proximity card or key fob that you tap or wave near a reader to unlock a door or gate, there's a good chance it's an LF system.

Key Characteristics

• Frequency: 125 kHz
• Read range: Typically up to 4 inches (10 cm), though some readers extend to a few feet
• Data speed: Slow, but more than sufficient for simple credential exchange
• Metal/liquid resistance: Excellent; performs reliably near metal frames, wet surfaces, and other challenging materials

Common Applications

• Door and gate access control (proximity cards and fobs)
• Vehicle key fobs
• Animal tracking (livestock, pet microchips)
• Industrial asset tracking in metallic environments

Why Choose LF for Access Control?

LF is the dominant choice for standard proximity card systems, including many DoorKing, Linear, and similar readers. It is battle-tested, immune to most environmental interference, and widely supported across credential types. If you're setting up a simple gate or door entry system where users present a card or fob at close range, LF is often the most reliable and cost-effective solution.

The main limitation is range. LF readers won't give you the 10–30 foot hands-free detection that some commercial parking or HOA applications require. For those use cases, UHF is the better fit.

High Frequency (HF) RFID (13.56 MHz)

The Smart Card Standard

High Frequency RFID operates at 13.56 MHz and is the foundation for a wide range of smart card technologies, including HID iCLASS, MIFARE, and NFC (Near Field Communication). If you use a contactless credit card, transit fare card, or a modern smart access badge, you're using HF RFID.

Key Characteristics

• Frequency: 13.56 MHz
• Read range: Up to 12 inches (30 cm)
• Data speed: Faster than LF; capable of transferring more complex data
• Metal/liquid resistance: Moderate; performs well in most environments but less tolerant of heavy metal interference than LF


Common Applications

• HID iCLASS and MIFARE access control cards
• Contactless payment cards (NFC)
• Public transit fare cards
• Library checkout systems
• Secure employee ID badges


Why Choose HF for Access Control?

HF systems are chosen when you need more than just a simple credential exchange. The higher data transfer rate supports encrypted credentials and more sophisticated security protocols, making HF the go-to choice for facilities that require enhanced security, such as corporate offices, hospitals, government buildings, and multi-tenant commercial properties.

HID (a leading brand in access control) builds many of its premium card readers around 13.56 MHz, which is why you'll see HF referred to in the context of "HID card compatibility." If you're running a DoorKing system with AWID or HID card readers, HF is likely in the mix.

Ultra-High Frequency (UHF) RFID (860–928 MHz)

The Long-Range Vehicle Access Solution

Ultra-High Frequency RFID operates in the 860–928 MHz range and is engineered for applications where long read distances and high-speed data transfer are required. This is the technology behind hands-free vehicle access systems, where a tag on your windshield or on your headlight triggers a gate to open before you even slow down.

Key Characteristics

• Frequency: 860–928 MHz (UHF)
• Read range: 1 to 12+ meters (3 to 40+ feet) depending on the reader
• Data speed: Fastest of the three; capable of multi-tag simultaneous reads
• Metal/liquid resistance: Lower; UHF signals are more susceptible to interference, though specialized on-metal tags and proper installation positioning can address this

Common Applications

• Long-range vehicle access at gated communities and HOA entrances
• Parking garage and lot management systems
• Toll and highway vehicle identification
• Warehouse and logistics inventory tracking
• Fleet management and vehicle monitoring

Why Choose UHF for Access Control?

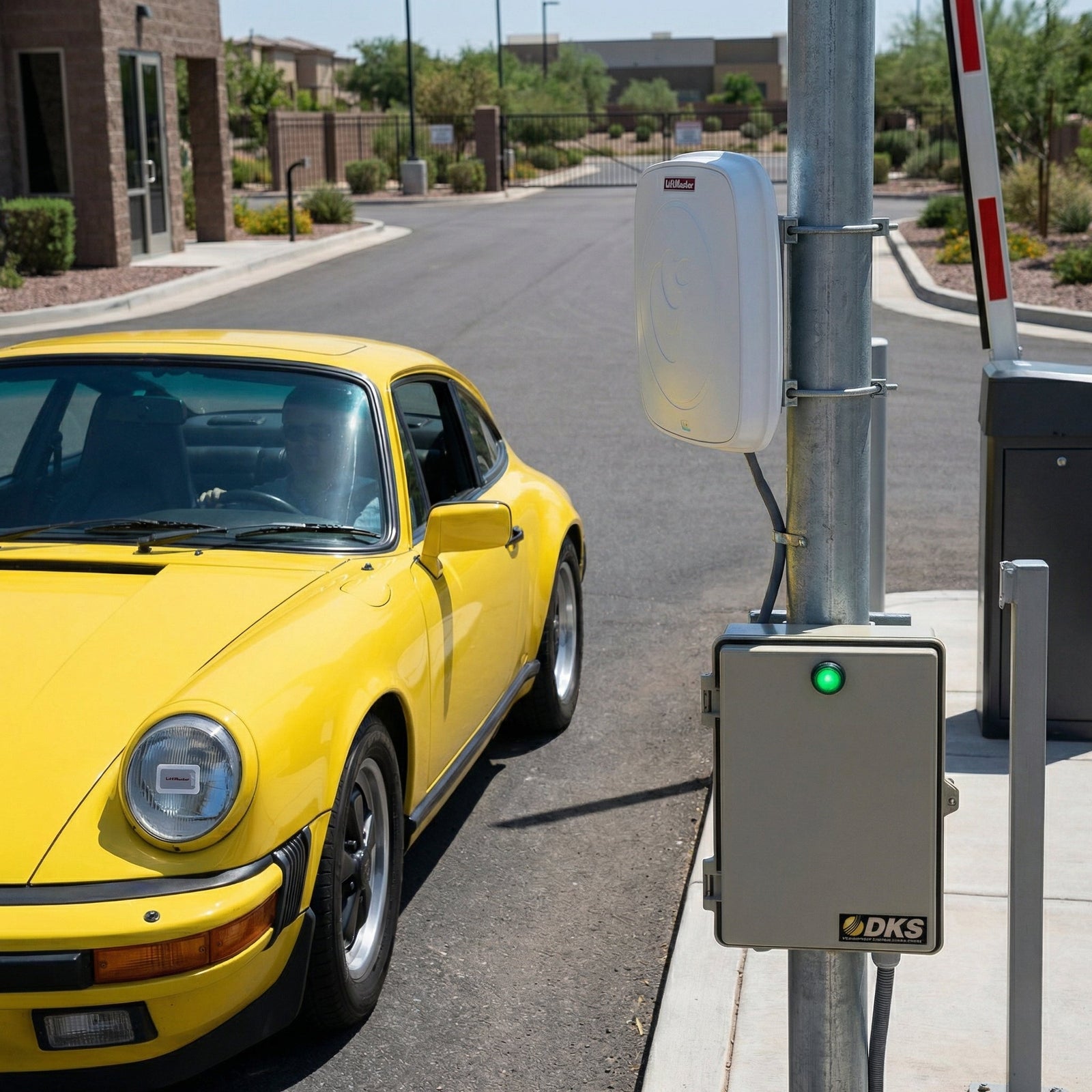

UHF is the right choice when you need a completely hands-free experience. Residents approaching a gated community don't need to roll down a window or tap a card. The reader detects the windshield tag from 10 to 30 feet away and the gate opens automatically. This dramatically improves traffic flow and resident convenience.

Products like the LiftMaster LMSC1000, DoorKing 1815-350, EMX Patriot series, and AWID LR-3000 are all UHF long-range readers available at Elite Gates, designed specifically for this type of vehicle-based access control.

The trade-off is installation complexity and cost. UHF systems require careful placement to avoid interference from nearby metal structures, and the readers themselves are more expensive than standard proximity card readers. However, for high-traffic properties, the return in convenience and reduced bottlenecks is well worth it.

LF vs. HF vs. UHF: At-a-Glance Comparison

Choosing the Right RFID Frequency for Your Application

The best frequency depends on your specific use case. Here's a simple framework:

Choose LF (125 kHz) if:

• You need a standard, reliable proximity card or fob system for gates or doors
• Your installation environment has significant metal or moisture exposure
• You're working with existing DK Prox, Linear, or similar proximity infrastructure
• Budget and simplicity are the top priorities

Choose HF (13.56 MHz) if:

• You require enhanced security with encrypted credentials
• You're integrating with HID iCLASS, MIFARE, or NFC-based smart card systems
• Your facility uses multi-technology readers that need to support both card and mobile credentials
• The application is commercial or institutional with higher security demands

Choose UHF (860–928 MHz) if:

• You need hands-free, long-range vehicle detection at a gate or parking entrance
• High-traffic flow is a priority; residents shouldn't have to stop or roll down windows
• You're managing a gated HOA, apartment complex, parking garage, or commercial lot
• Your application involves fleet vehicles, delivery trucks, or service vehicles that need automatic access

A Note on Wiegand Protocol

Regardless of which frequency you choose (LF, HF, or UHF), most access control card readers communicate with your gate operator or access controller using the Wiegand protocol. Wiegand is the industry-standard data format (typically 26-bit) that tells the controller which credential was presented. It's the "language" spoken between the reader and the system, separate from the RF frequency used to read the card.

This means a 125 kHz proximity reader and a 13.56 MHz HID reader can both output Wiegand data to the same controller. The frequency determines how the tag is read wirelessly, while Wiegand determines how that data is passed to the access control system.
