Reliable Gate Automation Built to Last
When it comes to gate automation, not every brand earns a placard on the wall. Platinum Access Systems is one that has. Based in Ontario, California, Platinum Access has built a reputation around one core idea: building gate operators that work hard, last long, and do not ask for much in return. We stock and support Platinum Access products because they consistently deliver the kind of performance our customers expect, whether they are automating a residential driveway or securing a busy commercial entrance.
In this post, we are going to break down who Platinum Access is, what makes their product line stand out, and which specific models are worth your attention.
Who Is Platinum Access Systems?
Platinum Access Systems, also known as Platinum ASI, is an American gate automation manufacturer headquartered in Ontario, California. The company designs and produces swing gate operators, slide gate operators, access control devices, and supporting accessories. Their product lineup is built around brushless DC motor technology, a design philosophy that prioritizes longevity, quiet operation, and reduced maintenance over the lifetime of the system.
Platinum Access targets residential homeowners, HOA communities, apartment complexes, and commercial properties, covering everything from a single driveway gate to a high-traffic commercial entrance. Their systems are UL 325 and UL 991 certified, meaning they meet the safety standards that installers and property managers require for residential, commercial, and industrial gate applications.
What separates Platinum Access from many competitors is that they did not cut corners on the motor technology. Their brushless DC motor is the centerpiece of virtually every operator they build, and understanding that technology is key to understanding why these products hold up so well over time.
The Brushless DC Motor Advantage
If you have shopped for gate operators before, you have probably seen products powered by conventional brushed DC motors or AC motors. Both work, but they each come with trade-offs. Brushed motors wear down over time because the brushes that carry current to the motor gradually degrade. AC motors are powerful but tend to be louder and less efficient in low-voltage or solar configurations.
Platinum Access built their lineup around brushless DC motors for good reason. A brushless DC motor eliminates the mechanical brushes entirely, which means there is nothing to wear out in that particular failure point. According to Platinum Access, their brushless motors carry a typical life expectancy of 10,000 to 20,000 working hours, compared to 2,000 to 5,000 hours for conventional brushed motors. That is up to ten times longer under the same conditions.
The practical benefit for property owners and managers is simple: fewer service calls, less downtime, and a longer stretch before a major repair or replacement is needed. For installers, it means fewer callbacks and a product they can confidently recommend to clients who want reliability without constant maintenance.
Key Features Across the Platinum Access Lineup
While individual models vary in gate capacity and application, several features appear consistently across the Platinum Access product family. These are the things that make the brand worth considering regardless of which specific model fits your installation.
Dynamic Speed Control
Platinum Access operators use dynamic speed control to maintain consistent gate speed even when the load changes or when the system switches between AC power and battery backup. This matters on sloped driveways where gravity would otherwise cause the gate to coast or slow unevenly. The gate moves at a steady, predictable pace regardless of conditions.
Soft Start and Soft Stop
Rather than slamming into motion or stopping abruptly, Platinum Access operators ramp up gradually at the start of each cycle and decelerate smoothly before reaching the limit. This reduces stress on the gate hardware, hinges, and the operator itself, extending the service life of the entire system.
Solar-Ready Architecture
Every major Platinum Access operator supports solar panel connectivity. The solar priority power supply is designed so that when sufficient sunlight is available, the system runs directly off the solar panel rather than drawing from the battery. This preserves battery life and makes off-grid installations far more practical. Platinum Access offers compatible solar panels in 50W, 85W, and 120W configurations to match different installation needs.
Built-In Battery Backup
All Platinum Access operators come with a built-in 24V DC battery backup system. Depending on the model, this backup is capable of running the gate through over 100 cycles after a power outage, which keeps access control functional even during extended outages. The batteries are housed inside the operator enclosure and can be replaced without any special tools.
Advanced Maglock Control
Platinum Access operators include advanced maglock control that can engage a magnetic lock before or after the gate fully closes, and that can also hold the lock at the open position when needed. This gives installers more flexibility in how they integrate locking hardware without needing external controllers.
Self-Synchronization for Dual Gates
For bi-parting gate installations, Platinum Access operators automatically synchronize leaves with different travel times. This is handled at the control board level without additional programming, making dual-gate setups more straightforward to install and adjust.
Fire and Key Emergency Release
All Platinum Access operators include a fire/key input that releases the motor brake and any engaged maglock, allowing the gate to be pushed open manually during an emergency. This is a requirement for many commercial and HOA applications and is built directly into the standard product rather than sold as an add-on.
UL 325 Certification
Platinum Access operators carry UL 325 certification, which is the safety standard for gate operators in the United States. UL 325 compliance confirms that the operator meets defined requirements for entrapment protection, which is relevant for both liability purposes and for installations that require code-compliant equipment. The BLGOC series control boards used across the lineup also include built-in electronic reversing sensors that satisfy these requirements without the need for external reversing devices on select models.
Featured Platinum Access Products at Elite Gates
Elite Gates carries the full Platinum Access lineup, including operators, replacement parts, solar panels, batteries, control boards, and mounting hardware. Below are three products that represent the brand well across different applications.
Platinum BLACT815 Brushless DC Swing Gate Actuator Kits
The BLACT815 is Platinum Access's answer to the residential and light commercial swing gate install that needs to be done right without unnecessary complexity. It handles gates up to 800 lbs and 15 feet, and what makes it stand out is how much flexibility comes in the box. The BLACT815 is available in four configurations: a single gate kit, a dual-gate kit, and both of those with an accessory bundle that includes a 50-foot photoeye, a radio receiver with hold-open capability, and two remote transmitters. That means whether you are doing a quick single-gate driveway install or a full bi-parting entrance with access control from the start, there is a kit that gets you there without sourcing parts separately.
It is a practical, installer-friendly product that covers the most common residential and light commercial swing gate scenarios without overengineering the solution.

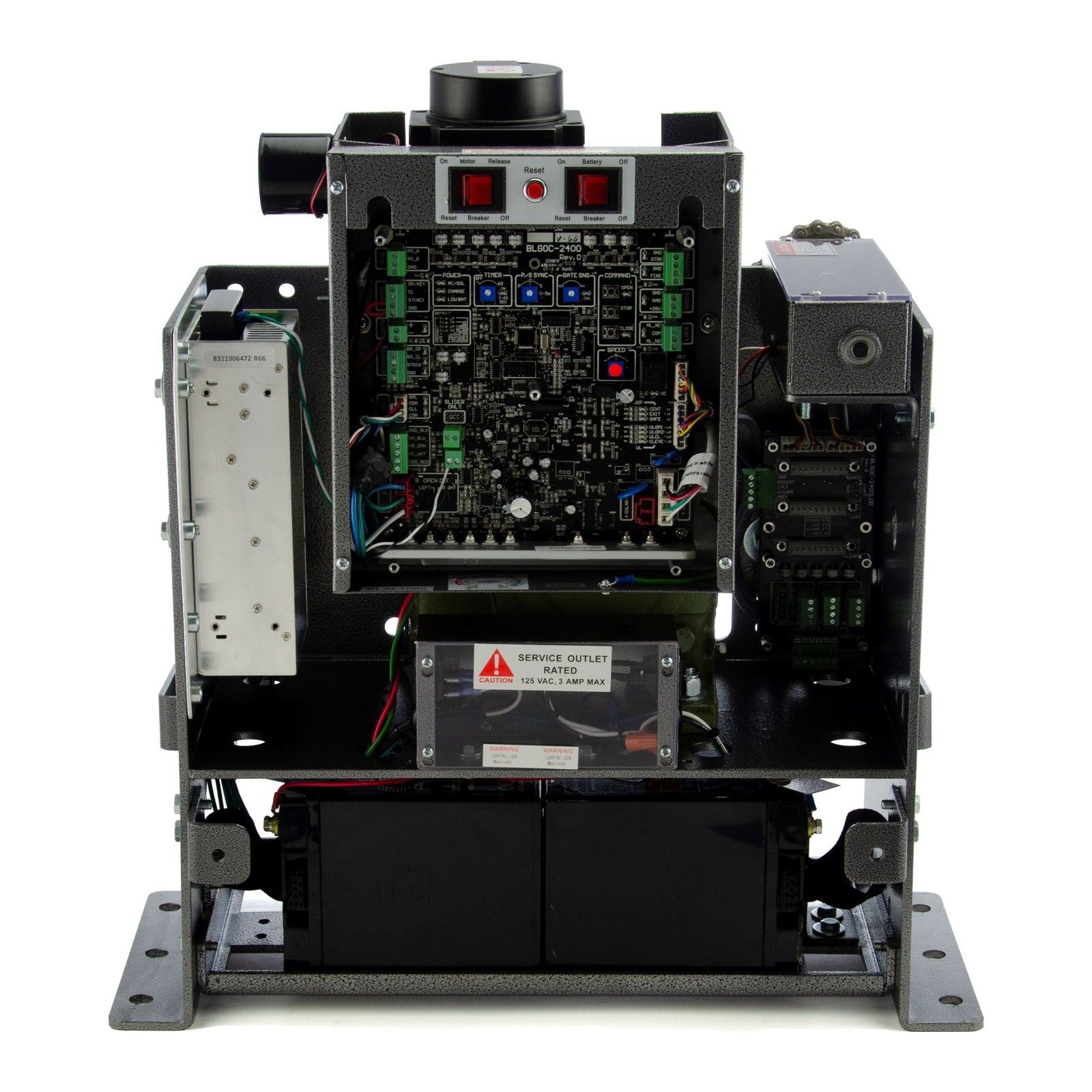

Platinum Access BLSL2250 Commercial Heavy-Duty Slide Gate Opener
The BLSL2250 is built for the kind of commercial slide gate application where the gate needs to move reliably, day after day, without becoming a maintenance headache. Rated for gates up to 2,200 lbs and 50 feet in length, this operator covers a wide range of commercial slide gate configurations that a lighter residential unit simply cannot handle. It runs at 12 inches per second via a 0.5 HP gear drive motor and carries UL 325 and UL 991 certification, which matters for property managers and installers who need documentation of code compliance. Where the BLSL2250 really earns its place is in mid-size commercial environments like apartment communities, HOAs, and office parks, where the gate is active throughout the day and the cost of downtime is real.
It is not the most heavy-duty slide gate operator on the market, but for a large portion of commercial installs, it is exactly the right tool.
Platinum Access BLSW2212 Heavy Duty Commercial Swing Gate Opener
The BLSW2212 is where Platinum Access's swing gate lineup steps into serious commercial territory. What separates it from the other swing gate models is not just the capacity, though handling gates up to 2,200 lbs is notable, but the continuous duty cycle and the size 80 gearbox. Continuous duty means this operator can cycle repeatedly under heavy traffic without needing rest periods, which is a requirement for high-use commercial and industrial entrances that lighter operators are not designed to meet. The 33Ah battery backup provides substantial reserve capacity, enough to keep a busy gate running through an extended outage without interruption. The self-synchronization for dual gates handles bi-parting setups automatically, and individual obstruction alarms for primary and secondary gate installations give installers and property managers clear feedback when something goes wrong.
For commercial properties, gated communities, and industrial facilities where the swing gate is a critical point of access and failure is not an option, the BLSW2212 is the right call.
Full Lifecycle Support: Parts and Accessories
One of the reasons Elite Gates carries Platinum Access is because we do not just want to sell you the operator. We want to support the system over its entire lifespan. We stock a deep selection of Platinum Access replacement parts and accessories, including control boards, motors, gearboxes, limit switches, backup batteries in multiple capacities, chain idlers, solar panels, solar mounting bracket kits, and gooseneck pedestal posts.
Whether you purchased your Platinum Access system through us or inherited an existing installation, we can help you get the right part to keep it running. The control boards, replacement motors, and backup batteries from 7Ah all the way up to 33Ah are all available in our Platinum Access collection.
Shop Platinum Access at Elite Gates
Platinum Access Systems offers a level of performance and durability that makes sense across a wide range of applications. From the feature-rich BLACT815 actuator kit to the heavy-duty commercial muscle of the BLSL2250 and BLSW2212, there is a Platinum Access operator that fits your project.
Browse the full Platinum Access collection at EliteGates.net, or reach out to our team directly if you have questions about which model is right for your gate configuration. We are here Monday through Friday, 8AM to 4PM PST at (800) 555-6017.
