Many vehicles come with HomeLink built into the visor, rearview mirror, or center console. It is a small transceiver, meaning it both sends and receives radio signals, and it can be taught to copy the remote you already use for your gate or garage. Once it learns that signal, the car itself becomes the remote, so there is no more hunting for a clip-on transmitter.
The part that catches people off guard is that pairing is not one single process. It changes based on the vehicle make, model, and year, the version of HomeLink in the car, and the receiver or operator on your gate or garage. Some setups pair in under a minute. Others ask you to go back and forth between the car and the operator to finish the link. This guide covers what to expect and how to work through each type.
Because the exact button sequence varies from one vehicle to the next, it helps to look up your specific car alongside this guide. You can search your make, model, and year on HomeLink's programming page for the steps matched to your vehicle.
What HomeLink Actually Does
HomeLink learns the code your handheld remote transmits and stores it under one of the buttons in the car. When you press that button, the car broadcasts the same signal your gate or garage is already listening for. It works with devices in the 288 to 433 MHz range, which covers the large majority of residential and community systems. Many newer vehicles reach the upper end of that range.
Because HomeLink copies an existing signal, you almost always need a working handheld remote or wireless keypad to program it. If there is no transmitter for it to learn from, there is no signal to copy.
Why the Process Changes From One Setup to the Next
The biggest fork in the road is whether your system uses a fixed code or a rolling code.
Fixed code systems
Older remotes and many basic systems send the same code every time. HomeLink can capture that code in a single learning step, and you are usually finished right there in the driver's seat.
Rolling code systems
For security, most modern openers change their code with every press. HomeLink can still capture a rolling signal, but the operator will not trust the car until you authorize it directly at the unit. That means one extra trip to the operator's learn button. This is the setup that requires action in two places.

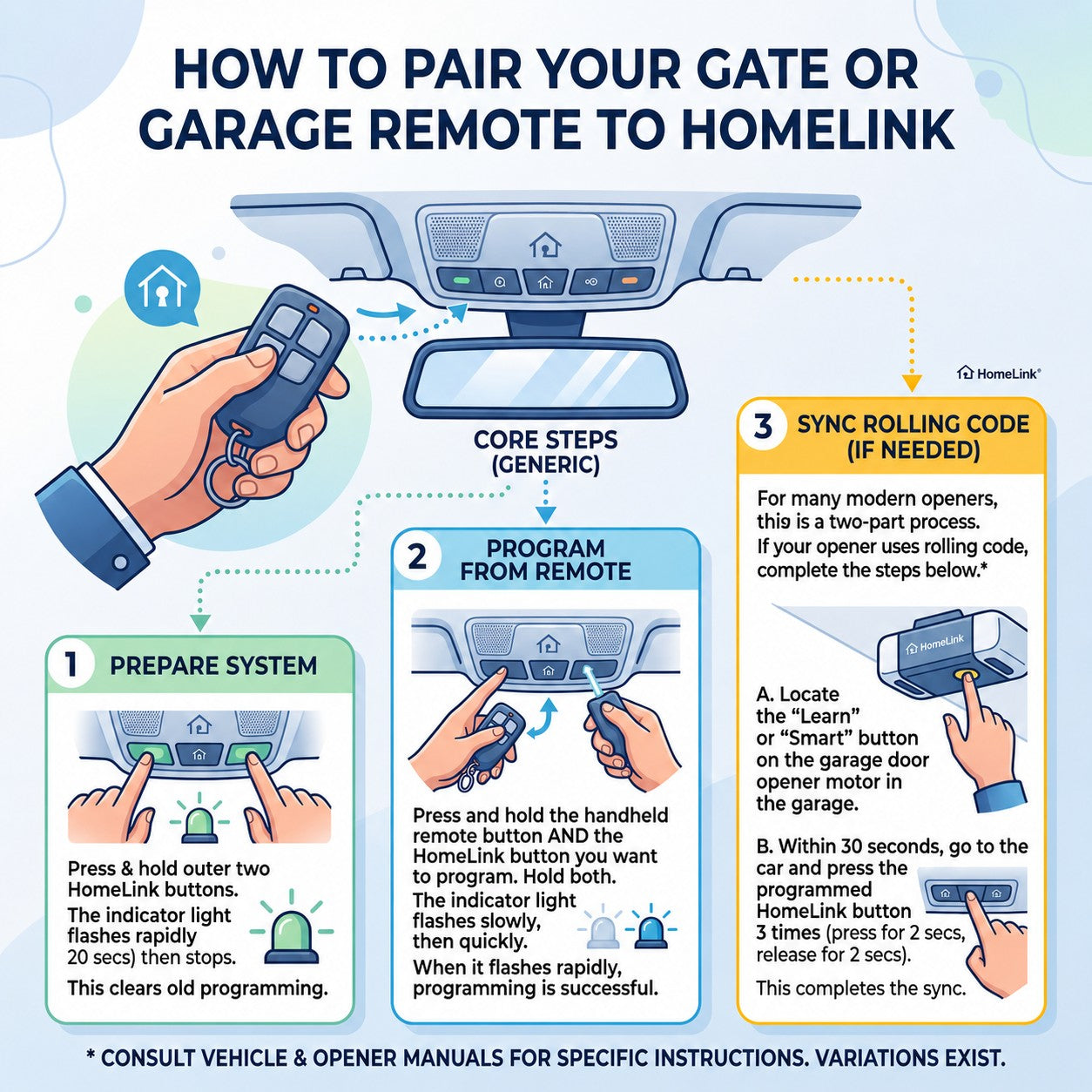

Method One, Simple Pairing
Use this when your remote sends a fixed code.
- Park within range of the gate or garage and put a fresh battery in your handheld remote. Training pulls more power than a normal press, so a strong battery matters.
- If the vehicle was previously owned, clear the old buttons first by holding the two outer HomeLink buttons until the indicator light begins to blink, then release. Skip this step when you are adding a second or third device, or you will erase the button you just set.
- Hold the handheld remote a few inches from the HomeLink buttons. Press and hold both the HomeLink button you want and the button on the remote at the same time.
- Watch the indicator light. When it changes from a slow, steady blink to a rapid flash or a solid light, HomeLink has learned the code.
- Release both buttons and test. If the gate or garage responds, you are finished.
Method Two, Two-Location Sync for Rolling Code
This is the process that trips up most people. After HomeLink learns the remote, a rapid flashing light tells you the system uses a rolling code, and the operator still does not recognize the car. You need to authorize it at the operator.
- Complete the learning step in the car as described above. A rapid flash after you hold the HomeLink button is your signal that a rolling code is in play.
- Find the learn button, sometimes labeled learn or smart, on the operator. On garage units it usually sits on the motor head near the hanging antenna wire, and it may be hidden under the light lens. On gate operators it is on the control board or on a plug-in receiver.
- Press and release that button like a doorbell. Do not hold it down. Holding it too long can erase every remote already programmed to the unit. Once you press it, you generally have about 30 seconds.
- Go back to the car and press the programmed HomeLink button firmly two or three times, pausing briefly between presses. On some systems you hold the button until the operator responds.
- The gate or garage should now move. If it does, the sync is complete.
Since rolling code units often place the learn button up on the motor head, make sure you have safe, steady footing before you reach for it.
Method Three, D-Mode for Certain Systems
A smaller group of operators, more common on gates, use what HomeLink calls D-Mode. In this process the handheld remote is not used at all. Instead, you put the car into a dedicated mode and then complete the link at the operator.
- Vehicles with physical HomeLink buttons enter this mode with a specific press-and-hold button combination. Vehicles with an on-screen HomeLink use a menu setting instead.
- Once the car is in the mode, you press the learn button on the operator and then press the HomeLink button to finish the link.
- Only use D-Mode when your operator's instructions specifically call for it. The exact button combination varies by vehicle, so check your operator documentation or look up your vehicle on HomeLink's programming page.
When the Opener Has a Colored Antenna Wire
Some newer garage openers from the major manufacturers use a distinctly colored antenna wire and a matching colored learn button to flag a newer encryption standard. Older versions of HomeLink cannot communicate with these units directly. In that case, a small compatibility accessory sits between the car and the opener and bridges the two signals. If your vehicle is a few years older than your opener and the pairing simply will not take, this mismatch is a common reason. Checking the antenna wire color on the motor head is a quick way to spot it.
If It Still Will Not Pair
Most failed pairings come down to a handful of causes. Work through these before assuming the hardware is faulty.
- Replace the remote battery. A weak battery is the leading reason the indicator light keeps blinking slowly and never catches the signal.
- Change your distance and angle. Try holding the remote three to four inches away, then six to eight, at slightly different angles to the buttons.
- Confirm the frequency. HomeLink works between 288 and 433 MHz. A remote outside that band will not pair.
- Rule out LED interference. Certain LED bulbs in the opener give off radio noise that shortens range. Switch to a bulb rated for garage door openers.
- Straighten the antenna wire hanging from the motor head.
- If every remote stopped working right after you programmed the car, the learn button was probably held too long and cleared the memory. Reprogram the remotes and the car from the start.
When It Makes More Sense to Add a Receiver
Sometimes the cleaner path is not to fight the car at all. If your operator uses an older or proprietary signal that HomeLink resists, adding a compatible plug-in or universal receiver to the operator lets you run standard remotes and often opens up easier HomeLink pairing on a supported frequency. It is also the right move when you need more remotes than the car can cover, or when several vehicles and family members all need access on the same system.
You can browse remotes and receivers for nearly every major operator at elitegates.net.
Safety Reminders Before You Start
- Gates and garage doors can move during programming. Keep people, pets, and vehicles well clear of the path.
- Only pair HomeLink with an opener that has working automatic stop and reverse safety, as required by federal safety standards.
- When you sell or hand back a vehicle, erase the programmed HomeLink buttons so the next driver cannot open your gate or garage.
