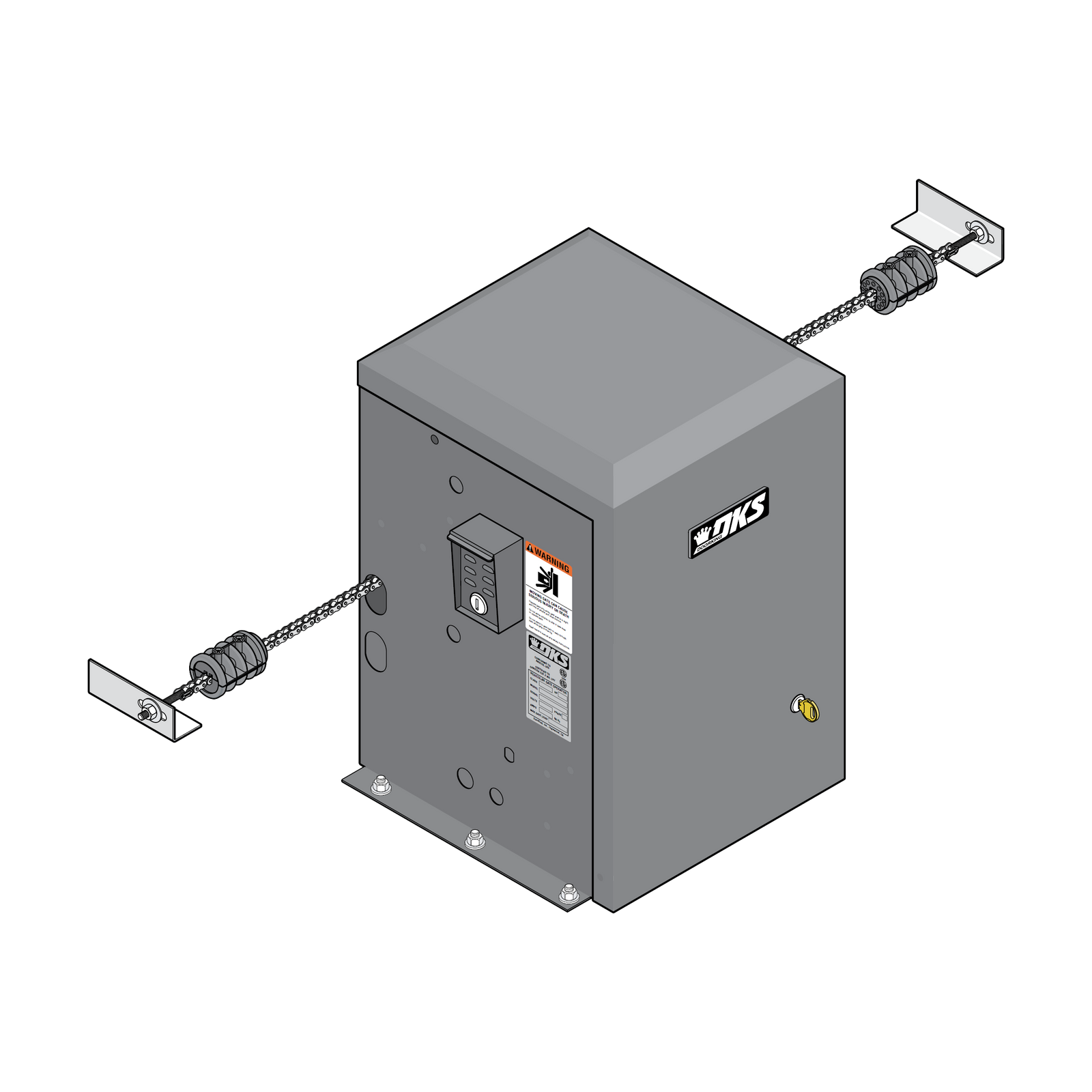

Chain-driven slide gate operators are common for residential, commercial, and industrial gates. The operator moves the gate by pulling a drive chain through the operator sprocket and back to chain brackets mounted on each side of the gate.
Chain installation is simple in concept, but alignment, bracket height, chain tension, and clearance all matter. A poorly installed chain can cause noise, premature wear, skipped sprocket teeth, and long-term operator damage.
Before starting, shut off power at the breaker and confirm the operator is fully installed, level, anchored, and parallel to the gate.
What You Need
Most slide gate operator chain kits include:
- Roller chain, commonly #40, #41, #50, or #60 depending on operator size
- 2 master links
- 2 chain brackets
- 2 chain bolts
Common tools include:
- Chain breaker or grinder
- Adjustable wrench
- Measuring tape
- Welder, if using welded brackets
- Standard hand tools for no-weld bracket kits
Step 1: Confirm Operator Alignment
The operator must be parallel to the gate. If the operator sits at an angle, the chain will pull off-axis, causing uneven wear, noise, and premature chain stretch.
Also confirm the operator is set back from the gate according to the manufacturer’s clearance requirements, usually between 1 and 5 inches.
Step 2: Measure the Idler Wheel Height
The idler wheels guide the chain through the operator and determine the chain height from the ground. Measure from the ground to the bottom of the idler wheel where the chain exits the operator. Mark this same height on the front and rear of the gate for chain bracket locations.
This mark is your chain height reference. The chain brackets should be installed at this height so the chain runs straight through the operator without pulling upward or downward.
Step 3: Mount and Align the Chain Brackets
Clamp the chain brackets to the front and rear of the gate frame at the height marks. Move each bracket in or out until it aligns with the idler wheels. A string line can help confirm the chain path is straight from front to back.
Before locking or welding the brackets in place, confirm:
- Chain height matches the idler wheel exit height
- Both brackets align with each other and the operator
- Chain bolts and nuts will not protrude into a pinch point or strike a post
- There is enough adjustment room on the chain bolts for final tensioning
Once everything is aligned weld the brackets in place or tighten the no-weld brackets and install the chain bolts on each bracket.
Welded vs. No-Weld Chain Brackets
Welded brackets are the strongest option and are preferred for commercial, industrial, heavy, or high-cycle gates. Once welded, the brackets become part of the gate frame and are less likely to shift over time.
No-weld brackets clamp to the gate frame with U-bolts. They are easier to install, do not damage the gate finish, and can work well for normal residential gates. However, they can loosen over time and should be checked during routine maintenance.
For gates over 1,000 pounds or more than 50 cycles per day, welded brackets are the better choice.
Step 4: Route and Cut the Chain
Move the gate to the halfway-open position. Feed the chain from one chain bolt, through the operator, around the drive sprocket and idler wheels, and back to the other chain bolt.
Cut the chain so there is enough room to connect both ends and adjust the tension. Do not cut it too short, or you may need to add small chain sections with extra master links.
Step 5: Connect and Tension the Chain
Attach each chain end to the chain bolts using master links. Make sure the master links are fully secured.
Tighten the chain bolts. The chain should have some slack, but it should not sag excessively. Do not overtighten.
A loose chain can skip teeth on the sprocket. A chain that is too tight can cause the operator to bind, strain the motor, damage sprocket bearings, or wear internal components prematurely.
After tensioning, move the gate by hand from fully closed to fully open with power off. Check for binding, rubbing, or bracket interference.
Step 6: Install the Cover
Reinstall the operator cover, then move the gate manually to confirm the chain has clear, unobstructed travel through the operator.
If the chain contacts the cover, first recheck the bracket position, chain height, and chain alignment. Minor trimming may be acceptable on some plastic covers, but only after confirming the chain is properly aligned. For metal covers, correct the chain path rather than modifying the cover.
Before Power-Up: Confirm Physical Stops
Before powering the operator or setting limits, confirm the slide gate has physical stops at both ends of travel. Physical stops prevent the gate from moving beyond its intended open or closed position and should already be part of the gate installation.
Common stop methods include end posts with gate catchers, chain stops, or welded track stops. If physical stops are missing, install them before activating the operator.
Final Checklist Before Power-Up
Before applying power, confirm:
- Operator is level, anchored, and parallel to the gate
- Chain brackets match the chain exit height and in/out axis
- Master links are locked in place
- Chain is not too tight or too loose
- Chain clears the operator cover
- Physical stops are installed
- Gate moves freely by hand with and without the cover
- No tools or debris remain inside the operator or gate path
Step 7: Activate the Gate Operator
Turn on power and complete the operator setup process. Set the open and close limits according to the manufacturer’s instructions, then test the gate through several full cycles.
Watch the chain during operation. It should run straight through the operator, stay aligned with the brackets, and move without rubbing, binding, jumping, or excessive noise.
Routine Chain Maintenance
Check chain sag monthly or quarterly depending on use and adjust tension if needed.
For no-weld brackets, inspect and tighten the U-bolts during routine maintenance. For welded brackets, inspect the welds for cracks.
Lubricate the chain annually with a chain-rated lubricant and inspect for worn, damaged, or stretched links.
Final Thoughts
A properly installed slide gate chain should run straight, stay aligned, and move smoothly without binding or excessive noise. Taking time to align the operator, measure the idler height, mount the brackets correctly, and tension the chain properly helps prevent premature wear and operator damage.
