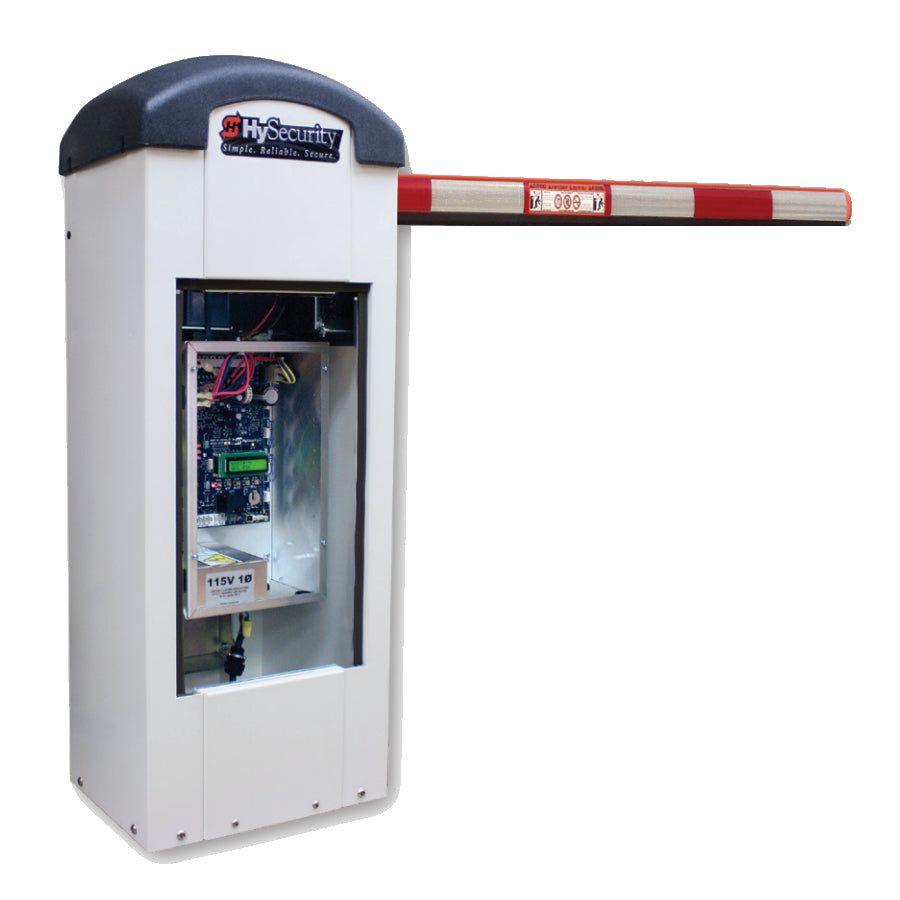

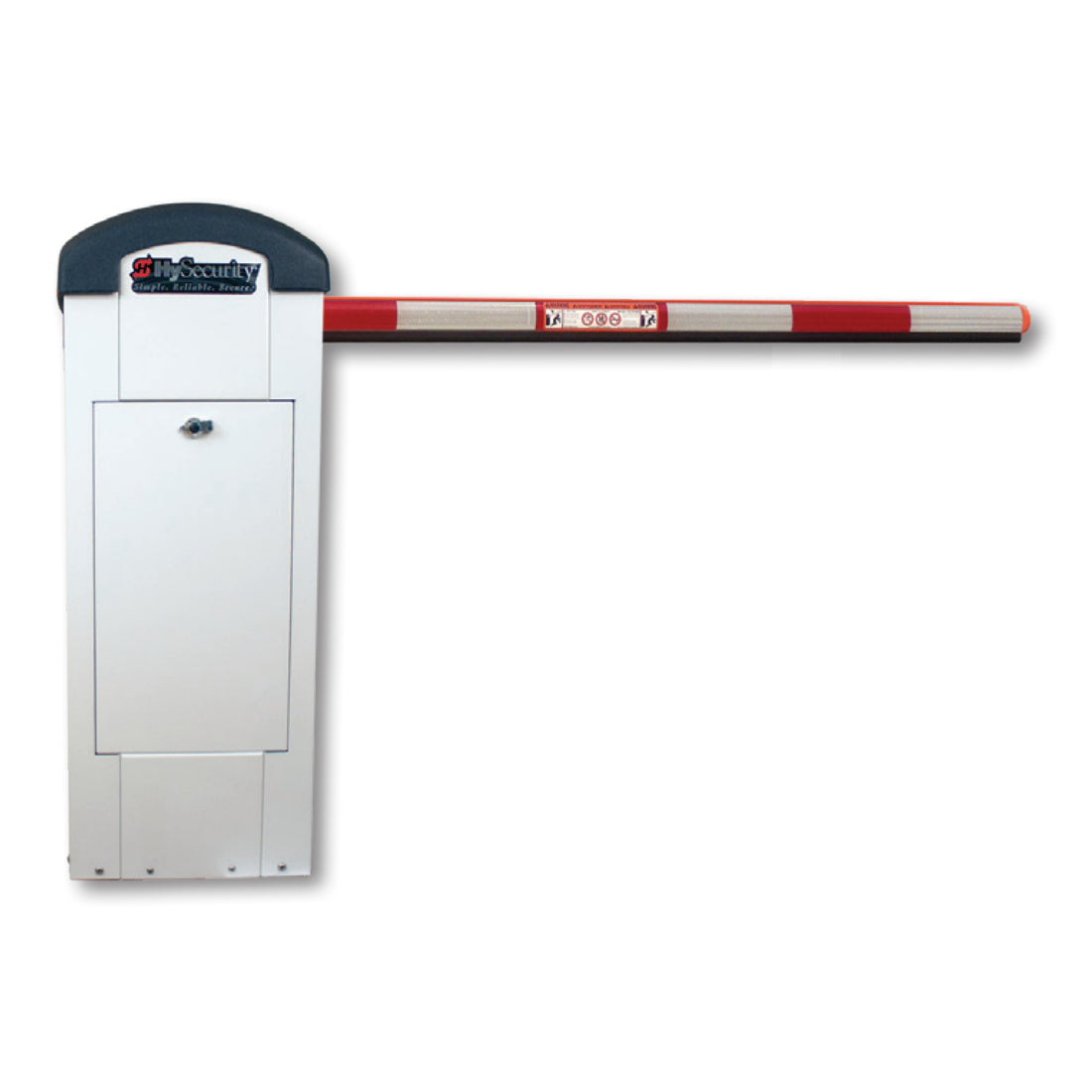

Hysecurity STRONGARMPARK DC10 Barrier Gate Opener

HySecurity StrongArmPark DC 10 Parking Arm Operator
Hysecurity STRONGARMPARK DC10 Barrier Gate Opener

Hysecurity STRONGARMPARK DC10 Barrier Gate Opener

SKU: StrongArmPark DC10
Regular price
MSRP: $5,500.00
Sale price
Your Price: $3,096.88
Quantity must be 1 or more

HySecurity StrongArmPark DC10 Parking Arm Operator

Arms sold separately!

Download Specs Download Manual

Cycle up to 10 ft (3 m) arms, starting and stopping gracefully with three field-adjustable Open/Close speeds: 1.5/2/2.5 seconds. Use HySecurity articulating arms for site clearance issues such as underground parking garages.


Duty Cycle Continuous*
Arm Speed 3 speeds: 1.5/2/2.5 seconds. Field adjustable
Arm Length Up to 10 ft (3 m) standard length
Arm Designs

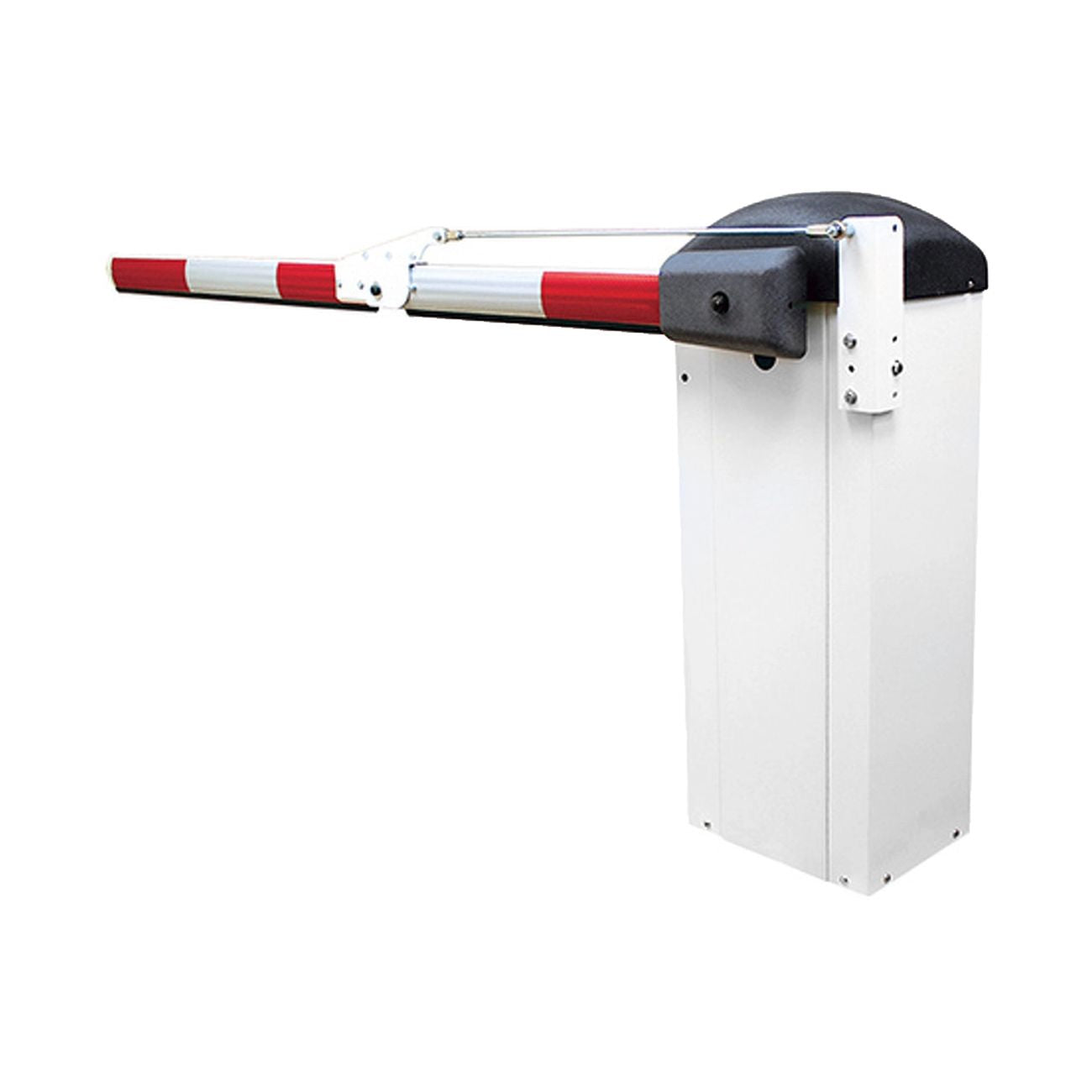

Aluminum oval arm with bumper, lights, HyProtect™ breakaway arm bracket & kill switch (standard). Optional articulating aluminum arm with HyProtect™ breakaway arm bracket & kill switch; 7 ft clear/8 ft extended (2.1 m/2.4 m); 8 ft clear/10 ft extended (2.4 m/3 m); 9 ft clear/10 ft extended (2.7 m/3 m). Lights optional.
Full Open Angle Arm full open angle: Adjustable 90º ± 10º
Handing Left handing standard. Easy to convert to right handing in field.
Operator HP 1/2 hp
Drive Type Electromechanical
Two 8 Ah batteries. Operates for thousand plus cycles after AC power loss.* Field configurable to fail open or secure when batteries deplete.
Voltage Input
115VAC, 3A, 60/50Hz or 208-230VAC, 1.5A, 60/50Hz Solar: 24VDC solar panels**
Accessory Power 12VDC and 24VDC 1A each
Temperature Rating -13º to 158º F (-25º to 70º C) No heater necessary
USB, RS-232, RS-485; Ethernet/fiber using optional HyNet™ Gateway accessory
User Controls
Smart DC Controller with 70+ configurable settings. 32 character LCD display and 5 tact buttons or a PC using S.T.A.R.T. software.
One configurable user relay: 250VAC, 10A electromechanical. Optional Hy8Relay™ for 8 additional relay outputs
App Class Usage Class I, II, III, IV
Finish Type Zinc plated with powder coating
Cycle Tested 2 million cycles
