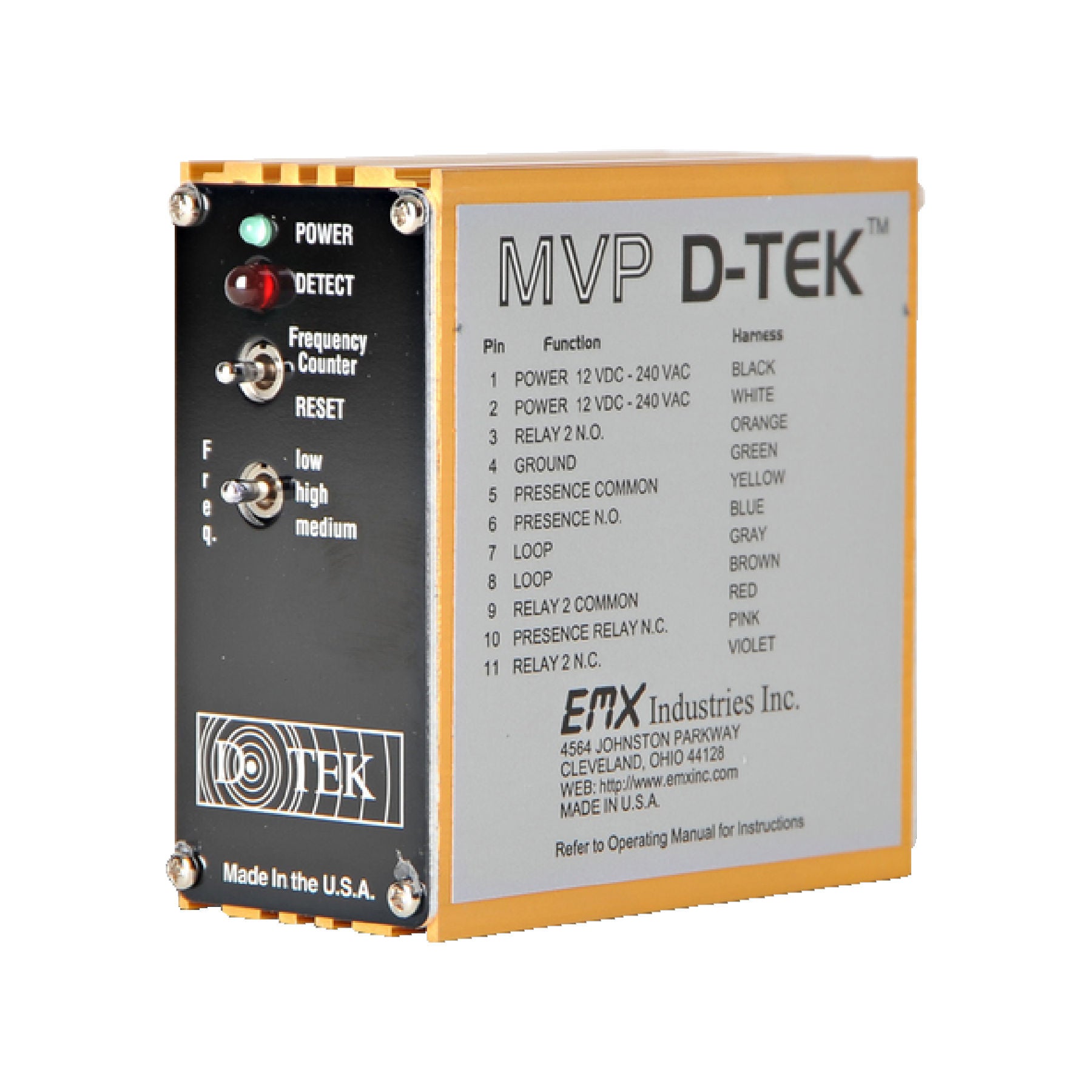

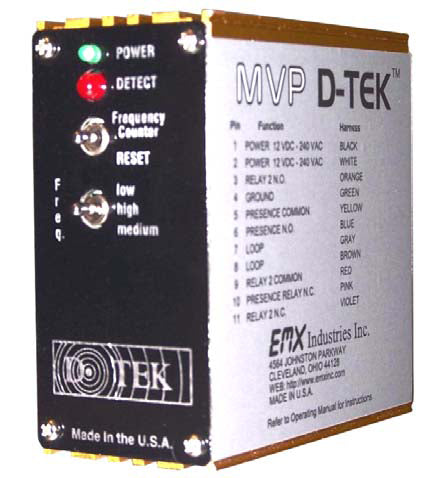

EMX MVP D-TEK Loop Detector

EMX-2550-1 MVP-D-TEK Loop Detector

Download Spec Sheet Download Manual

**Harness sold separately**

EMX Industries Inc. has designed the MVP D-TEK for applications where vehicle detection is needed. The MVP D-TEK solves the problem of not knowing which voltage to take for service call or an installation. Reduce the costs of inventory by stocking only one universal voltage loop detector.

Features

• Multi-voltage power 12 to 220 VAC/DC
• Operates in both fail safe and fail secure modes
• 10 sensitivity settings
• Enhanced lightning/surge immunity
• Aluminum RF shield housing
• Built-in loop conditioner
• Loop isolation transformer
• Loop diagnostics
• Frequency counter
• Gold plated control contacts
• 2 relays (presence & pulse or presence)

Specs

• Power Supply 12VDC to 240VAC
• Current Consumption 19.2mA @ 9VDC, 18.8 mA @ 12VAC/DC, 17.3 mA @ 24VAC, 9.5 mA @ 24VDC, 13.5 mA @ 115VAC
• 11.0 mA @ 237VAC
• Operating Temp -40°F to +180°F
• Surge Protection Zener Diode /MOV
• Output Relays (2) 1Amp 30 VDC
• Loop Input Transformer isolation, lightning and transient protection (1)
• Loop Inductance Range 20 – 2000 uH Q-factor of 5 or higher
• Tuning Automatic on reset or power up
• Tracking Automatic for environmental changes
• Size Height 3.25” (83mm) Width 2.56” (40mm) Length 3.65” (90mm)
• Housing Extruded Anodized Aluminum
• Connector 86CP11 11 pin male
