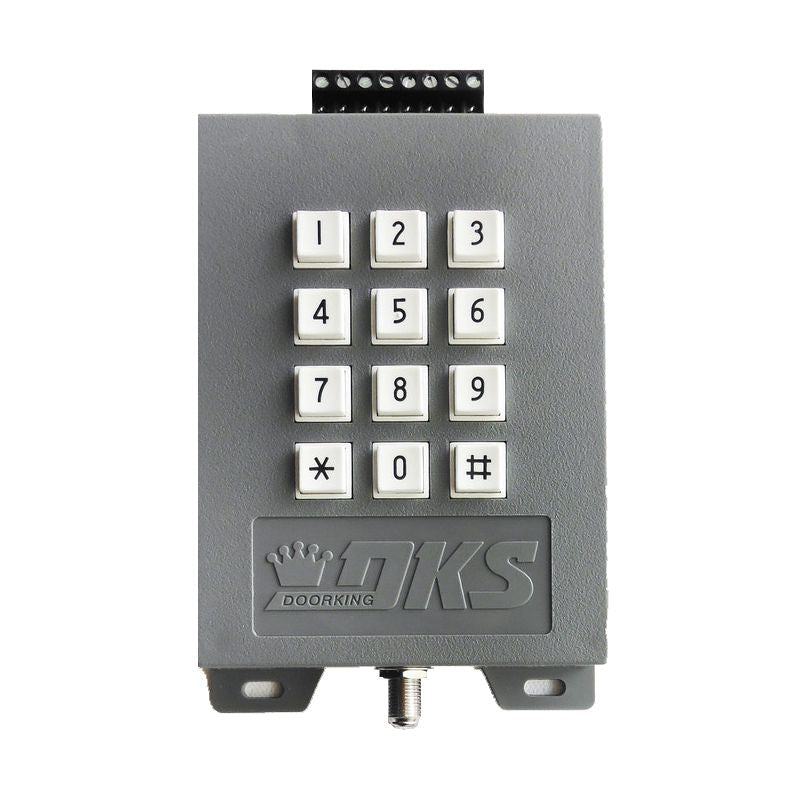

Doorking 8057-086 Microclik Receiver

Stand-Alone MicroCLIK RF Receiver with 5,000-Code Capacity

The DoorKing 8057-086 is a stand-alone RF receiver for use with DoorKing MicroCLIK transmitters, operating at 318 MHz with a storage capacity of 5,000 unique transmitter codes. The receiver activates a built-in dry contact Form C relay when it receives a code matching the programmed facility code, transmitter code, and transmitter button code. It stores up to 10 facility codes and supports up to three programmable transmitter button assignments.

Programming is handled entirely through the onboard keypad. Transmitter codes can be added or deleted individually or in sequential block groups. Relay strike time is adjustable from 0.5 seconds (entry 00) to 99 seconds. The 8057-086 is compatible with the HomeLink system found in many vehicles. An 18-inch coaxial antenna cable is included. The receiver is not rated for direct outdoor exposure; the 8057-110 metal outdoor enclosure is available separately if outdoor installation is required.

Key Features

• Stand-alone 318 MHz RF receiver for DoorKing MicroCLIK transmitters
• Stores up to 5,000 unique transmitter codes and up to 10 facility codes
• Built-in programming keypad for onsite code management without additional hardware
• Add or delete transmitter codes individually or in sequential block groups
• Programmable transmitter button number (up to 3 buttons), facility codes, and relay strike time
• Form C dry contact relay; rated 30V, 1A max
• Compatible with HomeLink in-vehicle systems
• 18-inch coaxial antenna kit included; longer coax antenna kit available separately (P/N 1514-073)
• Not rated for direct outdoor use; outdoor enclosure available (P/N 8057-110)

Technical Specifications

• Part Number: 8057-086
• Frequency: 318 MHz
• Transmitter Code Capacity: 5,000 unique codes
• Facility Code Capacity: Up to 10
• Transmitter Button Programming: Up to 3 buttons
• Relay Type: Form C dry contact (N.O., N.C., Common)
• Relay Rating: 30V, 1A max
• Relay Strike Time: Programmable 0.5 to 99 seconds
• Power Input: 12-24 Volt AC or DC (minimum 18 AWG wire)
• Antenna: 18-inch coaxial cable with F connector (included)
• Compliance: FCC Part 15, Class B (Canada ICES compliant)
• Compatible Transmitters: DoorKing MicroCLIK (P/N 8066-080, 8067-080, 8068-080); HomeLink
• Outdoor Enclosure: 8057-110 (sold separately)
• Manufacturer: DoorKing (DKS)
• Condition: New

Conclusion

The 8057 series is available in seven code capacities from 50 to 16,000 codes. Select the 8057-086 when the installation requires 5,000-code capacity. For installations requiring outdoor mounting, the 8057-110 metal enclosure must be ordered separately. Position the antenna away from metal surfaces and as high as possible to avoid range reduction. Loop detectors and proximity card readers can cause interference on the 318 MHz frequency; relocate the receiver if interference is present.
