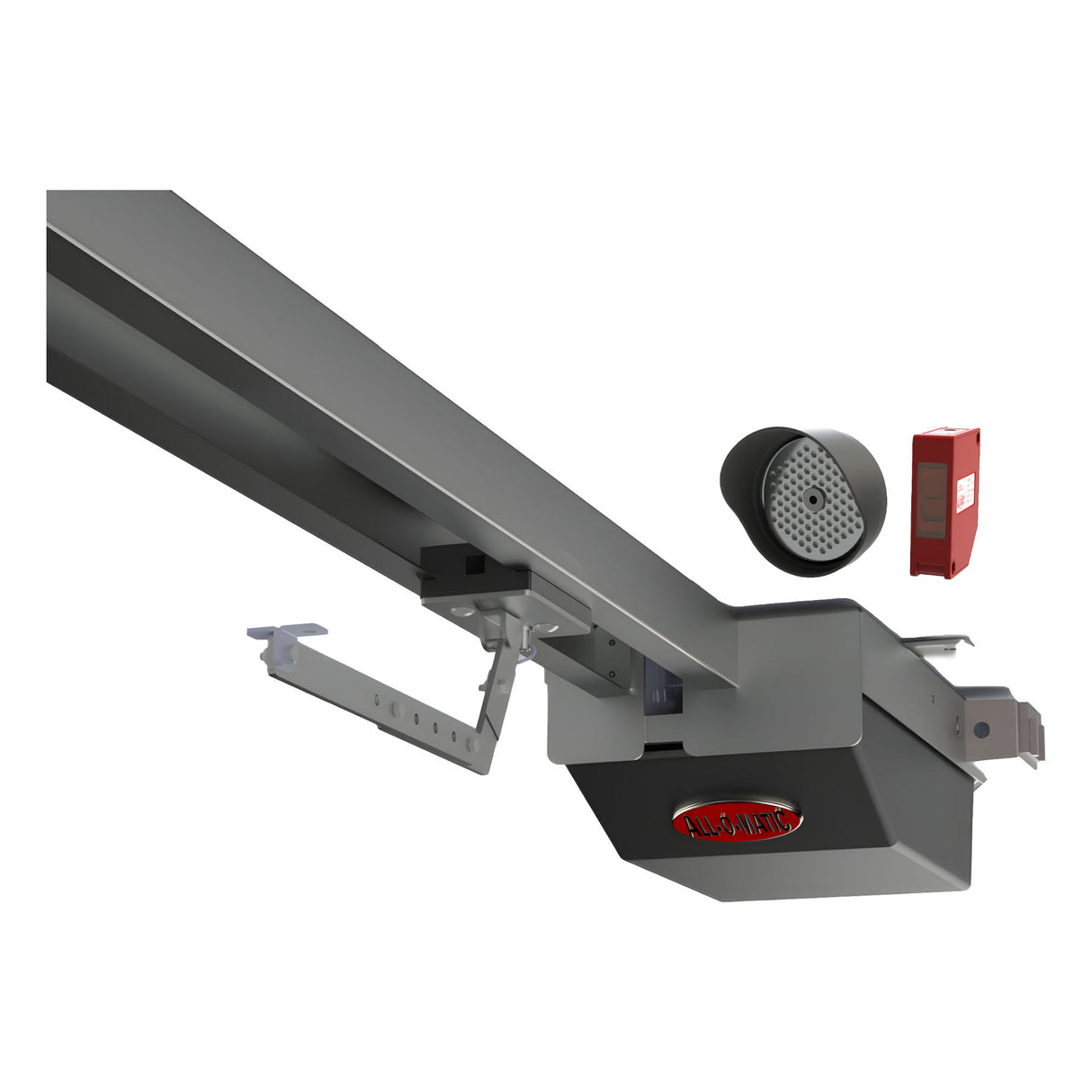

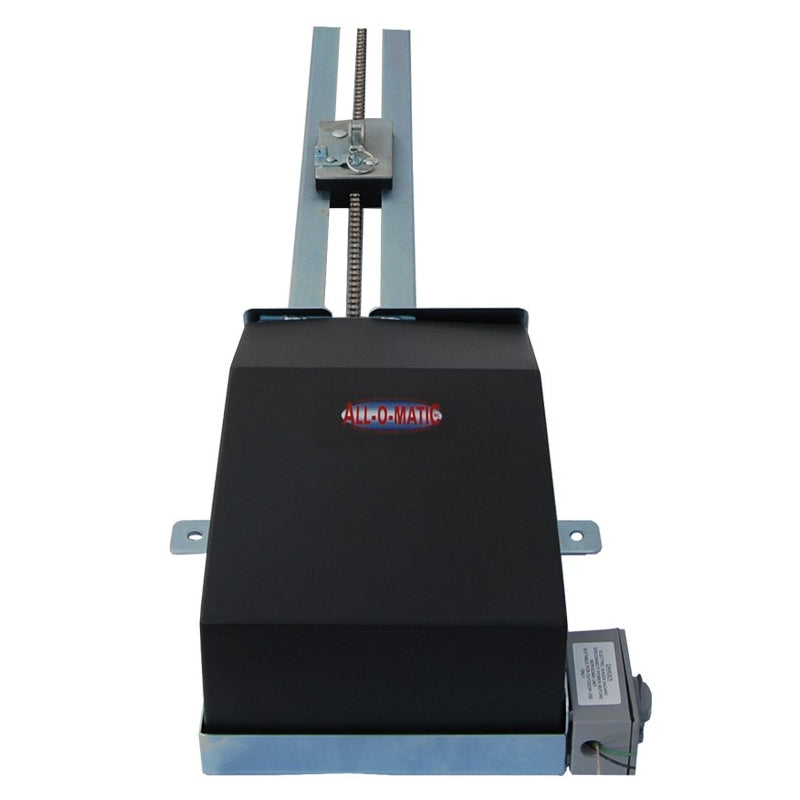

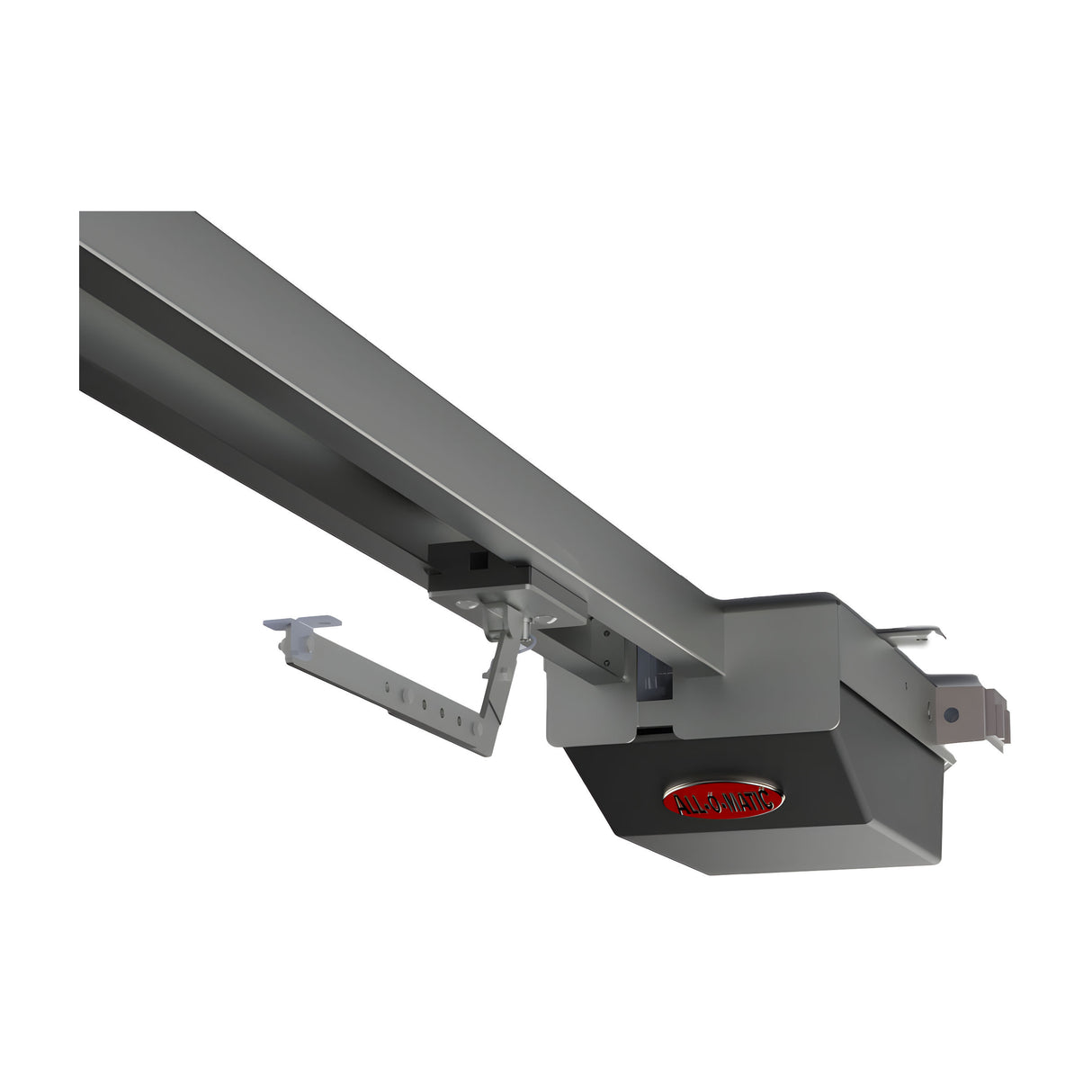

All-O-Matic OH200 DC Overhead Gate Operator

All-O-Matic OH-200 AC Overhead Gate Opener
All-O-Matic OH-200 DC overhead gate operator is a commercial overhead gate operator available with a true integrated long term battery backup.The OH-200 DC overhead gate operator comes equipped with an industry first Brushless DC motor, built in loop rack, slow start/stops algorithm, heavy duty frame and parts that last a life time. It offers days of uninterrupted operation in the event of a power failure by seamlessly switching from AC power to backup mode to runs off of its included two 8Ah batteries. For multi residential and commercial applications such as apartment buildings or large underground parking structures there is no other choice than the All-O-Matic OH-200 DC Overhead Gate Operator.
DC operators are equipped with a control board that offers an array of features that include a programmable relay and leaf delay, slow start/stop algorithm, and solar power capability. The brushless DC motors are smooth and quiet but are powerful and durable and require zero maintenance.
Feature
Max Gate Weight | 800 lbs. |
Max Gate Length | 22 feet |
Motor | 24 VDC brushless – ½ HP motor |
Gate Speed | 20 seconds for full open (6.5’ to 8’ gate) |
Power Options | 115/230 VAC single phase and 24 VDC solar panel |
Duty Cycle | Continuous |
Battery Back Up | Integrated, with (2) 7Ah 12VDC batteries |
Battery Back Up Capacity | 100 cycles on a 800 lb. gate |
Temperature Range | -40 to 160° |
Gearbox Ratio | 30:1 |
Width X Length X Height | 13” X 144” X 8” |
Emergency Release | Lockable quick release drive arm and carriage |
Belt Size | 4L-200 (AX18) |
Main Sprocket Size | 41B15X5/8 |
Chain Size | 41NP |
Gearbox Sprocket | 41B15X5/8 |
Limit Shaft Sprocket | N/A |
Breaker Requirement | 20 amp dedicated |
Gearbox Pulley | 2 ½” with ½” bore |
Motor Pulley | 2” with 5/8” bore |
