AES E-Loop EL00C Commercial Wireless Detection System

Surface-Mounted Wireless Vehicle Detection for Automatic Gates

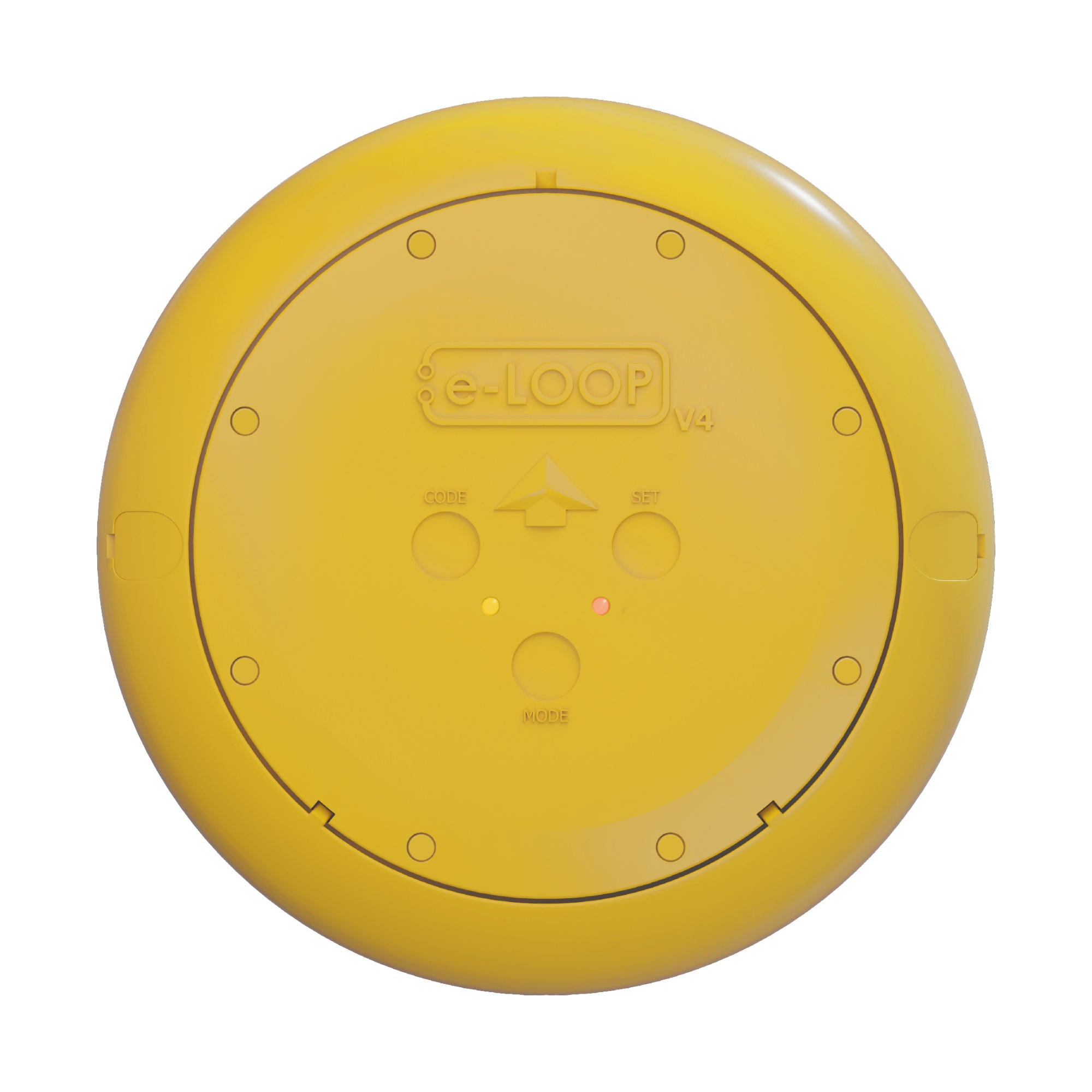

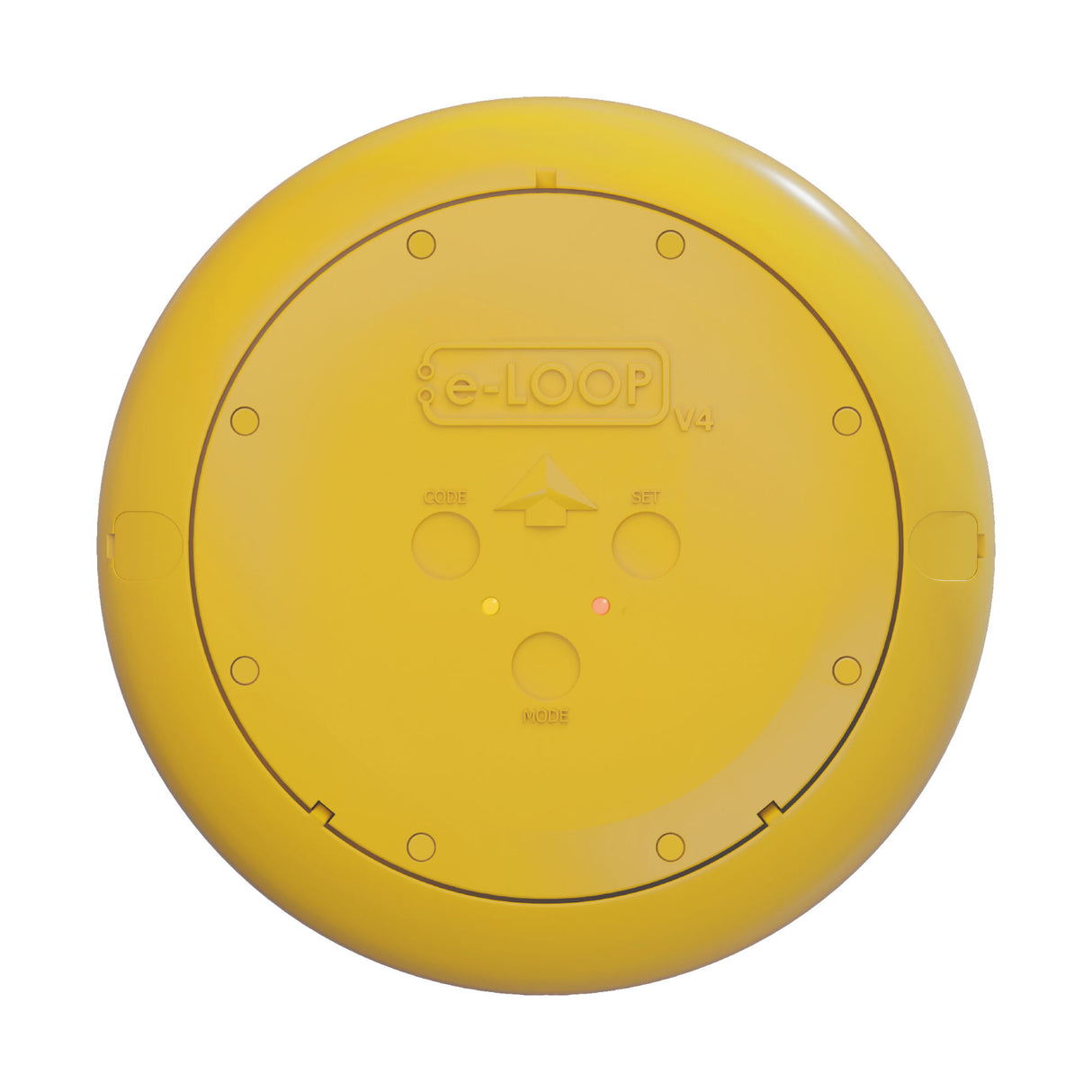

The AES E-Loop EL00C-RAD Commercial is a surface-mounted wireless vehicle detection system for automatic gates, commercial entrances, warehouses, factories, and other controlled vehicle access points. It eliminates the need to cut pavement and install a traditional wired inductive loop, allowing the sensor to be secured directly to the driving surface and communicate wirelessly with the included eTrans receiver.

The EL00C-RAD offers Exit, Presence, and Parking modes, automatic calibration, 128-bit AES encrypted communication, IP68 environmental protection, and configuration through the AES e-CONNECT mobile app. Depending on the selected kit, the eTrans receiver supports up to 50, 100, or 200 e-TX remotes, with all three versions supporting up to 4 e-Loops.

Key Features

• Surface-mounted wireless vehicle detection without cutting pavement for a conventional loop
• Designed for commercial and industrial automatic gate applications
• Exit, Presence, and Parking operating modes
• Up to 10 years battery life in Exit Mode
• Up to 4 years battery life in Presence Mode
• 128-bit AES encrypted wireless communication
• Automatic calibration for simplified setup
• IP68 ingress protection
• Adjustable radar and magnetometer detection settings
• AES e-CONNECT app support for configuration and diagnostics
• Each receiver supports up to 4 e-Loops
• Receiver options support up to 50, 100, or 200 e-TX remotes
• Designed for above-ground installation

Technical Specifications

• Manufacturer: AES
• Product Family: e-Loop Commercial
• Model: EL00C-RAD
• Product Type: Surface-mounted wireless vehicle detection system
• Operating Modes: Exit, Presence, Parking
• Radio Frequency: 433.39 MHz
• Modulation: FSK
• Bit Rate: 100 kbps
• Bandwidth: 50 kHz
• Antenna Type: PCB
• Nominal Output Power: 14 dBm
• Receive Sensitivity: -126.2 dBm
• Wireless Security: 128-bit AES encryption
• Power: 4 x 3.6V 2700 mAh batteries
• Standby Power: 14 µA
• Activation Power: 40 µA
• Battery Life: Up to 10 years in Exit Mode; up to 4 years in Presence Mode
• Dimensions: 224 x 224 x 36 mm
• Weight: 1000 g
• Ingress Protection: IP68
• Operating Temperature: -40°C to 80°C
• Mounting: Above-ground surface mounting
• Radar Detection Range: 0.2 m minimum; 1.8 m default; up to 2.0 m maximum
• Magnetometer Range: Approximately 0.5 m high, 1.0 m medium, and 1.5 m low detection range
• Mobile Configuration: AES e-CONNECT app
• Safety Compliance: Tested to CE

Variants

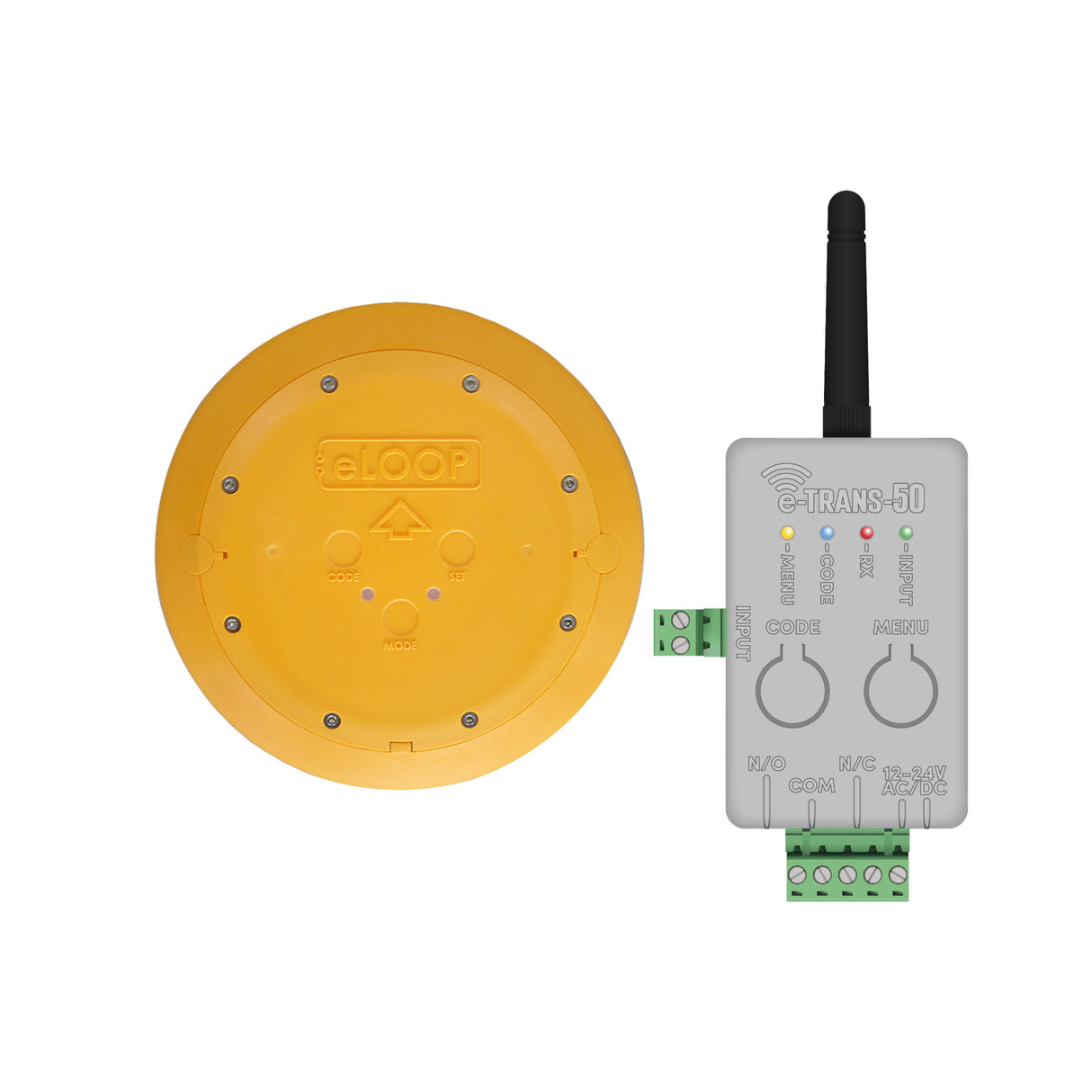

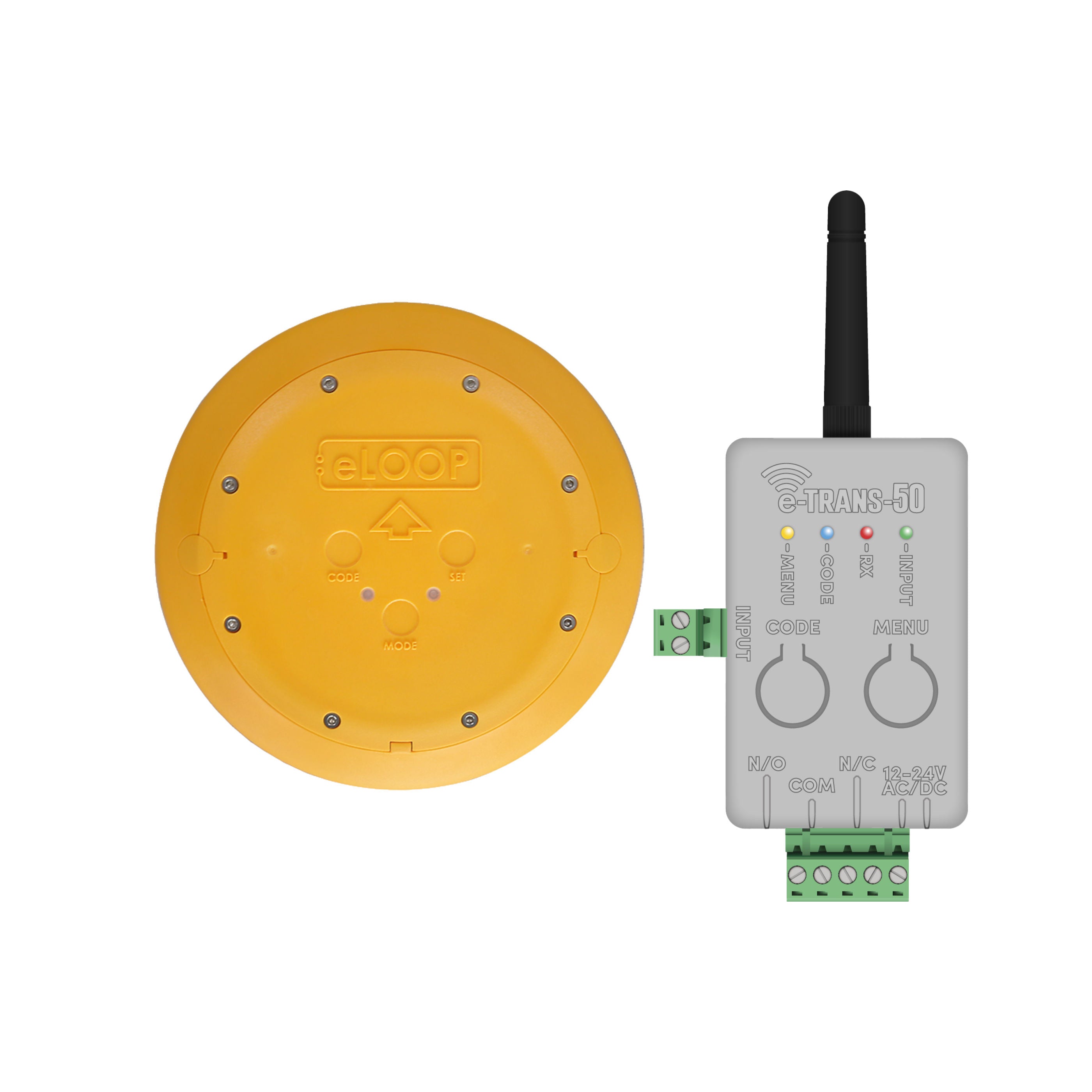

• EL00C-RAD-K: Includes eTrans50; supports up to 50 e-TX remotes and 4 e-Loops

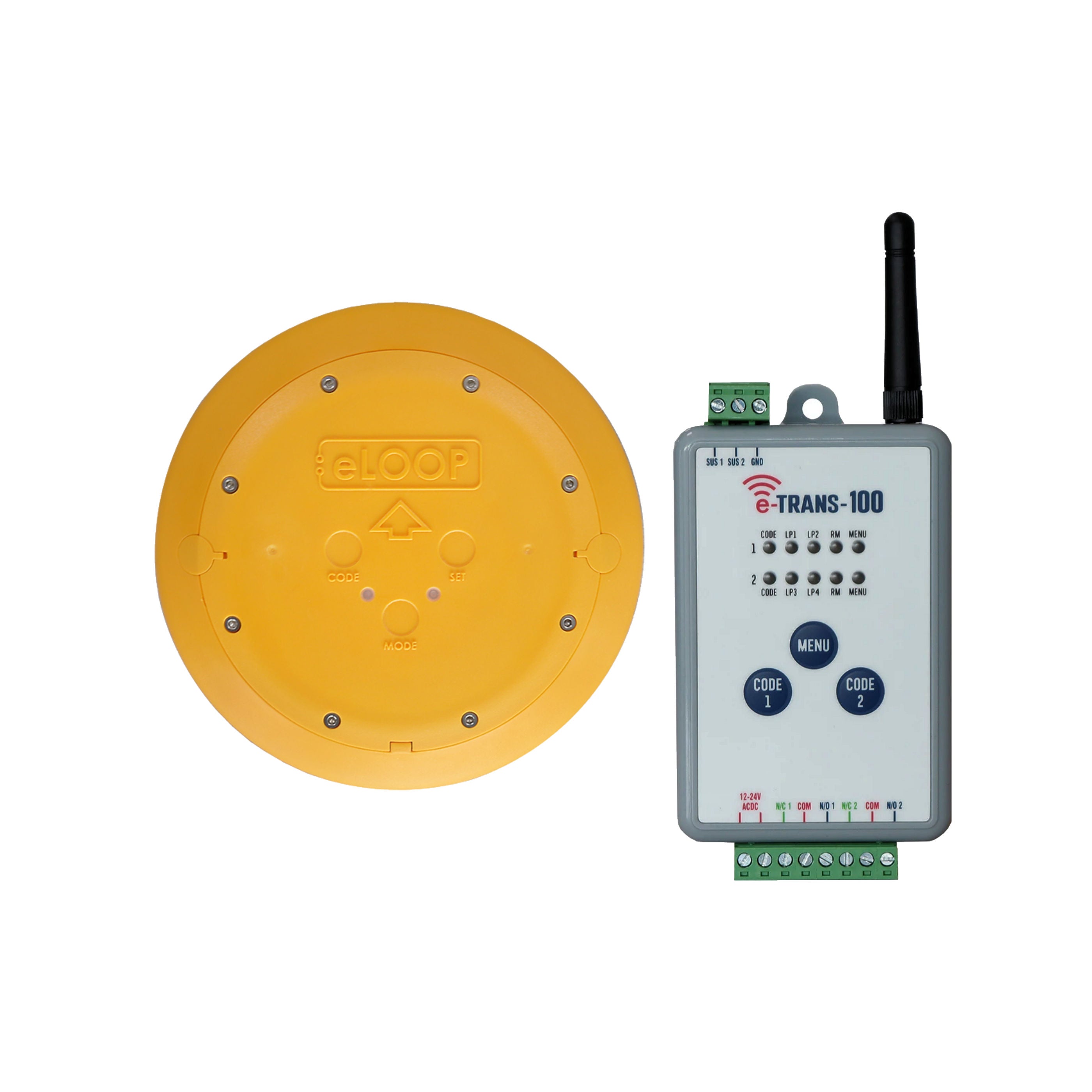

• EL00C-RAD-KT: Includes eTrans100; supports up to 100 e-TX remotes and 4 e-Loops

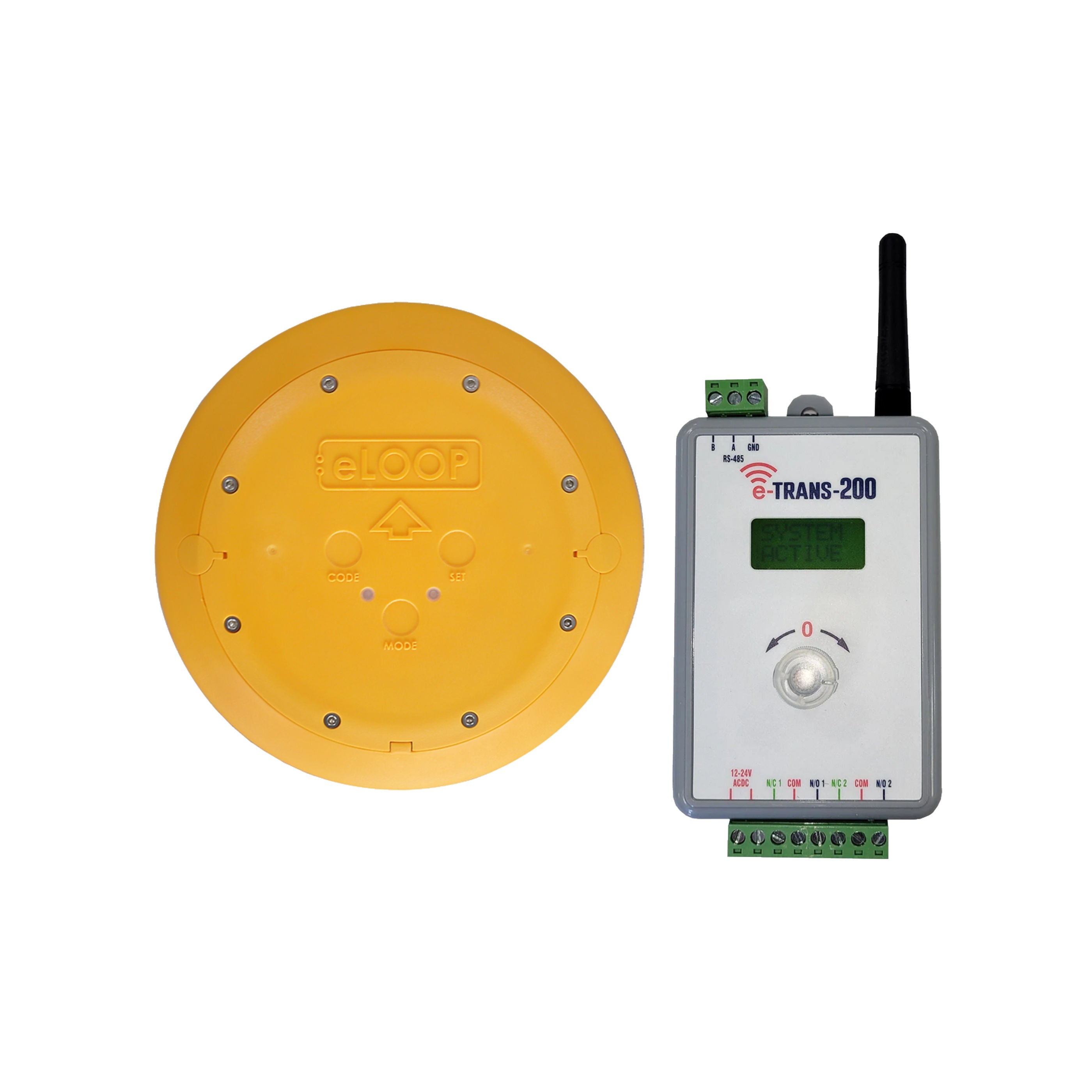

• EL00C-RAD-KLT: Includes eTrans200; supports up to 200 e-TX remotes and 4 e-Loops

Installation and Operating Notes

Install the e-Loop centrally in the normal vehicle path on a clean, level, secure surface with the directional arrow facing the gate. Avoid mounting near high-voltage cables or other sources of electrical interference.

Exit Mode sends a single activation pulse when a vehicle is detected. Presence Mode holds the relay while the vehicle remains detected, while Parking Mode provides similar operation with a slower latch and reduced power consumption.

Presence Mode is intended for vehicle detection only and must not be used as a pedestrian or personal safety device.

Conclusion

The AES EL00C-RAD Commercial e-Loop provides wireless vehicle detection without the pavement cutting and buried wiring required by a traditional inductive loop. Choose the EL00C-RAD-K, EL00C-RAD-KT, or EL00C-RAD-KLT based on the required e-TX remote capacity; each version supports up to four e-Loops.
