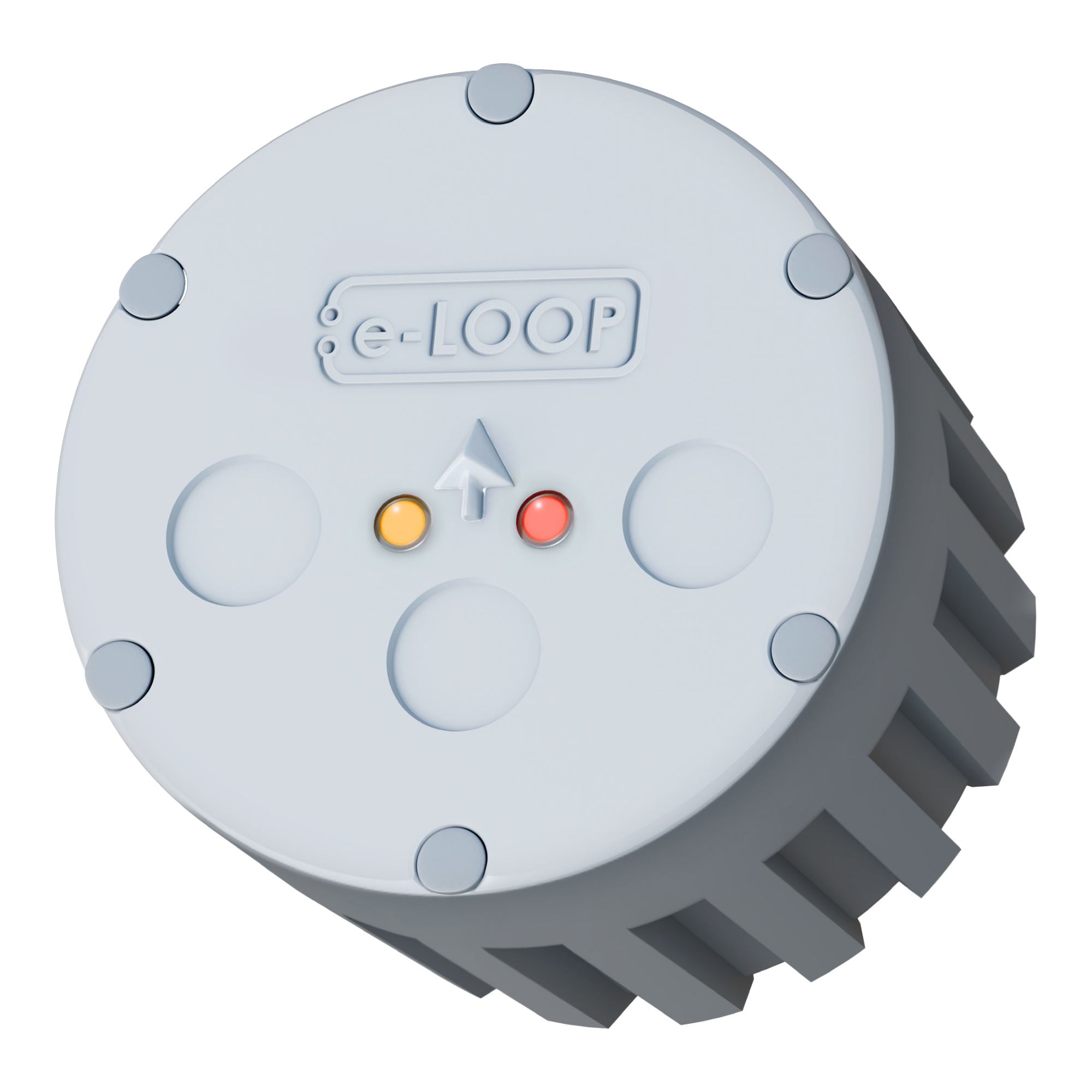

AES EL00IG-RAD In-Ground Wireless Vehicle Detector

Flush-Mounted Wireless Vehicle Detection for Automatic Gates

The AES EL00IG-RAD e-Loop In-Ground Version 4 is a wireless vehicle detection system that installs flush with the driveway for a discreet alternative to a traditional wired inductive loop. Using magnetometer and radar detection, the sensor communicates wirelessly with the included eTrans receiver to activate automatic gates and other vehicle access systems without running loop wire back to the gate controller.

Designed for residential and commercial driveways, the EL00IG-RAD provides Exit, Presence, and Parking operating modes, automatic calibration, 128-bit AES encrypted communication, IP68 protection, and advanced configuration through the AES e-CONNECT app. Three kit options are available with eTrans50, eTrans100, or eTrans200 receivers depending on the number of e-TX remotes required.

Key Features

• Flush in-ground installation for a clean, low-profile appearance
• Wireless alternative to conventional saw-cut inductive vehicle loops
• Magnetometer and radar vehicle detection
• Exit, Presence, and Parking operating modes
• Up to 10 years battery life in Exit Mode
• Up to 4 years battery life in Presence Mode
• 128-bit AES encrypted wireless communication
• Automatic calibration after installation
• IP68 ingress protection
• AES e-CONNECT app support for advanced settings and diagnostics
• Adjustable radar and magnetometer detection settings
• Operating temperature from -40°C to 80°C
• Each kit supports up to 4 e-Loops
• Receiver options support up to 50, 100, or 200 e-TX remotes

Technical Specifications

• Manufacturer: AES
• Product Family: e-Loop In-Ground
• Model: EL00IG-RAD
• Version: Version 4
• Product Type: In-ground wireless vehicle detection system
• Detection Technology: Magnetometer and radar
• Operating Modes: Exit, Presence, Parking
• Wireless Frequency: 433.39 MHz
• Modulation: FSK
• Bit Rate: 100 kbps
• Bandwidth: 50 kHz
• Antenna Type: PCB
• Nominal Output Power: 14 dBm
• Wireless Security: 128-bit AES encryption
• Standby Power: 14 µA
• Activation Power: 40 µA
• Dimensions: 89 x 89 x 57 mm
• Weight: 300 g
• Ingress Protection: IP68
• Operating Temperature: -40°C to 80°C
• Installation Type: Flush in-ground mounting
• Recommended Core Bore: 110 mm diameter
• Recommended Bore Depth: 67-70 mm
• Mobile Configuration: AES e-CONNECT app for Android and iPhone

Available Models

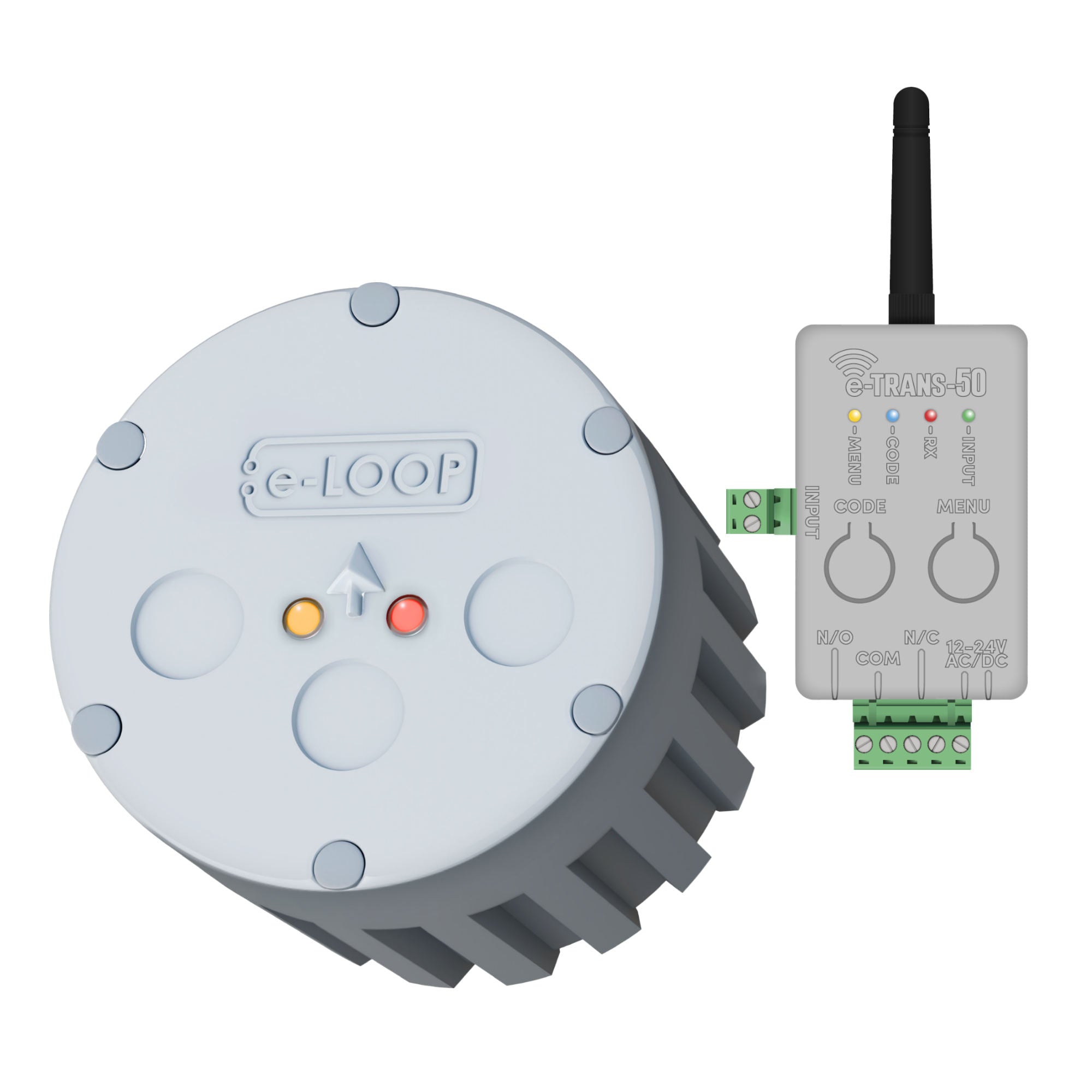

• EL00IG-RAD-K: Includes eTrans50; supports up to 50 e-TX remotes and 4 e-Loops

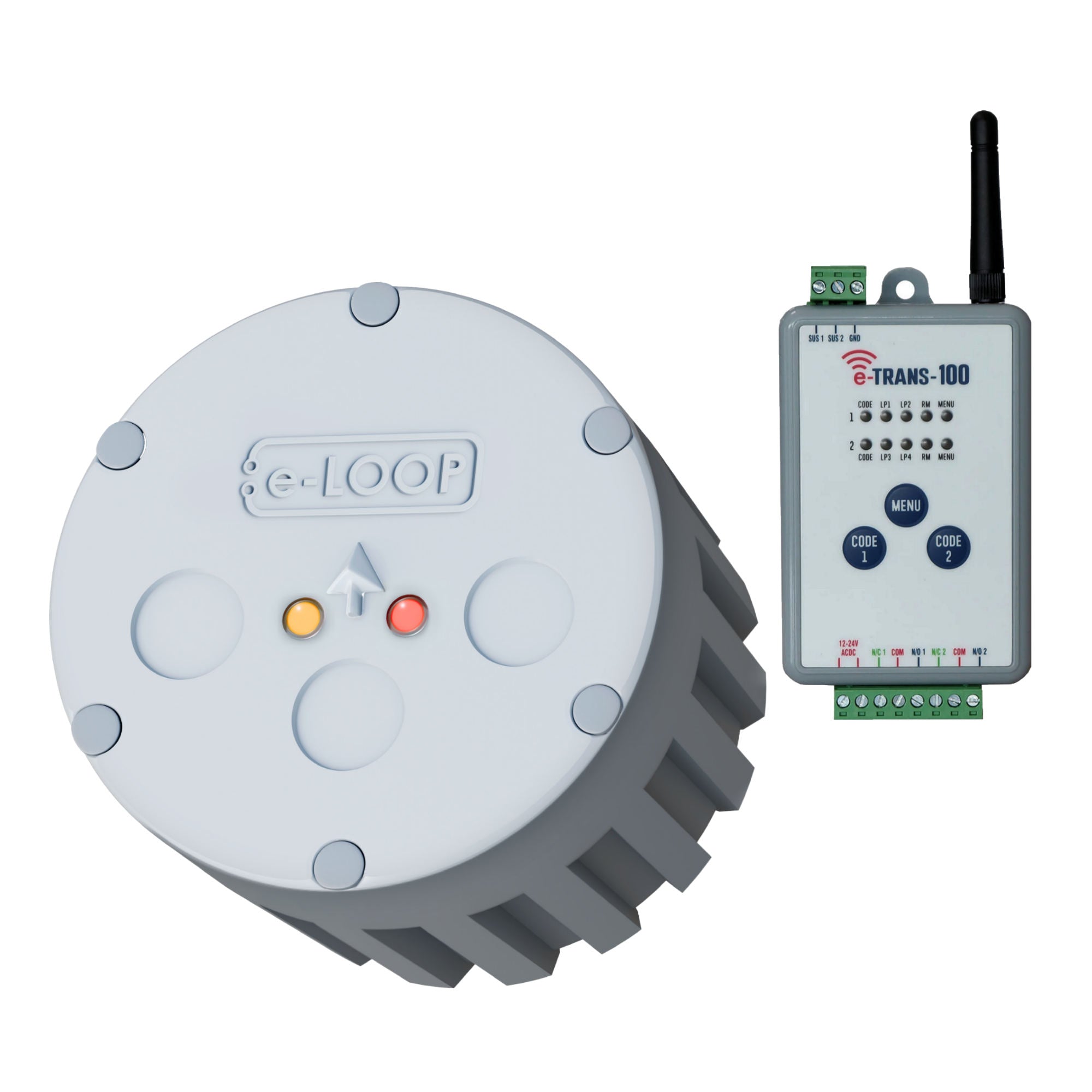

• EL00IG-RAD-KT: Includes eTrans100; supports up to 100 e-TX remotes and 4 e-Loops

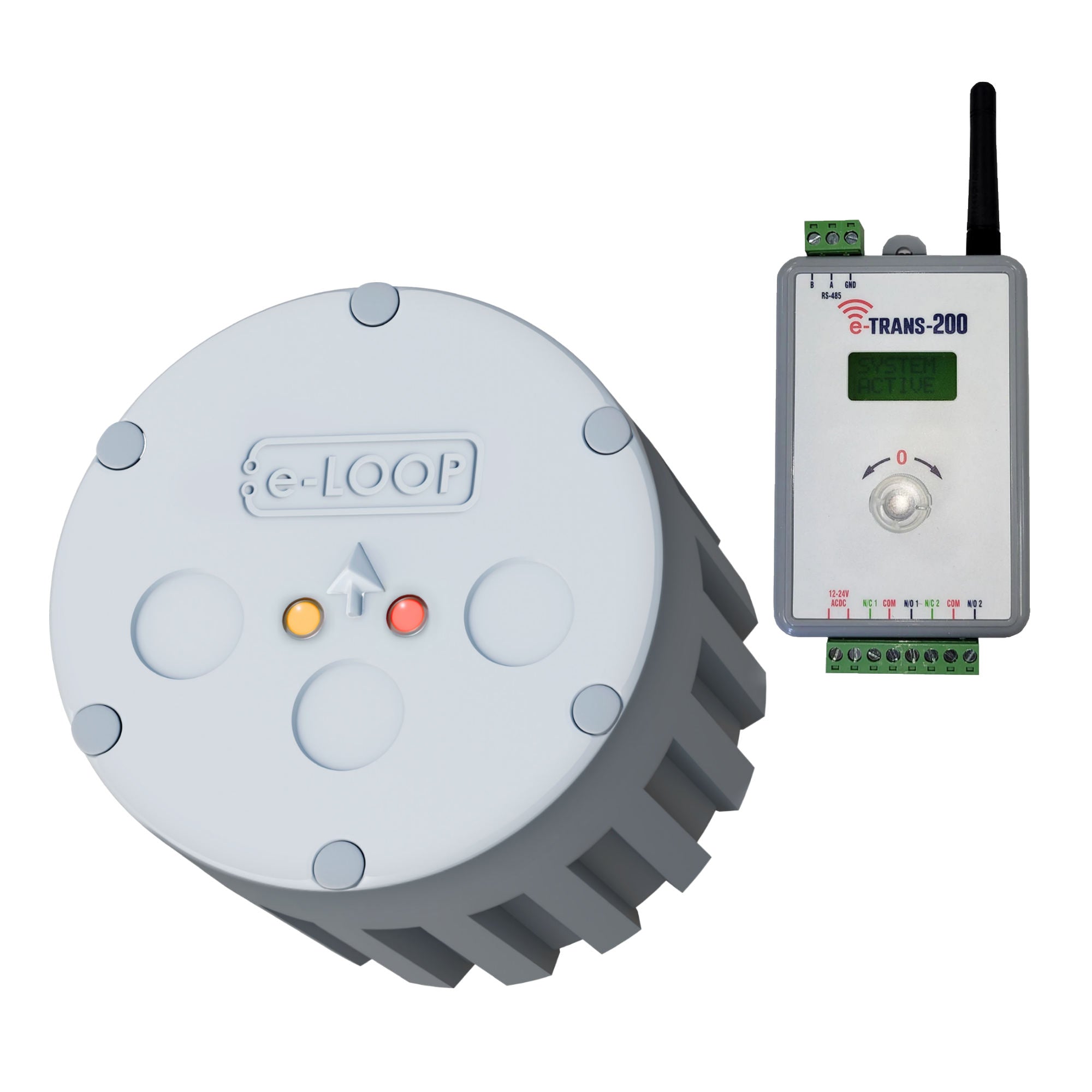

• EL00IG-RAD-KLT: Includes eTrans200; supports up to 200 e-TX remotes and 4 e-Loops

Conclusion

The AES EL00IG-RAD is a strong option where wireless vehicle detection is preferred but a surface-mounted sensor is not desirable. Its flush installation keeps the driveway profile clean while eliminating the loop wire and pavement saw cuts associated with a conventional inductive loop. Choose the EL00IG-RAD-K, EL00IG-RAD-KT, or EL00IG-RAD-KLT according to the required e-TX remote capacity; all three configurations support up to four e-Loops.

Presence Mode is intended for vehicle detection and should not be used as a pedestrian or standalone personal safety device.
