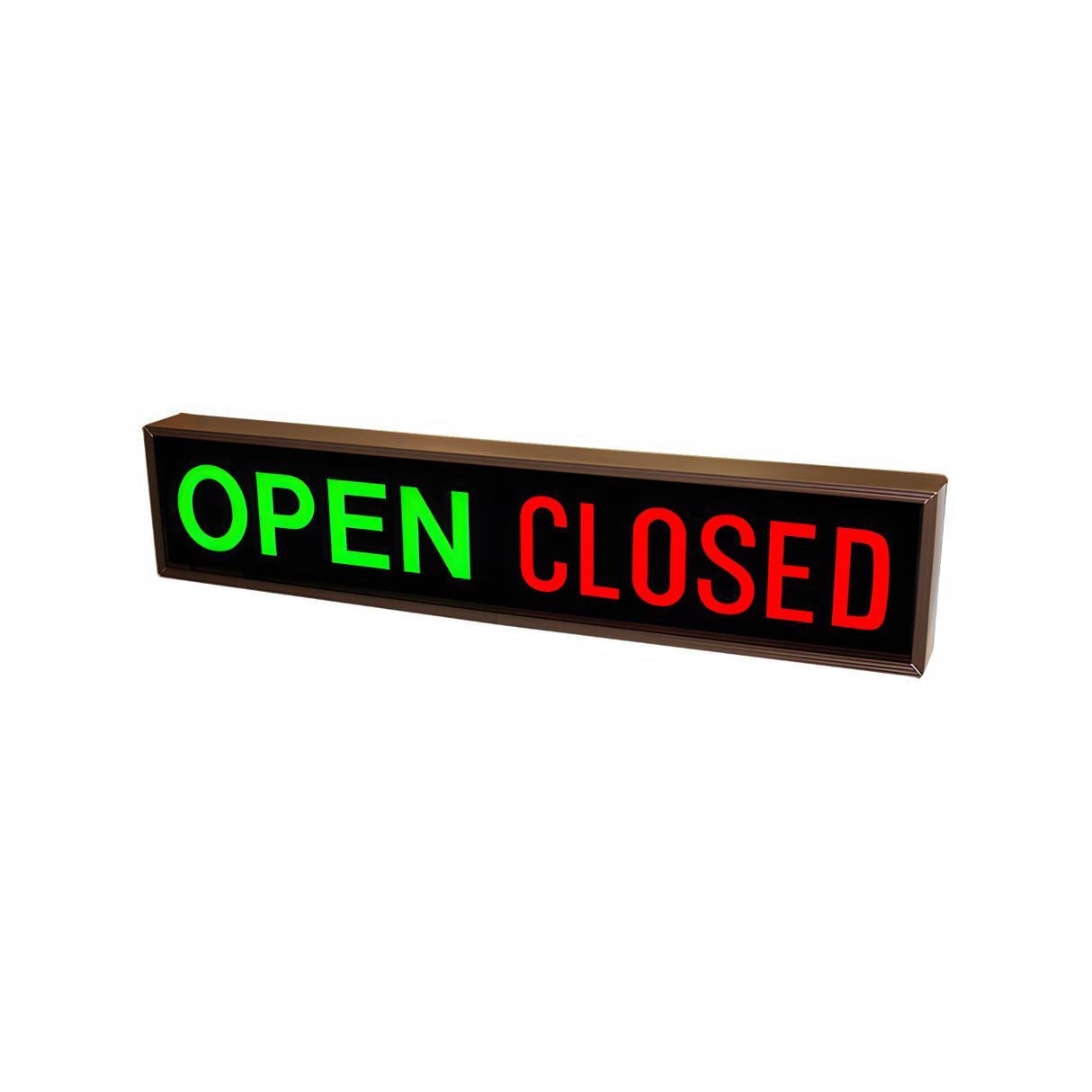

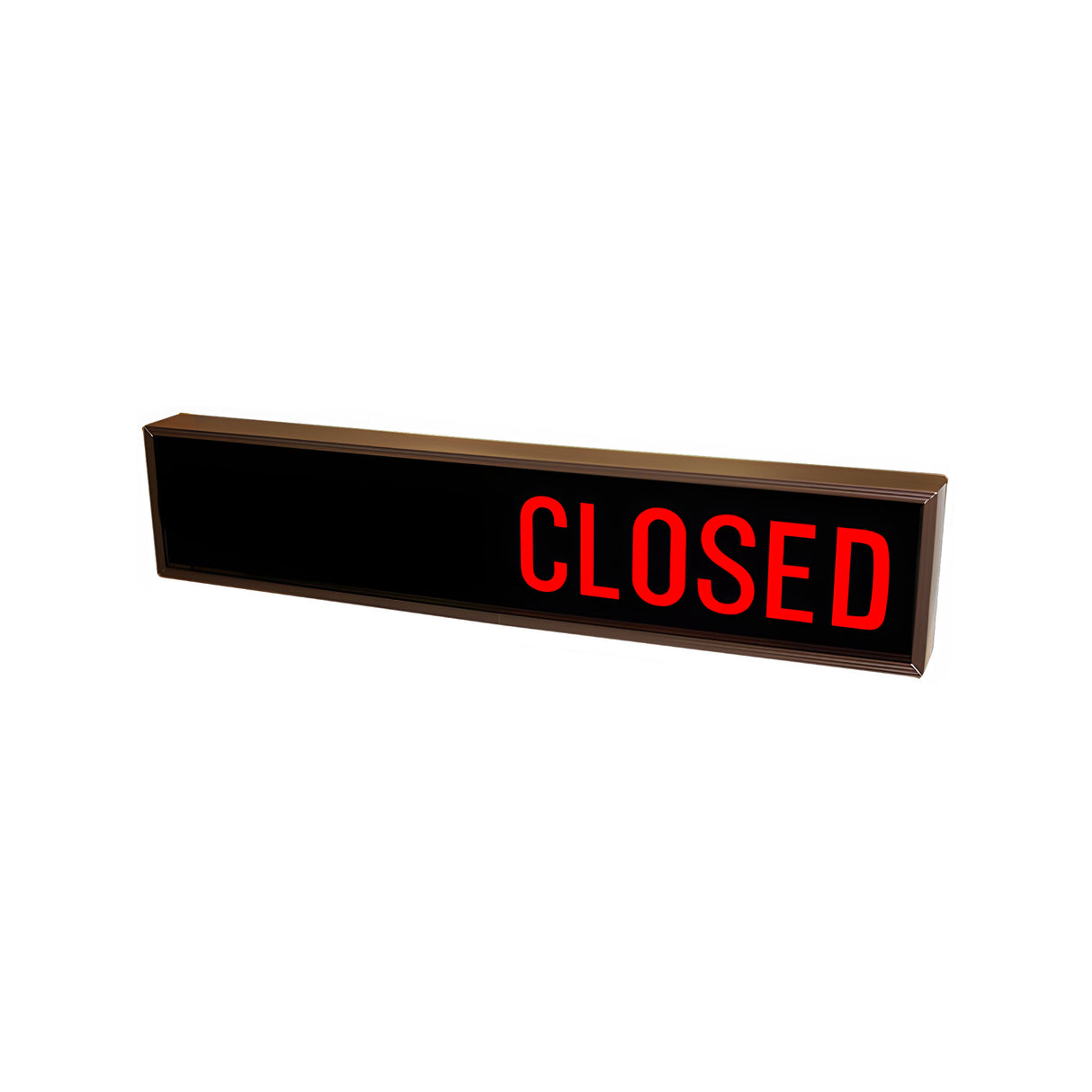

Signal Tech PHX734GR-100 Open/Closed LED Sign for Traffic Lanes

Outdoor LED OPEN/CLOSED Sign – Blank-Out, Dual Message, Weather Rated

The PHX734GR-100 is an outdoor blank-out LED sign designed to enhance traffic control at entry and exit points in parking facilities, gated communities, and commercial vehicle lanes. Featuring independently controlled OPEN (green) and CLOSED (red) messages, this high-intensity sign provides clear visual guidance for drivers, improving flow and safety.

When turned off, the messages completely disappear thanks to the blank-out backlit design, delivering a professional, non-distracting appearance. Constructed with a corrosion-resistant extruded aluminum cabinet and UL/cUL certification for wet locations, the PHX734GR-100 is built to withstand long-term outdoor exposure.

Available in two models for flexible power input: 120-277 VAC or 12-24 VDC.

Messages are controlled independently via an external relay or switch (not included). Mounting channel sold separately.

Key Features

• Displays bright OPEN (green) and CLOSED (red) messages
• Messages blank out completely when off
• Wide-angle LEDs ensure high visibility from various approach angles
• Corrosion-resistant extruded aluminum cabinet with dark grey acrylic face
• UL/cUL listed for wet locations, suitable for permanent outdoor use
• Duranodic bronze finish with printed surface graphics
• Lift’N Shift back design for simplified wall mounting
• Energy-efficient LED backlighting with solid-state circuitry
• Designed specifically for parking lane control and vehicle entry management

Technical Specifications

• Model: PHX734GR-100
• Dimensions: 7" H × 34" W × 2.5" D
• Weight: Approx. 7.18 lbs
• Input Voltage Options: 120-277 VAC or 12-24 VDC
• Message Colors: OPEN (Green), CLOSED (Red)
• Character Height: 3.75 inches
• Mounting: Wall mount (Lift’N Shift; channel sold separately)
• Cabinet Material: One-piece extruded aluminum
• Face Material: 1/8" dark grey acrylic
• Finish: Duranodic Bronze
• Environmental Rating: UL/cUL listed for wet locations
• Message Font: Swiss 721 Bold BT
• LED Current Draw: OPEN: 0.173–0.075 A / CLOSED: 0.116–0.050 A

Model Variants

• PHX734GR-100/120-277VAC – For standard power systems
• PHX734GR-100/12-24VDC – For low-voltage DC systems

Conclusion

The PHX734GR-100 LED sign provides a rugged and visually effective solution for directing vehicle traffic at gates and parking lanes. Its weatherproof construction, blank-out messaging, and dual-voltage options make it a smart and secure choice for managing vehicular flow in any outdoor environment.
