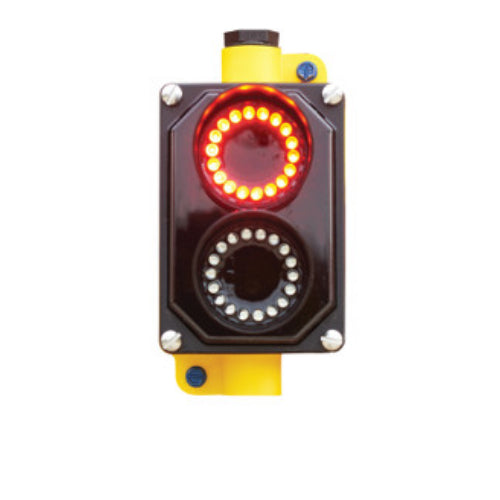

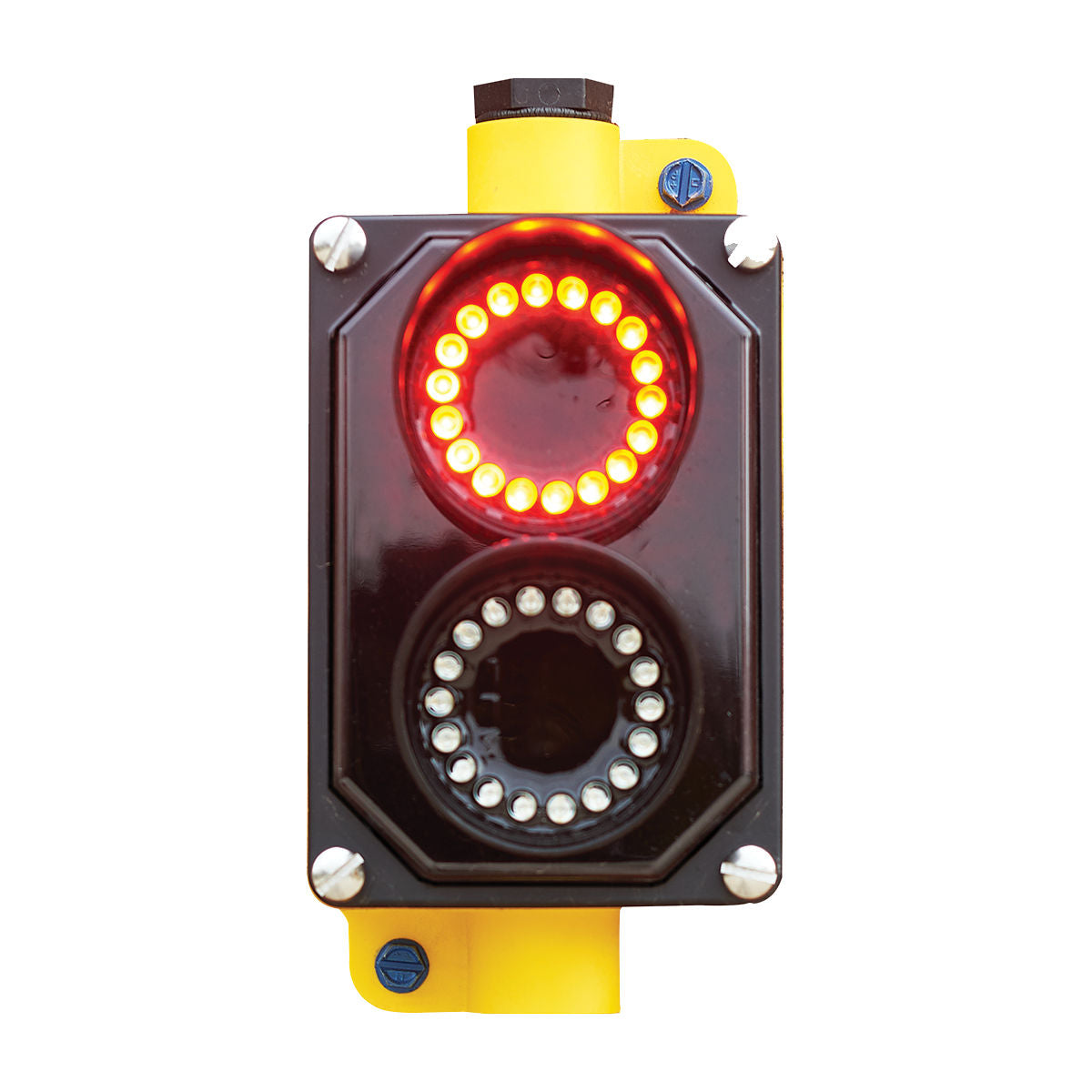

Liftmaster RGL-CTL Hi-Intensity Red/Green LED Traffic Light

Data Sheet

The LiftMaster RGL-CTL Hi-Intensity Red/Green LED Traffic Light offers the ultimate traffic control solution for automatic gates and commercial environments. Featuring sealed red and green LED lenses, this light provides focused, daylight-visible signals ideal for single-lane operations and high-traffic facilities. Its IP65/NEMA 4-rated enclosure and polycarbonate housing ensure durability, making it suitable for both indoor and outdoor use in demanding conditions.

With hi-intensity beams, the RGL-CTL enhances visibility and safety in locations such as fire stations, auto service centers, municipalities, and parking facilities. The included 4-pin connector with cable simplifies installation, while compatibility with the optional TLS1CARD allows seamless color switching to match gate or door positions, ensuring reliable traffic management.

Key Features

• Hi-Intensity LED Beams: Bright red and green LEDs deliver superior visibility, even in daylight.
• Robust Design: IP65/NEMA 4-rated enclosure and polycarbonate housing protect against weather and impacts.
• Extended LED Lifespan: Sealed 18 LED lenses offer long-lasting performance for low maintenance.
• Flexible Applications: Perfect for fire stations, service centers, parking facilities, and single-lane operations.
• Simple Installation: Includes a 4-pin connector and cable for quick and easy setup.
• Optional Integration: Works with the TLS1CARD for advanced traffic control, enabling red-to-green light switching based on gate or door positions.

Technical Specifications

• Housing Material: Polycarbonate for added durability.
• Environmental Rating: IP65/NEMA 4 for all-weather operation.
• LED Configuration: 18 red/green LEDs for high visibility and long life.
• Power Requirements: Operates on 15-30V DC/AC with a low draw of 80mA total.
• Mounting Options: Compatible with flat surfaces and 1/2" NPT fittings.
• Operating Temperature: -40° to 50°C (-40° to 122°F).

Why Choose the LiftMaster RGL-CTL Traffic Light?

The LiftMaster RGL-CTL Traffic Light combines rugged durability, high-intensity visibility, and seamless compatibility to meet the safety and efficiency needs of modern commercial facilities. Designed for automatic gate systems and narrow-lane traffic control, it reduces risks and enhances operations with reliable, energy-efficient performance.

Boost the safety and efficiency of your gate or traffic control system with the LiftMaster RGL-CTL Hi-Intensity Red/Green LED Traffic Light
