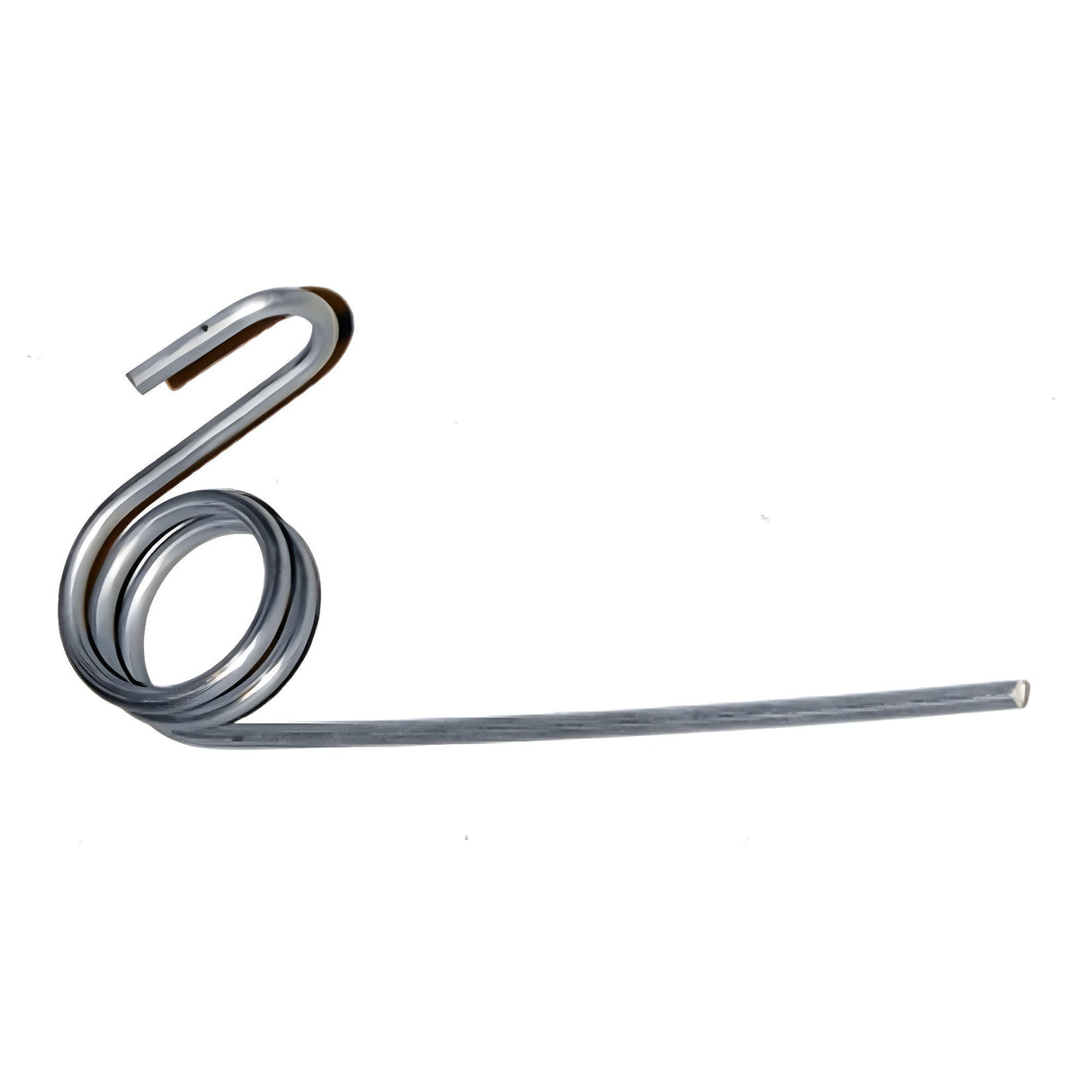

Doorking 1610-139 Spring Return Loop Right - 30°

Replacement Spring Return Loop for DoorKing Traffic Spikes

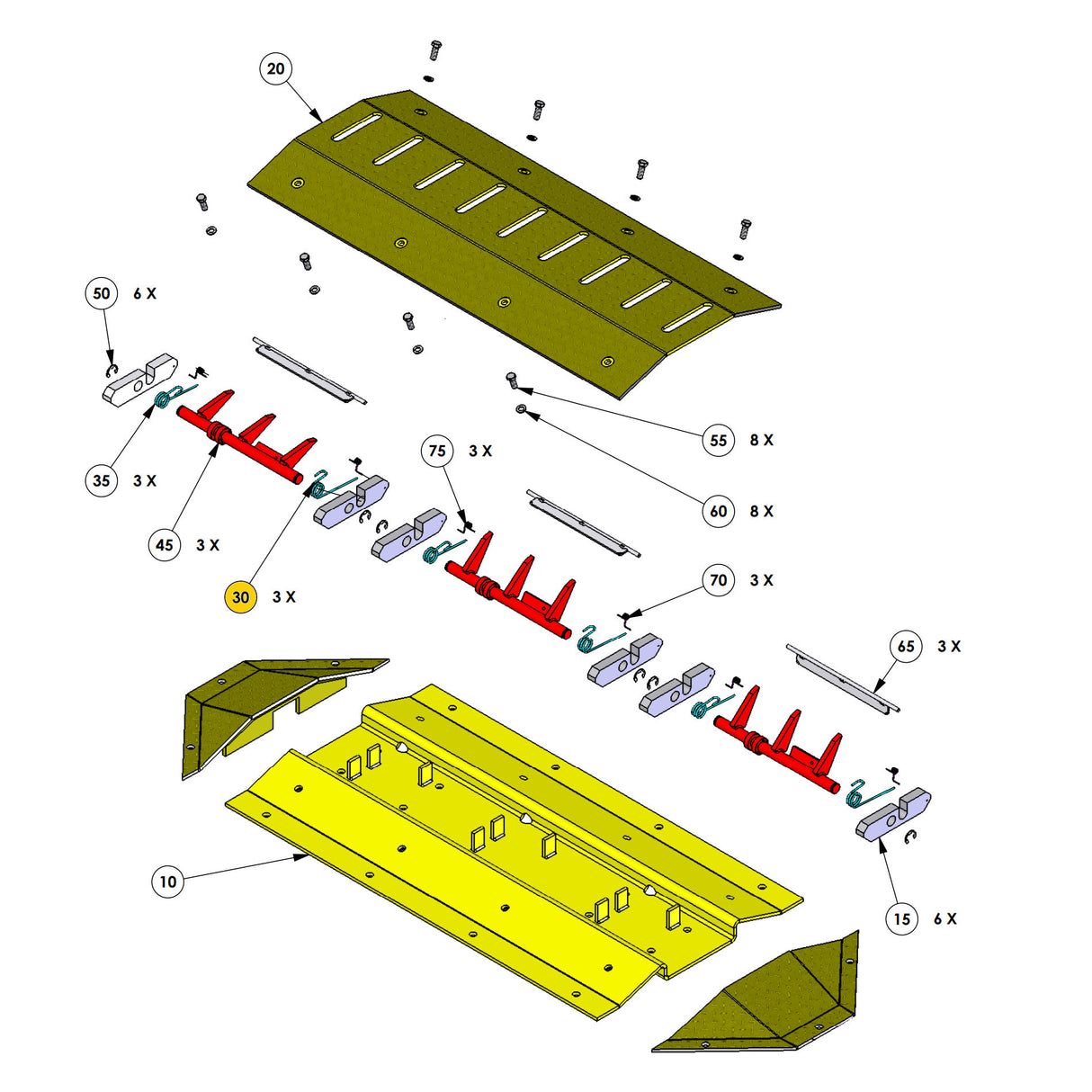

The DoorKing 1610-139 is a 30-degree right-facing spring return loop designed for use with DoorKing 1610 series above-ground traffic spike systems, including models 1610-087 and 1610-088. Identified as part number 30 in the official exploded diagram, this component restores spike orientation after vehicle passage, ensuring directional enforcement and proper spike function in high-traffic security lanes.

Key Features

• Engineered for 1610-series surface-mount traffic spikes
• Controls the return position of spike blades after actuation
• 30° right-hand configuration for matched orientation
• Durable spring steel construction for long-term reliability
• OEM DoorKing® part ensures exact fit and function

Technical Specifications

• Part Number: 1610-139
• Function: Right-hand spring return for spike reset
• Size: 5" x 1.5"  x 2"
• Diameter: 0.9"
• Angle: 30 degrees
• Compatibility: 1610-087, 1610-088 above-ground spike assemblies
• Diagram Reference: Position 30 in official exploded view
• Application Type: Commercial, Industrial, Traffic Control
• Installation: Refer to DoorKing service manual or diagram for part placement

Conclusion

Built for reliable operation in directional traffic control systems, the 1610-139 right-side spring return loop helps maintain spike integrity and security compliance. Essential for repair or rebuilds of DKS 1610 surface spike systems in commercial lots and secure facility access lanes.
