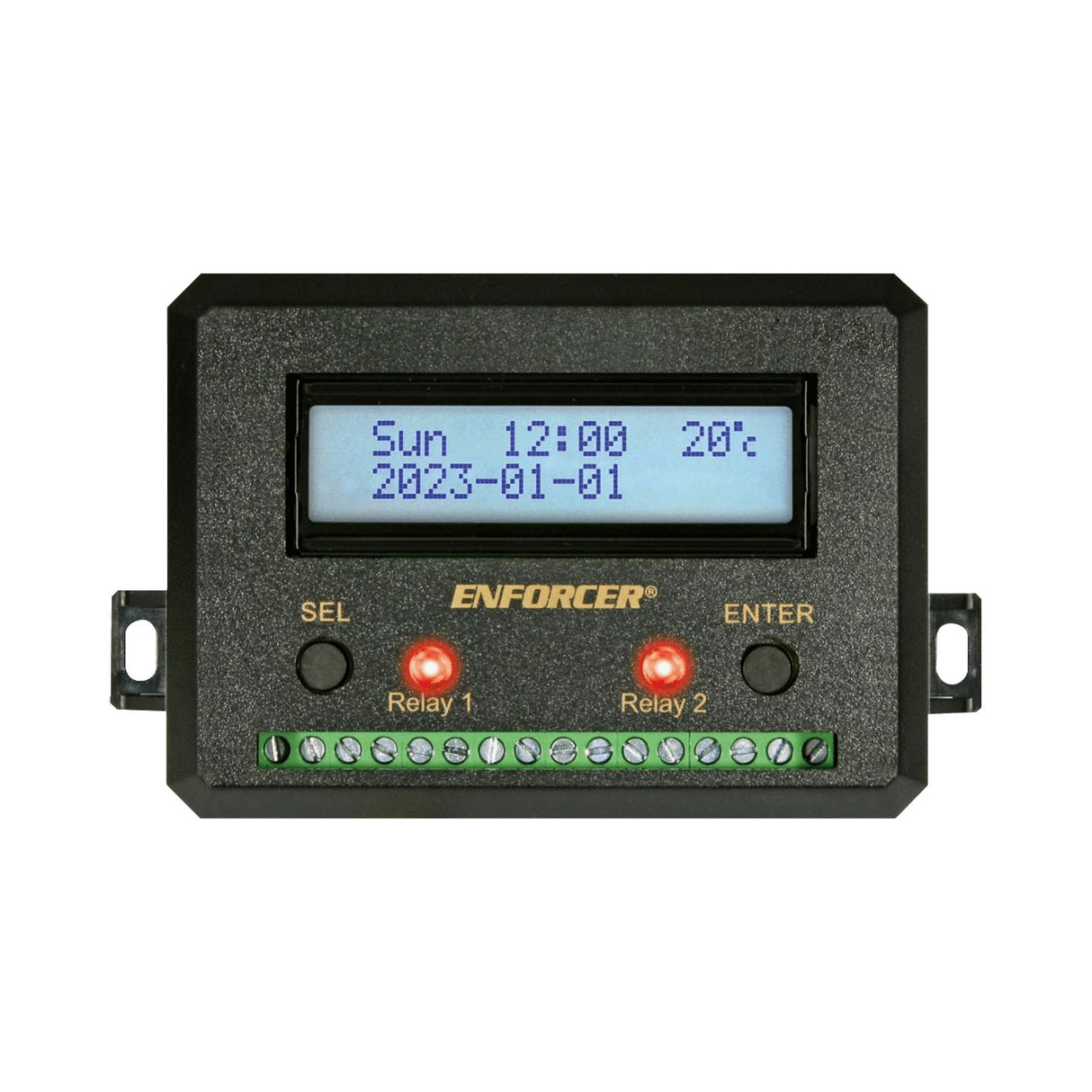

Seco-Larm SA-027HQ Timer 356 Days

Enforcer 365-Day Annual Timer with Two Relay Outputs

The SA-027HQ Annual Timer can be programmed to operate two relays 24 hours a day, over the course of an entire year. These relays can be used to control devices in many applications such as security, access control, lighting, and environmental control. The two Form C relays can each be programmed to operate in shunt or momentary mode for up to 50 unique events. Each event can be programmed on a weekly or daily schedule. Block programming allows events to be repeated on consecutive days. 10 Programmable holidays disable the timer for a single day, or for the same day every year.

Features

• Two N.O. or N.C. Form C relays 10A@14VDC
• Each relay can be programmed for 50 events, for a total of 100 individual programmable events
• The 100 programmable events can be set weekly, daily, or hourly, over the course of an entire year
• Password protection can be turned ON or OFF
• One egress input per relay (2 total)
• Block programming allows events to be repeated on consecutive days
• First-person-in function interrupts the normal operation of the annual timer
• Event outputs can be programmed disable, ON, OFF, shunt, or momentary (1~99 seconds)
• 10 Programmable holidays
• Can be programmed for password protection
• Tandem mode allows both relays to operate simultaneously
• EEPROM Memory for safe data protection in case of power failure
• Built-in clock backup battery
• Built-in backup battery charger for external backup battery use
• Compensates for leap years
• Can be set for Standard or Daylight Saving Time
• Alphanumeric backlit LCD display for easy programming
