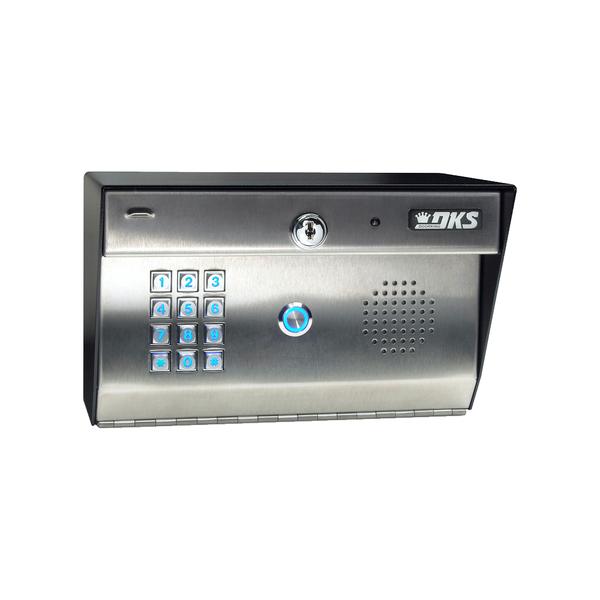

Doorking 1812-099 Access Plus Telephone Entry System With CCTV

DoorKing 1812-099 Access Plus Gate Intercom with Color Camera

The DoorKing 1812-099 Access Plus is a high-end IP-based gate intercom and access control system designed for large residential estates and high-security properties requiring advanced control and monitoring. Built around a surface-mount stainless steel faceplate with a black housing and a pre-installed color camera, this system delivers robust perimeter access management combined with network-based programming and reporting. The 1812 Access Plus expands on the standard 1812 Plus platform by supporting multiple access points, detailed event tracking, and remote system administration over a LAN or WAN connection.

Key Features

• Surface-mount stainless steel faceplate with black housing and integrated color camera
• IP addressable system using TCP/IP for LAN or WAN programming
• Windows-based PC software included for intuitive system configuration
• Two onboard relays for controlling a primary gate and door
• Supports control of up to six additional access points via RS-485
• Capacity for 100 access credentials including cards, transmitters, and keypad codes
• Centralized PC-based management for scheduling lock and unlock times
• 500-event transaction buffer for detailed activity logging
• Configurable email notifications for selected access events
• Cellular operation available with optional SIM and additional hardware

Technical Specifications

• Model: 1812-099
• Product Type: Access control gate intercom with video
• Mounting: Surface mount
• Housing: Stainless steel faceplate with black enclosure
• Camera: Integrated color camera
• Communication: TCP/IP (LAN/WAN), RS-485 for expansion devices
• Relay Outputs: 2 onboard relays
• Expansion Capacity: Up to 6 additional access points
• Credential Capacity: 100 total access codes
• Event Buffer: 500 transactions
• Programming: PC-based Windows software
• Cellular Support: Optional with additional hardware

Conclusion

The DoorKing 1812-099 Access Plus Gate Intercom is a powerful access control solution for properties that demand advanced functionality, centralized management, and scalable perimeter security. With IP-based programming, integrated video, and support for multiple access points, it provides Elite-grade control and visibility for sophisticated residential access systems.
