Viking Access X-390 Swing Gate Opener

Discreet and Durable Swing Gate Automation

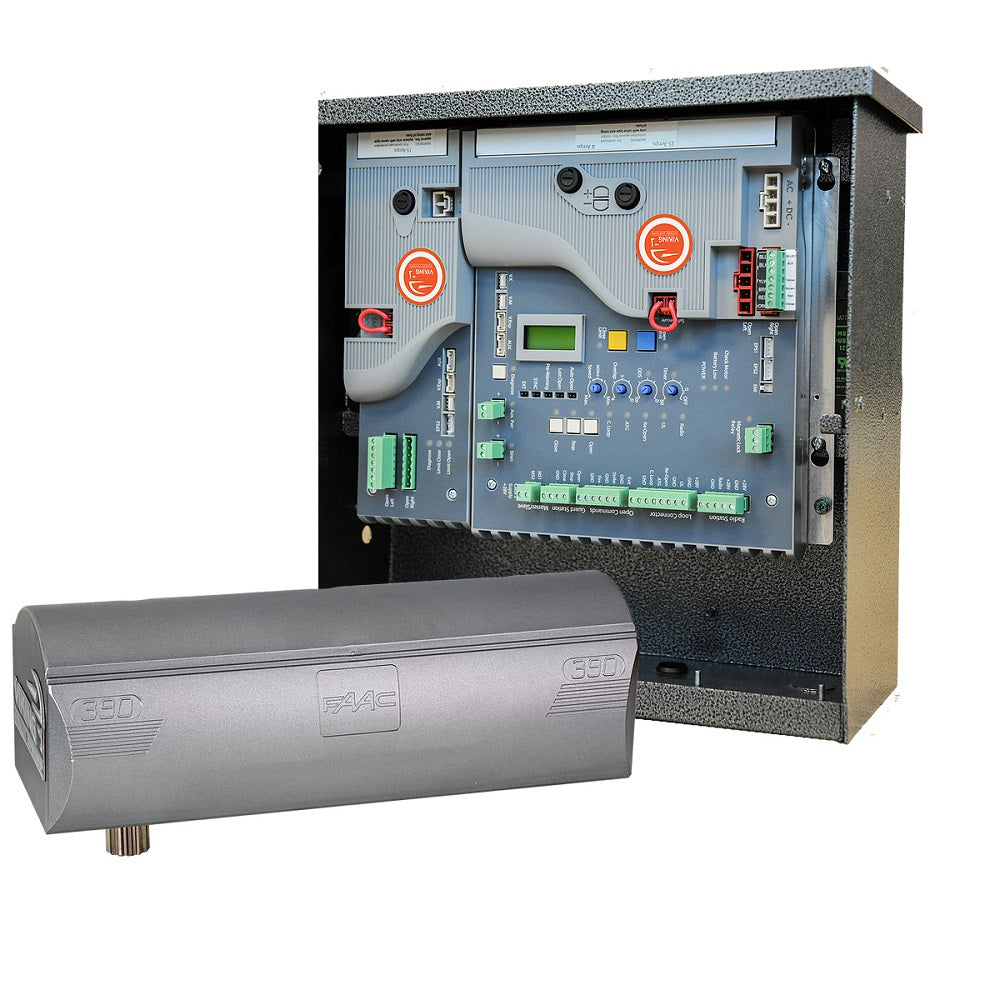

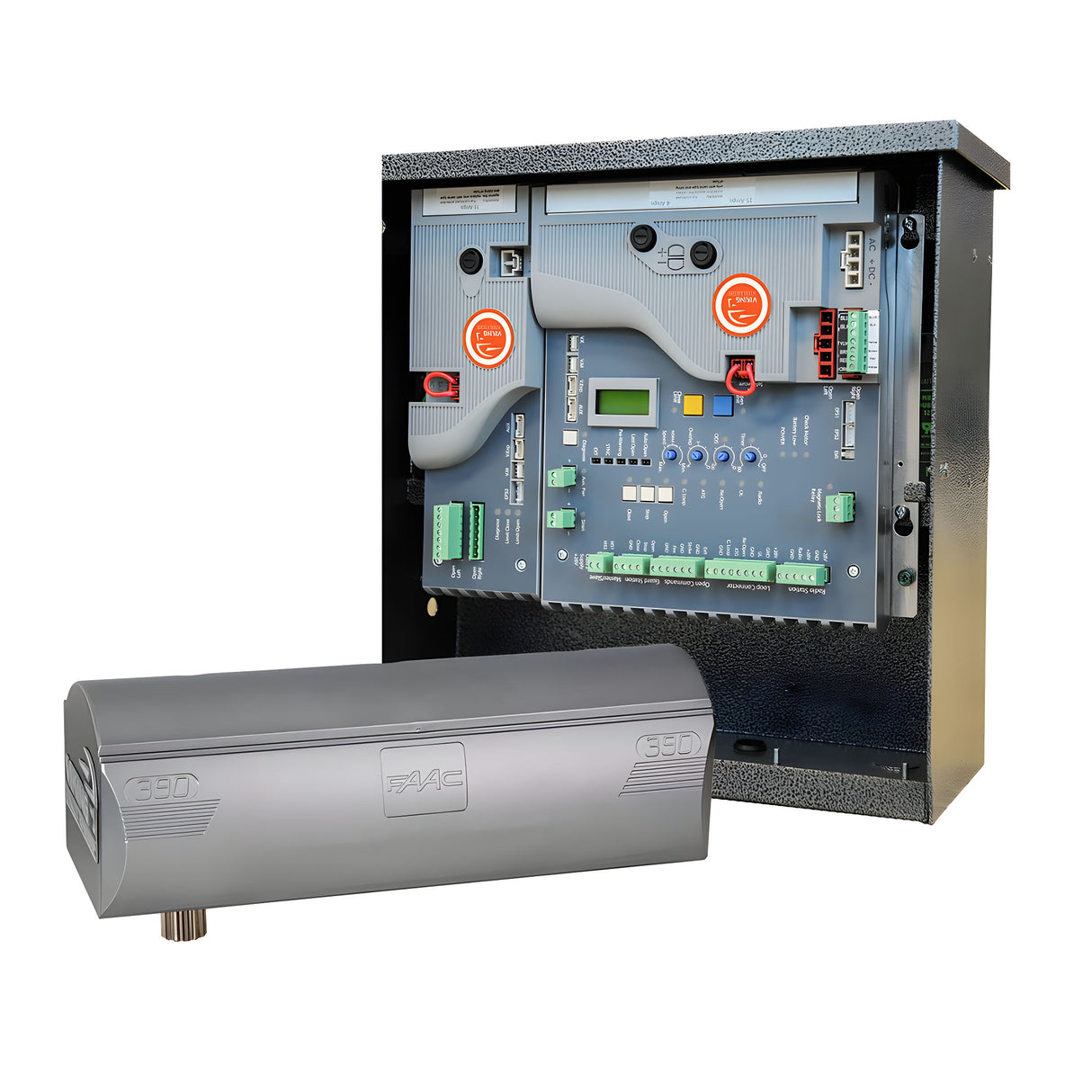

The Viking Access X-390 Swing Gate Operator is a powerful and discreet gate automation solution designed for residential, commercial, and industrial properties. With a low-profile, column-mounted design, the X-390 blends seamlessly into its surroundings, providing inconspicuous gate automation without compromising performance. Capable of handling gates up to 14 feet long and 600 lbs, the X-390 ensures smooth operation with a 100% continuous-duty cycle. Its compact structure allows it to be mounted directly to gate columns or walls, preserving the aesthetics of the entrance while delivering robust and reliable automation.

Key Features

• Discreet, Column-Mounted Design – Low-profile installation allows the operator to be mounted directly to a column or wall, minimizing visual impact while maintaining full functionality.
• Gate Capacity and Size – Handles gates up to 14 feet long and 600 lbs, ideal for residential driveways and commercial entry points.
• Fast Operating Speed – Opens gates in 10 to 13 seconds for a 90° swing, ensuring efficient access control.
• Continuous Duty Cycle – Designed for 100% continuous-duty operation, making it suitable for frequent, high-traffic use.
• Battery Backup System – Provides up to 400 cycles during power outages, ensuring uninterrupted performance.
• Extreme Weather Performance – Operates in temperatures ranging from -20°F to 131°F, with a built-in heater for cold environments.
• UL 325 and UL 991 Certified – Meets industry safety standards with obstruction detection and auto-reverse functions to prevent accidents.
• Onboard Diagnostics and LCD Display – Integrated diagnostics provide real-time voltage, amperage, and gate status to simplify troubleshooting.
• Surge and Lightning Protection – Withstands electrical surges up to 20,000 volts/10,000 amps, extending the lifespan of the unit.
• Solar Compatible and Energy Efficient – Solar Smart technology reduces power consumption, making it an eco-friendly and cost-efficient option.

Technical Specifications

• Model: VA-X390SLK
• Operational Voltage: 24 VDC
• Input Voltage: 120/240 VAC (Single Phase)
• Gate Capacity: 14 ft / 600 lbs
• Torque: 184 lb-ft (250 Nm)
• Opening Speed: 10-13 seconds per 90° swing
• Battery Backup: Up to 400 cycles
• Temperature Range: -20°F to 131°F
• Duty Cycle: 100% Continuous

Package Includes

• Photoeye Set – Provides enhanced safety by detecting obstacles in the gate's path, preventing accidental closures and ensuring compliance with safety standards.
• Receiver and Remote Set – Allows for wireless control of the gate, enabling convenient remote operation and seamless integration with existing access systems.

Conclusion

The Viking Access X-390 Swing Gate Operator offers a unique blend of discreet aesthetics and industrial-grade performance. Its column-mounted, low-profile design makes it one of the most inconspicuous yet powerful gate operators on the market. Ideal for properties requiring unobtrusive gate automation, the X-390 delivers exceptional reliability, speed, and durability. Whether securing a residential driveway or a commercial facility, the X-390 ensures smooth, secure, and efficient gate operation with a focus on maintaining the entrance’s visual appeal.
