US Automatic Patriot 2 Dual Swing Gate Opener (Solar Package)

Solar-Powered and Efficient Gate Automation for Dual Swing Gates

The US Automatic Patriot 2 Dual Swing Gate Opener (Model 020075) is the ultimate solar-powered gate opener for residential, agricultural, and light commercial properties. Capable of operating dual swing gates up to 16 feet long and 650 lbs per leaf, it delivers quick, reliable operation with a 12-second cycle time. The DC charged model ensures off-grid functionality, while the included solar panel kit provides eco-friendly, cost-effective power for remote areas.

Featuring 24-inch stroke actuators that provide 500 lbs of dynamic thrust, this gate opener ensures smooth, dependable performance. It comes equipped with a solar-friendly LCR receiver and two long-range remotes for effortless operation. The UL 325 compliance and through-beam photo eyes ensure superior safety, while its Made in the USA build ensures lasting durability.

Key Features

• Dual Gate Capacity: Automates dual swing gates up to 16 feet and 650 lbs per leaf
• Fast Operation: 12-second cycle time for quick, efficient opening
• Dual Charging Options: DC charged with solar compatibility for remote installations
• Receiver and Remotes: Prewired LCR receiver (432 MHz frequency) with two 2-button remotes
• Battery Backup: Requires a 12V DC battery (not included), ideal for off-grid use
• Photo Eyes Included: Includes through-beam photo eyes (item #550011) for UL 325 compliance
• Soft Start/Stop Feature: Ensures smooth gate operation and component longevity
• Durability: 24-inch stroke actuators delivering 500 lbs of thrust per gate
• Warranty: 5-year control board, 3-year component warranty
• Made in the USA: High-quality build for dependable, long-lasting operation

Technical Specifications

• Max Gate Weight: 650 lbs per leaf
• Max Gate Length: 16 feet per leaf
• Cycle Time: 12 seconds for 90-degree opening
• Power Source: 12V DC battery (solar charged with included solar kit)
• Receiver Frequency: 432 MHz
• Safety Compliance: UL 325 compliant, includes through-beam photo eyes
• Actuator Stroke: 24 inches
• Dynamic Thrust: 500 lbs
• Static Load Holding: 1,100 lbs
• Warranty: 5-year control board, 3-year component warranty
• Country of Manufacture: Made in the USA
• Battery: 12V Battery not included

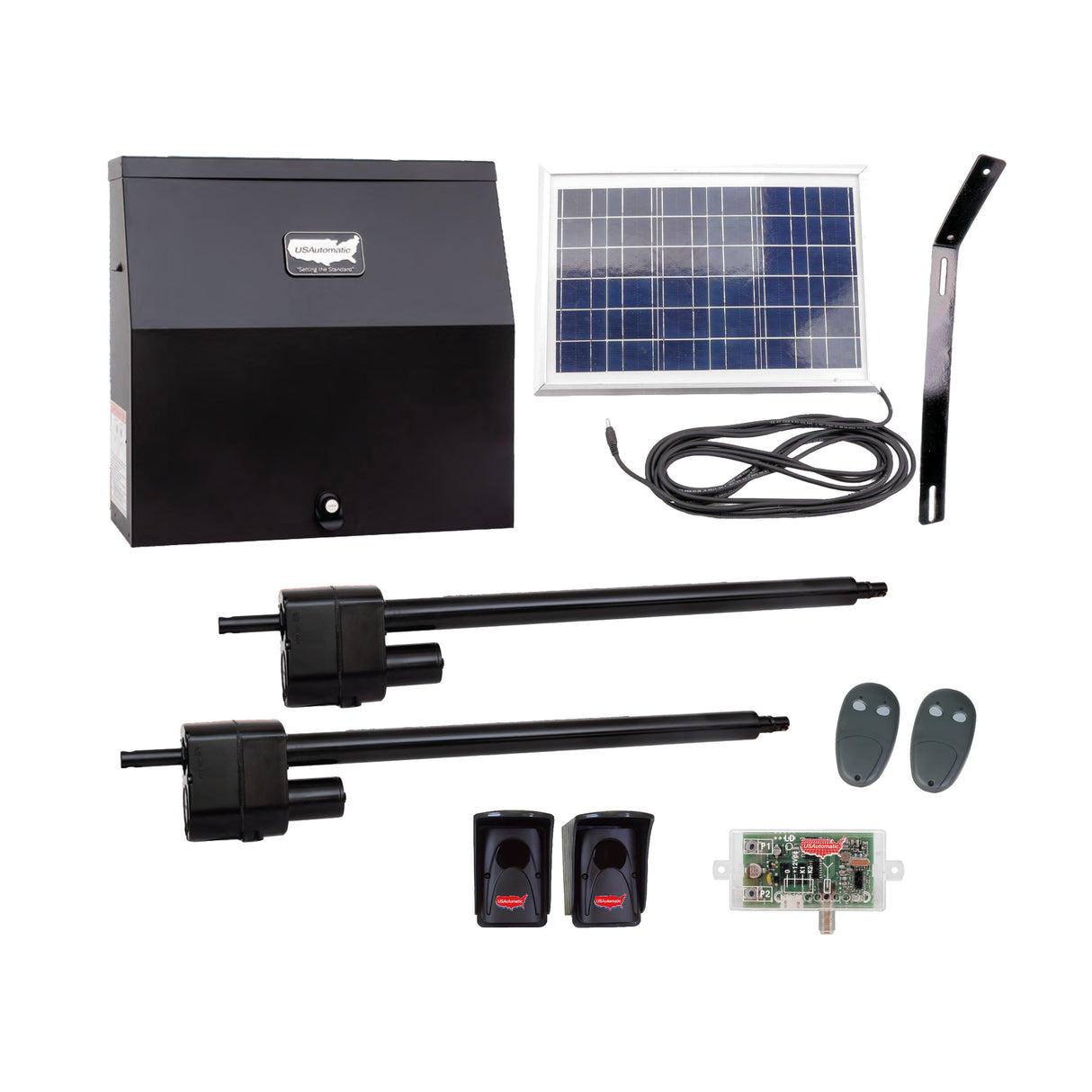

What Comes in the Box:

• Control box with cover
• Two 24-inch stroke actuators (500 lbs dynamic thrust per leaf)
• Prewired LCR receiver (432 MHz)
• Two LCR two-button remotes
• Smart charge controller for solar compatibility
• Solar Charging Kit (10-watt panel with mounting bracket)
• 1 set of through-beam photo eyes (item #550011)
• Push-to-open and push-to-close mounting brackets
• 40’ Dual Gate Actuator Extension Cable
• Coax Antenna Cable and Bracket
• 2 Safety Signs

Why Choose the Patriot 2 DC Charged Dual Swing Gate Opener?

The Patriot 2 DC Charged Dual Swing Gate Opener (Model 020075) is designed for those who need a reliable, off-grid gate automation solution. The included solar panel kit ensures eco-friendly operation, while its UL 325 compliance and robust construction make it ideal for securing any property. Built in the USA and backed by a 5-year control board warranty, the Patriot 2 is an excellent choice for fast, efficient, and durable gate automation.
