Liftmaster LA412XL20W Single Swing Gate Opener (Extra Large Capacity)
Liftmaster LA412XL20W Single Swing Gate Opener (Extra Large Capacity) is backordered and will ship as soon as it is back in stock.
Core Details
| Product Type | Swing Gate Operator |
| Application Type | Gate |
| Installation Type | Residential |
| Voltage | 12V |
| Power Type | Solar |
| Mounting Type | Post Mounted |
| Motor Type | DC Motor |
| Horsepower (HP) | < 0.5 HP |
| Battery Backup | Included |
| UL/ETL Certification | Yes |
| Smart Features | MyQ Compatible |
| Frequency | 310/315/390 MHz |
| Max Gate Weight | 850 lbs |
| Max Gate Length | 16 ft |
| Solar Ready | Solar Panel Included |
| Included Accessories | Receiver | Photoeye | Battery | Solar Panel | Harness |
| Weatherproof Rating | Rated for Outdoor Usage |
| Operating Temperature | -4°F to 140°F |
Liftmaster LA412XL20W Single Swing Gate Opener (Extra Large Capacity)
Description
Description
High-Capacity Solar Gate Automation Built for Efficiency and Durability
The LiftMaster LA412XL20W Single Swing Gate Opener is a solar-powered, heavy-duty solution designed for single swing gates in residential and light commercial settings. With its extra-large control box (XLSOLARCONTUL) and 33AH battery, this opener is engineered for maximum solar efficiency and longer operational cycles. Whether you're automating a gate in a remote location or need reliable performance with minimal maintenance, this system provides a complete solution for secure gate automation.
Featuring a 12V 20W solar panel, the LA412XL20W is capable of powering gates up to 16 feet long or weighing up to 850 lbs. The system includes all necessary components for quick and easy installation, such as standard mounting hardware and a photoeye for enhanced safety and UL325 compliance. Designed with expandability in mind, additional solar panels can be integrated based on usage, geographical location, and daily cycles.
Key Features
- Heavy-Duty Solar Power: Powered by a 33AH battery and 12V 20W solar panel, ideal for remote and eco-conscious installations.
- Extra-Large Control Box: The XLSOLARCONTUL control box provides space for future upgrades and increased solar power storage.
- Gate Capacity: Supports gates up to 16 feet in length or weighing up to 850 lbs.
- Safety Features: Includes a photoeye for UL325 compliance, ensuring safe and secure gate operation.
- Quick Operation: Opens gates to 90 degrees in under 24 seconds with soft start/stop functionality for minimal wear and tear.
- Expandable Solar System: Additional solar panels can be added based on gate usage, geographical location, and accessories used.
Technical Specifications
- Motor: 12VDC motor powered by solar energy.
- Battery: 33AH battery for extended power storage.
- Solar Panel: 12V 20W solar panel included.
- Operating Temperature: -4°F to 140°F (-20°C to 60°C).
- Cycle Rate: Up to 50 cycles per day depending on solar configuration.
- Warranty: 2-year manufacturer warranty.

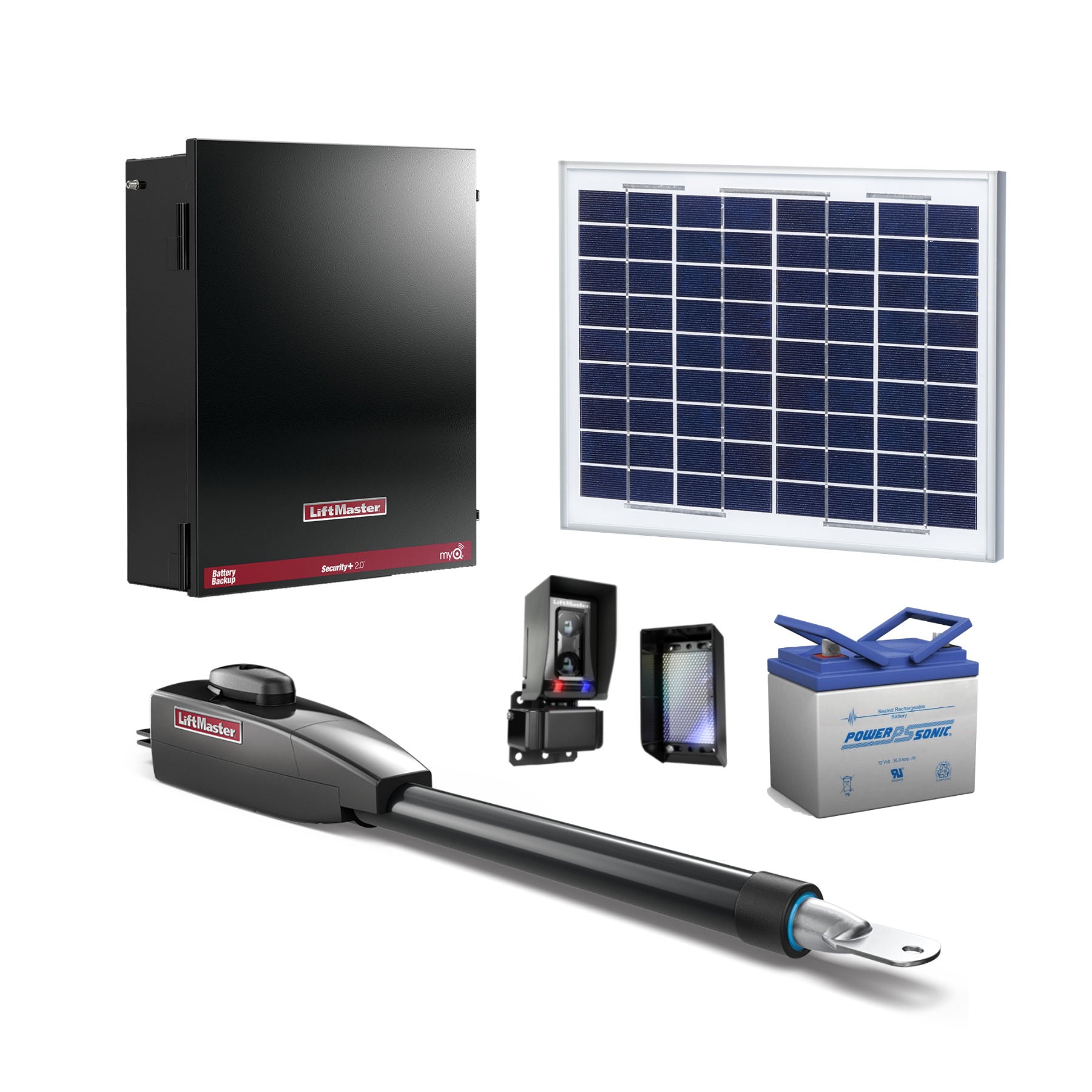

Package Includes
- (1) Single Arm
- (1) Extra large Control box
- (1) 33amp battery
- (1) Photoeye
- (1) 12V 20W Solar Panel for Single Gate
- (1) Standard Mounting Hardware
Conclusion
The LiftMaster LA412XL20W Single Swing Gate Opener delivers superior performance for homeowners who require an extra-large capacity gate opener. It’s ideal for high-cycle operations, remote properties, or areas requiring solar-powered gate automation. Its expandable solar capacity, durable components, and reliable safety features make it the best choice for long-term, eco-friendly gate automation.
