HySecurity SwingSmart Gate Operator

Commercial Swing Gate Operator with Smart Battery Backup

The HySecurity SwingSmart™ DC 20 series includes both the DC 20 (AC-powered) and DCS 20 (solar-ready) variants, offering high-performance swing gate automation for secure access control. Built to handle gates up to 20 feet and 1,300 pounds, these operators feature SmartDC logic, adaptive obstruction sensing, and built-in battery backup for uninterrupted operation. The rugged zinc-plated chassis and UL 325 compliance make them ideal for commercial sites, HOAs, and government facilities. The DCS 20 variant is specifically engineered for reliable performance on solar power.

Key Features

• Two models: DC 20 (AC-powered) and DCS 20 (solar-ready)
• Supports gates up to 20 ft and 1,300 lbs

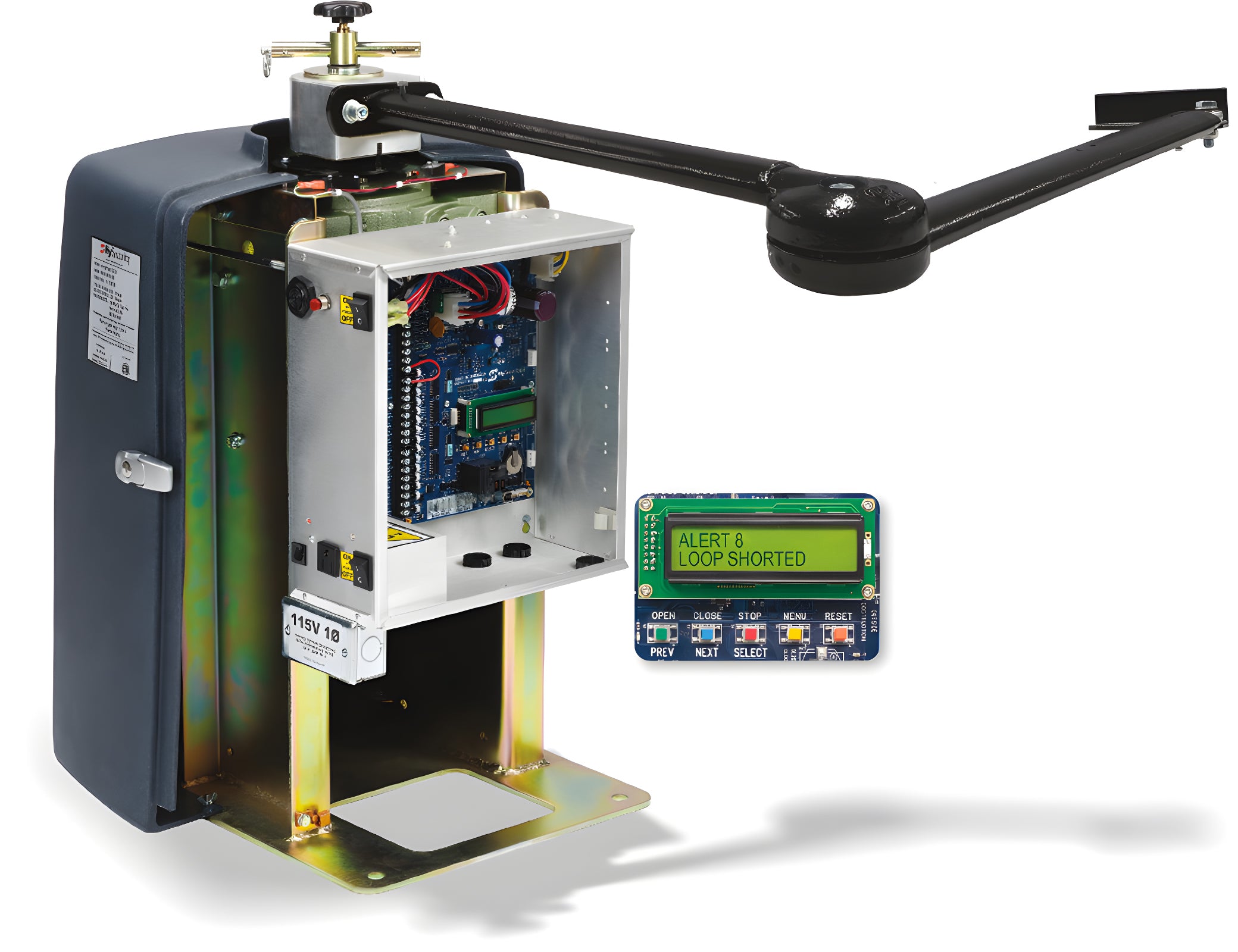

• SmartDC controller with LCD screen and over 70 programmable settings
• Adaptive obstruction detection with torque-limiting Taper Clamp
• Battery backup supports up to 300 cycles (standard) or 1,200 cycles (extended)
• Pre-wired EMX IRB-MON photo eye included
• Independent open and close speeds (10–15 seconds)
• Continuous-duty operation rated to 500,000 cycles
• Compatible with RS-232, RS-485, and USB interfaces
• UL 325 listed for Class I–IV secure access environments

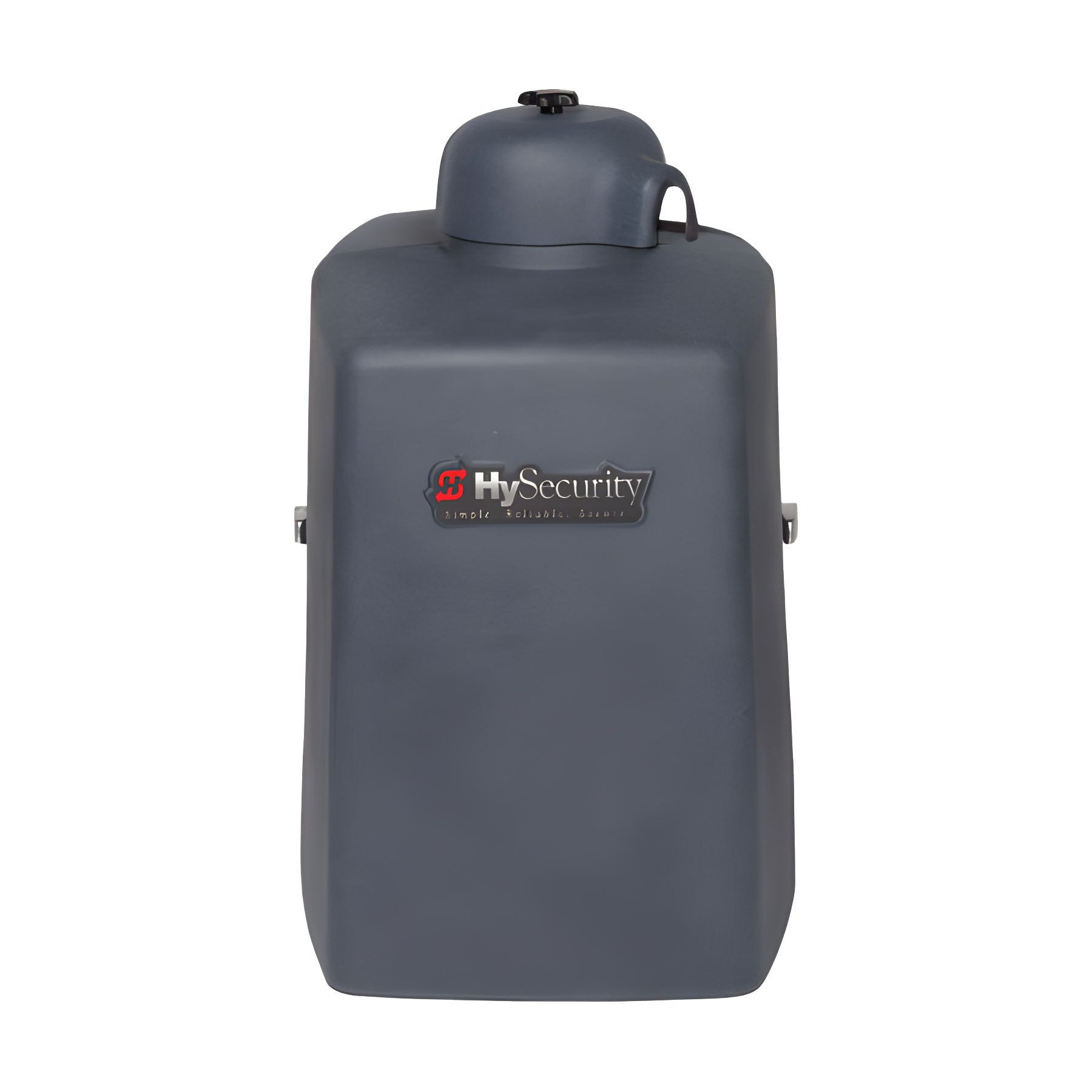

• Made in the USA with weather-resistant poly cover and zinc chassis

Technical Specifications

• Model: SwingSmart DC 20 / DCS 20
• Motor Type: Electromechanical, 24VDC
• Max Gate Length: 20 ft
• Max Gate Weight: 1,300 lbs at 12 ft, 800 lbs at 16 ft, 600 lbs at 20 ft
• Power Input AC Model: 115V / 208-230V AC
• Power Input DC Model: 24VDC solar (sold separately - minimum 40W panel)
• Battery Backup: 2 × 8Ah batteries (standard), up to 300 cycles
• Extended Backup (optional): 2 × 50Ah batteries, up to 1,200 cycles
• Operating Temperature: -13°F to 158°F
• Enclosure: Zinc-plated steel with polyethylene shell
• Included Accessories: 20 ft power harness, photo eye, batteries
• Compliance: UL 325, CSA C22.2
• Warranty: 5-year commercial, 7-year residential (with registration)

Available Models

• AC-powered - SwingSmart DC 20 115V / 208-230V AC
• Solar-powered - SwingSmart DCS 20 24VDC solar (panel sold separately)

Conclusion

The SwingSmart DC 20 and DCS 20 are heavy-duty swing gate operators built for critical perimeter access. Whether on-grid or solar-powered, these models offer unmatched reliability, safety compliance, and customization for high-traffic sites.
