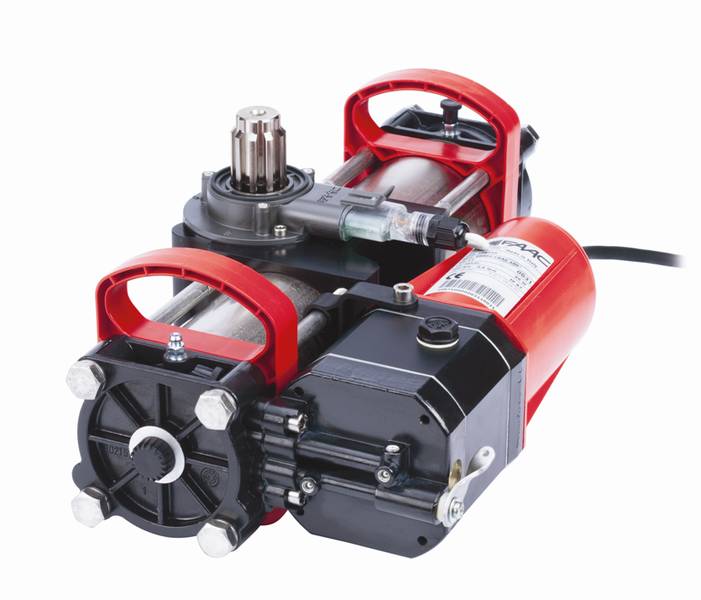

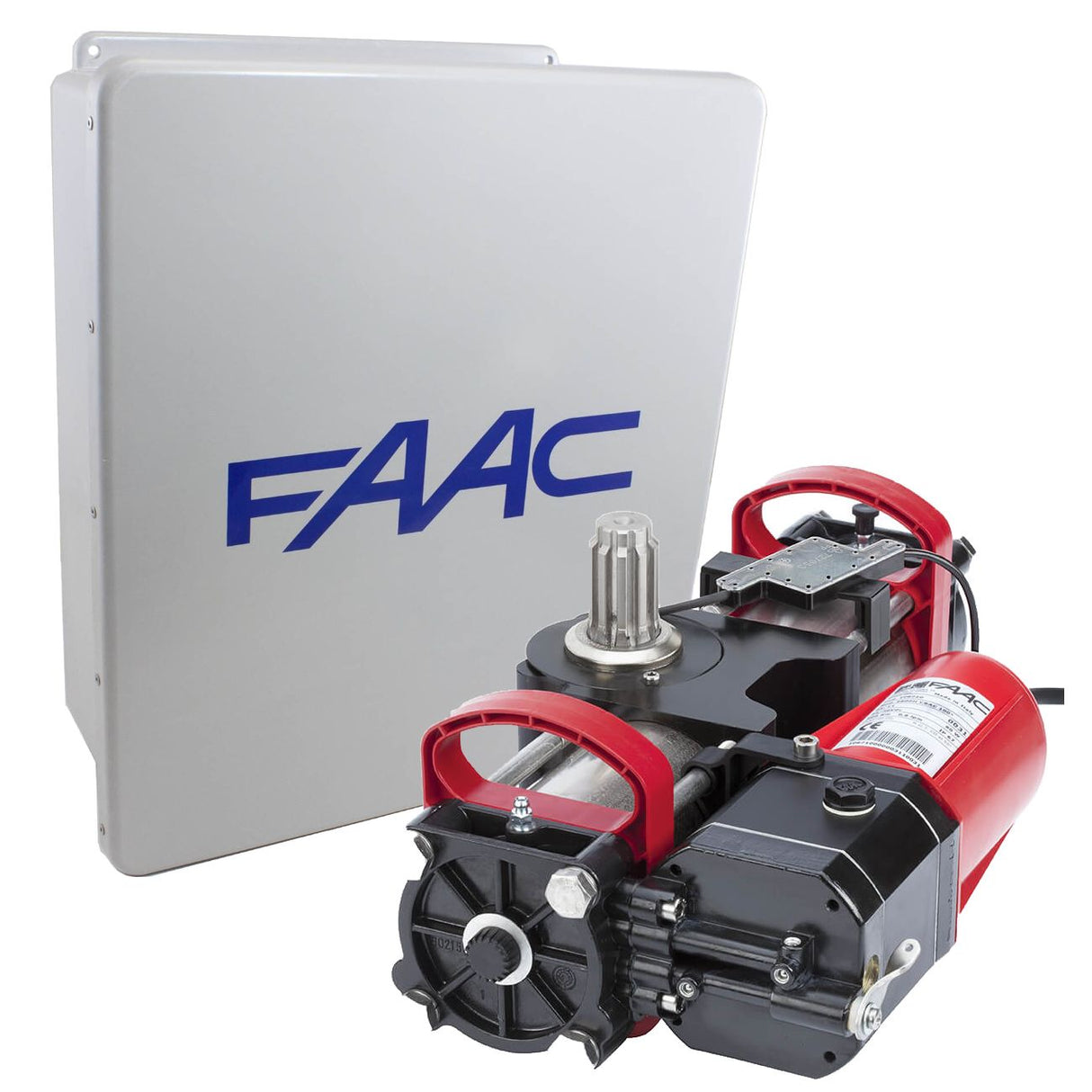

FAAC S800H In-Ground Hydraulic Swing Gate Opener

Discreet In-Ground Design for Seamless and Elegant Gate Automation

The FAAC S800H In-Ground Hydraulic Swing Gate Operator combines sleek, modern design with unmatched power and versatility. Engineered for residential, commercial, and heavy-duty use, this system handles gates weighing up to 1,760 lbs and spanning up to 16 feet (SBW model). Its in-ground installation ensures a discreet appearance, concealing all hardware to maintain the aesthetic integrity of your gate. Available in locking (CBAC) and non-locking (SBW) models, the S800H also supports solar power for eco-friendly, off-grid operation. This operator delivers precision, reliability, and seamless automation, making it an ideal choice for diverse settings.

Key Features

• Solar-Ready Operation: Fully compatible with solar power systems for sustainable and energy-efficient automation, perfect for off-grid or eco-conscious applications.
• (CBAC) Locking model: Built-in hydraulic locking holds the gate securely in both open and closed positions without requiring additional locks. Ideal for environments requiring high stability and enhanced security.
• (SBW) Non-Locking model: Allows the gate to swing freely under force, making it suitable for areas prone to strong winds or where gate flexibility is needed. Additional external locks can be added for increased security.
• Discreet In-Ground Installation: Hardware is concealed underground, preserving the elegance of your gate’s design.
• Hybrid Technology: Integrated high-resolution encoder ensures smooth operation and precise control of gate movement.
• Wide Opening Angle Options: Choose between 100° (max 113°) and 180° (max 187°) configurations to fit your gate layout.
• Integrated Mechanical Stops: Built-in stops simplify installation and improve reliability during operation.
• Durability and Safety: IP67-rated for dust and water resistance, ensuring long-lasting performance in any environment. Complies with UL325 safety standards for Class I-IV applications.
• Battery Backup: Guarantees uninterrupted operation during power outages for consistent security and convenience.

Available Models

CBAC Standard Kit with Locking Mechanism: Built-in hydraulic locking holds the gate securely in both open and closed positions without requiring additional locks. Ideal for environments requiring high stability and enhanced security.

• 100° Standard Finish: Part #108710.5
• 180° Standard Finish: Part #108712.5
• 100° Stainless Steel Finish: Part #108710.5SS
• 180° Stainless Steel Finish: Part #108712.5SS

SBW High Winds without Locking Mechanism: Allows the gate to swing freely under force, making it suitable for areas prone to strong winds or where gate flexibility is needed. Additional external locks can be added for increased security.

• 100° Standard Finish: Part #108714.5
• 180° Standard Finish: Part #108715.5
• 100° Stainless Steel Finish: Part #108714.5SS
• 180° Stainless Steel Finish: Part #108715.5SS

Technical Specifications

• Input Voltage: 24 VDC
• Power: 60 W
• Maximum Torque: 442 lbf.ft (600 Nm)
• Opening Angles: 100° (max 113°), 180° (max 187°)
• Maximum Leaf Dimensions: 13 ft (CBAC), 16 ft (SBW); up to 1,760 lbs (800 kg)
• Operating Temperature: -4°F to 131°F (-20°C to +55°C)
• Protection Class: IP67 (dustproof and waterproof)
• Operator Weight: 29 lbs (100° model), 37 lbs (180° model)

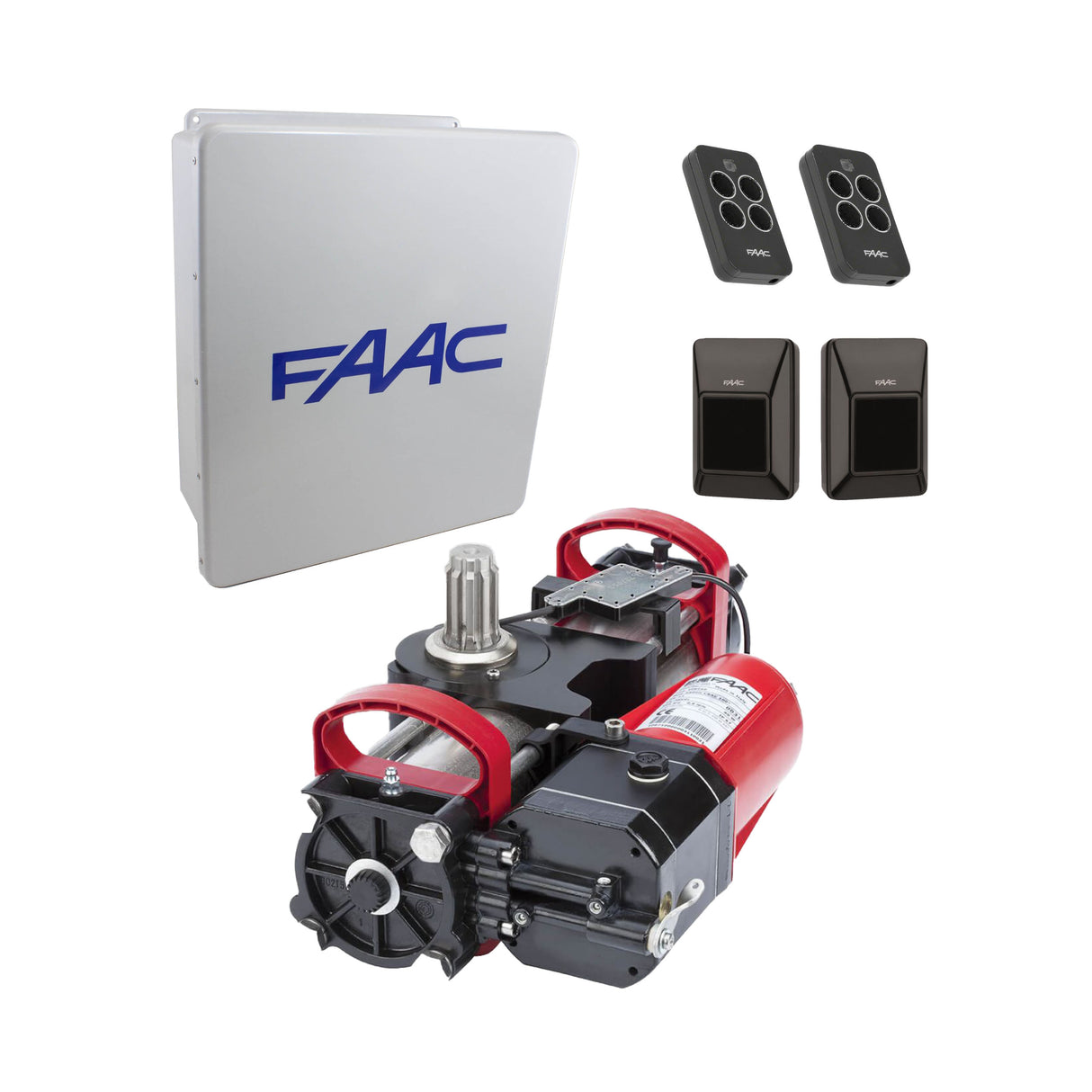

What’s Included

• FAAC S800H Hydraulic Operator (CBAC or SBW models)
• Integrated mechanical stops
• Splined shaft collar and support box
• E024U Control Board with enclosure
• Pair of XP30 Photobeams
• Two XT4 433 RC Remote Transmitters
• Hydraulic manual release
• 12V 8Ah backup batteries

Why Choose the FAAC S800H In-Ground Hydraulic Swing Gate Operator?

The FAAC S800H stands out as a leading choice for gate automation by combining advanced technology, durability, and aesthetics. Its solar compatibility offers an eco-friendly solution for modern properties, while the discreet in-ground design preserves the elegance of any gate. The locking (CBAC) model provides secure operation in both open and closed positions, making it ideal for high-security environments, while the non-locking (SBW) model delivers flexibility in windy areas or unique installations. Trusted for its precision, continuous operation, and compliance with UL325 standards, the S800H ensures reliable performance in residential and commercial settings.
