FAAC S800H In-Ground Dual-Swing Gate Opener

Discrete and Modern In-Ground Automation for Luxury Estates

The FAAC S800H In-Ground Dual-Gate Opener sets the standard for discreet, reliable, and high-performance gate automation. Leveraging advanced hydraulic technology, this system delivers smooth, powerful operation while preserving the aesthetic appeal of your property. Ideal for residential, commercial, and heavy-duty applications, it supports individual gate leaves weighing up to 1,760 lbs and spanning up to 16 feet (SBW model). Its in-ground installation conceals all hardware, maintaining a sleek and elegant look for your gates.

The S800H is available in locking (CBAC) and non-locking (SBW) configurations to meet specific needs, or flexibility in high-wind conditions. Solar compatibility adds an eco-friendly edge, making this opener the perfect solution for modern properties and luxury estates.

Key Features

• Hydraulic Technology: Delivers smooth, durable, and reliable performance, ideal for heavy-duty applications.
• Solar-Ready Operation: Fully compatible with solar power systems, enabling energy-efficient and eco-friendly gate automation for off-grid properties.
• (CBAC) Locking Model: Built-in hydraulic locking secures the gate in both open and closed positions, providing unmatched stability and security.
• (SBW) High Winds, Non-Locking Model: Designed for flexibility in windy areas, allowing gates to swing freely. Additional external locks can be added for enhanced security.
• Discreet In-Ground Installation: All hardware is concealed underground, preserving the clean and modern appearance of your property.
• Hybrid Technology: Integrated high-resolution encoder ensures precise control and smooth, reliable operation.
• Wide Opening Angles: Choose between 100° (max 113°) and 180° (max 187°) configurations to fit your gate layout.

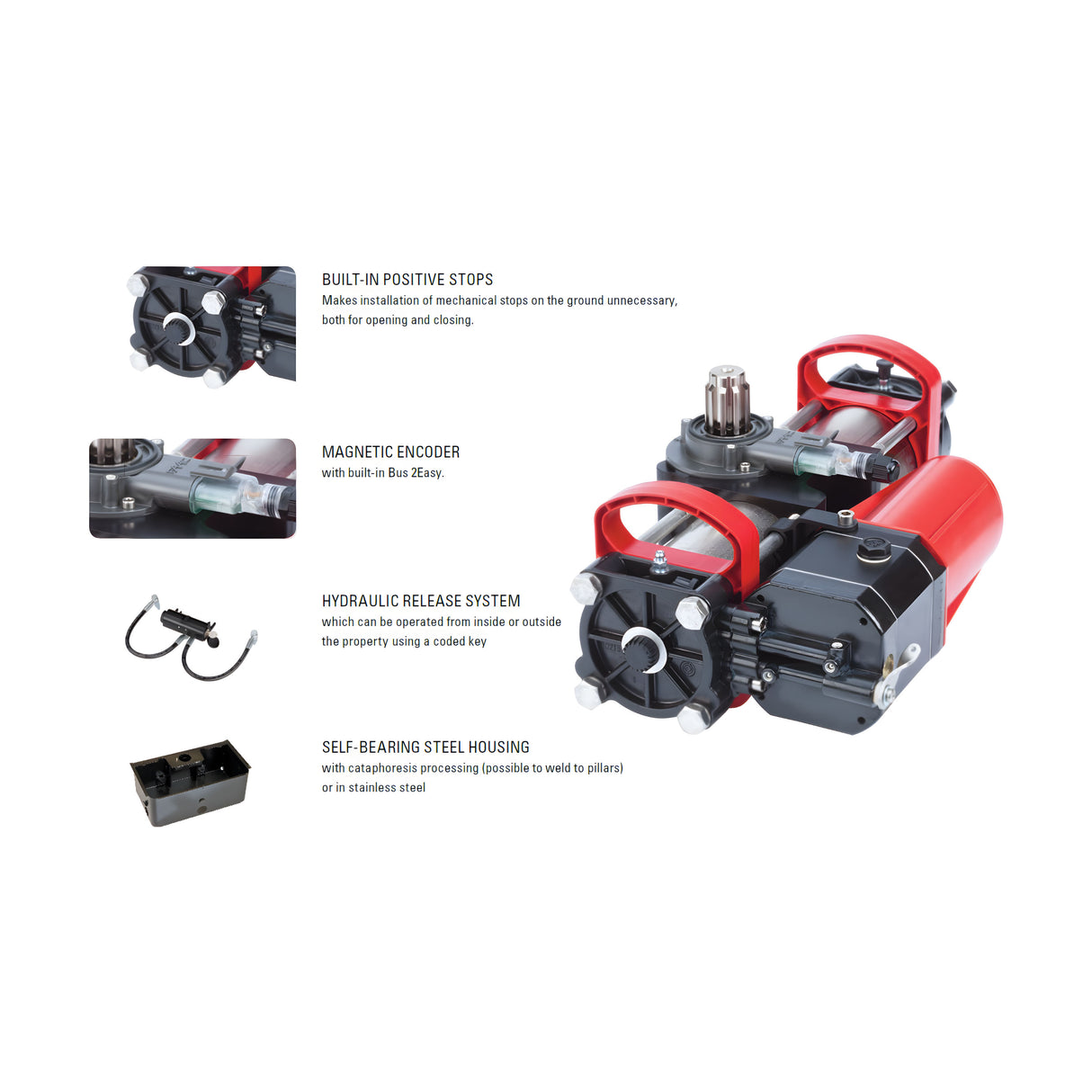

• Integrated Mechanical Stops: Built-in stops simplify installation and enhance the system’s reliability.
• Durability and Safety: IP67-rated protection ensures dustproof and waterproof durability. Meets UL325 safety standards for Class I-IV applications.
• Battery Backup: Guarantees uninterrupted operation during power outages for consistent security and convenience.

Models and Kits

• CBAC (Locking) 100° Standard Finish Kits (Part #108710.5 and #108710151.5)
• CBAC (Locking) 180° Standard Finish Kits (Part #108712.5 and #108712151.5)
• CBAC (Locking) 100° Stainless Steel Finish Kits (Part #108710.5SS and #108710151.5SS)
• CBAC (Locking) 180° Stainless Steel Finish Kits (Part #108712.5SS and #108712151.5SS)
• SBW (High Winds) 100° Standard Finish Kits (Part #108714.5 and #108714151.5)
• SBW (High Winds) 180° Standard Finish Kits (Part #108715.5 and #108715151.5)
• SBW (High Winds) 100° Stainless Steel Finish Kits (Part #108714.5SS and #108714151.5SS)
• SBW (High Winds) 180° Stainless Steel Finish Kits (Part #108715.5SS and #108715151.5SS)

Technical Specifications

• Input Voltage: 24 VDC
• Power: 60 W
• Maximum Torque: 442 lbf.ft (600 Nm)
• Opening Angles: 100° (max 113°), 180° (max 187°)
• Maximum Leaf Dimensions: 13 ft (CBAC), 16 ft (SBW); up to 1,760 lbs (800 kg) per leaf
• Operating Temperature: -4°F to 131°F (-20°C to +55°C)
• Protection Class: IP67 (dustproof and waterproof)
• Operator Weight: 29 lbs (100° model), 37 lbs (180° model)

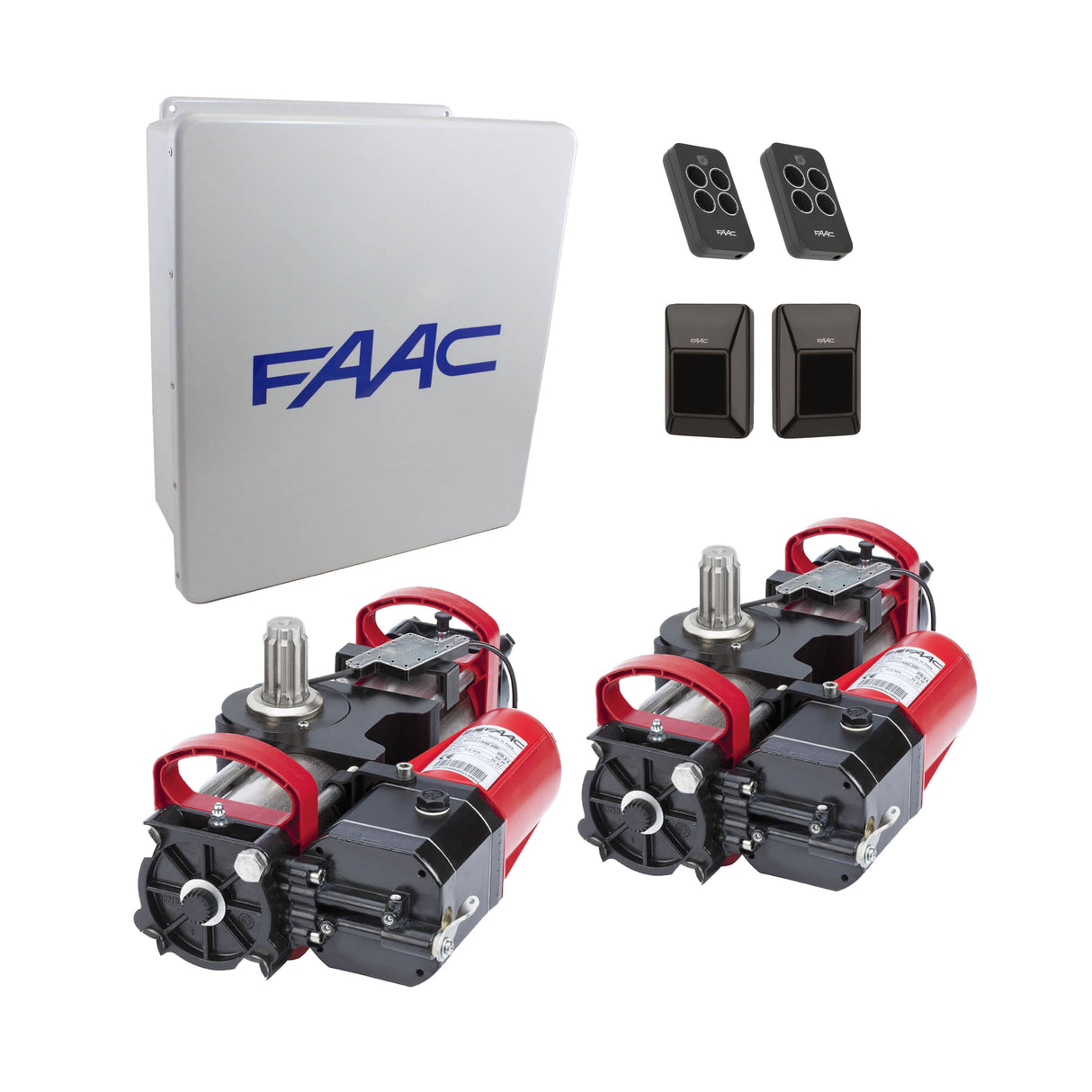

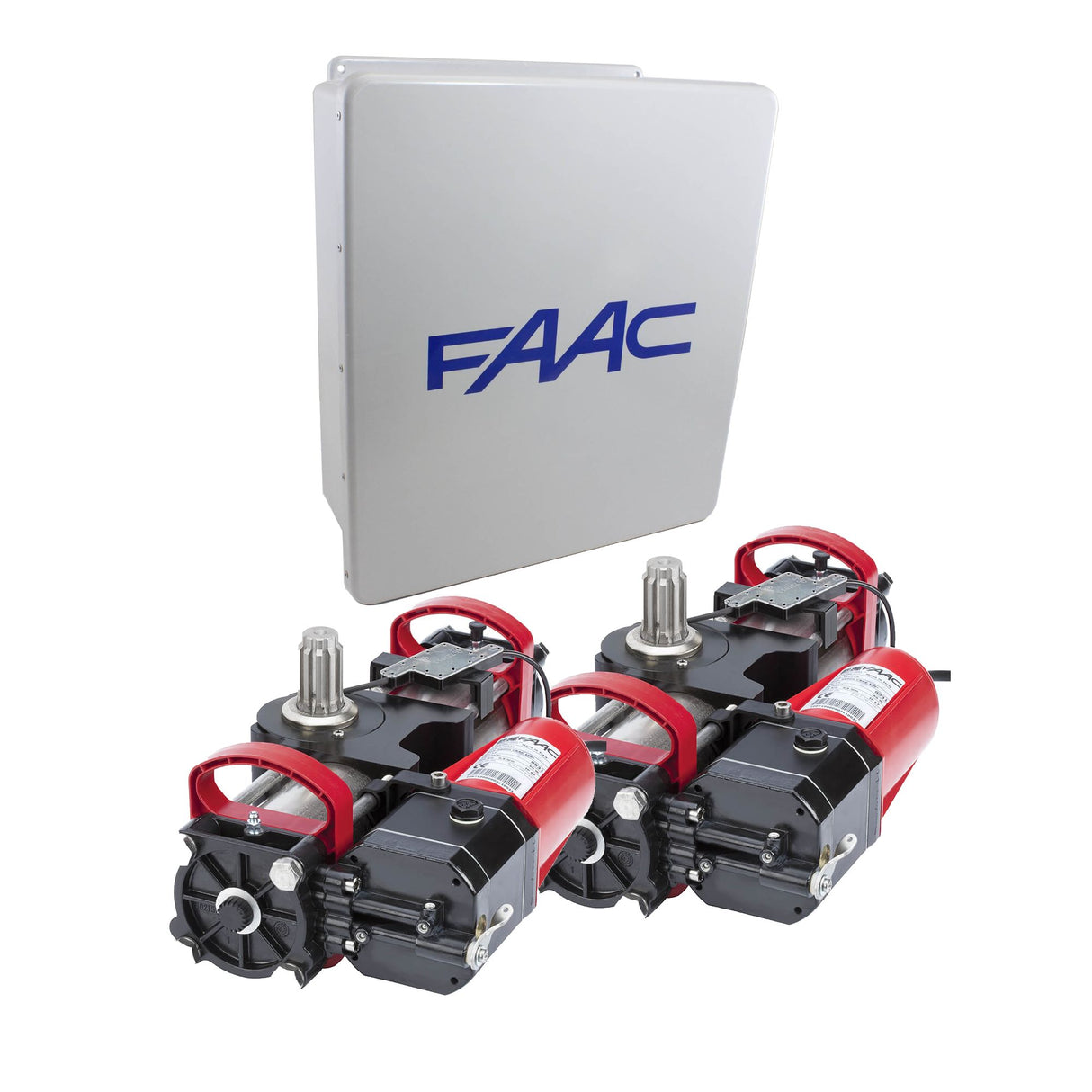

What’s Included

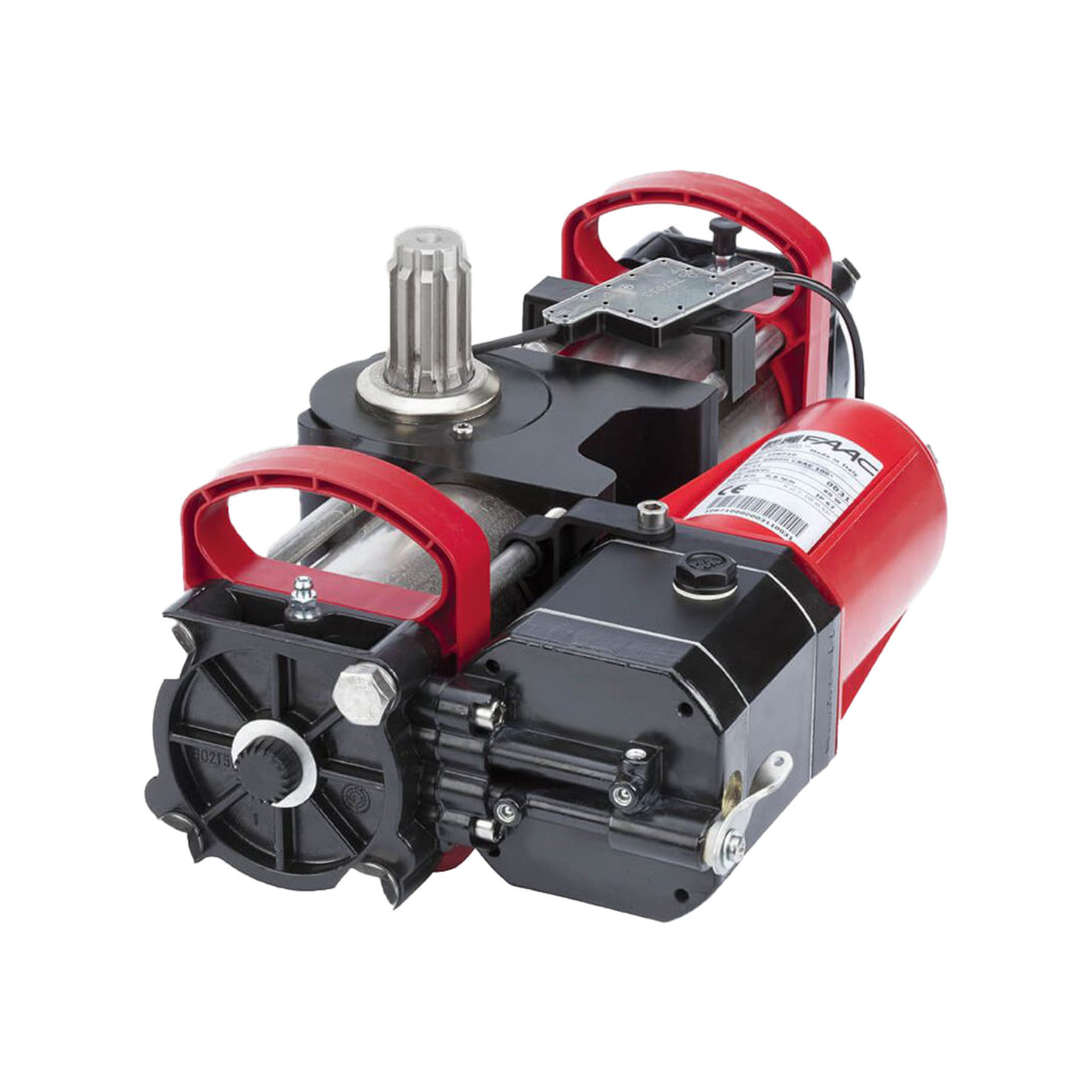

• FAAC S800H Hydraulic Operators (CBAC or SBW models)
• Integrated mechanical stops

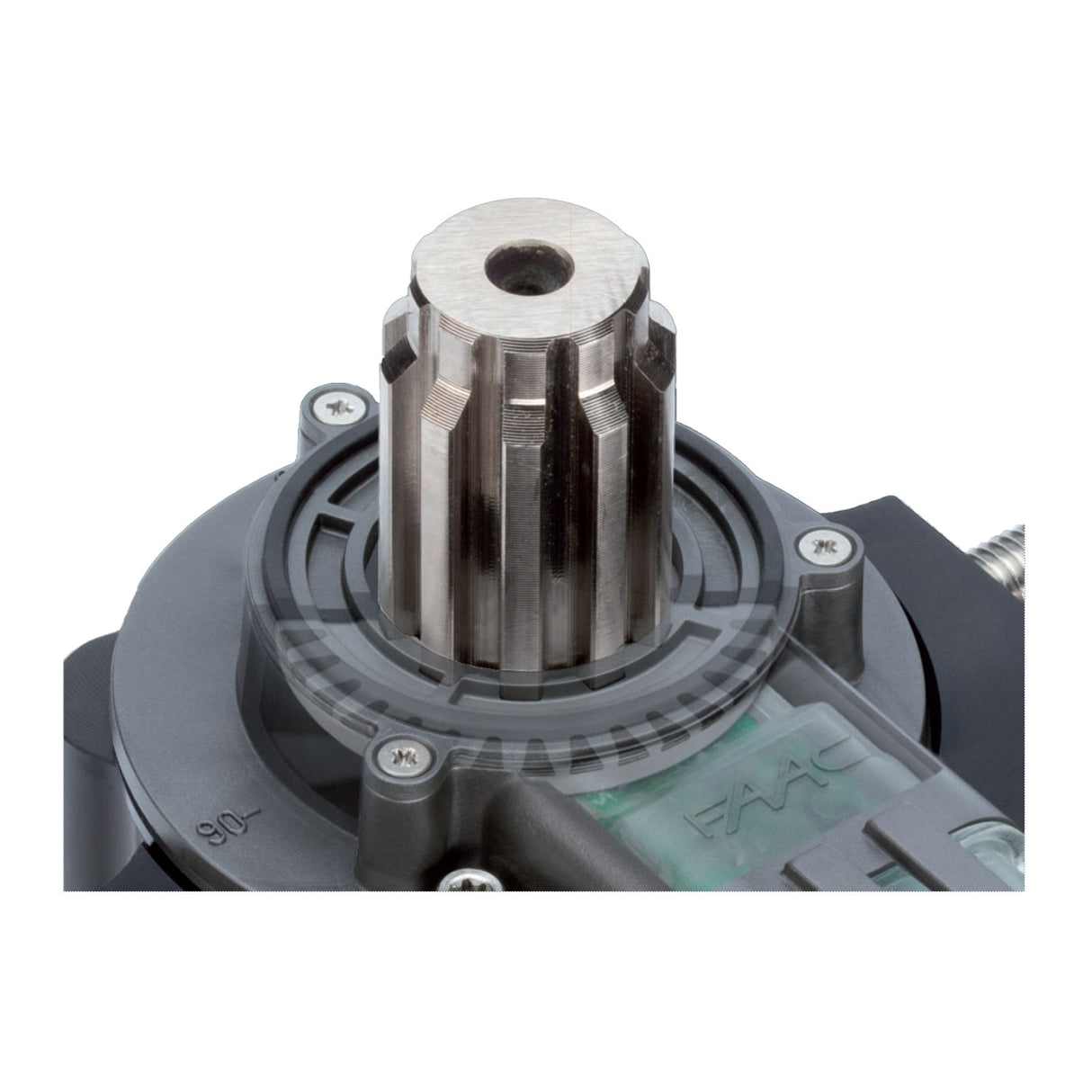

• Splined shaft collars and support boxes

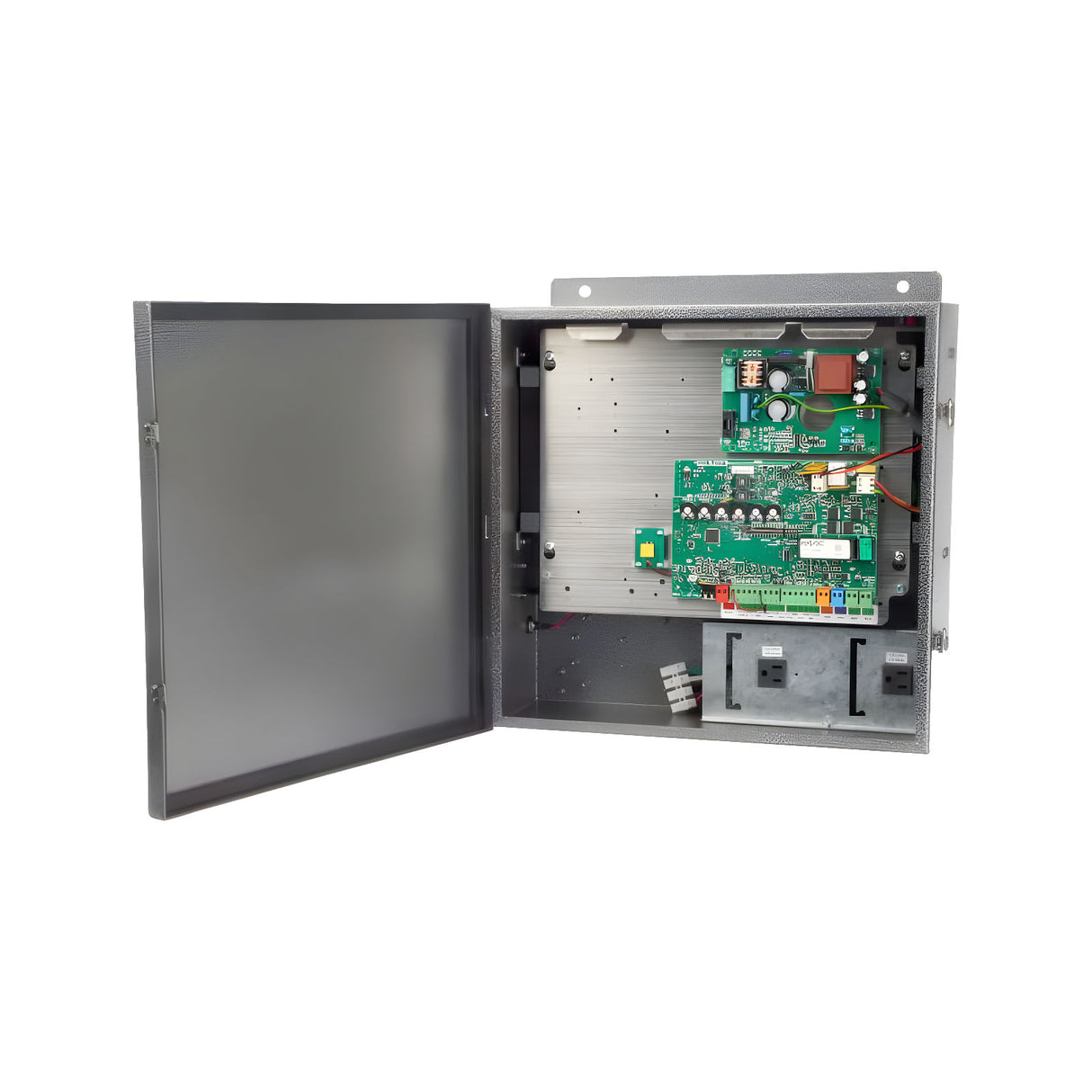

• E024U Control Board with enclosure
• Pair of XP30 Photobeams
• Two XT4 433 RC Remote Transmitters
• Hydraulic manual releases
• 12V 8Ah backup batteries

Conclusion

The FAAC S800H Dual-Gate Opener offers unmatched performance, security, and sustainability. Its in-ground design ensures a discreet and elegant appearance while providing robust operation for heavy-duty gates. Locking (CBAC) models deliver enhanced security for high-stability environments, while non-locking (SBW) models offer flexibility for properties exposed to strong winds. The solar-ready compatibility makes it an eco-conscious choice for modern homes and businesses. Trusted for precision, durability, and compliance with UL325 safety standards, the FAAC S800H is the ultimate solution for seamless gate automation.
