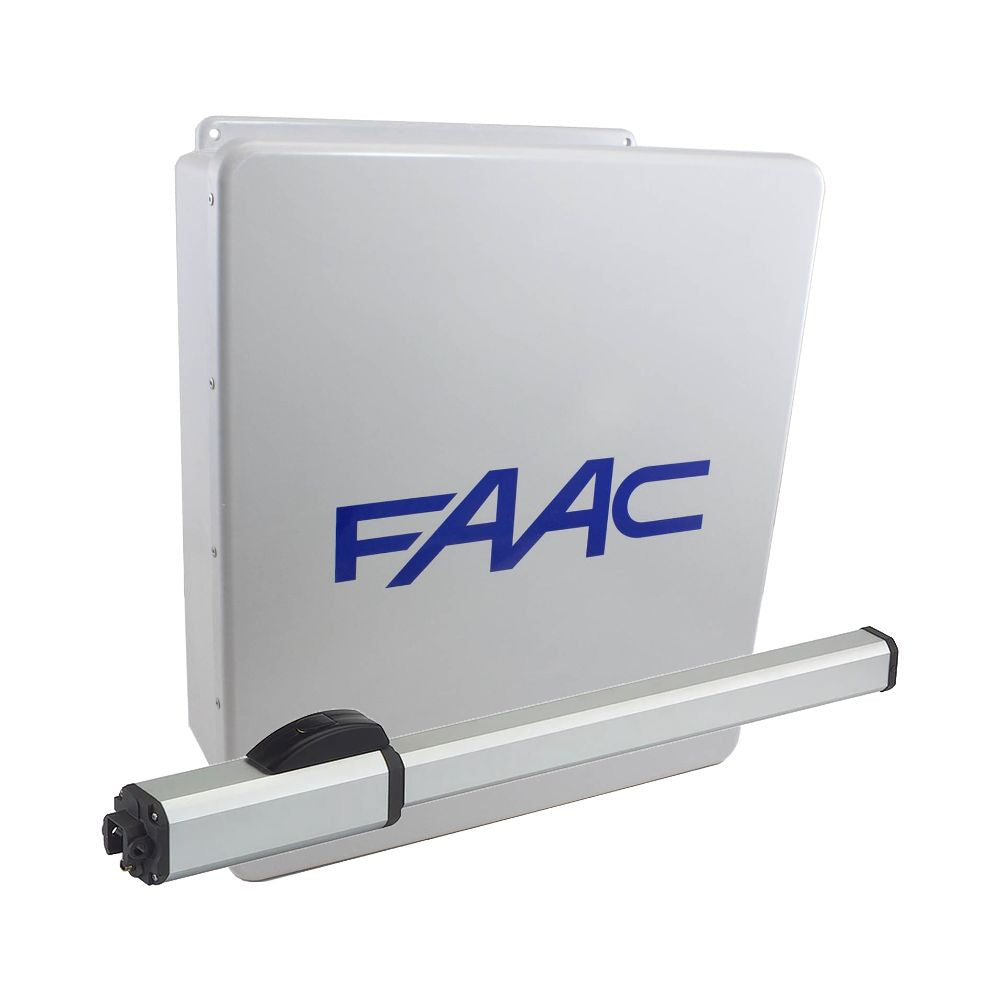

FAAC 422 Single Swing Gate Opener Kit (115 VAC)

Download Specs Download Manual

The FAAC 422 Single Swing Gate Opener Kit (115 VAC) combines durability, performance, and advanced hydraulic technology to deliver seamless gate automation. Designed for residential and light commercial applications, this versatile kit supports gates up to 10 feet wide and 900 pounds. With its CBAC locking system, quiet operation, and weather-resistant construction, the FAAC 422 ensures reliable access control in any environment.

Key Features

• Hydraulic Efficiency: Supports swing gates up to 10 feet in width and 900 pounds in weight, ensuring smooth and consistent operation.
• Secure CBAC Locking System: Locks the gate in both open and closed positions for enhanced security and peace of mind.
• Fast and Reliable: Opens gates 90° in approximately 12 seconds, handling up to 55 cycles per hour with ease.
• Weather-Resistant Construction: IP55-rated for protection against dust and water, ideal for outdoor installations in various climates.
• User-Friendly Control Panel: The included 455D control board offers multiple programmable logics, adjustable thrust force, and fail-safe functionality.
• Temperature Resilience: Operates in temperatures ranging from -4°F to 131°F, making it suitable for diverse weather conditions.
• Low Maintenance: Self-lubricating design ensures long-term durability and minimal upkeep.

Technical Specifications

• Input Voltage: 115 VAC
• Power Consumption: 220 W
• Thrust Force: 1124 lbf (500 daN)
• Maximum Leaf Width: 10 ft (3 m)
• Maximum Leaf Weight: 900 lb (410 kg)
• Rod Stroke: 9.8 in (250 mm)
• Opening Time: Approx. 12 seconds for 90° rotation
• Usage Frequency: 55 cycles/hour
• Operating Temperature: -4°F to 131°F (-20°C to +55°C)
• Protection Rating: IP55
• Operator Dimensions: 38.8 x 4.7 x 3.3 inches (987 x 120 x 85 mm)
• Weight: 15.4 pounds (7 kg)

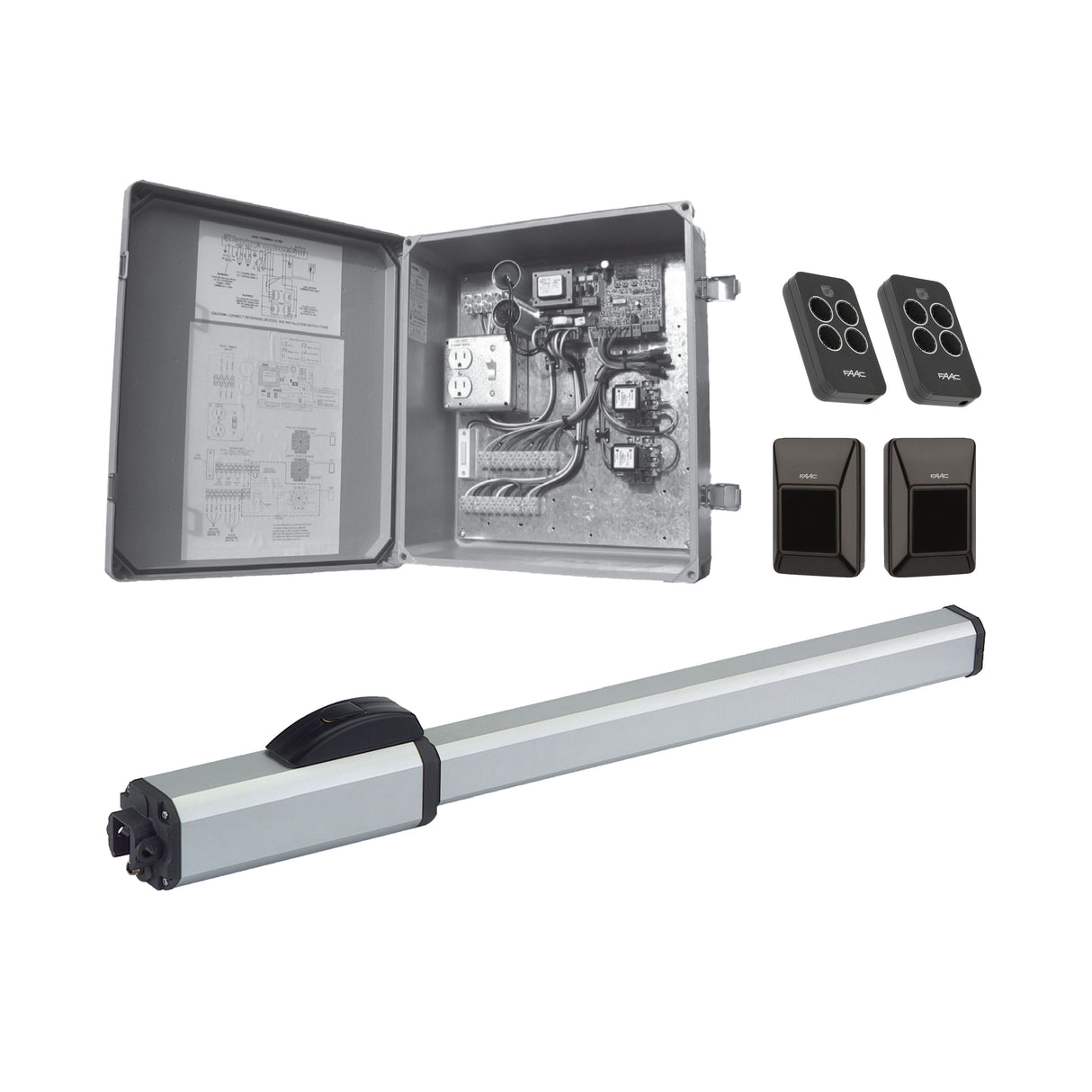

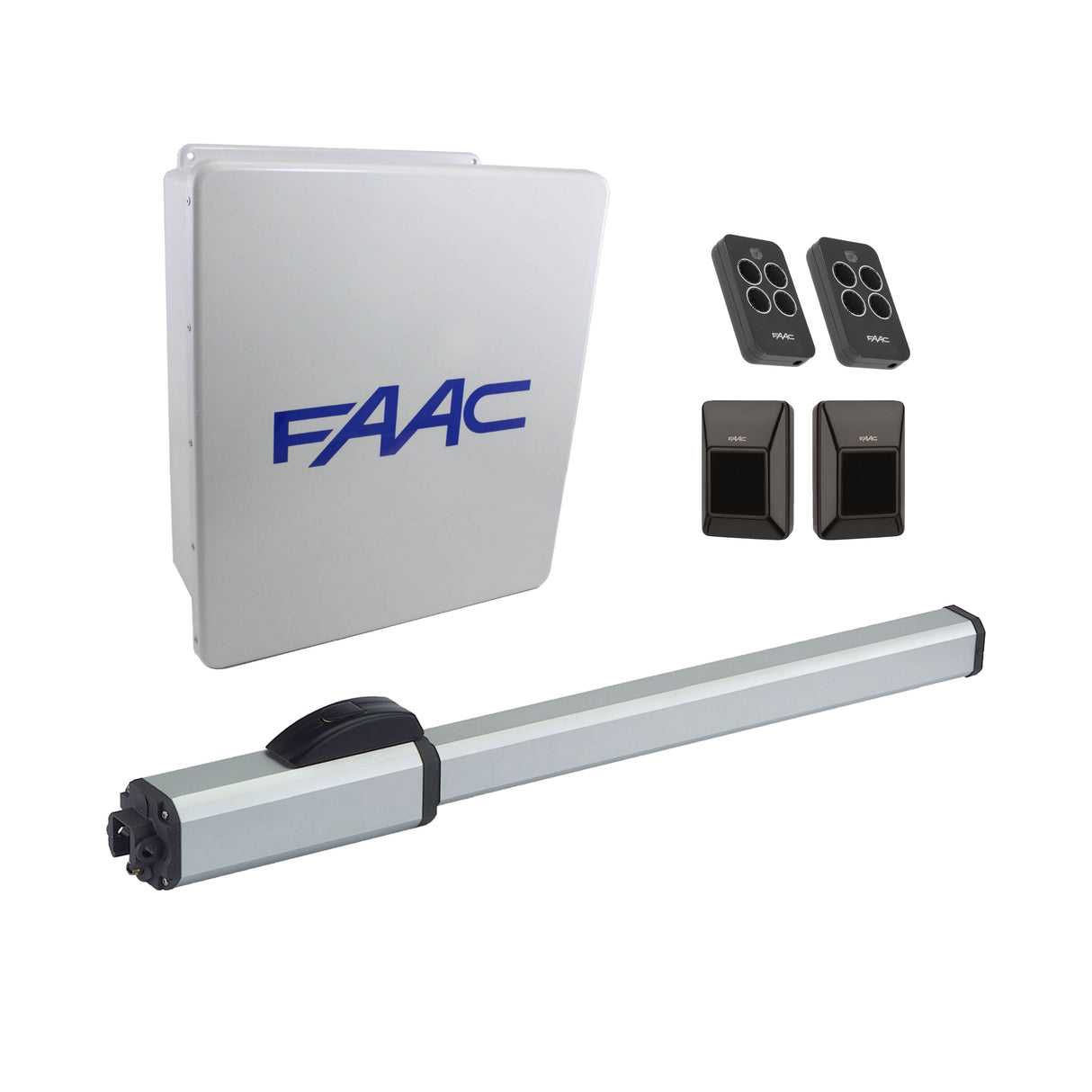

What's Included

• 1 FAAC 422 CBAC Hydraulic Operator
• 1 Prewired Fiberglass Enclosure (14"x16")
• 1 455D Control Panel (115 VAC)
• 1 Receiver (433 RC Plug-In)
• 2 XT4 433 RC 4-Channel Transmitters
• 1 Pair of XP 30 Photobeam Photocells
• 2 XP 30 Conduit Adapters

Why Choose the FAAC 422 Single Swing Gate Opener Kit?

The FAAC 422 stands out as a robust, low-maintenance solution for gate automation. Its hydraulic design ensures quiet, efficient performance with minimal wear, while the CBAC locking system provides additional security for residential and light commercial properties. With a weather-resistant build and advanced control capabilities, this kit is a reliable choice for those seeking long-lasting and hassle-free gate automation.
