FAAC 422 Dual Swing Gate Opener Kit (115 VAC)

Faac 422 Dual Swing Gate Kit 115V

The FAAC 422 Dual Swing Gate Opener Kit (115 VAC) is a premium hydraulic solution designed for reliable and efficient automation of bi-parting swing gates. Built to handle gate leaves up to 10 feet wide and 900 pounds each, this system is ideal for residential and light commercial properties. With its CBAC locking system, advanced control panel, and weather-resistant design, the FAAC 422 delivers smooth, quiet, and secure operation for years to come.

Key Features

• Dual Hydraulic Operators: Automates two gate leaves up to 10 feet wide and 900 pounds each, offering synchronized and powerful performance.
• CBAC Locking System: Locks gates securely in both open and closed positions for enhanced safety and peace of mind.
• Advanced Control Board: The 455D control panel provides programmable logics, adjustable thrust force, and fail-safe functionality to suit your needs.
• Fast Operation: Opens gates 90° in approximately 12 seconds, handling up to 55 cycles per hour for reliable performance.
• Weather-Resistant Design: IP55-rated construction ensures durability against dust and water, making it suitable for outdoor installations in all climates.
• Quiet and Efficient: Hydraulic technology ensures smooth, noise-free gate movement with minimal wear and tear.
• Low Maintenance: Self-lubricating design minimizes maintenance needs, ensuring long-lasting performance.


Technical Specifications

• Input Voltage: 115 VAC
• Power Consumption: 220 W per operator
• Thrust Force: 1124 lbf (500 daN)
• Maximum Gate Width: 10 ft per leaf
• Maximum Gate Weight: 900 lb per leaf
• Rod Stroke: 9.8 in (250 mm)
• Opening Time: Approx. 12 seconds for 90° rotation
• Usage Frequency: 55 cycles/hour
• Operating Temperature: -4°F to 131°F (-20°C to +55°C)
• Protection Class: IP55
• Operator Dimensions: 38.8 x 4.7 x 3.3 inches (987 x 120 x 85 mm)

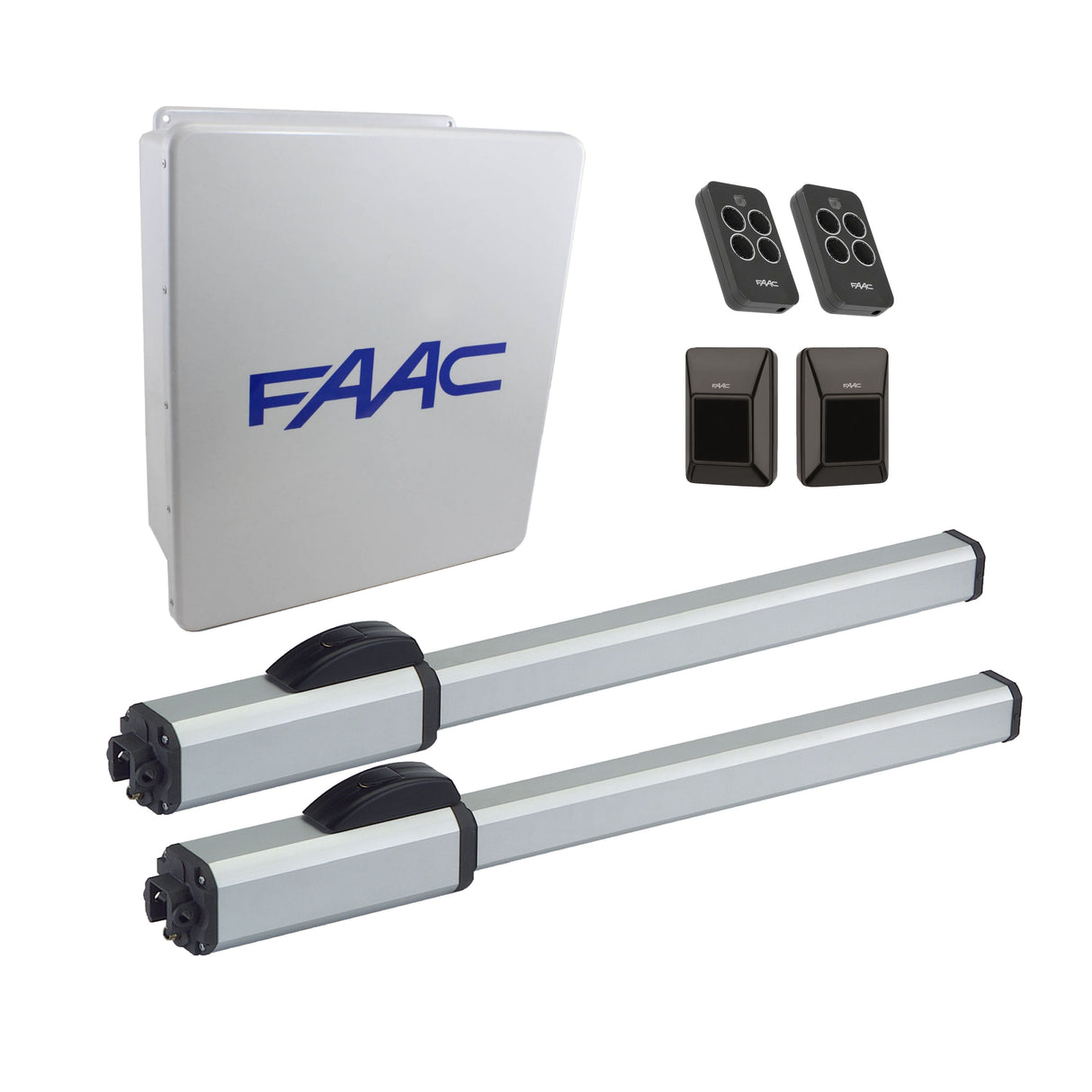

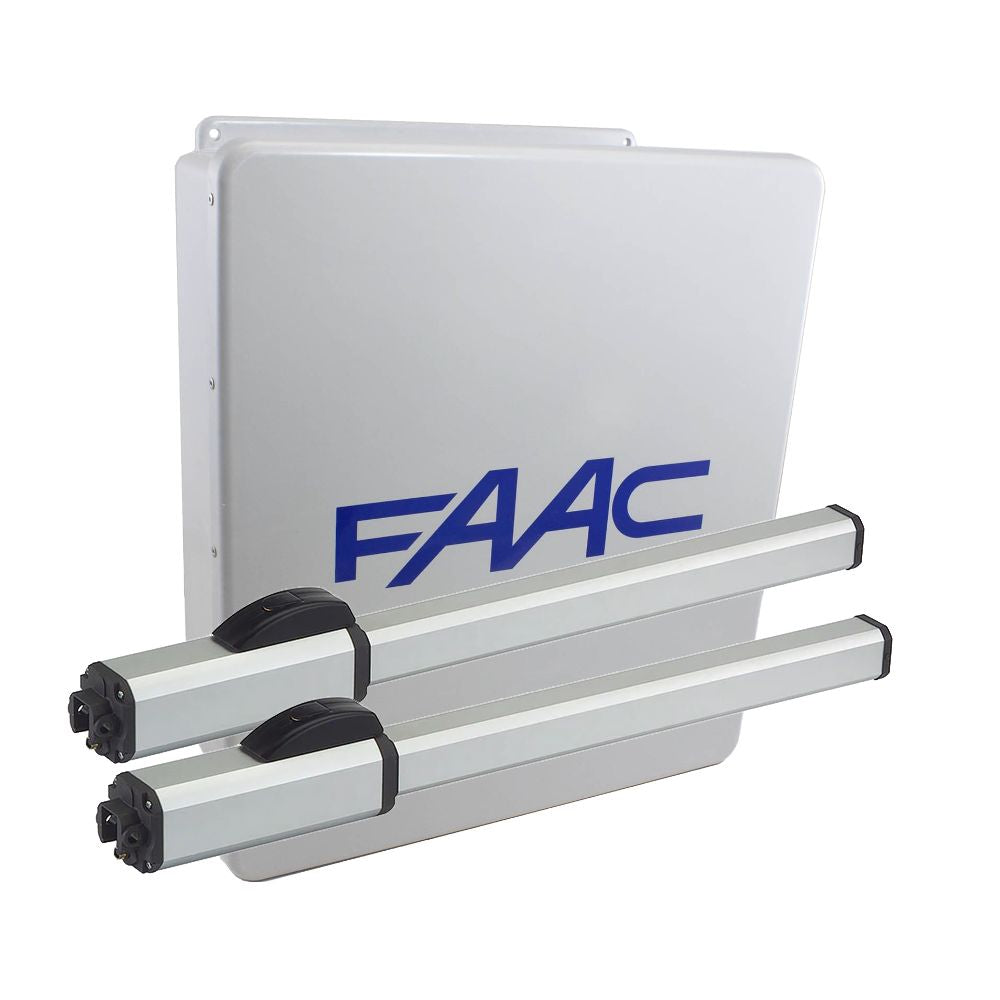

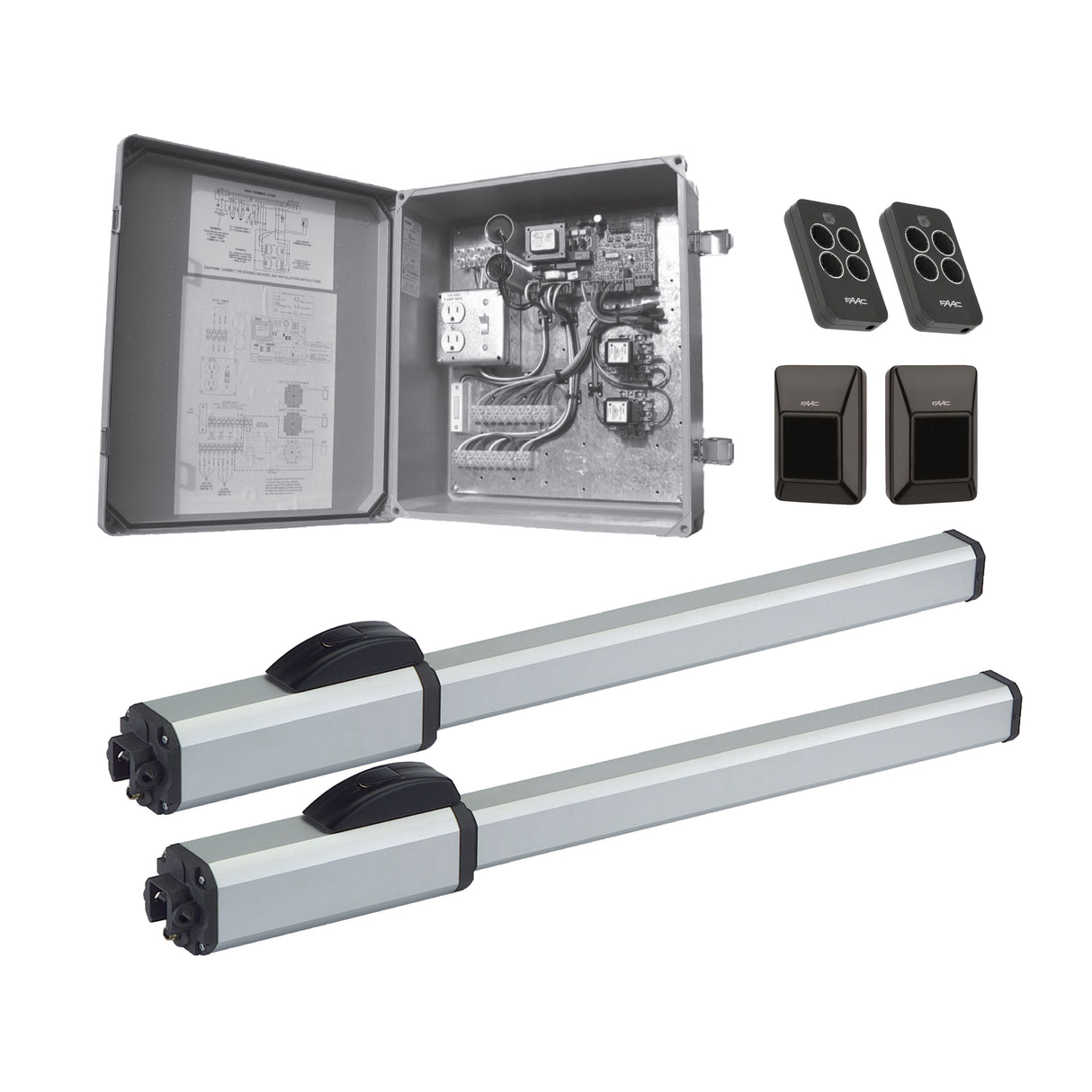

What’s Included

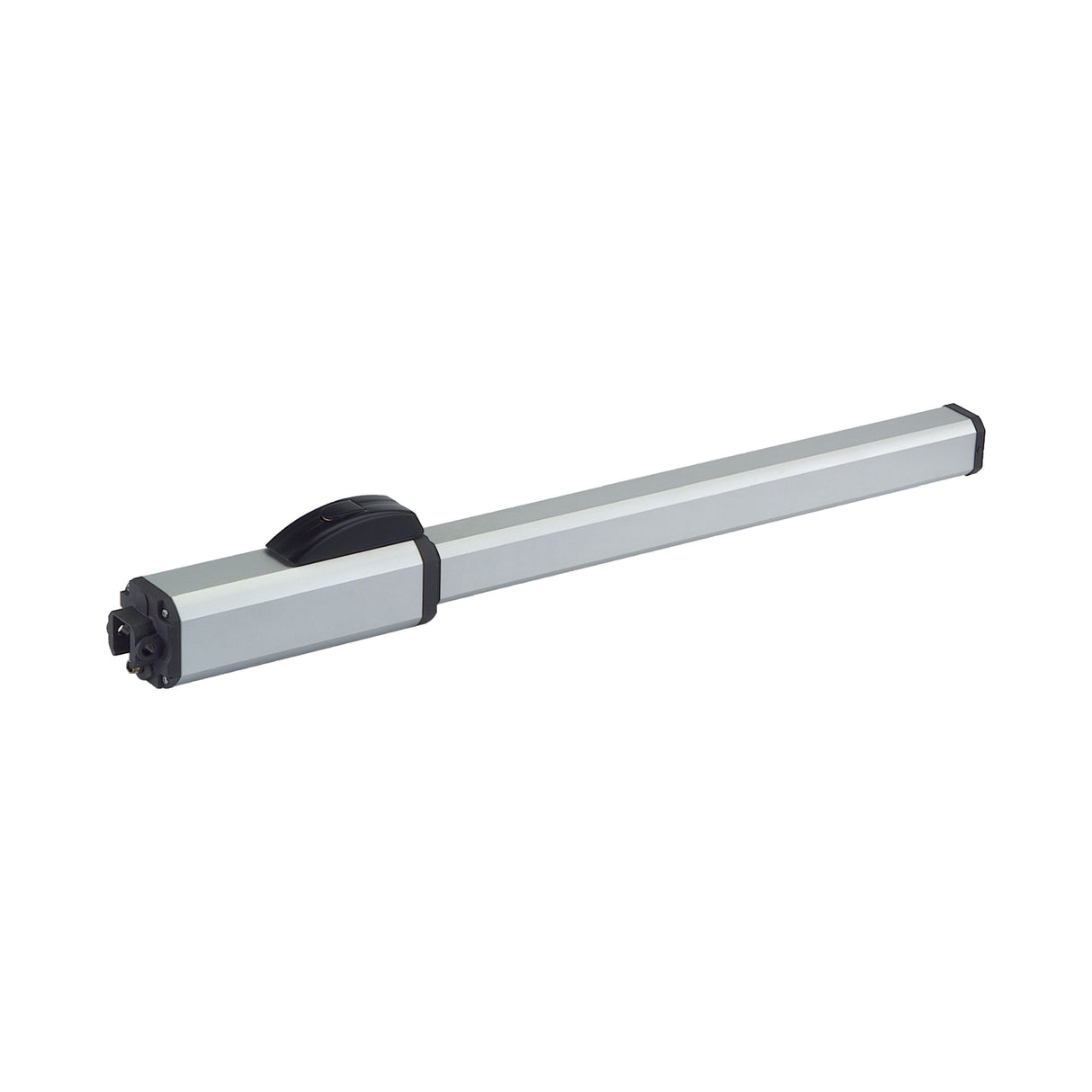

• 2 FAAC 422 CBAC Hydraulic Operators
• 1 Prewired Fiberglass Enclosure (14"x16")
• 1 455D Control Panel (115 VAC)
• 1 Receiver (433 RC Plug-In)
• 2 XT4 433 RC 4-Channel Transmitters
• 1 Pair of XP 30 Photobeam Photocells
• 2 XP 30 Conduit Adapters

Why Choose the FAAC 422 Dual Swing Gate Opener Kit?

The FAAC 422 Dual Swing Gate Opener Kit (115 VAC) stands out for its robust hydraulic design, delivering unmatched reliability and durability. The CBAC locking system ensures gates are securely locked in both open and closed positions, while the weather-resistant construction protects against harsh conditions. With advanced programming capabilities and minimal maintenance requirements, this kit is the perfect choice for residential and light commercial properties looking for a dependable and efficient gate automation solution.
